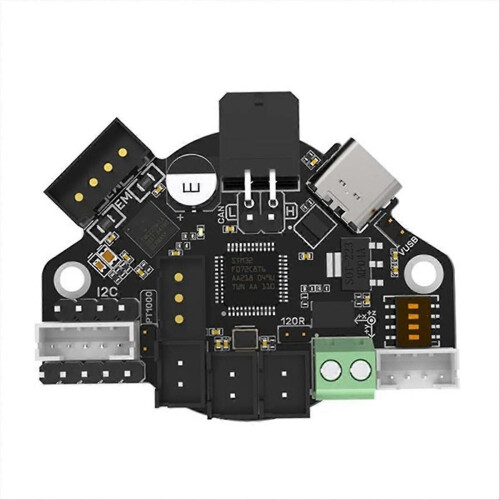

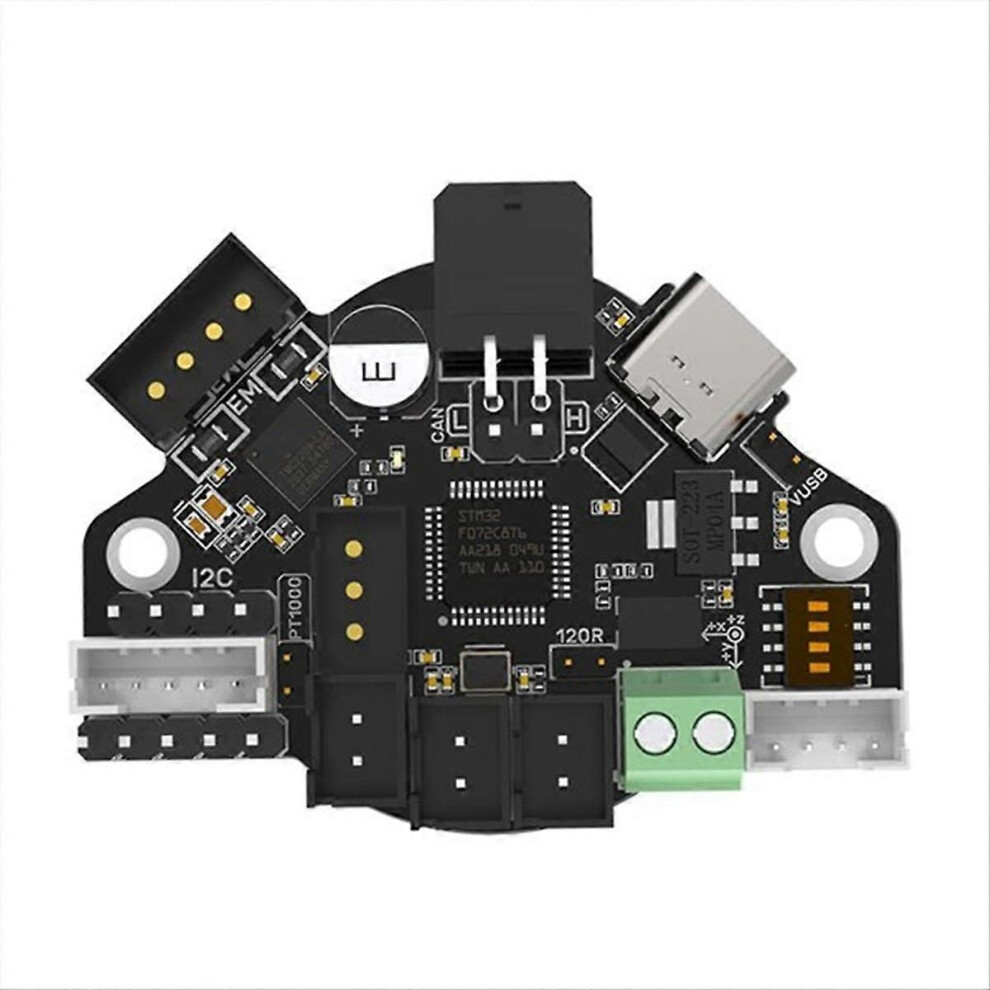

Extruder Breakout Board Support Canbus with MAX31865 EBB36

Extruder Breakout Board Support Canbus with MAX31865 EBB36 Beschreibung

Extruder Breakout Board Support Canbus with MAX31865 EBB36
1. With BOOT and RESET buttons reserved, users can update the firmware via DFU mode by USB.
2. Added protection circuit on the thermistor avoids burning the main control chip caused by leakage current from the heating rod.
3. Connect the USB witha jumper cap to power on, which effectively isolates the main control board DC-DC from USB 5V.
4. Reserved I2C interface allows for filament broke and clogged detection, and supports other DIY functions.
5. Added anti-flyback diodes on the heating rod and fans' ports effectively protect the MOS tube from being burned due to reverse voltage.
6. Anti-reverse connection protection on the power interface prevents users from burning the motherboard when mistakenly connecting the reverse power line during DIY.
External Dimensions: 40mmx 40mm
Installation Dimensions:Hole spacing 31mmx 31mm, M3 screw holex 4
Microprocessor: ARM -M0 STM32F072C8T6 48MHz
Input Voltage: DC12V-DC24V 9A
Logic Voltage: DC 3.3V
Heating Interface: Heating Rod (E0), maximum output current: 5A
Onboard Sensor: ADXL345
Colour:As shown
Material:PCB
sytle:EBB36
Due to different batches, there may be differences in product appearance and printed text, which not affect use
Package Contents:
1 * Extruder Breakout Board Kit
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
