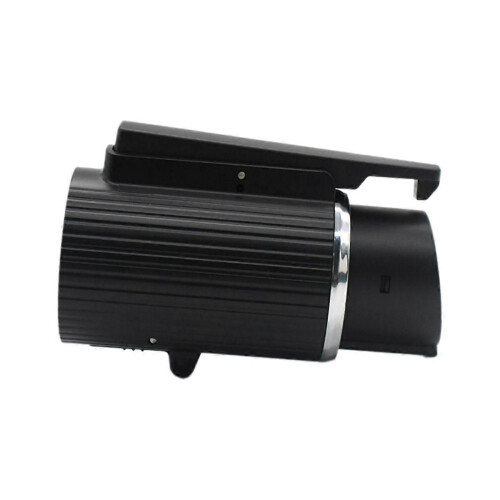

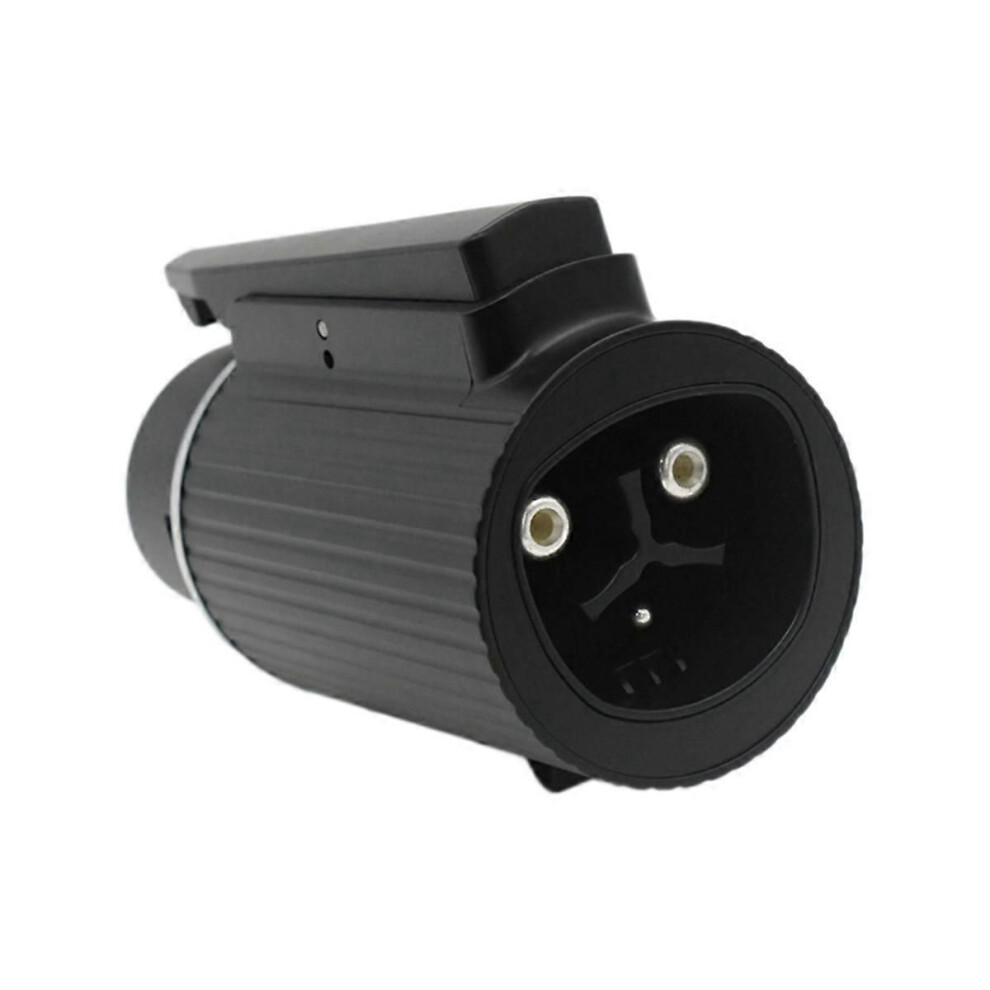

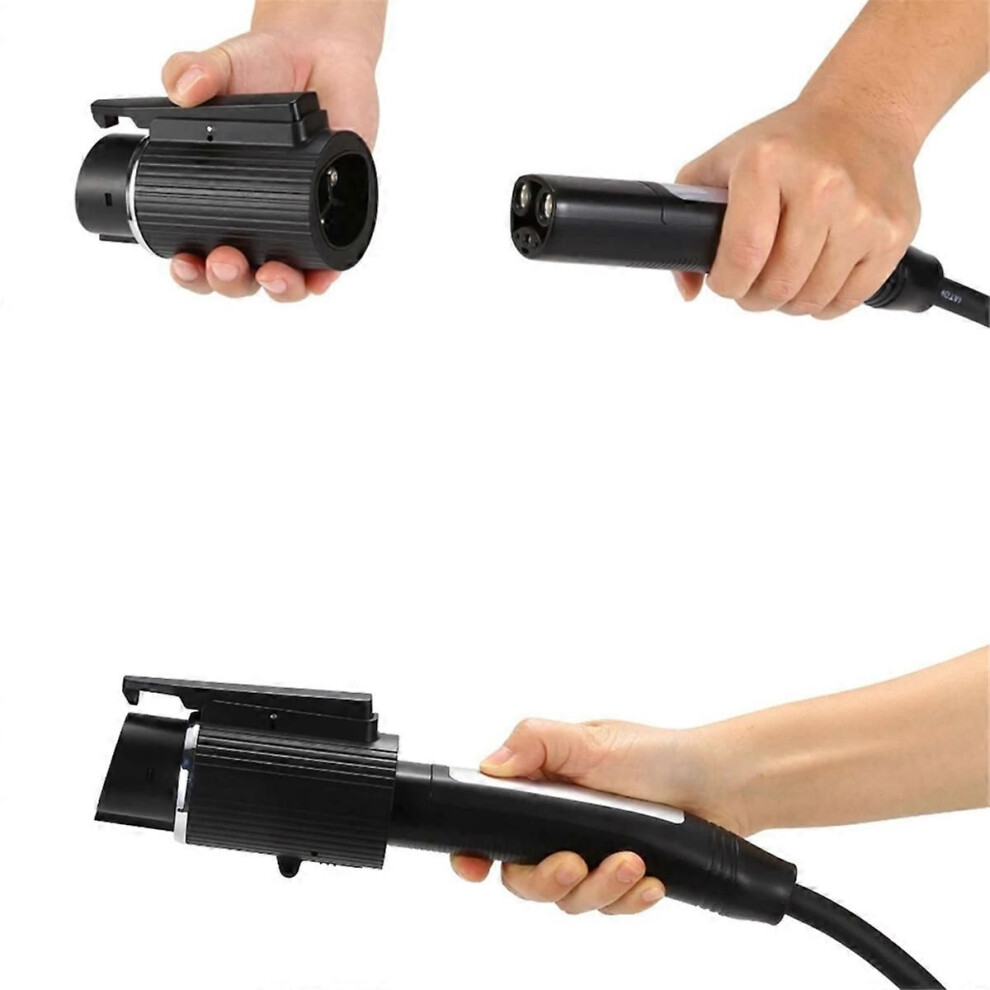

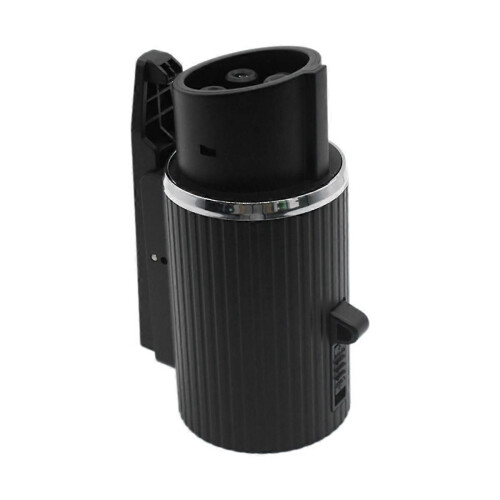

For to SAE J1772 Type 1 EV Adapter 250V 60A Max.

For to SAE J1772 Type 1 EV Adapter 250V 60A Max. Beschreibung

For to SAE J1772 Type 1 EV Adapter 250V 60A Max.
Protection rank:IP55 Fire retardant level:94 V-0 Rated Current:60A Rated voltage:110-240V Withstand voltage:AC2000V Insulation resistance: 100M ohm Leakage current:5mA Terminal temperature rise:Less than 50K Coupled insertion force:Less than 75N Operating temperature:-35 to 50 Mechanical Testing: Mechanical life:no load plug in / pull out 10000 times Impact of external force:qualify 1m drop or 2 Ton vehicle run over Materials Applied: Connector:by copper alloy with bottom plating and 3um silver plating Colour:As Shown Material:ABS Size:120mm/4.72inch (length) Package Contents: 1 * Charging Adaptor Converter Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
