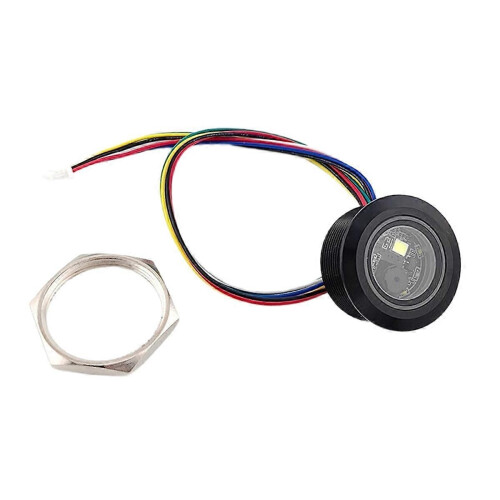

GM861-LED White Fill Lighting 2D/1D USB/UART DC3.3V QR Code Round Barcode Module Scanner Metal Enclo

GM861-LED White Fill Lighting 2D/1D USB/UART DC3.3V QR Code Round Barcode Module Scanner Metal Enclo Beschreibung

GM861-LED White Fill Lighting 2D/1D USB/UART DC3.3V QR Code Round Barcode Module Scanner Metal Enclo
Sensitive sensor, fast decoding, reads both paper and screen codes.
Suitable for retail, medical equipment, traffic management, intelligent device development, and other fields.
Built-in fill light: The light provides auxiliary illumination for shooting and reading, improving reading performance and adaptability to low-light conditions. Users can set it according to the application environment.
Multi-system compatibility: Supports for Windows XP, Windows 7, Windows 8, Windows 10, Linux, Android, for Mac, and other mainstream operating systems.
GM861-LED Performance Parameter:
Sensor:CMOS
Scan Mode:640x480
GM861-LED
Indicator Light:White light as power on Green light as read successfully
GM861-LED Fill Light:White light
Read Code Type:
1D: EAN-13, EAN-8, UPC-A, UPC-EISSN, ISBN, CodaBar,Code 128,
Code93, ITF-14, ITF-6, Interleaved 2 of 5,Industrial 2 of 5,
Matrix 2of 5, Code 39,Code11, MSI-Plessey, GS1 Composite,GS1-Databar (RSS)
2D: QRCode, DataMatrix, PDF417, Micro-QR, Micro-type PDF417, Aztec
GM861-LED Reading Distance:5-30cm
Contrast: Greater than 25%
Scan Angle: Roll:360Pitch:65Yaw:65
Viewing Angle:67(Horizontal)53(Vertical)
Accuracy of reading: greater than equal 10mil
Mechanical/electrical Parameters:

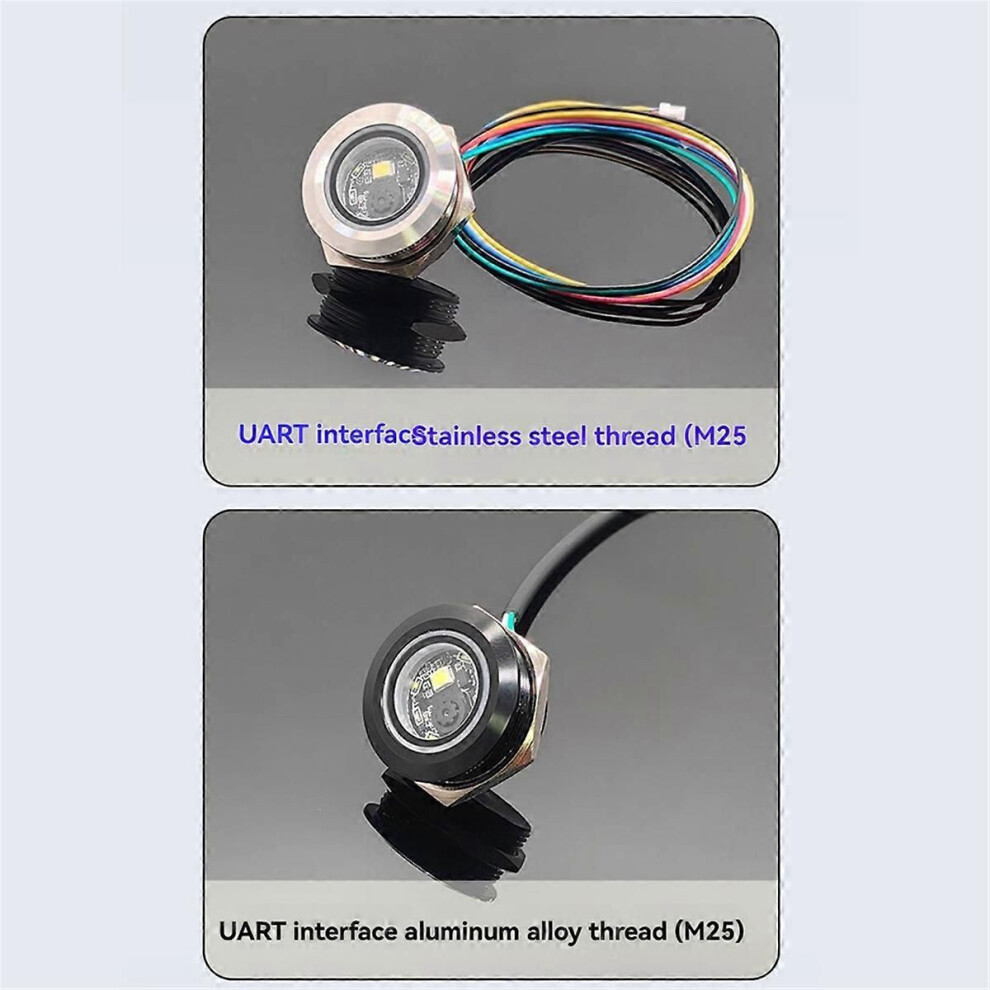

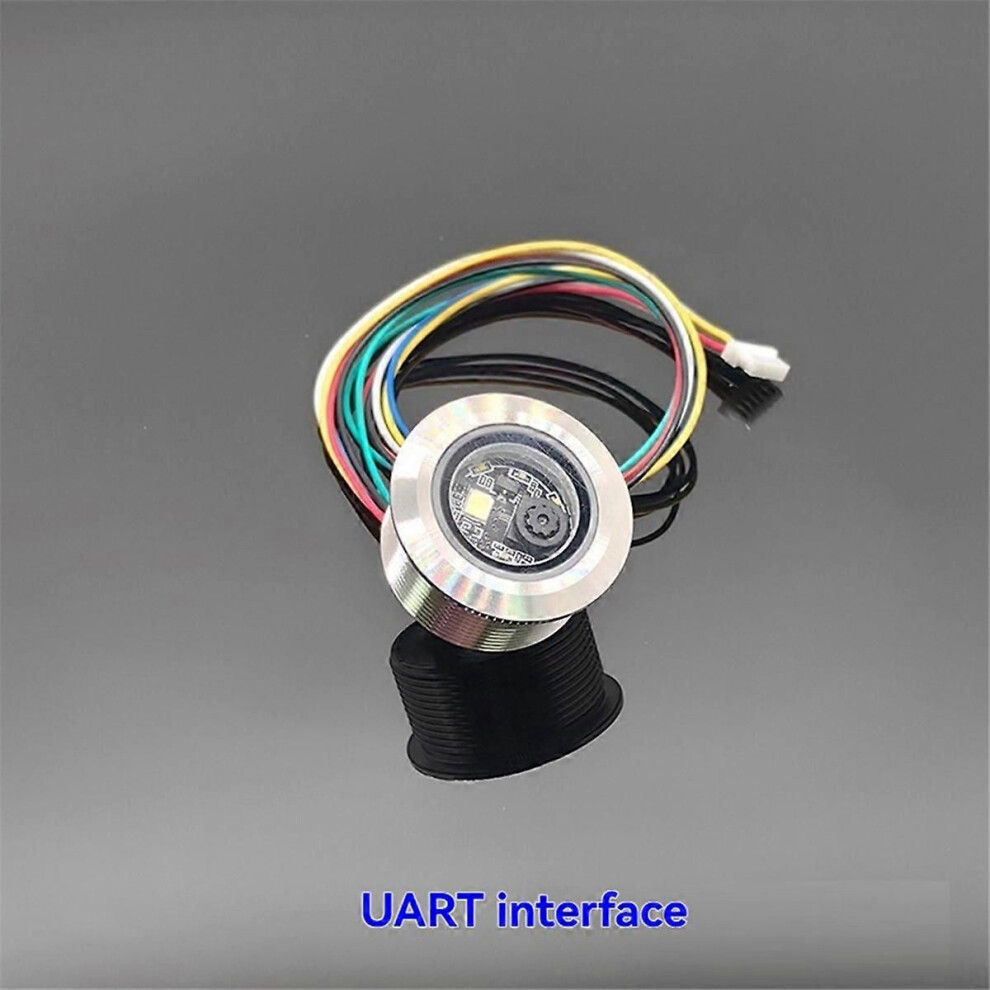

Interface:TTL-232/USB
Prompting Mode:LED Indicator
Operating Voltage:3.3V
Operation Current:70mA(Max)
Standby Current:less than equal 6mA(Typical)
Startup Time:less than equal 250mS (Typical)
Color:Black/Silver
Material:Aluminum Alloy/Stainless Steel
Package Contents:
1 * Barcode Module
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
