Manual Ball Screw Linear Actuator, 200mm Stroke, Linear Rail Guide, with Handwheel

Manual Ball Screw Linear Actuator, 200mm Stroke, Linear Rail Guide, with Handwheel Beschreibung

Manual Ball Screw Linear Actuator, 200mm Stroke, Linear Rail Guide, with Handwheel
Feature:
1. High Performance: The effective stroke of this linear stage actuator is 200mm, with a maximum horizontal load capacity of 30kg and vertical load capacity of 20kg.
2. Standard M5 Mounting Hole: M5 movable nuts are used on the side and bottom, making the installation of the slide more flexible and variable.

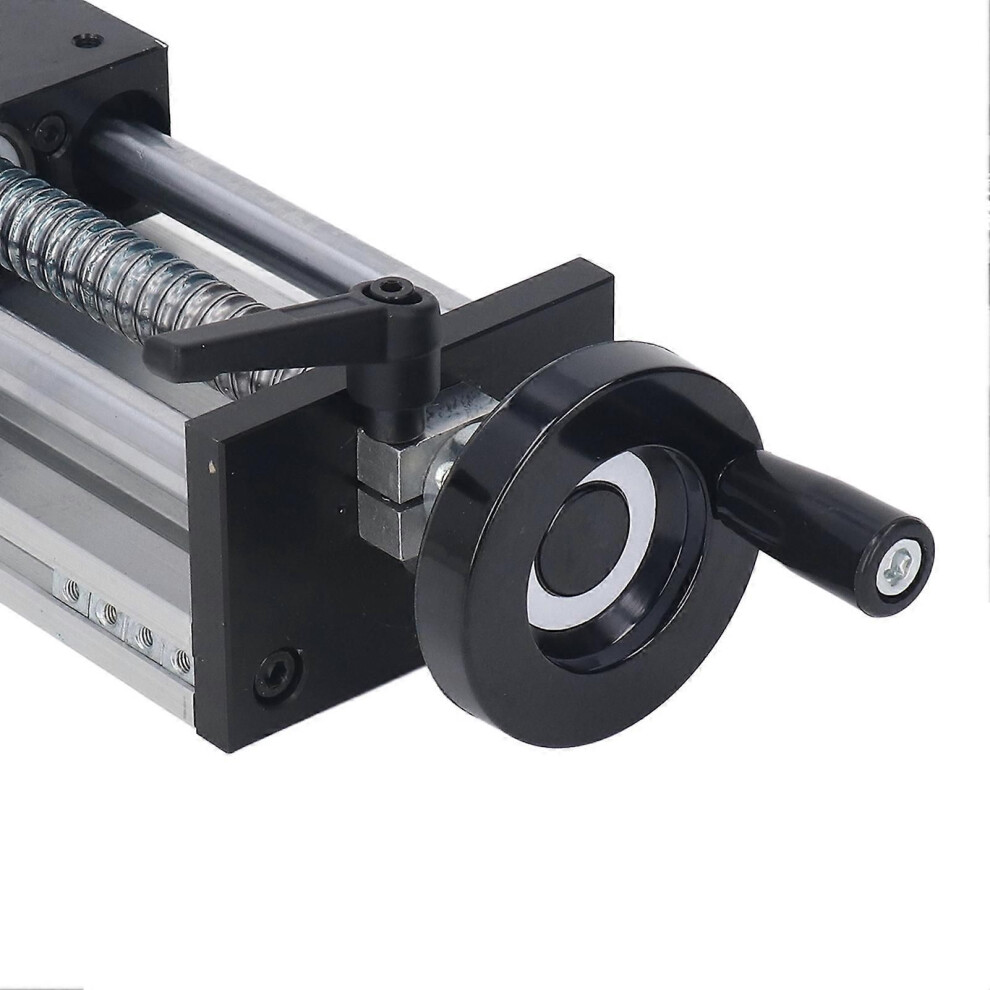

3. Easy to Operate: You can manually control the running direction of the slide, rotate and lock it with adjustable handle, making it less prone to loosening.
4. High Accuracy: This slide linear stage adopts 1605 ballscrew, with high accuracy up to 0.03mm, while ensuring high speed stable operation.
5. Wide Application: This linear sliding table can be widely used in industrial machine tools, such as milling machines, lathes, grinders, etc.
Specification:
Item Type: Linear Stage Actuator
Material: Aluminum Alloy
Model: EBX1605 200 S
Maximum Load:
Horizontal: 30KG
Vertical: 20KG
Maximum Accuracy: Positioning Accuracy: 0.03mm
Width: Approx. 80mm/3.15in
Maximum Stroke: Approx. 200mm/7.87in
Screw Diameter: Approx. 16mm/0.63in (1605)
Main Function: Convert rotational motion into linear motion, or convert torsion into axial repetitive force
Use: This slide can be paired with cross shaped, T shaped, I shaped, gantry shaped, double axes, three axes, and four axes combinations
.

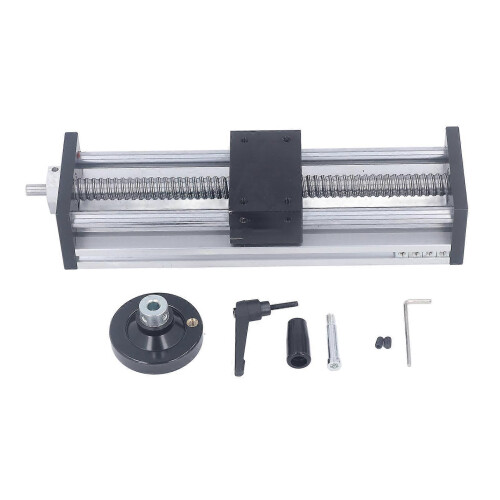

Package List:
1 x Linear Stage Actuator1 x Wheel1 x Rocker Arm1 x Rocker Arm Screw1 x Fixing Part2 x Screw1 x Hex Wrench
