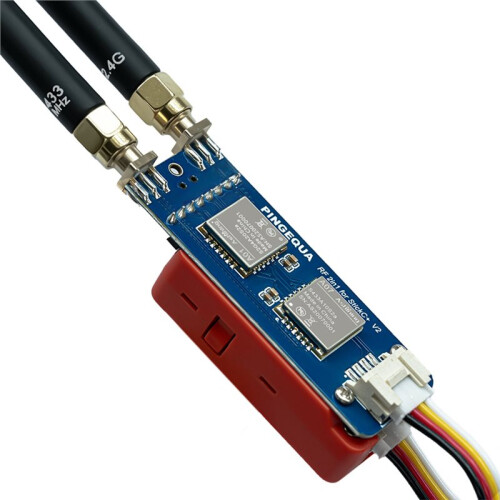

RF 2-in-1 Module for M5Stack StickC Plus2, Supports 2.4GHz and Sub-GHz 433MHz, Compatible with for Bruch Firmware

RF 2-in-1 Module for M5Stack StickC Plus2, Supports 2.4GHz and Sub-GHz 433MHz, Compatible with for Bruch Firmware Beschreibung

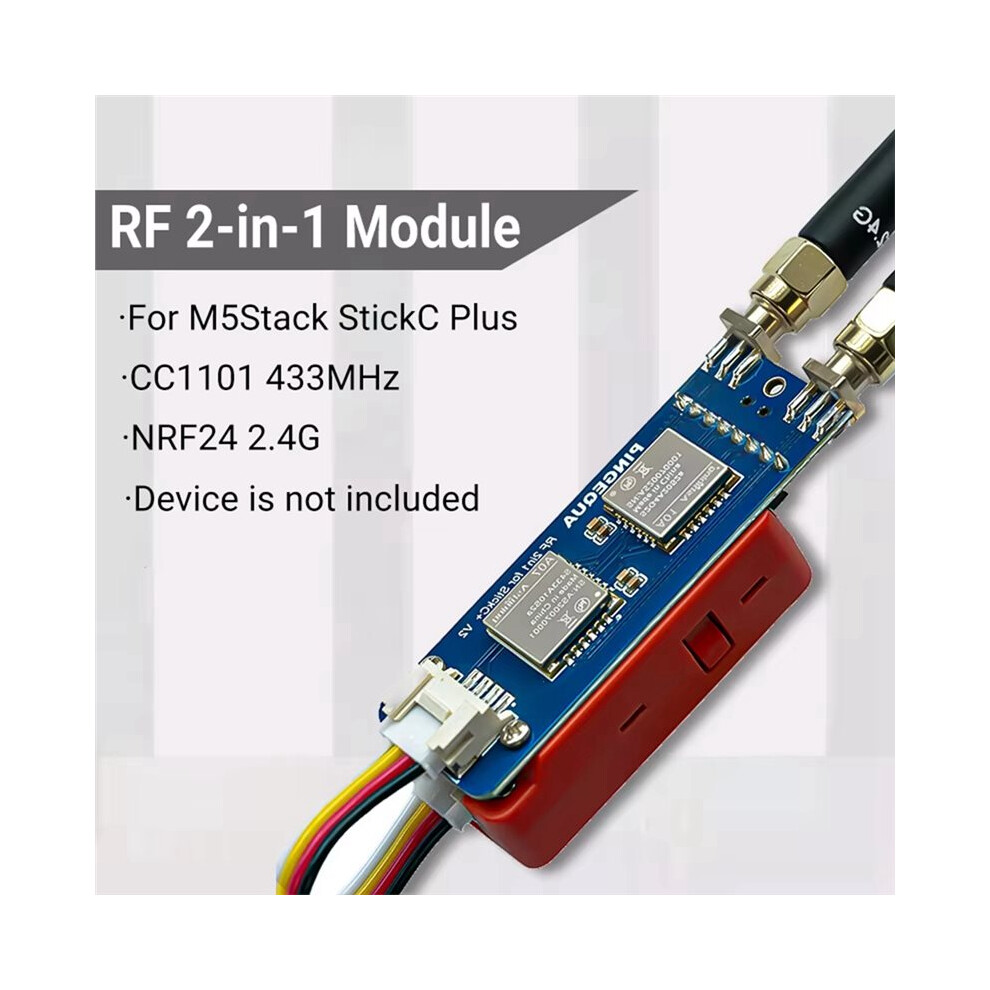

This dual-mode RF development board is specially designed for the M5Stack StickC Plus2, integrating both A01-S2G4A00S2A (2.4GHz NRF24) and A07-S433A10S2A (433MHz CC1101) modules.
Fully compatible with Bruce firmware, it features a plug-and- design and supports both short-range and long-range wireless communication, making it ideal for IoT, wireless control, and RF development projects.

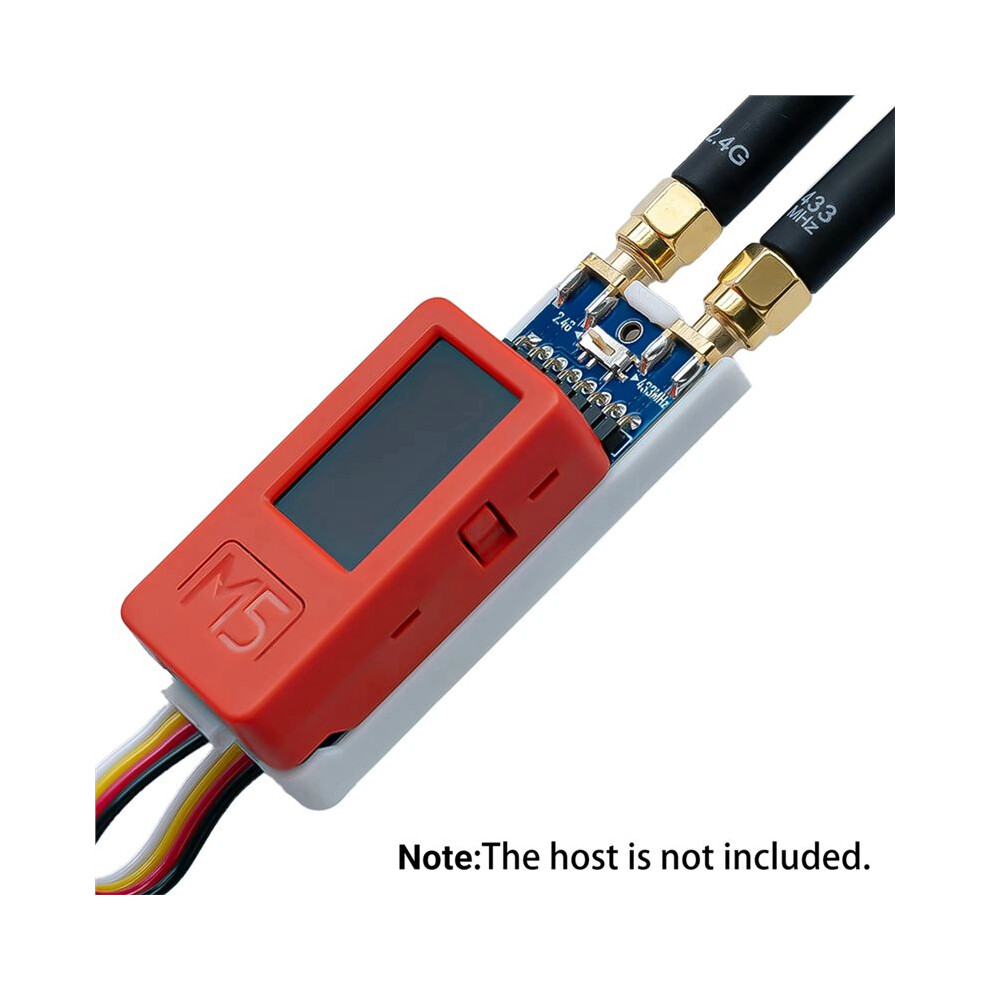

NOTE: The shell is not included; the shell shown in the picture is for display purposes only.
Installation Notice (Important)
To ensure the module works properly, please make sure to connect both interfaces:
Grove port
GPIO pin header
The module will not be detected or function correctly unless both connections are properly attached.

Features:
Dual-module design: Supports both NRF24 (2.4GHz) and CC1101 (433MHz) communication
Tailored for M5Stack StickC Plus2, plug-and-
Bruce firmware compatible, no complex setup required
High-performance RF communication for reliable data transmission

Module Details:
2.4GHz NRF24 Module (A01-S2G4A00S2A): Stable, high-speed short-range wireless communication
433MHz CC1101 Module (A07-S433A10S2A): Low-power, long-range RF transmission
Reliable performance with optimized signal layout and power design

Usage Instructions
1. Flash Bruce Firmware (First- Setup)
To use this board with StickC , first flash the Bruce firmware,
Follow the instructions to select the correct device (StickC v1.1/v2) and complete the flashing process
2. Hardware Connection
Connect the RF board to the M5Stack StickC using the Grove cable or GPIO jumper wires
The GPIO pinout is pre-configured and compatible with Bruce firmware
Color:
Material: PCB

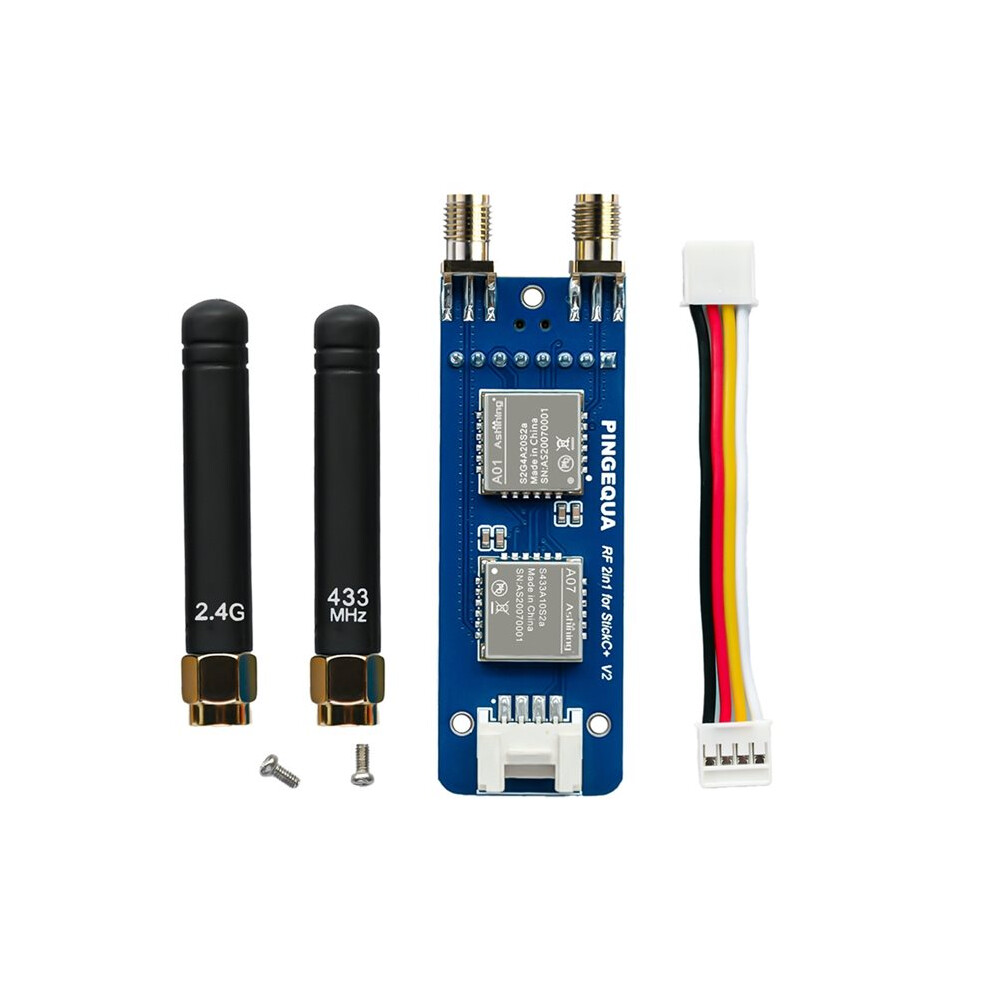

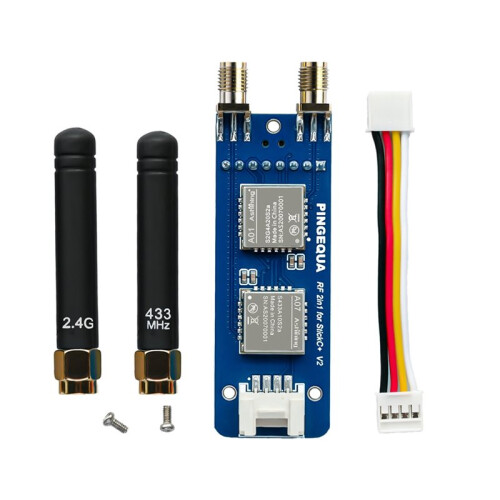

Package Contents:
1*Module
2*Antenna
1*Cab
