SU-03T Offline Speech Recognition Control English Chinese Recognition

SU-03T Offline Speech Recognition Control English Chinese Recognition Beschreibung

SU-03T Offline Speech Recognition Control English Chinese Recognition
High Recognition Rate And High Sensitivity
Up To 150 Entries Can Be Set
Support Chinese And English Recognition And Self-Learning Function
The Wake-Up Word Can Be Modified, The Type-C Power Supply Port Can Recognize Content Spoken By The User Through The Microphone, And Then Control The I0 Port Status Of The Microcontroller.

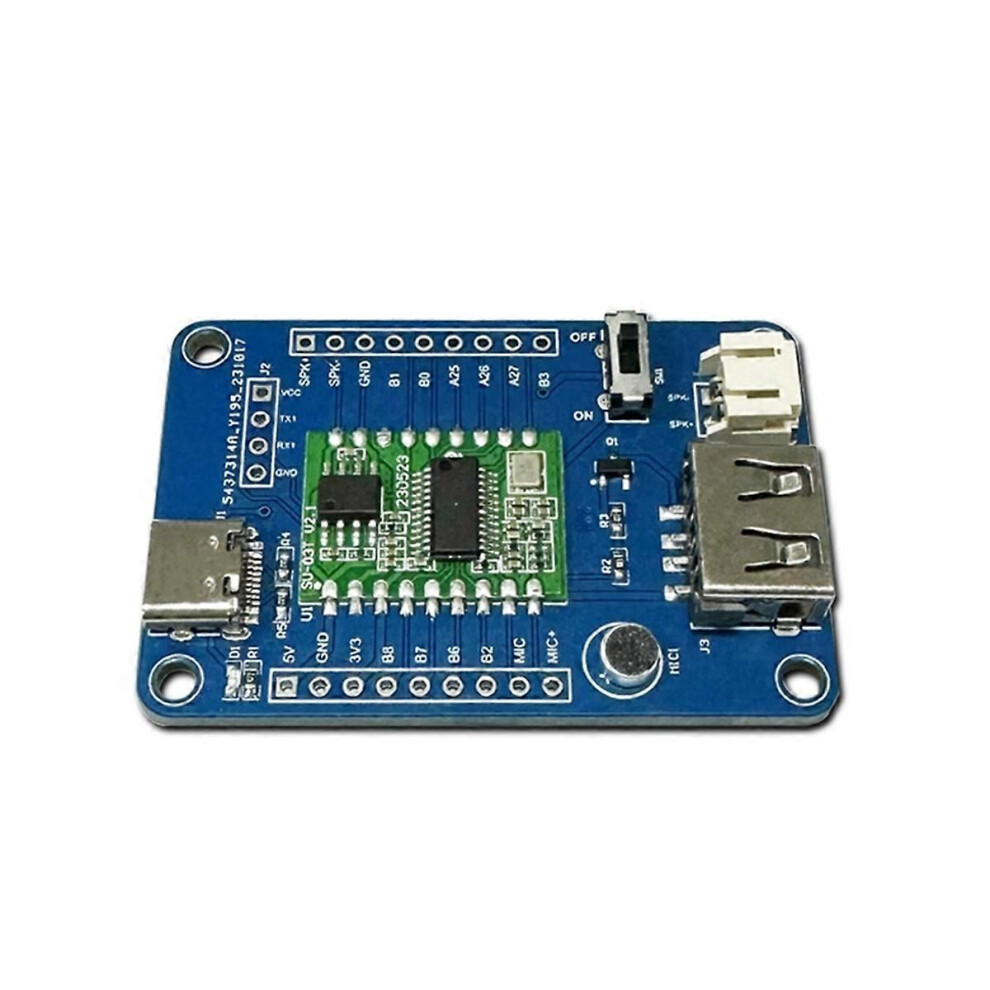

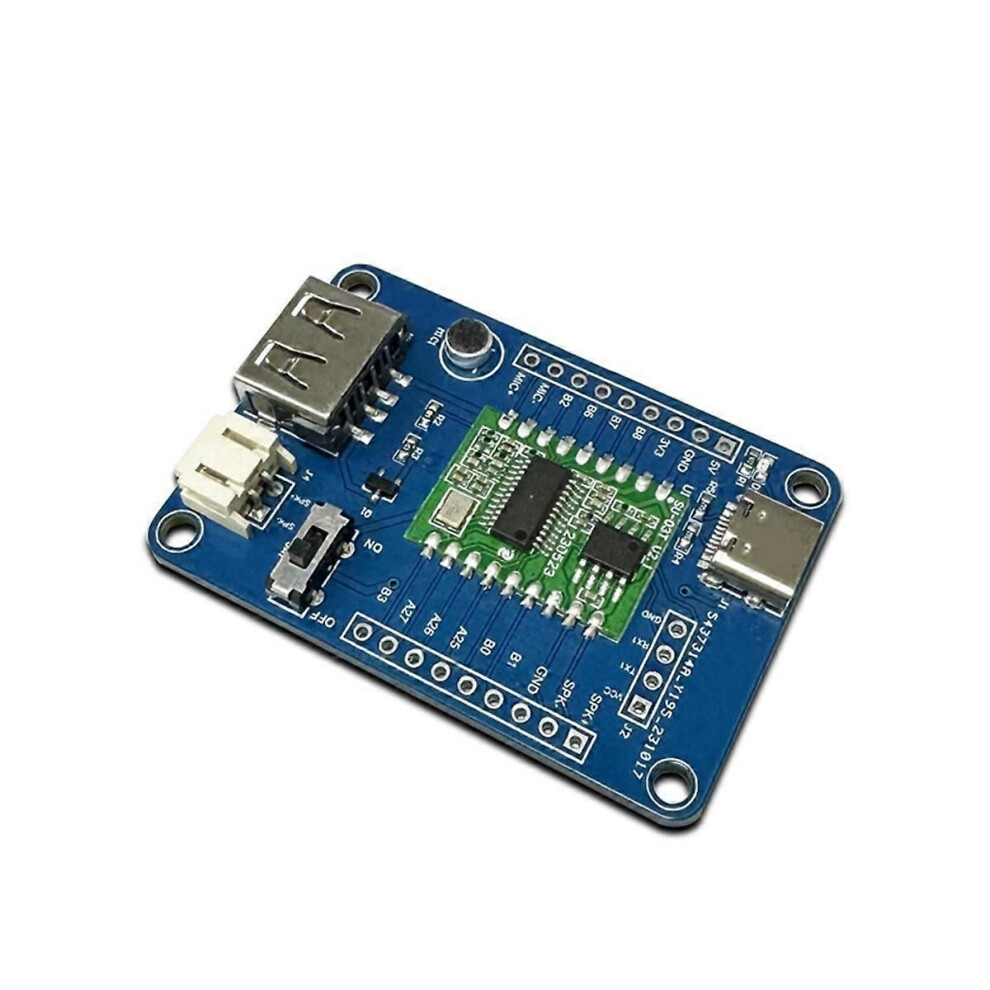

Offline Speech Recognition Control Uses The Su-03t Chip As The Main Control Chip, Recognizes Content Spoken By The User Through The Microphone, And Then Controls The Io Port Status Of The Microcontroller. It Has High Recognition Rate, High Sensitivity, Multiple Entries, Multiple Languages, And Automatic Learning And Many Other Advantages
Type-C Power Supply Port:5V Power Supply Port
Burning Port:Use CH340 For Serial Port Burning
Toggle Switch:On - Open; Off - Close
PH2.0 Terminal Block:Speaker Interface
Usb Female Socket:5V Voltage Output Port (GPIO_B3 Port Control)
Microphone:4.5x2.2mm Microphone Head
Mcu:SU-03T
Note:Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Not Affect The Use
Colour:As Shown
Material:PCB
Size:About 36x54mm

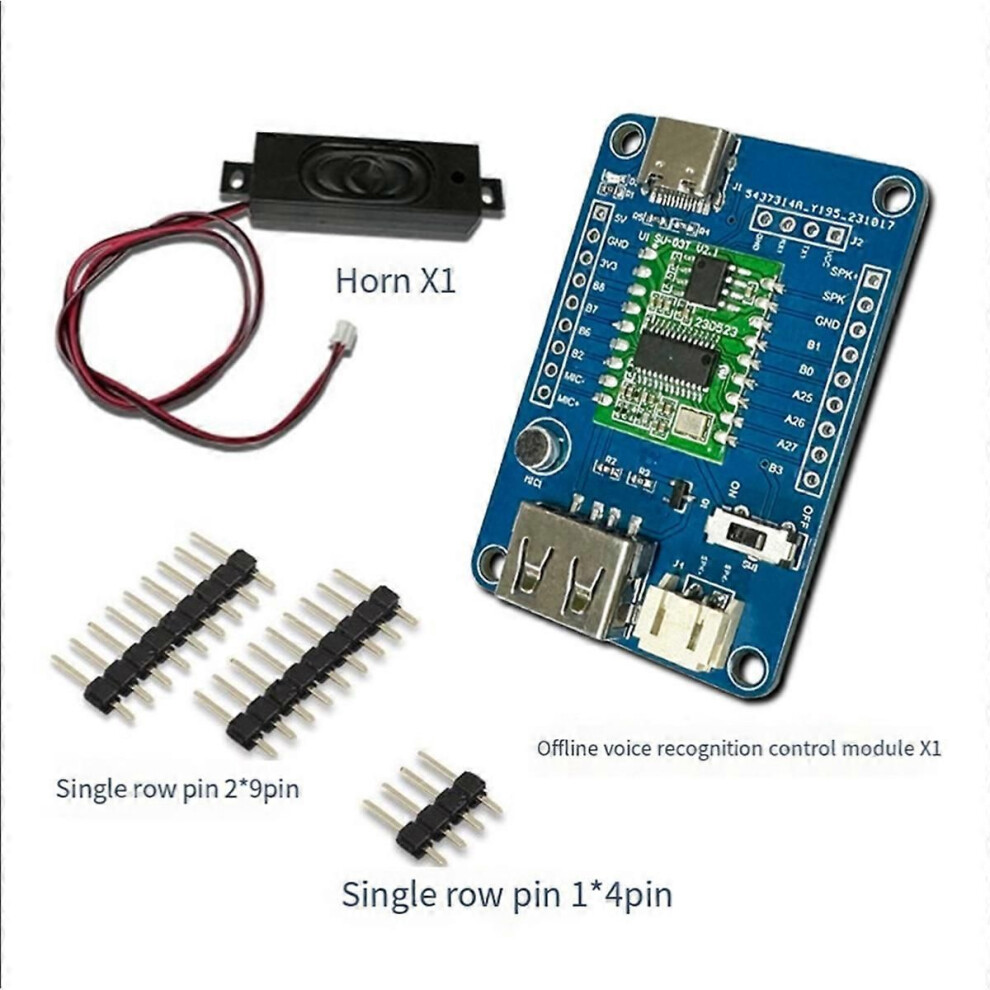

Package Contents:
1 * Offline Voice Recognition Control Module
1 * Speaker
2 * Single Row Of Pins (9pin)
1 * Single Row Of Pins (4pin)
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
