Temperature Humidity Transmitter RS485 SHT20 Sensor Modbus RTU Acquisition Module Transducer High P

Temperature Humidity Transmitter RS485 SHT20 Sensor Modbus RTU Acquisition Module Transducer High P Beschreibung

Temperature Humidity Transmitter RS485 SHT20 Sensor Modbus RTU Acquisition Module Transducer High P

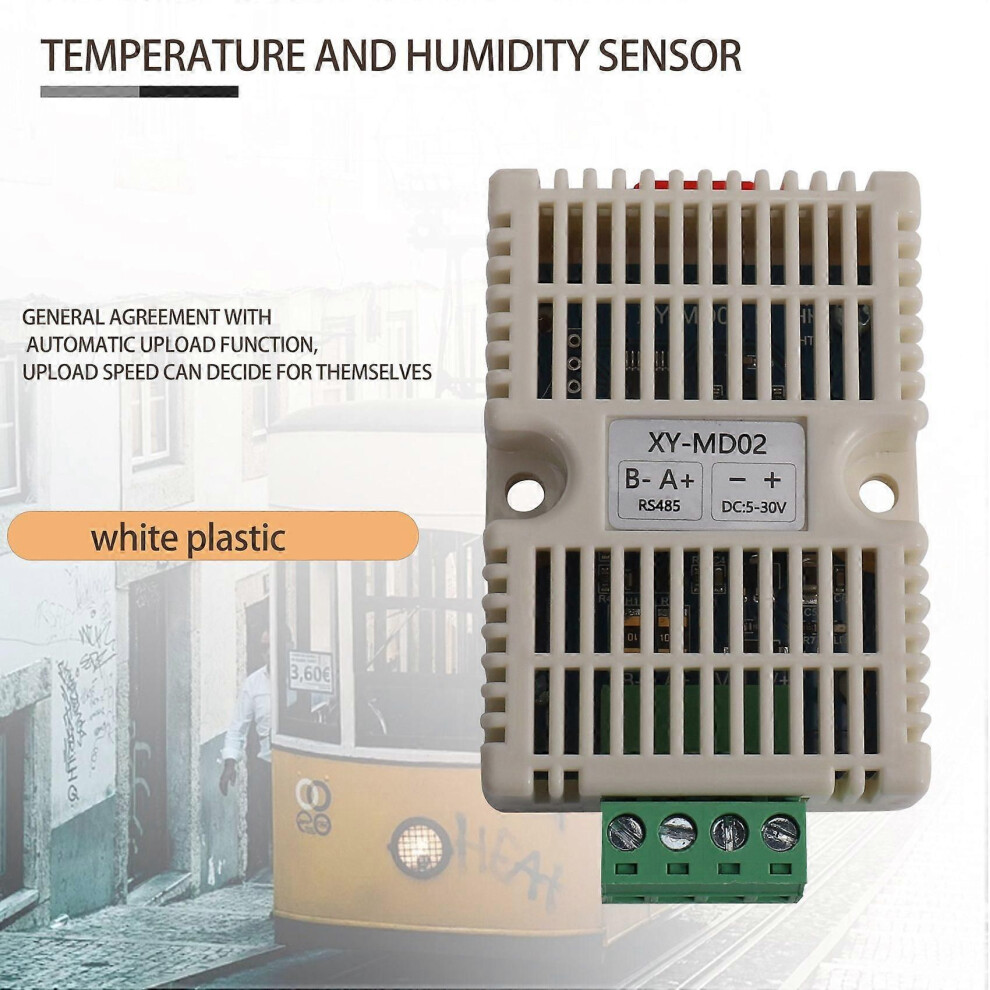

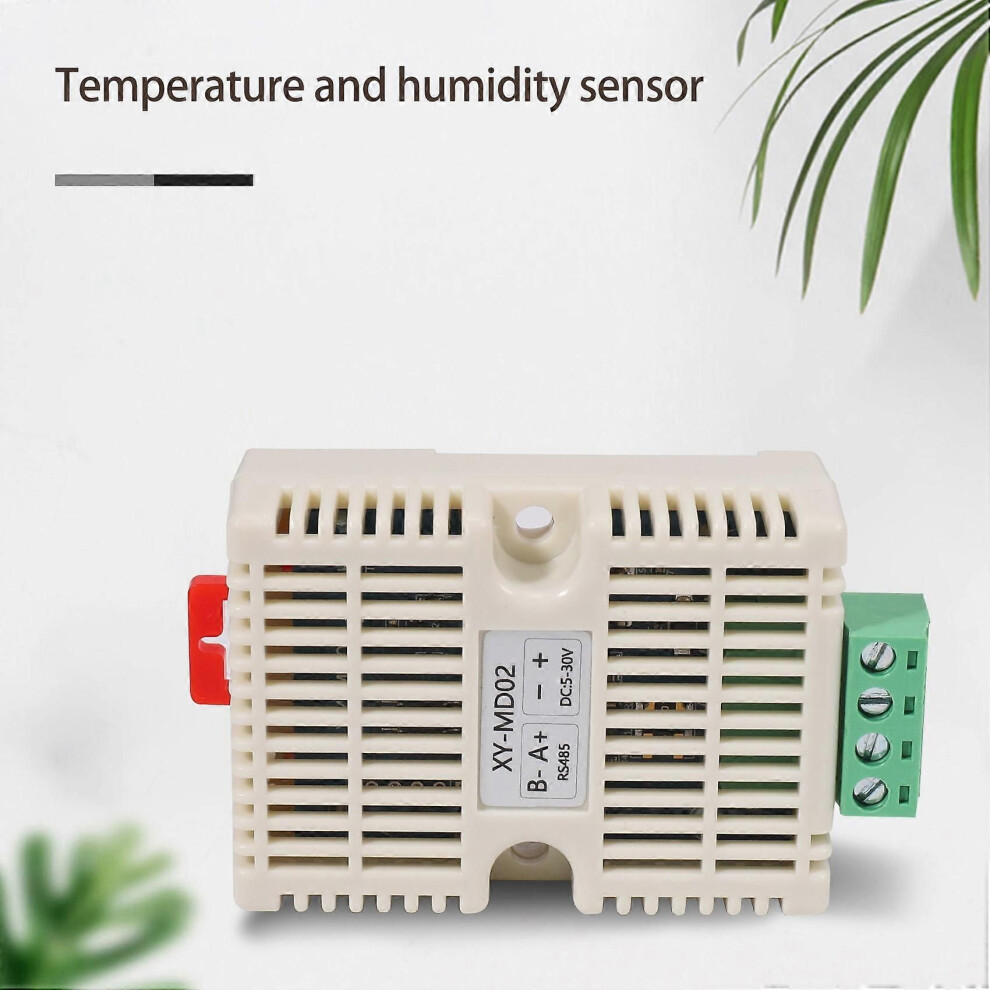

Description: Product adopts industrial-grade chip, high-precision SHT20 temperature and humidity sensors, the products with good reliability, high precision and interchangeability. Adopt RS485 hardware interface (with the protection design), the protocol layer compatible with standard industrial Modbus RTU protocol.
This product integrating MODBUS protocol and ordinary UART communication protocol, users can choose communication protocols, UART communication support automatic report function (Connect the RS485 serial interface mode tool by automatically output temperature and humidity).
Using Steps: 1.Connect signal receiver such as for to RS485 terminal.2.Input supply at terminal. 3.According to the acquired data, the data is processed differently according to actual needs. Note: 1.Users need to prepare their own ModBus debugging tool and RS485 debugger. 2.Users needs to complete write code according to the communication protocol and commands if using the controller to receive data.
Features: 1.Support MODBUS RTU protocol. 2.RS485 supports 1000 meters communication. 3.Standard DIN35 mounting rails. 4.High precision. 5.Industrial products, high progress SHT20 temperature and humidity sensor, the RS485 communication. 6.Standard MODBUS protocol and ordinary protocol, the user can choose communication protocol. 7.Baud rate can decide for themselves. 8.General agreement with automatic upload function, upload speed can decide for themselves
Parameters:

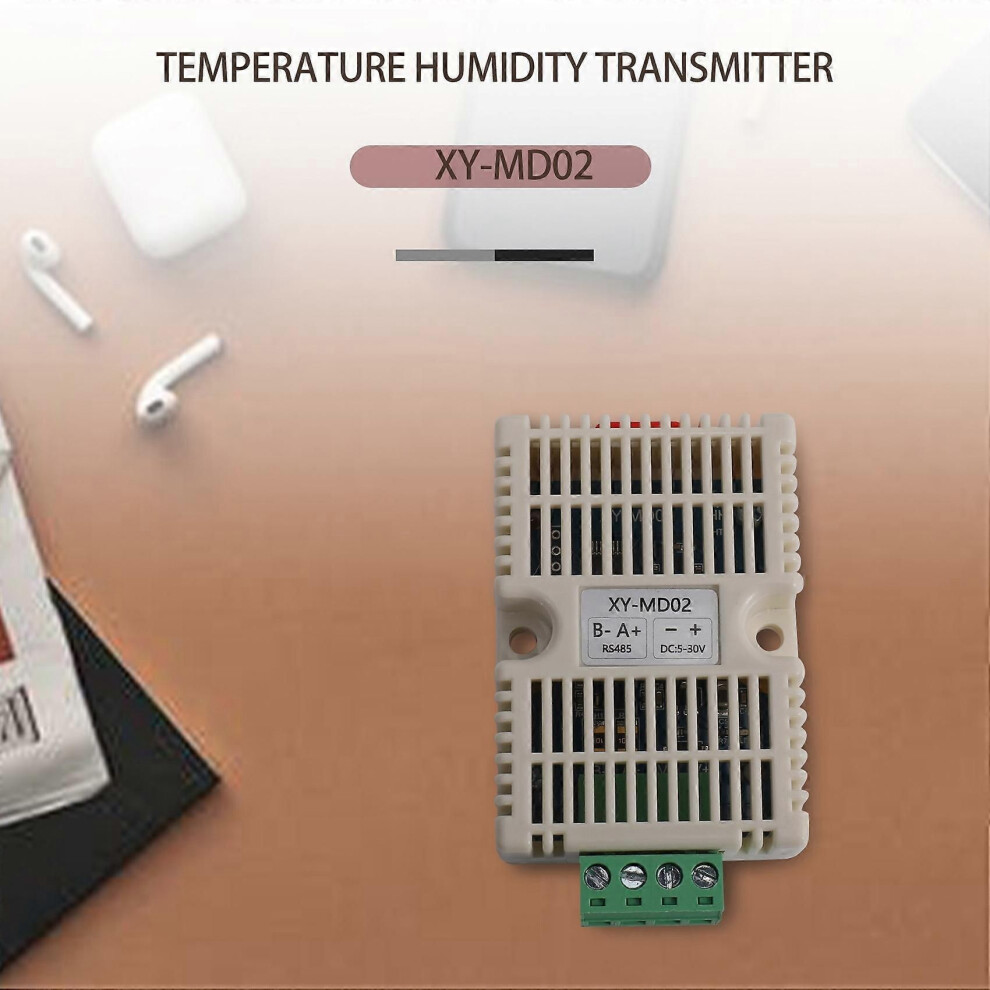

1.Product Name:Modbus RTU RS485 SHT20 Temperature Humidity Transmitter
2.Working Voltage:DC 5V~30V
3.Output signal:RS485 signal
4.Communication protocol:Modbus RTU and ordinary protocol
5.Communication address:1~247(default 1)
6.Temperature Range:-40~60
7.Temperature Precision:+/-0.5
8.Temperature Resolution:0.1
9.Humidity Range:0%RH~80%RH
10.Humidity Precision:+/-3%RH
11.Humidity Resolution:0.1%RH
12.: less than 0.2W
13.Work Temperature:-40~85
15.Work Humidity:0%~95%RH
16.Size:65 * 46 * 28.5mm
Condition: New
Type: Logic ICs
Dissipation : less than 0.2W
color: White
material: plastic
Application: Temperature Humidity Transmitter
Feature: RS485 supports 1000 meters communication
Application:
1.Factory Detect
2.Equipment box Detect
3.Environmental test
4.Home security
Package Contents:
1pcs * Temperature and humidity sensor
Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
