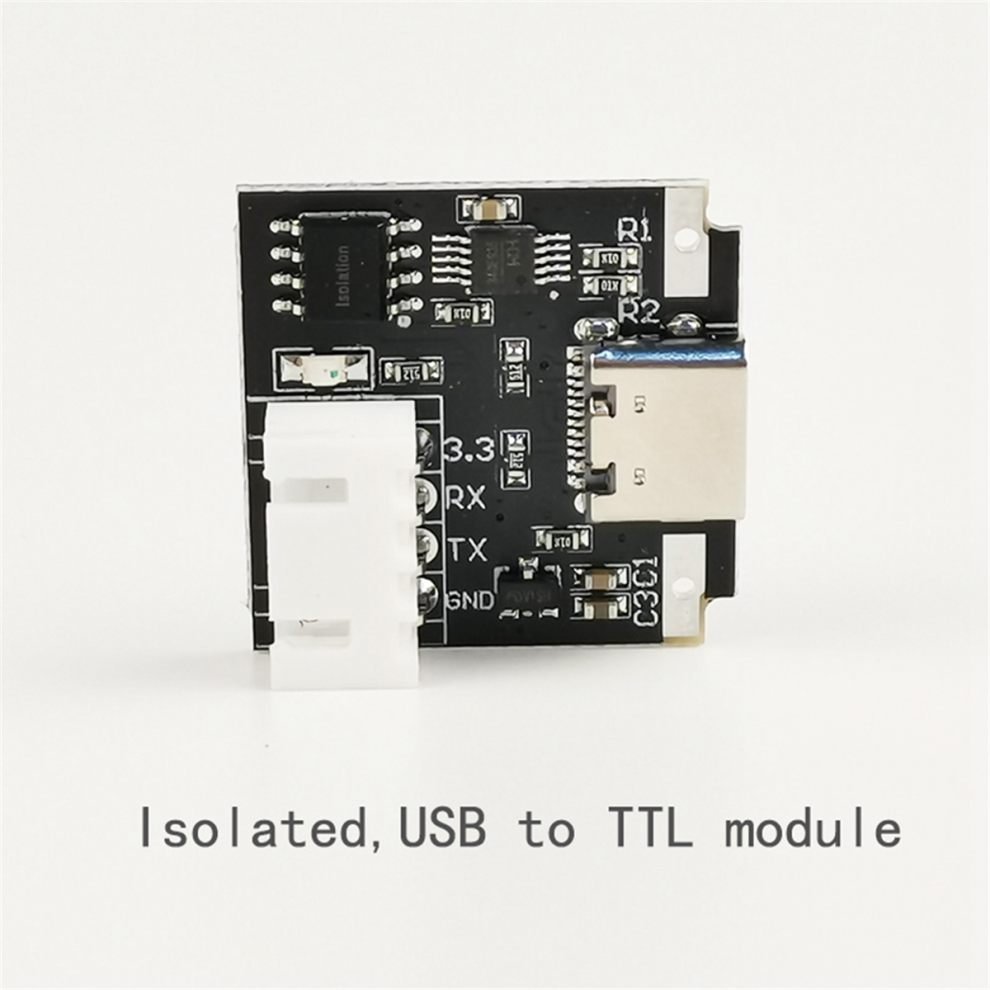

USB-C to Serial Port UART Board Module Isolated USB to TTL Module 3.3V

USB-C to Serial Port UART Board Module Isolated USB to TTL Module 3.3V Beschreibung

This module is an isolated USB-TTL. The interface used is the mainstream TYPE-C interface. Insert the TYPE-C data cable to connect to the computer. The signal sampling is a dedicated signal isolation chip, which makes the output more stable. The power indicator light and the humidity module are more clear.

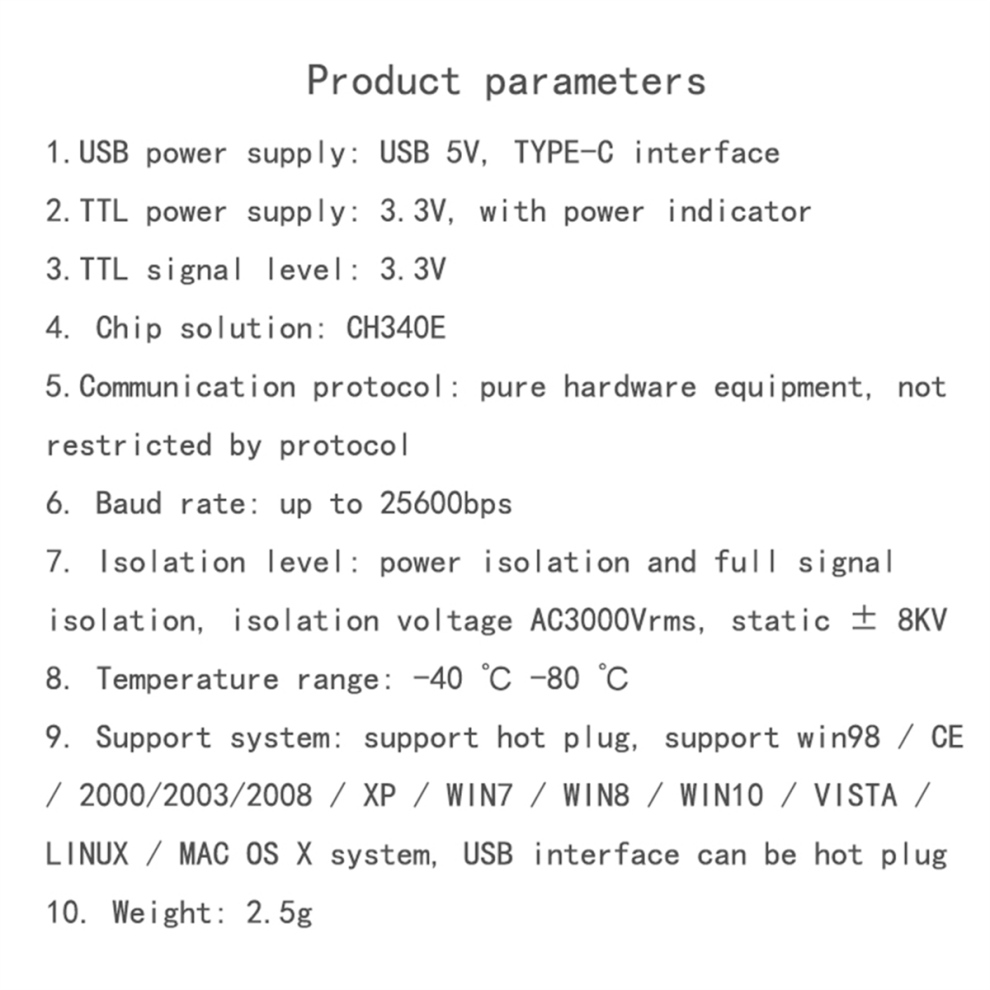

USB power supply: USB 5V, TYPE-C interface
TTL terminal power supply: 3.3V, with power indicator
TTL end signal level: 3.3V (TTL end only supports 3.3V power supply and 3.3V TTL signal, not 5V!)
Communication protocol: pure hardware equipment, not restricted by protocol

Baud rate: up to 25600bps
Isolation level: power isolation and signal isolation, isolation voltage AC300oVrms, static 8KV
Temperature range: -40-80
Support system: support hot swap, support win98/CE/2000/2003/2008/XP/WIN7/WIN8/WIN10/VISTA/-
LINUX/MAC OSX system, USB interface is hot-swappable

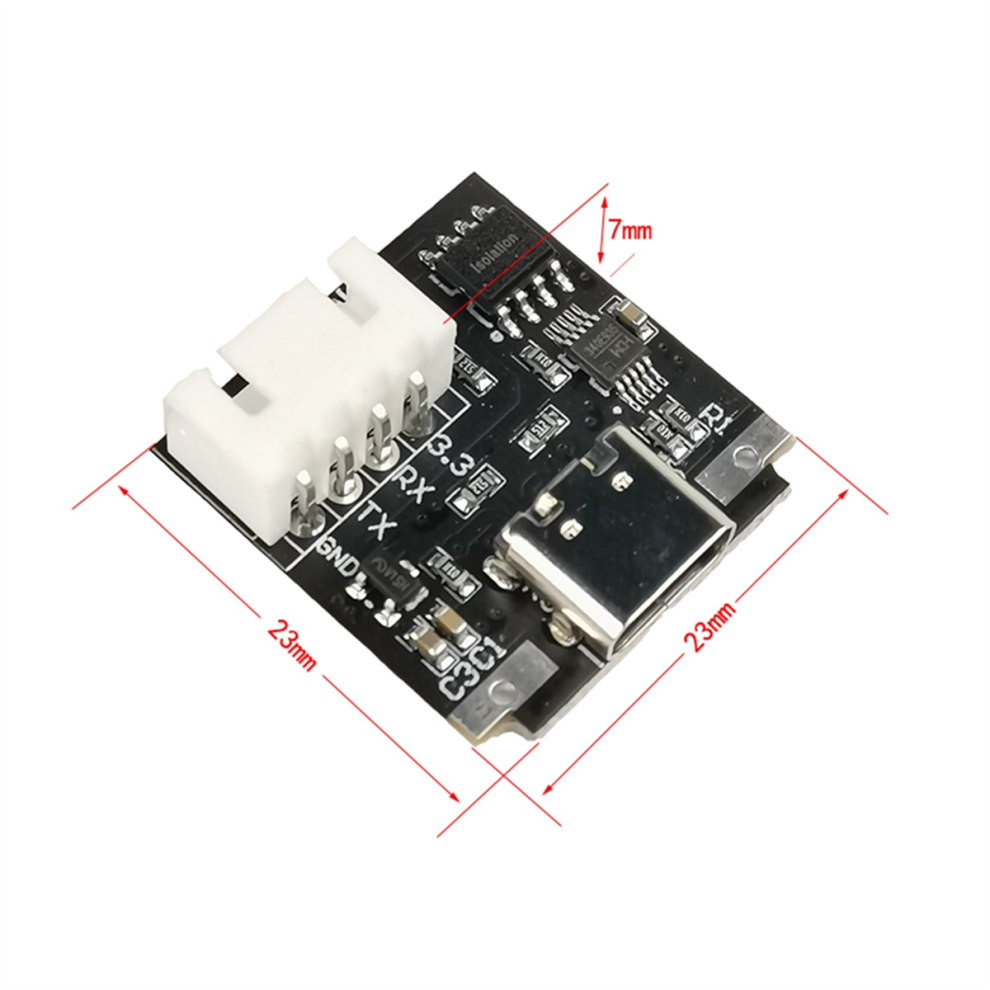

Product size: 23mm x 23mm x 7mm

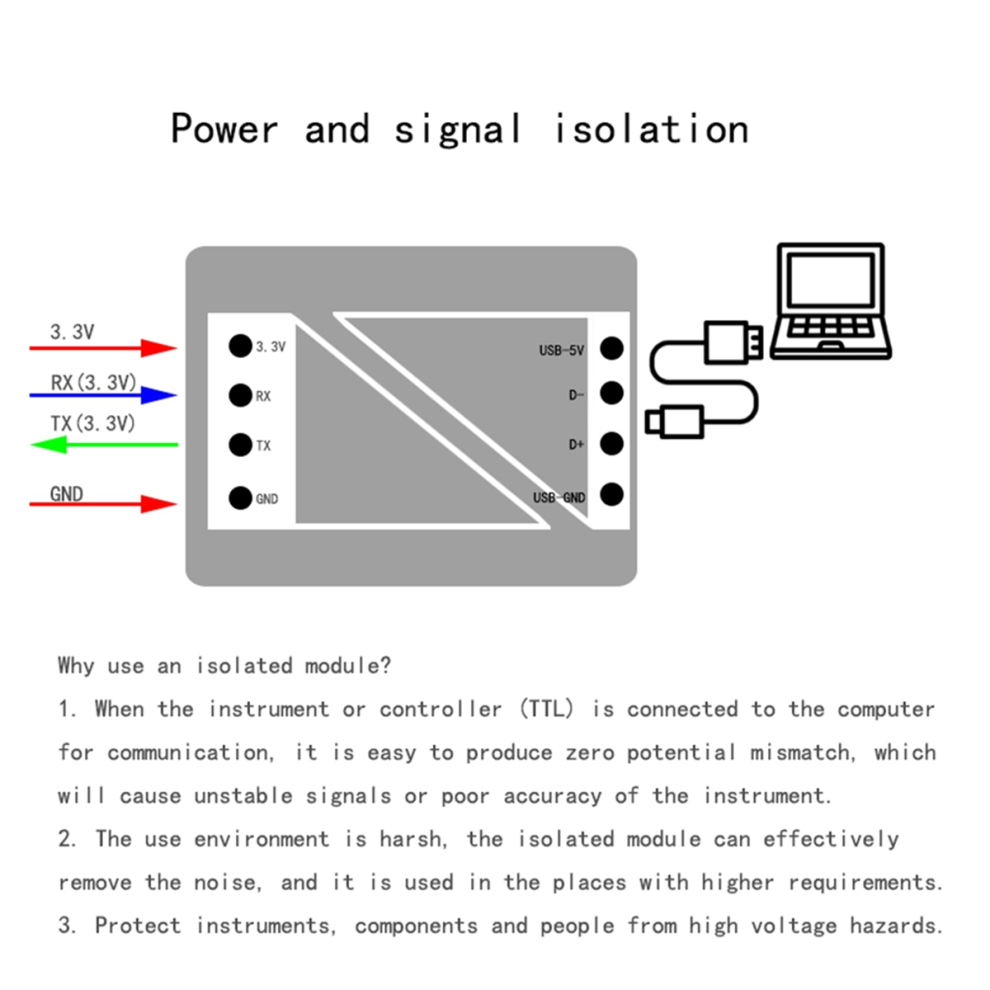

Interface Description:
3.3V: 3.3V output positive
RX: UART serial port input
TX: UART serial port output
GND: negative pole of power output
TYPE-C: USB interface to computer
Note:
The 3.3V pin on the TTL end is not the output voltage of the module. This pin needs to supply power to the module. There is a power indicator light. The power indicator light must be on to work.
Colour:Black
Material:PCB+electronic components

Package Contents:
1 x USB to TTL Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
