Waveshare RP2350A USB Mini Development Board for Raspberry Pi RP2350A Dual-Core & Dual-Architecture
RP2350A microcontroller chip designed by for Raspberry Pi in the United Kingdom
Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz
520KB of SRAM, and 2MB of onboard Flash memory
Type-C connector, keeps it up to date, easier to use
Castellated module allows soldering directly to carrier boards
USB 1.1 with device and host support
Onboard 1x USB Type A expansion port via PIO, compatible with USB 2.0/1.1 transmission
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB

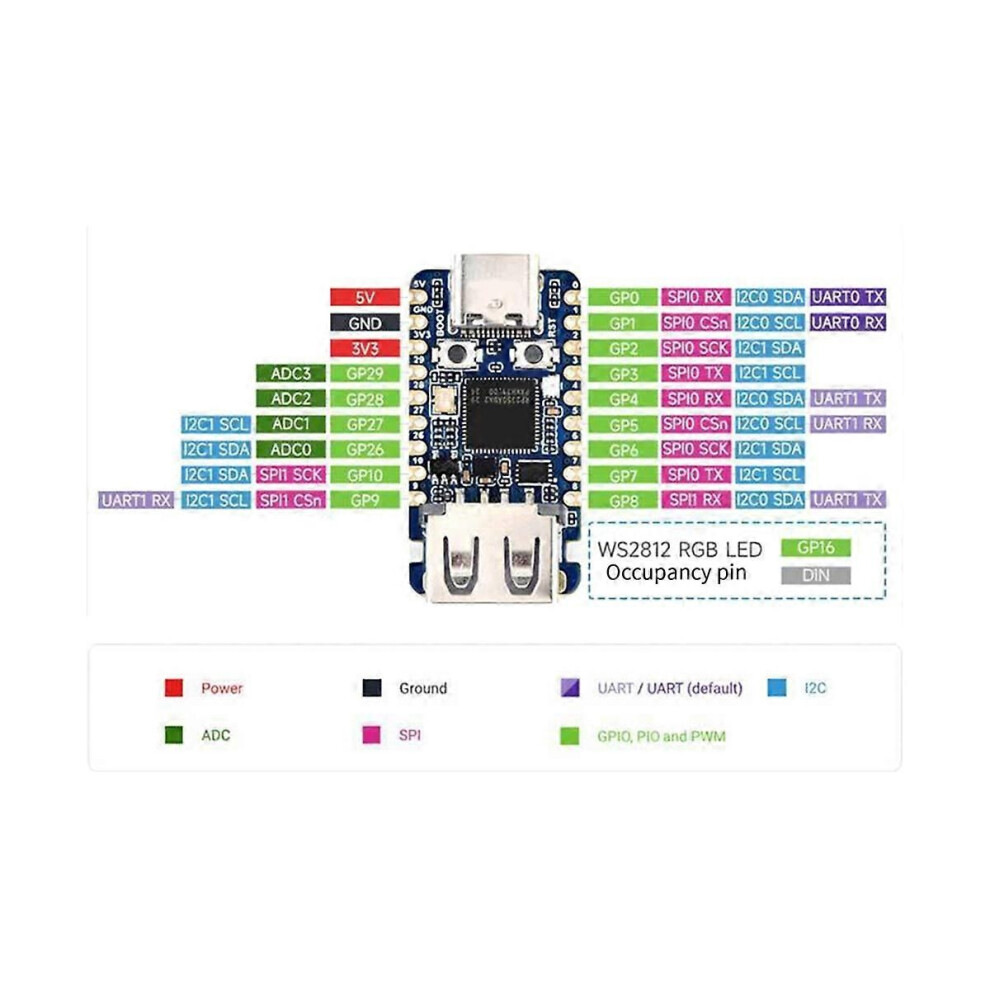

Adapting 15 x multi-function GPIO pins
2 x SPI, 2 x I2C, 2 x UART, 4 x 12-bit ADC, 14 x controllable PWM channels
Accurate clock and timer on-chip
Temperature sensor
Accelerated floating-point libraries on-chip
12 x Programmable I/O (PIO) state machines for custom peripheral support

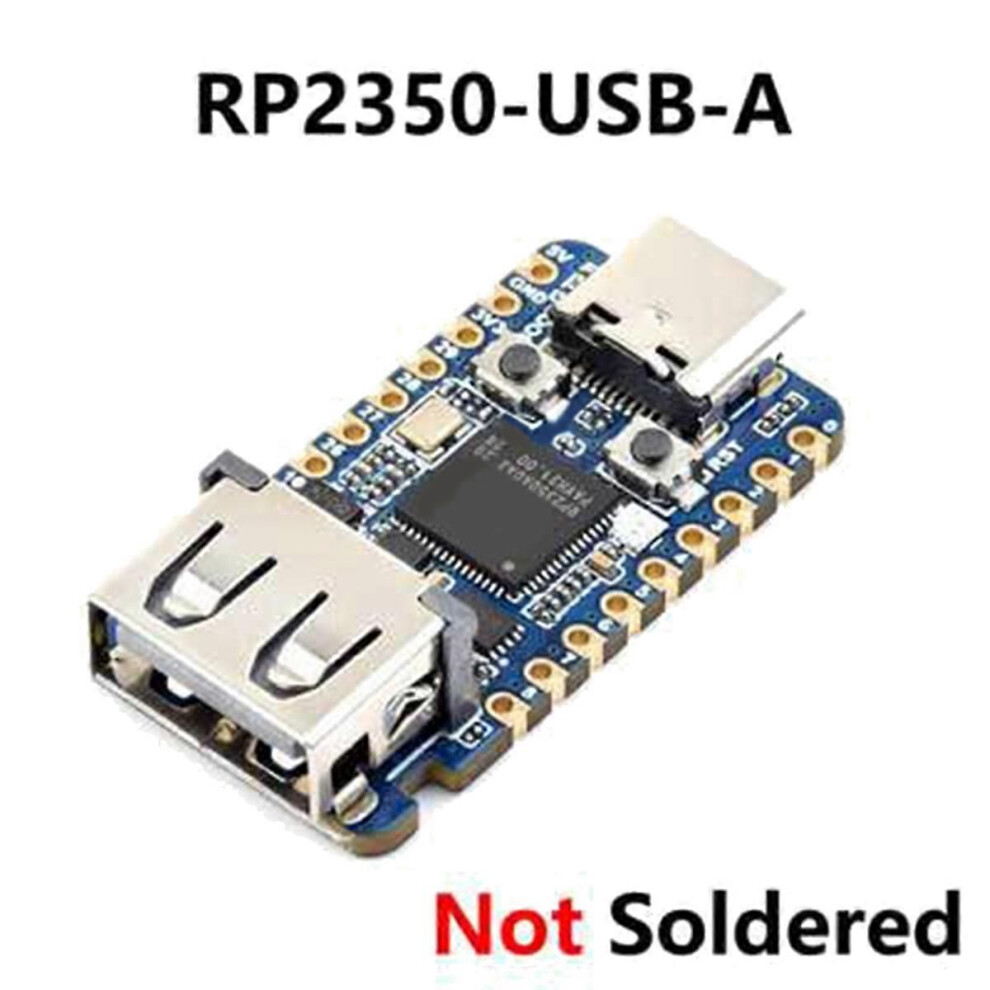

Specification:Not Welded(RP2350-USB-A)/Welded(RP2350-USB-A)
Colour:Blue
Material:Silicone
Package Contents:
1 x Development Board
Only the above package content, other products are not included.
