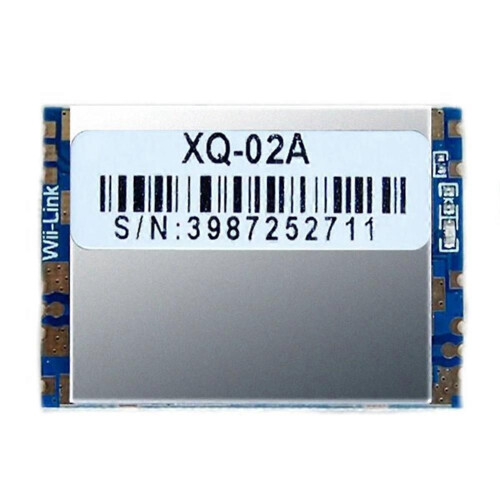

XQ-02A 2.4G 2W Dual Way Wifi Bi-Directional Signal Amplifer Boost Module Auto Switch

XQ-02A 2.4G 2W Dual Way Wifi Bi-Directional Signal Amplifer Boost Module Auto Switch Beschreibung

XQ-02A 2.4G 2W Dual Way Wifi Bi-Directional Signal Amplifer Boost Module Auto Switch
Features:
Compact design,specially for the 2.4GHz all types of applications.
Built-in high-speed transceiver automatically switch discrimination circuit,can automatically switch to send and receive status,can work automatically without WIFI control chip signal,so it is compatible with any WIFI solution.
Can be applied to all kinds of occasion that has special requirements of the WiFi signal transmission distance and connection stability.
Description:
Item Name: Signal Amplification Module
Item NO.: XQ-02A
Receive Gain: 10dB
Transmission Gain: 11dB
Accept The Noise Factor: 3.0dB
Input Power Range: 4dBm-20dBm
Maximum Transmitter Power (Peak Power): 33dBm (2W)
Dimensions: 36mm * 26mm * 4.8mm (L * W * H)
Weight: Less than 5g
Color: as shown
Material: PC+ metal
Package Contents:
1x Module
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
