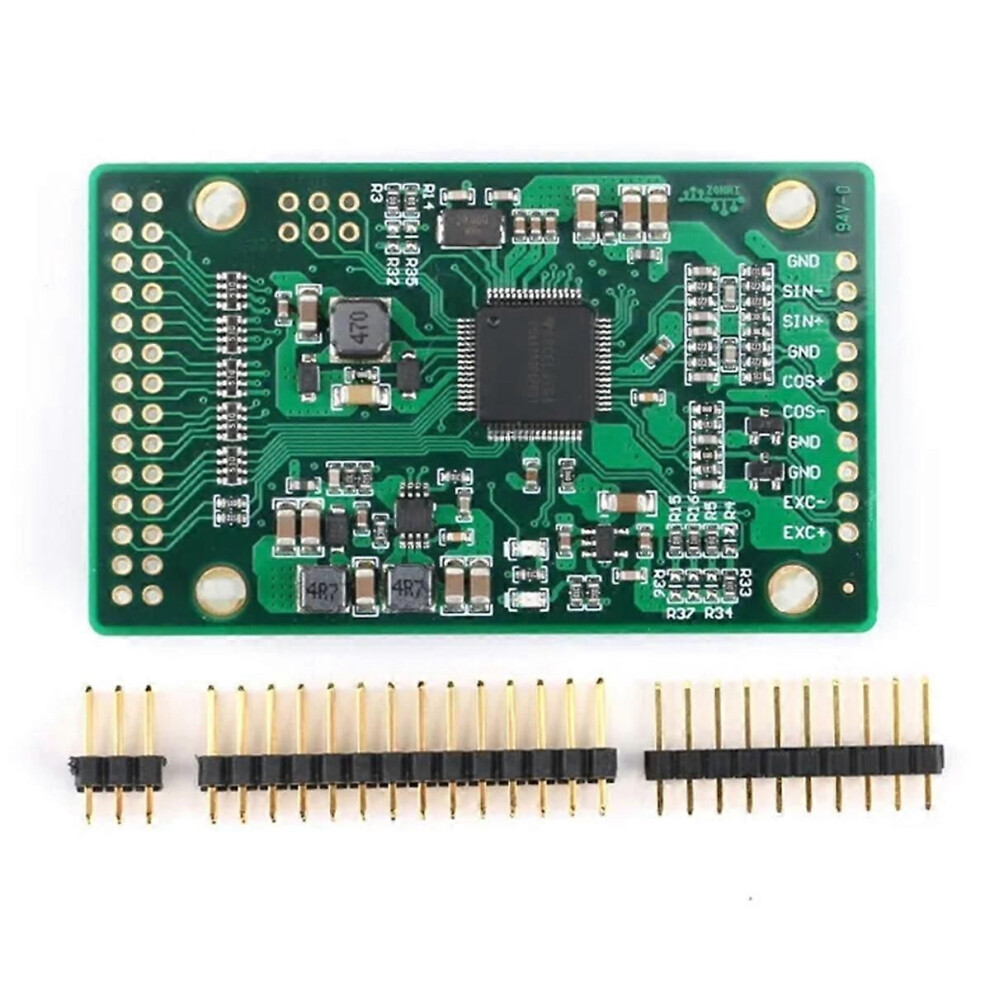

12Bit Rotary Transformer/Encoder/ Angle Speed Acquisition Module

Description de 12Bit Rotary Transformer/Encoder/ Angle Speed Acquisition Module

12Bit Rotary Transformer/Encoder/ Angle Speed Acquisition Module
Complete rotary transformer (encoder) application
Support 12Bit/10Bit per electrical angle accuracy.
Highly integrated rotary transformer application, controllable excitation voltage and excitation frequency, flexible adaptation to different sensors.
Supports angle output and speed output, which can be read via parallel interface or SPI serial interface.
Data communication check.
3.3-8V wide power supply (typical operating current is 265mA for 5V power supply).
Common problem:
Q: Can I output speed and angle data at the same time?
A: Speed and angle data can be read through SPI. VA0/VA1 is by patch resistor jumper. Therefore, the parallel interface can only output angle or speed. In addition, the angle can be read through the parallel port and the SPI interface can be used to read the speed.
ORD0-12: Parallel interface data line
ENC-A/B/Z: Quadrature encoder signal output
: Analog Output
ORDCLK: parallel interface clock
VIN: DC power input interface (3.3-8V, typical operating current is 245mA at 5V)
INHB: Data Output Hold
PRD: Data Parity Output
FAULTS: Error signal clear (input)
SIN+/-: resolver SIN signal input
COS+/-: resolver COS signal input
EXC+/-: resolver excitation signal output
Colour:Green
Material:ABS
Package Contents:
1 * angle speed acquisition module
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
