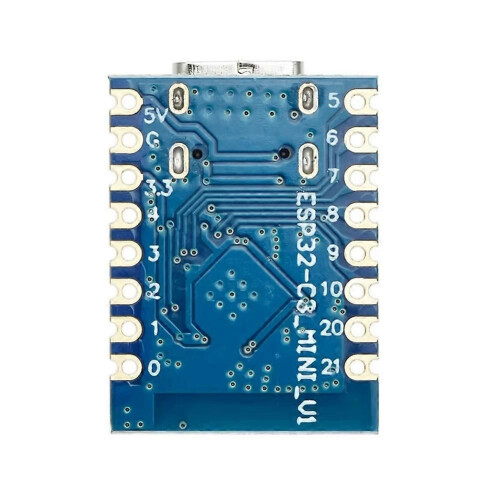

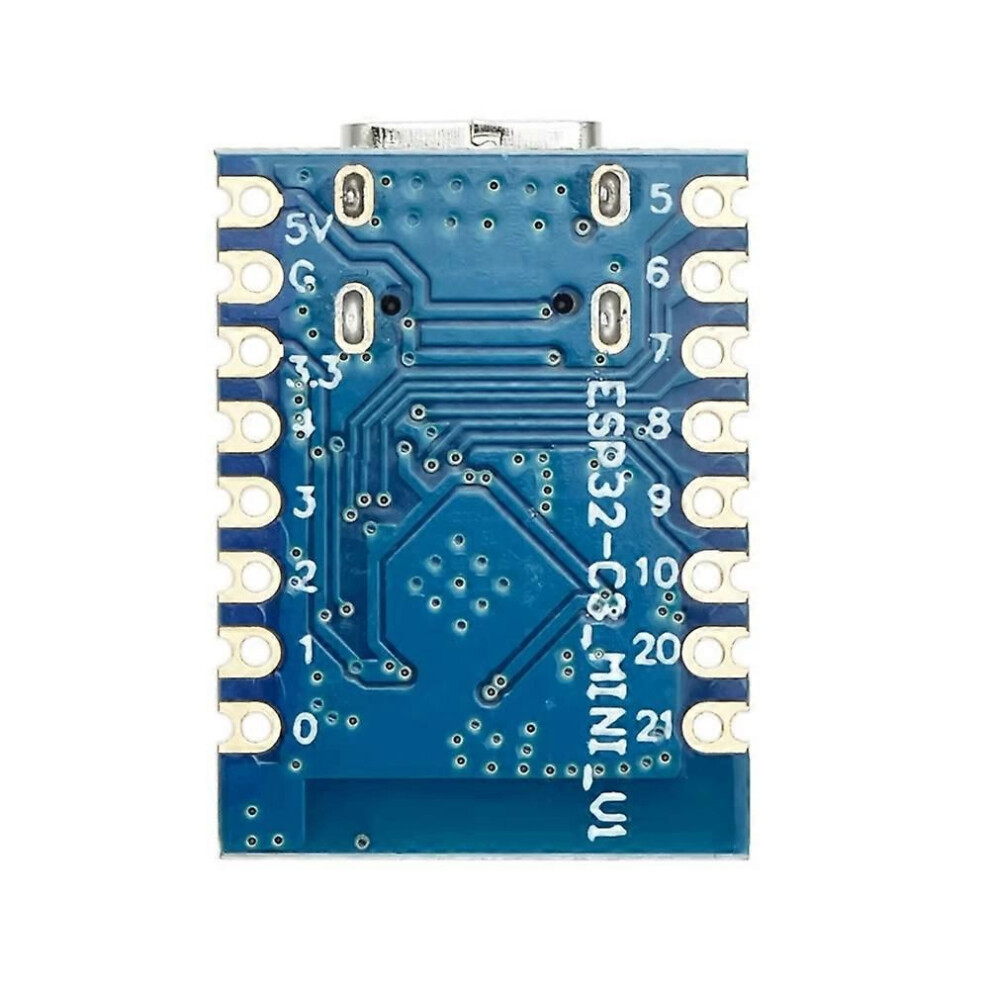

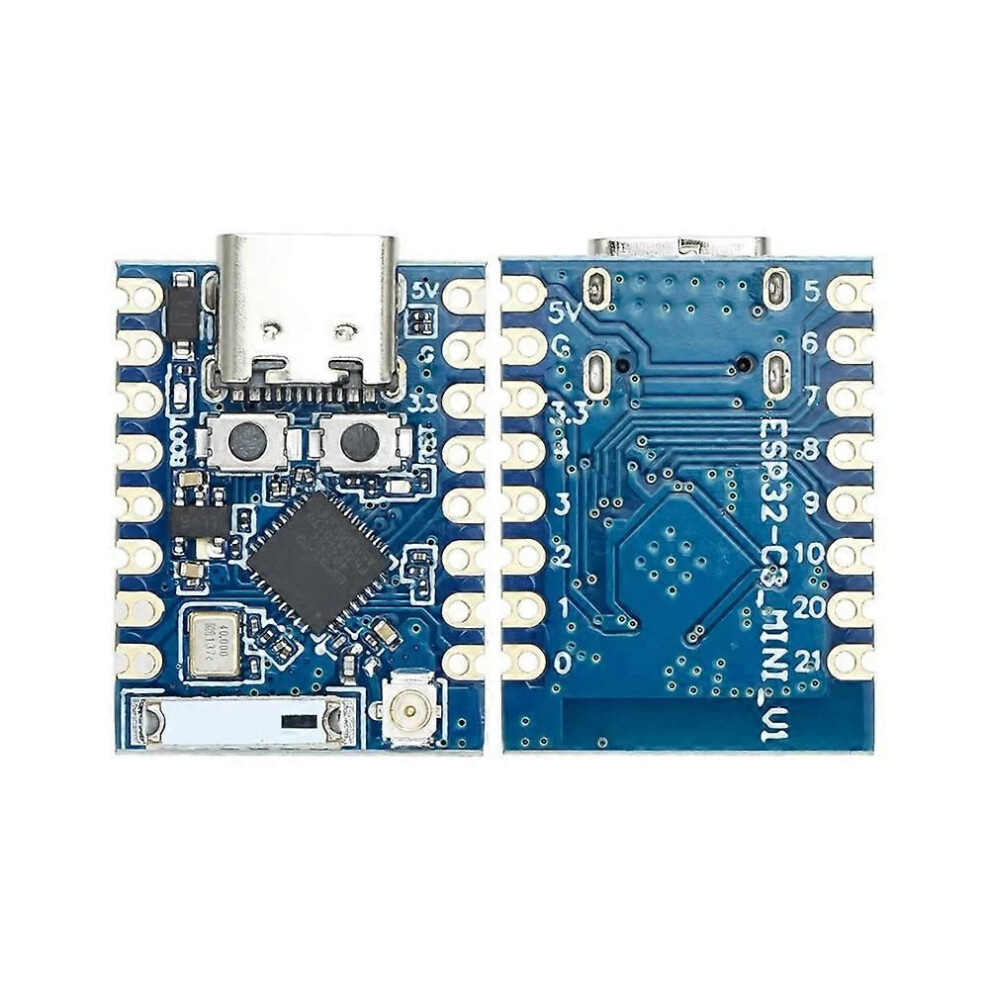

1PCS ESP32C3 PRO MINI Development Board Onboard ESP32-C3FH4 Chip Module WiFi Bluetooth Development Board

Description de 1PCS ESP32C3 PRO MINI Development Board Onboard ESP32-C3FH4 Chip Module WiFi Bluetooth Development Board

1PCS ESP32C3 PRO MINI Development Board Onboard ESP32-C3FH4 Chip Module WiFi Bluetooth Development Board
ESP32C3 PRO MINI is an IoT mini development board based on the ESP32-C3 WiFi/Bluetooth dual-mode chip.
ESP32-C3 is a 32-bit RISC-V CPU that includes an FPU (floating point unit) that can perform 32-bit single-precision operations and has powerful computing power. It has excellent RF performance and supports IEEE 802.11 b/g/n WiFi and Bluetooth 5 (LE) protocols.

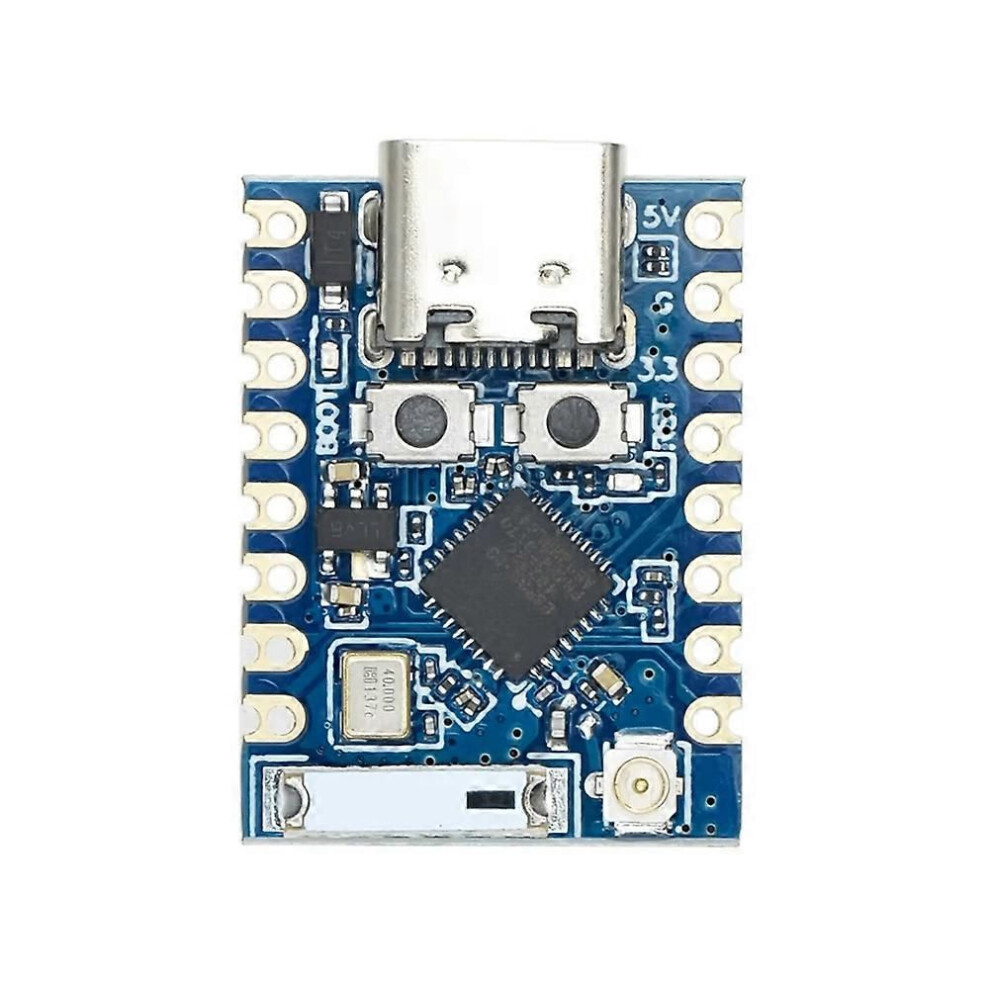

The board comes with a ceramic antenna and an IPEX antenna mount to enhance the signal strength of wireless applications. It also has a small and exquisite appearance combined with a single-sided surface mount design.
It is equipped with a rich interface, with 11 digital I/Os that can be used as PWM pins and 4 analog I/Os that can be used as ADC pins. It supports four serial interfaces such as UART, I2C and SPI. There is also a small reset button and a bootloader mode button on the board.
ESP32C3 SuperMini is a high-performance, low-power, and cost-effective IoT mini development board, suitable for low-power IoT applications and wireless wearable applications.
Parameter:
CPU: ESP32-C3, 32-bit RISC-V single-core processor, running frequency up to 160 MHz
WiFi: 802.11b/g/n protocol, 2.4GhHz, supports Station mode, SoftAP mode, SoftAP+Station mode, mixed mode
Bluetooth: Bluetooth 5.0
Ultra-low power consumption: deep sleep power consumption is about 43μA
Rich board resources: 400KB SRAM, 384KB ROM built-in 4Mflash.
Chip model: ESP32C3FN4
Reliable security features: support AES-128/256, hash, RSA, HMAC, cryptographic hardware accelerator for digital signature and secure boot
Rich interfaces: 1xI2C, 1xSPI, 2xUART, 11xGPIO (PWM), 4xADC
Onboard blue LED: GPIO8 pin
Color: Blue
Material: PCB
Package Contents:

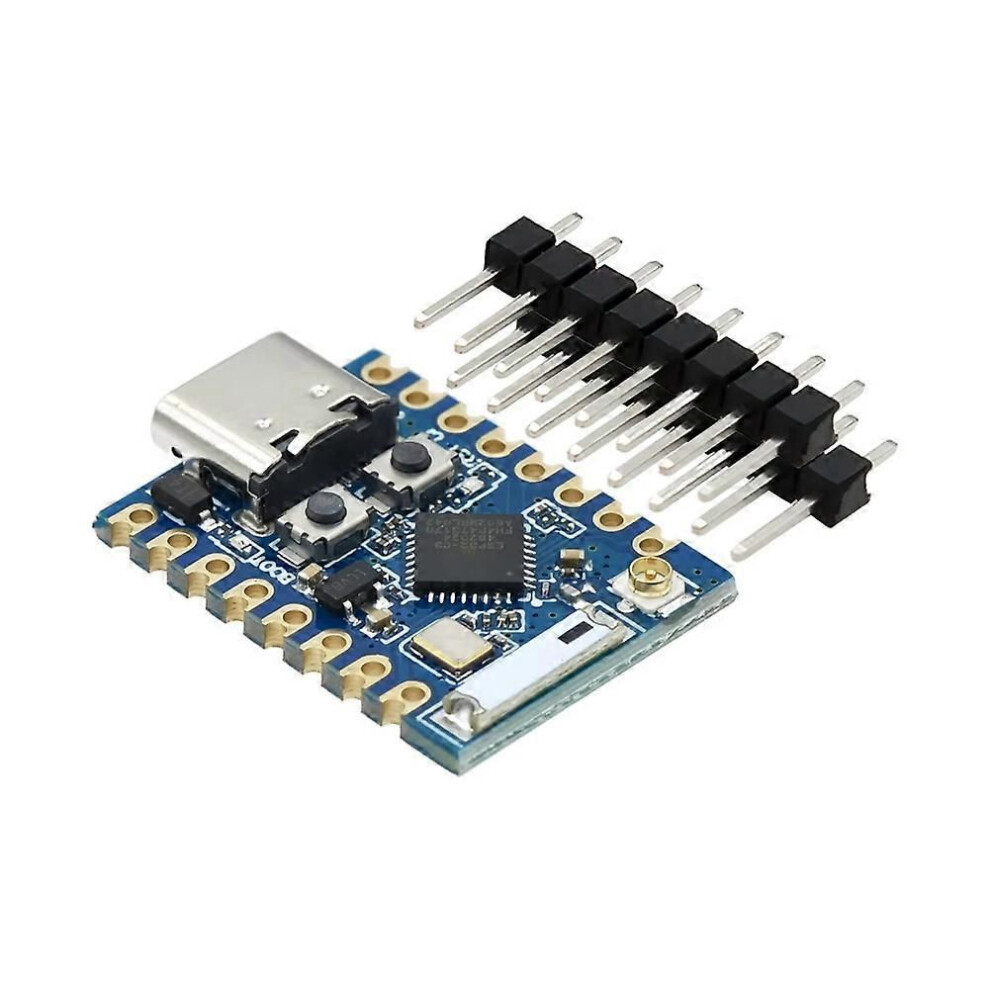

1 x Mini development board
2 x pin (random colors, don't accept the specified color)
