2.7 inch Dual Color Display Module for Raspberry Pi/Arduino
Description:
This E-Ink display HAT, 2.7inch, 264x176 resolution, is specially designed for Raspberry Pi. Comes with embedded controller, communicating via Serial Peripheral Interface interface. Due to the advantages like ultra low power consumption, wide viewing angle, great effect under sunlight, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Features:
No backlight, keeps displaying last content for a long time even when power down.
Ultra low power consumption, basically power is only required for refreshing.
Comes with four buttons for the expansion of applications
Suitable for Raspberry Pi 2B/3B/Zero/Zero W.
Serial Peripheral Interface, to connect with other controller boards like for A-rduino/Nucleo, etc.
Comes with development resources and manual (examples for Raspberry/A-rduino/STM32).
Specifications:
Operating voltage: 3.3V
Interface: 3-wire Serial Peripheral Interface, 4-wire Serial Peripheral Interface
Outline dimension: Approx. 85mm x 56mm
Display size: Approx. 57.288mm x 38.192mm
Dot pitch: 0.217 x 0.217
Resolution: 264 x 176
Display color: black, white
Grey level: 2
Full refresh time: 6s
Refresh power: 24mW(typ.)
Standby power:
Viewing angle: >170
Package weight: 42g
Interface:
VCC: 3.3V
GND: GND
DIN: Serial Peripheral Interface MOSI pin
CLK: Serial Peripheral Interface SCK pin
CS: Serial Peripheral Interface chip selection, low active
DC: Data/Command selection (high for data, low for command)
RST: External reset, low active
BUSY: Busy status output, low active

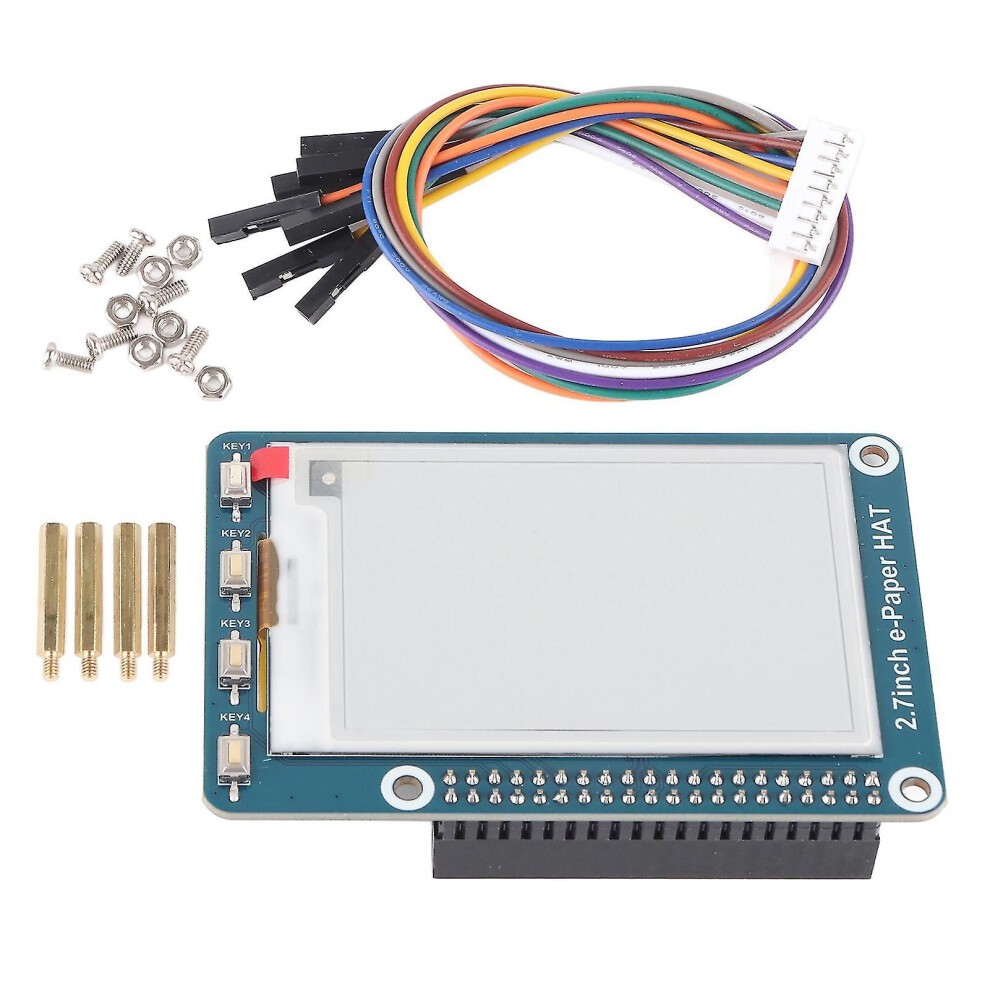

Package List:
1 x 2.7inch e-Paper HAT
1 x Screws Pack(2sets)
Note:
1.
If you want more tutorials and instructions about this product, please
contact us, we will send related information to you.
.
