3/8Inch NPT Thread ISO7241-1A Hydraulic Quick Disconnect Coupler Set with Dust Cap

Description de 3/8Inch NPT Thread ISO7241-1A Hydraulic Quick Disconnect Coupler Set with Dust Cap

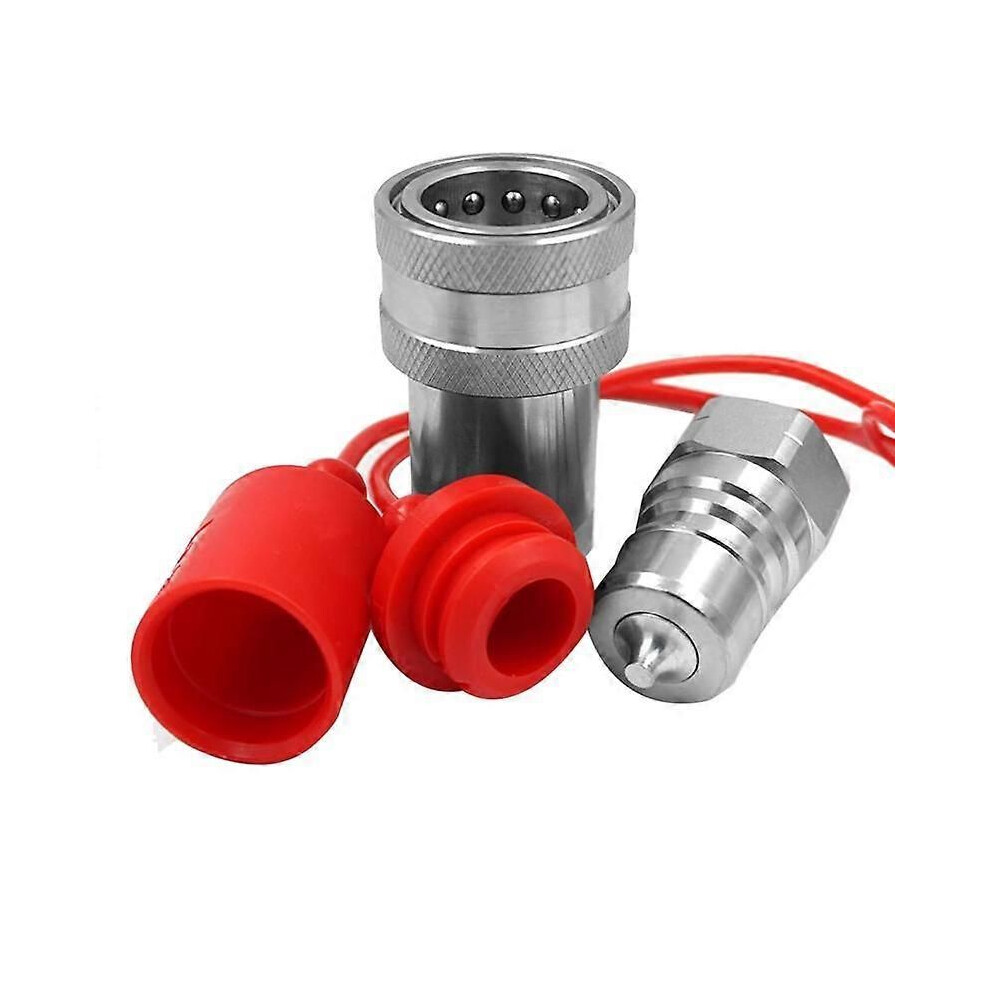

3/8" NPT Thread ISO7241-1A Hydraulic Quick Coupling Kit (with Dust Cap)

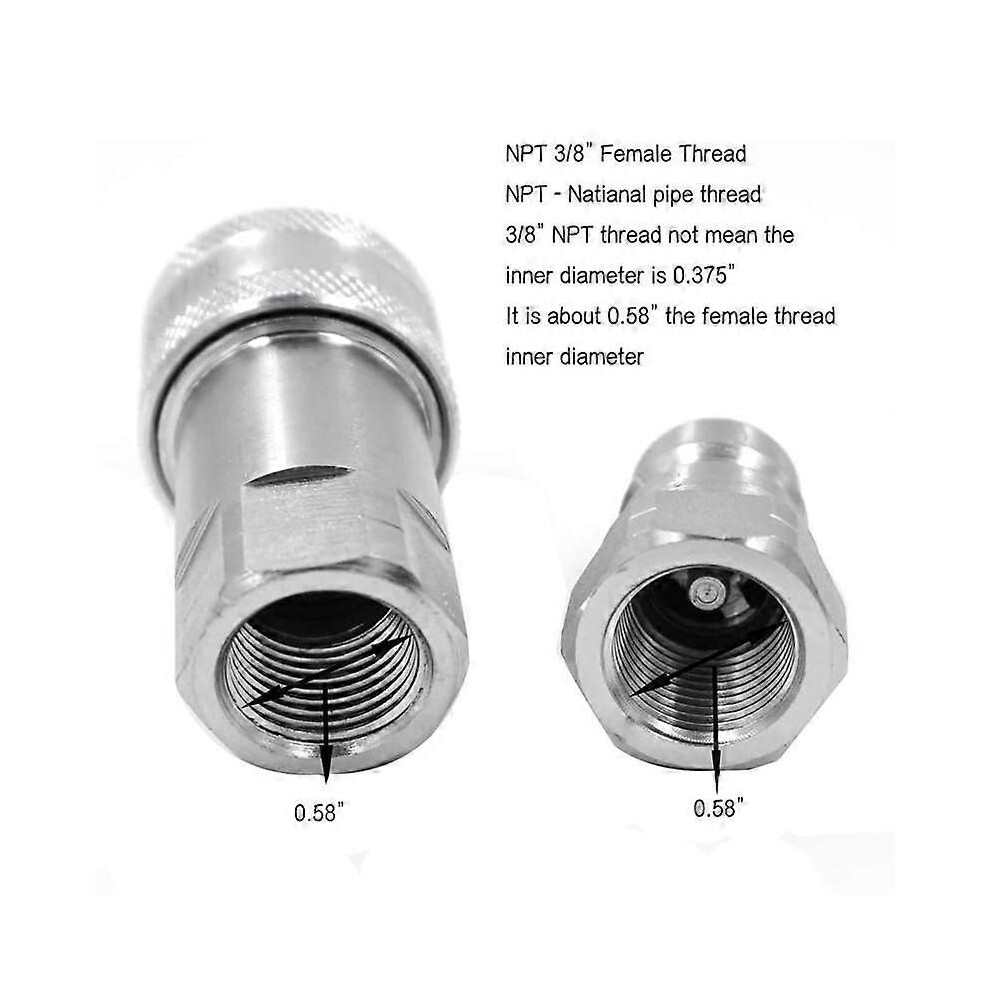

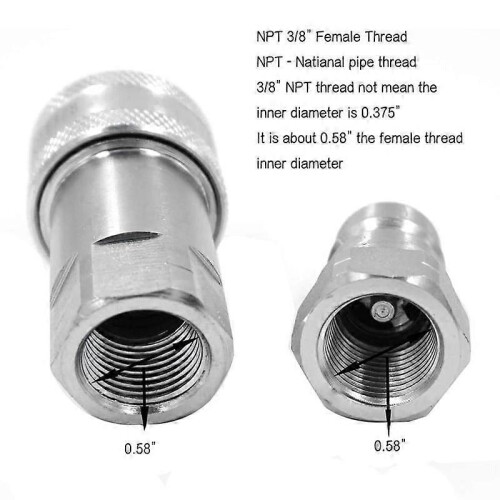

This fluid transfer quick coupling offers higher burst pressure and superior flow compared to the Aeroquip FD56 (5600) and 6600 series, while being half-to-half interchangeable. Features a heavy-duty locking ball positioning design to ensure reliable and stable connection every time. Unique valve disc/seat design with no squeeze gap minimizes seal degradation under extreme pressures. Standard stainless steel valve spring and retaining ring. This is a Type A quick coupling with a 3/8" (10mm) body size. Both male and female connectors are NPT 3/8" internal threads. Interchangeable connector, compatible with all 7241... Type A quick couplings are interchangeable and not limited by quick coupling manufacturers. Quick couplings are widely used in various equipment, hydraulic tools, mobile hydraulic systems, and other devices. Features of this quick coupling: Ball-lock connection-The male and female couplings use a ball-lock connection, making connection and disconnection very convenient. Seal-O-ring seal prevents leakage and provides good stability. Zinc-plated finish. NPT 3/8 inch internal thread-NPT is the American National Standard pipe thread; this refers to a 3/8 inch NPT internal thread. This does not mean the thread's inner diameter is 3/8 inch. You can check the thread; the inner diameter of a 3/8 inch NPT internal thread at the thread edge is approximately 0.58 inches. Size: 3/8 inch NPT thread Connection type: Straight-in Thread type: NPT Interchangeable models: HA15000 series Internal thread: HA1522100 External thread: HA1522200 6600 series Internal thread: 6601-6-6 External thread: 6602-6-6 Aeroquip FD56 Series Female Connector - Socket: FD56-1064-06-06 Male Connector - Socket: FD56-1062-06-06 Fixed NV Series Female Connector - Socket: NV 38 NPT F Male Connector - Socket: NV 38 NPT M Safeway S56 Series Female Connector - Socket: S565-3 Male Connector - Socket: S561-3 Color: Silver Material: Alloy Steel Package Contents: 1 x Hydraulic Quick-Release Kit This package only includes the above contents; other products are not included. Note: Light reflection and different monitors may cause the color of the item in the picture to be slightly different from the actual product. The allowable measurement error is +/- 1-3 cm.
