6-30V Automatic Alarm Power-Off PD65W Integrated Module Built-in Step-Down Fast Charging Module for FPV Drone AVATA2 A
En stock
Pourquoi vous allez adorer OnBuy :
- Gagnez du Cashback sur chaque achat – dépensez-le immédiatement sur votre prochaine commande
- Livraison gratuite – sur des millions d'articles sur le site
- Les clients nous adorent – 133,000 avis avec une note « Excellente »
Les prix des articles vendus sur OnBuy incluent la TVA.
Options de paiement sans intérêts disponibles
Voir la description complète et les détails du produit
Livraison : Standard (7,47 €) | sam. 19 - ven. 25 sept.
Vendu par : PPEART
Retours : 30 jours
Protection des paiements pendant 180 jours
Vous pourriez aussi aimer
Résumé
- Any battery with a voltage ranging from 6V to 30V can be used normally. The alarm voltage can be adjusted by pressing and holding the button. It can also be freely adjusted within the range of 6V to 30V.
- Once the real-time voltage of the input battery is lower than the set alarm voltage, the buzzer of this device will start to alarm, and all outputs will be automatically cut off after 2 minutes. (After the output is cut off, the battery will consume almost no power.) It can effectively protect our lithium battery from over-discharging during the discharging process!!!
- If you find the buzzer noisy when it is ringing, you can mute it by briefly pressing the button. However, the automatic power-off after 2 minutes will still be executed as normal.
- Regarding the fast charging module part: It uses the 3518 fast charging module. Since it is a step-down module, the 20V gear of the Type-C port can only be activated when the input voltage is greater than 21V. The maximum broadcast power can reach 100W. It is okay to use 100W for emergency situations in a short period. For long-term use, it is recommended to use a power of 65W or below.
- When charging at a high power, the fast charging module will generate a lot of heat. Please use high-power charging in a well-ventilated environment or use an external fan to enhance heat dissipation. There are openings on both the upper and lower sides of the module to enhance heat dissipation. When charging and discharging the lithium battery, it is best for you to be nearby so that you can deal with any potential risks in a timely manner.

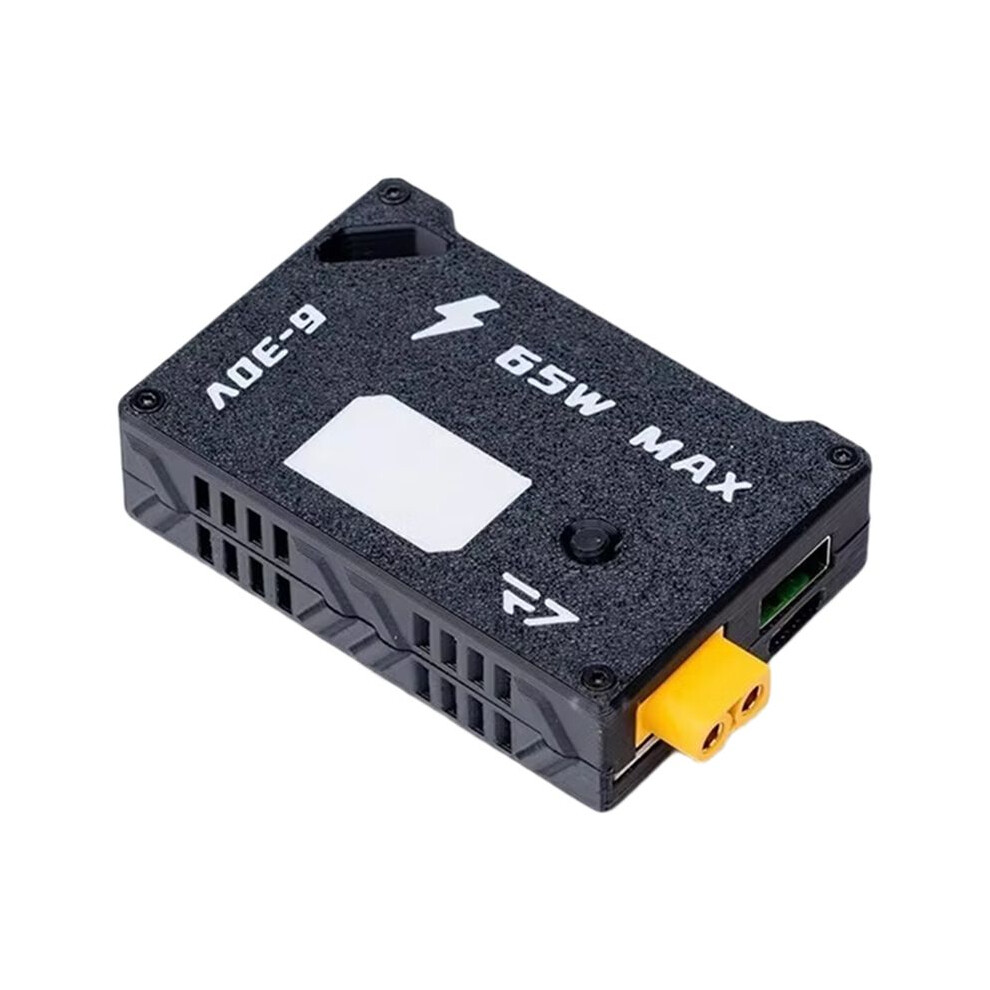

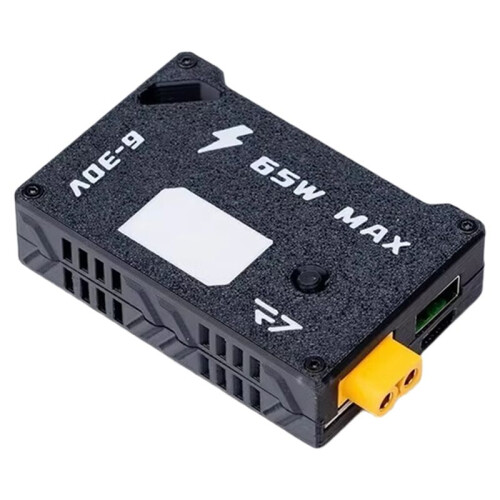

Description de 6-30V Automatic Alarm Power-Off PD65W Integrated Module Built-in Step-Down Fast Charging Module for FPV Drone AVATA2 A
Any battery with a voltage ranging from 6V to 30V can be used normally. The alarm voltage can be adjusted by pressing and holding the button. It can also be freely adjusted within the range of 6V to 30V.
Once the real- voltage of the input battery is lower than the set alarm voltage, the buzzer of this device will start to alarm, and all outputs will be automatically cut off after 2 minutes. (After the output is cut off, the battery will consume almost no power.) It can effectively protect our lithium battery from over-discharging during the discharging process!!!
If you find the buzzer noisy when it is ringing, you can mute it by briefly pressing the button. However, the automatic power-off after 2 minutes will still be executed as normal.
Regarding the fast charging module part: It uses the 3518 fast charging module. Since it is a step-down module, the 20V gear of the Type-C port can only be activated when the input voltage is greater than 21V. The maximum broadcast power can reach 100W. It is okay to use 100W for emergency situations in a short period. For long-term use, it is recommended to use a power of 65W or below.
When charging at a high power, the fast charging module will generate a lot of heat. Please use high-power charging in a well-ventilated environment or use an external fan to enhance heat dissipation. There are openings both the upper and lower sides of the module to enhance heat dissipation. When charging and discharging the lithium battery, it is best for you to be nearby so that you can deal with any potential risks in a timely manner.
Project Name:Automatic Alarm Power PD Integrated Module
Input voltage:6-30V
Power:65W MAX
Interface:XT60
Support PD3.0/QC3.0
Color:A:Black
Material:ABS
Package Contents:
1 * FPV automatic power-off module
Informations
| OPC | PXWYRMM |
|---|---|
| Codes | 6033968132746 (EAN) |
| Informations sur le produit et la sécurité |
Données sur le produit
| Height | 5cm |
|---|---|
| Width | 15cm |
| Length | 10cm |
| Weight | 0.12kg |
| Colour | Black |
| Material | ABS |
