AD8009 RF Module Current Feedback Amplification 1GHz 5500V/Us Low Distortion High Current Pulse Amplification

Description de AD8009 RF Module Current Feedback Amplification 1GHz 5500V/Us Low Distortion High Current Pulse Amplification

AD8009 RF Module Current Feedback Amplification 1GHz 5500V/Us Low Distortion High Current Pulse Amplification
1.Ultra-High Speed Swing Rate: 5500V/Μs (4V Step, G = +2)
2.Rise Time: 545 PS (2V Step, G = +2) large Signal Bandwidth 440 MHz,G = +2 320 MHz,G = +10 Small Signal Bandwidth (-3 DB) 1 GHz,G = +1 700 MHz,G = +2 0.1%
3. Power Supply Voltage: +5V to 5 V ICC,
4.IDD: 14 Ma (Typical) Application Pulse Amplifier Intermediate Frequency/RF Gain Stage/Amplifier High Resolution Video Graphics High Speed Instrumentation CCD Imaging Amplifier
Establishment Time: 10 Ns (2V Step, G = +2) Low Distortion and Stray Free Dynamic Range (SFDR) in Wide Broadband Range-66 JDBC (20 MHz, Second Harmonic) -75 JDBC (20 MHz, Third Harmonic) Three Layer Intermodulation Cut-off Point (3ip) 26 DBm (70 MHz,G = +10) Good Video Specification 0.1 DB Gain Flatness up to 75 MHz 0.01% Differential Gain Error, RL = 150Ω 0.01 Differential Phase Error, rl = 150 Ω High Output Drive 175 MA Output Load Drive Current 10 DBm and SFDR Is-38 5C (70 MHz,G = +10) Power Supply
Material:PCB
colour:green
Package Contents:

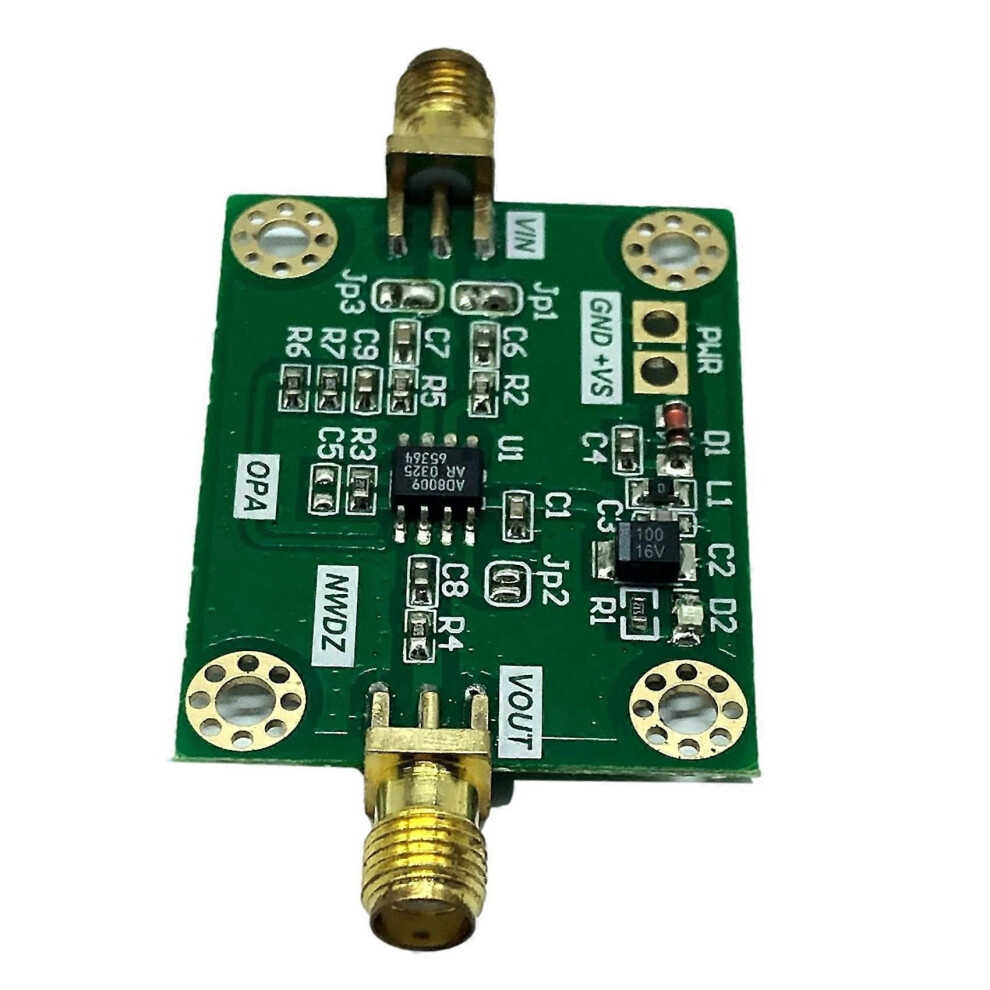

1 x Ad8009 Module
Only the above package content, other products are not included.
