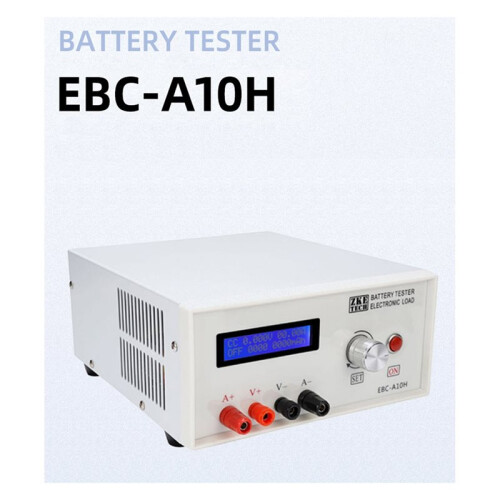

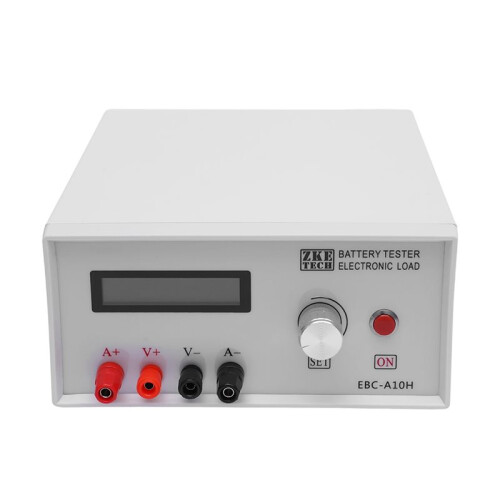

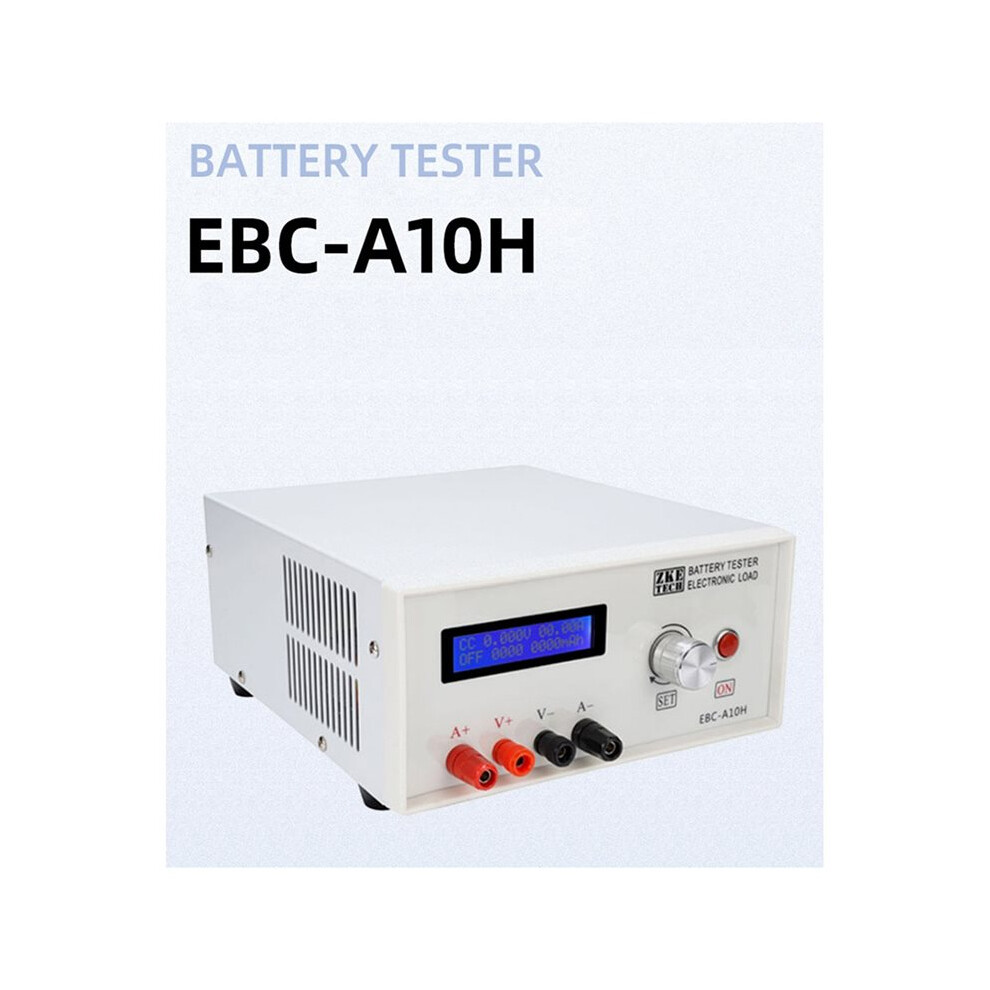

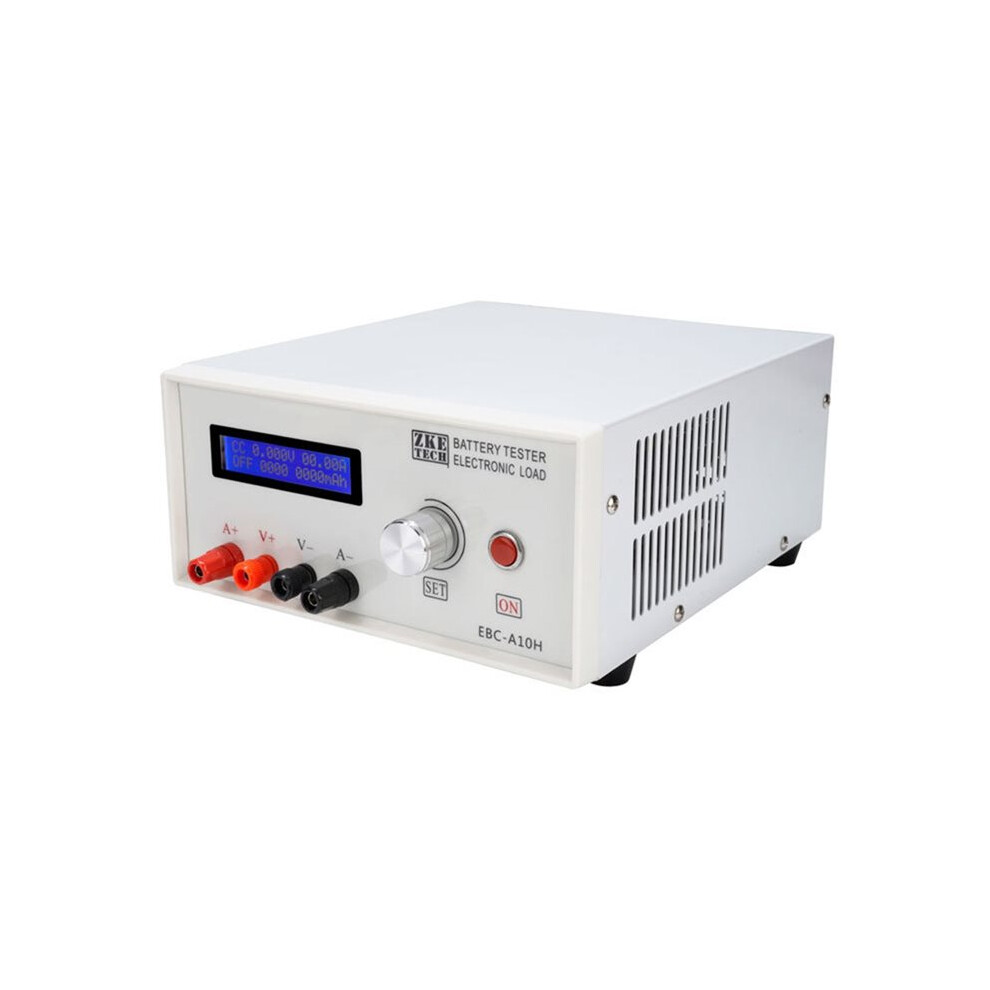

EBC-A10H Battery Capacity Tester Electronic Load Power Supply Tester 5A 10A Battery Current Voltage Tester

Description de EBC-A10H Battery Capacity Tester Electronic Load Power Supply Tester 5A 10A Battery Current Voltage Tester

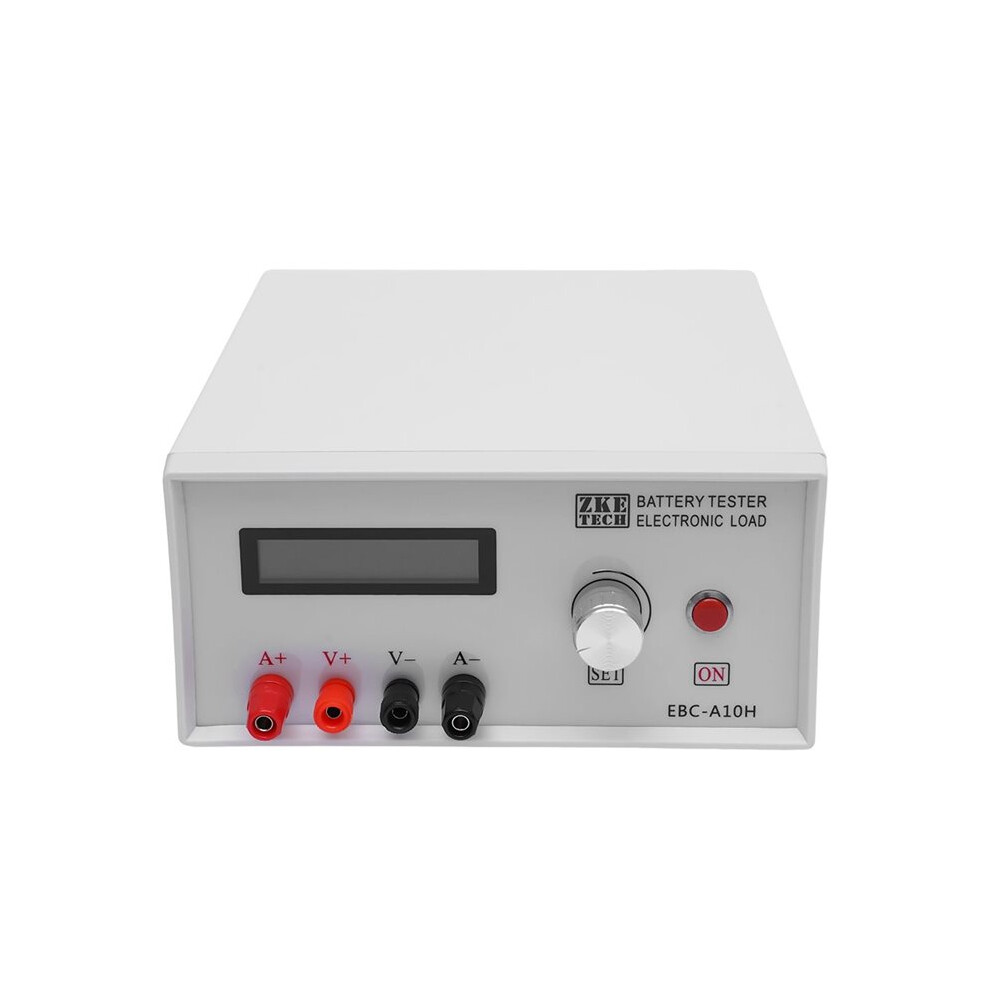

LCD Display: This tester has an LCD display the front to show test data such as voltage, current, capacity, , power, and . This allows you to observe the data at all times

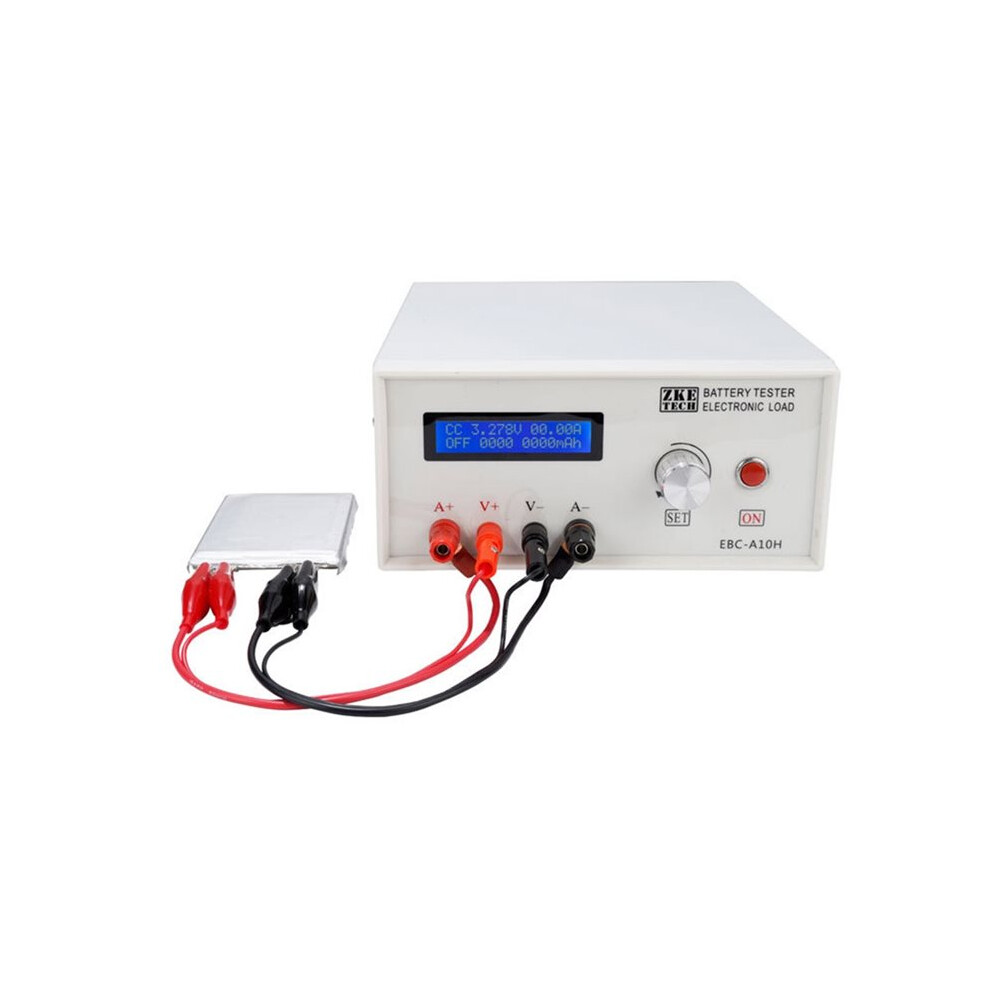

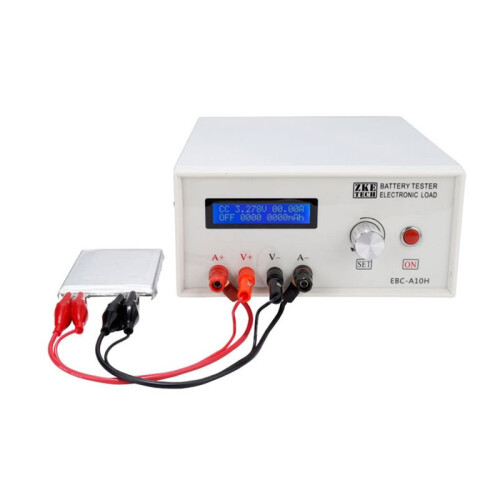

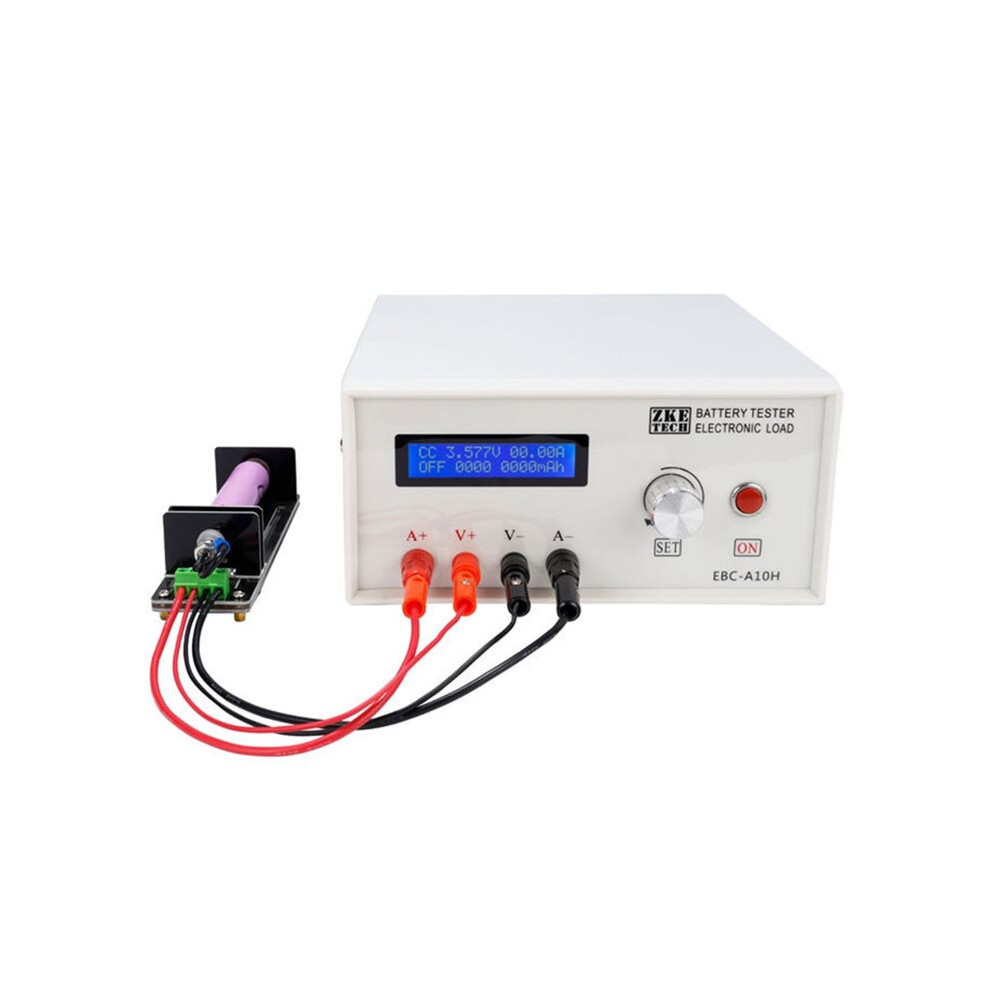

4-wire Connection: The tester uses 4-wire detection. The voltage and current channels are wired separately, which ensures more accurate measurements
3 Discharge Modes: This item is available in three discharge modes, which are DSC-CC, DSC-CP, and CHG-CV for testing battery capacity, simulating constant power devices, and battery measurement respectively
Automatic Charging and Discharging: This item supports an automatic charge-discharge-charge mode, which can be used to test the battery capacity. This is very convenient and effective

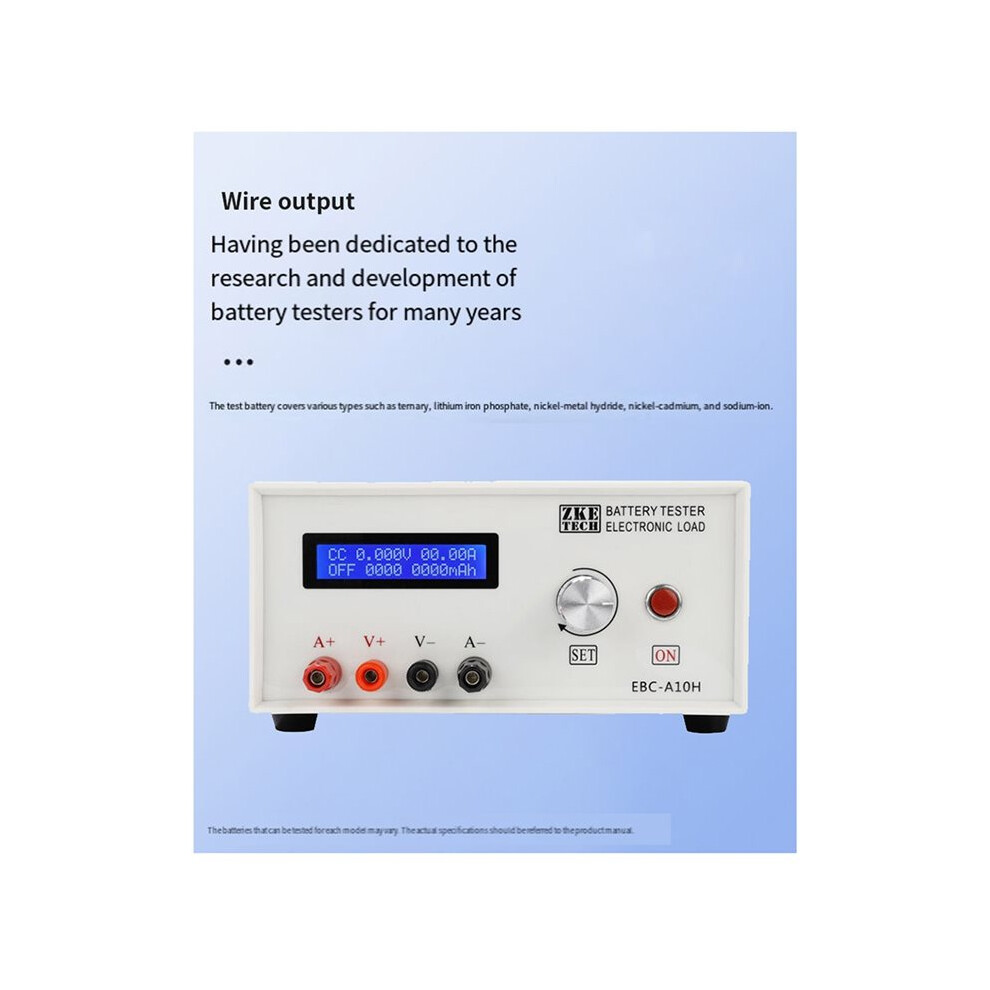

Multiple Charging Materials: It supports NiMH, NiCr, Lithium, Iron, Lithium, and Lead Acid charging materials. This is very convenient

Model: EBC-A10H
Voltage: 100-240V
Discharge Voltage: 0.00-30.00V (Minimum Step Size: 0.01V)
Charging Voltage: 0.00-22.00V (Minimum Step Size: 0.01V)
Discharge Current: 0.05-10.00A (Minimum Step Size: 0.01A)
Charging Current: 0.05-5.00A (Minimum Step Size: 0.01A)
Charging Method: Standard Charging (Support Nickel Hydrogen, Nickel Chromium, Lithium, Iron, Lithium, Lead Acid)
Low Voltage Test: 0.002-4.500V (Accuracy: 0.003V, Error 0.5%)
High Voltage Test: 4.50V-30.00V (Accuracy: 0.01V, error 0.5%)
Current Test: 0.05-10.000A (Accuracy: 0.005A, error 0.5%)
Capacity Test: 10Ah (Resolution: 0.001Ah)
(The product printed words may vary depending the batch, but this does not affect use)
Color: As Shown
Material: ABS

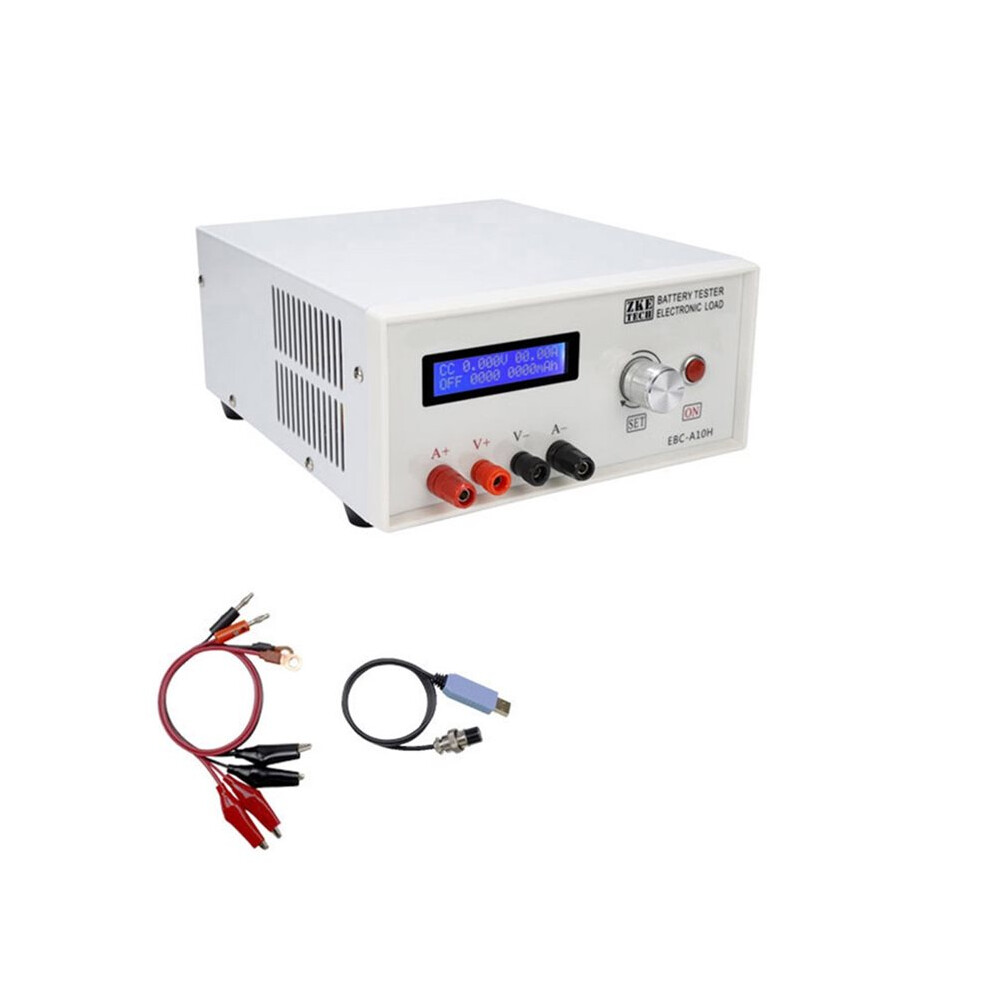

Package Contents:
1 * Power Supply Tester
