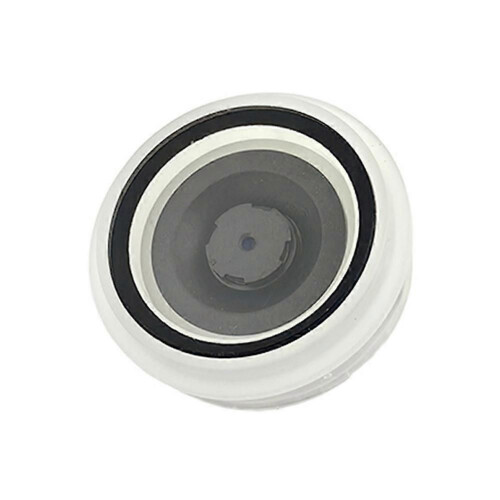

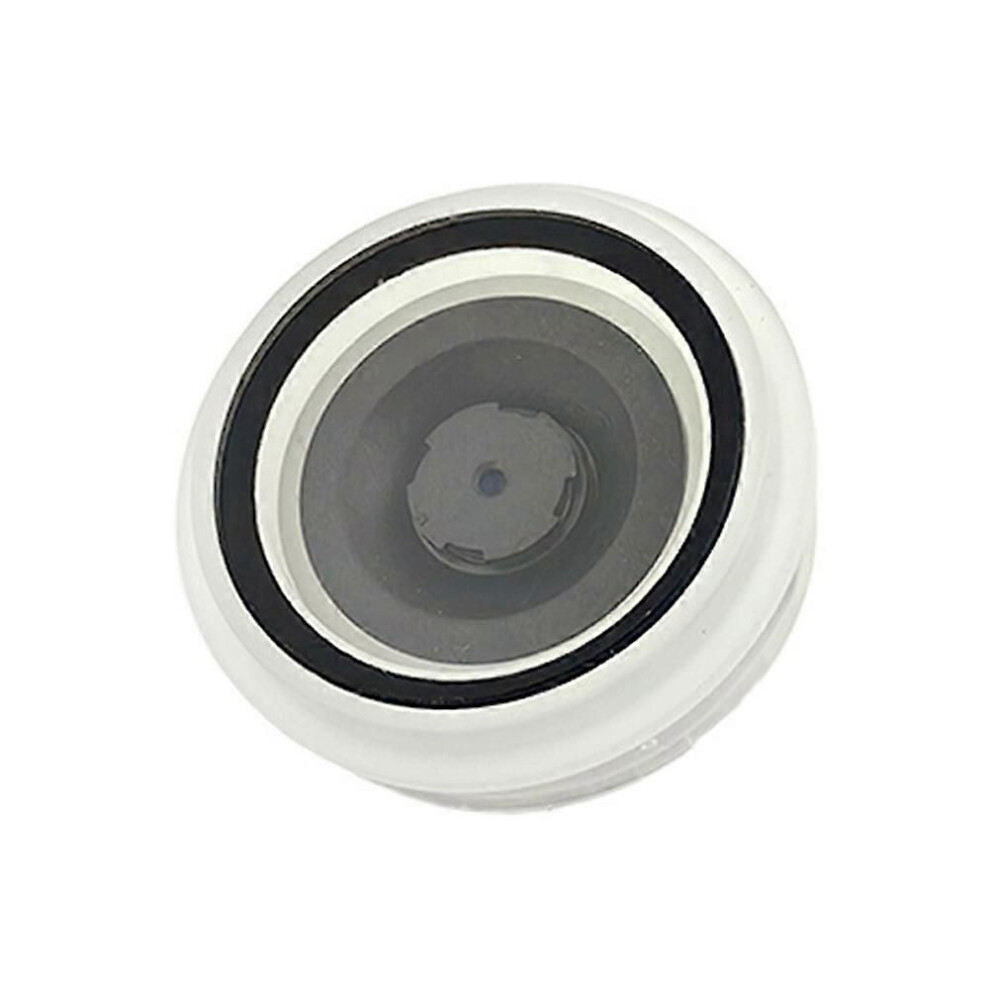

GM861S/B1 Embedded Barcode Scanner Automatically Reads Barcodes UART/USB Interface 1D/2D QR Code Barcode Reader Module

Description de GM861S/B1 Embedded Barcode Scanner Automatically Reads Barcodes UART/USB Interface 1D/2D QR Code Barcode Reader Module

GM861S/B1 Embedded Barcode Scanner Automatically Reads Barcodes UART/USB Interface 1D/2D QR Code Barcode Reader Module
Built-in barcode scanner module for fast recognition of various barcode types

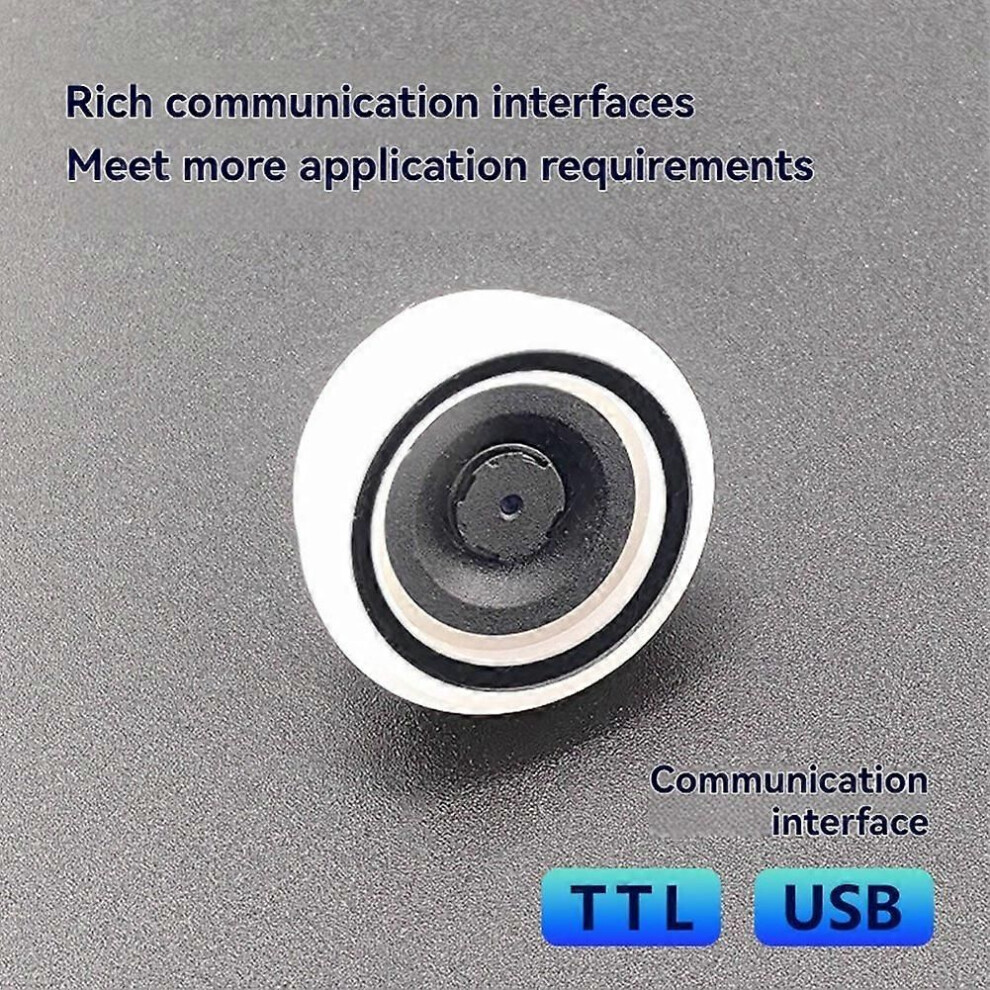

USB/TTL-232 communication interfaces meet diverse application needs
Driver-free design, plug and play
Multiple barcode reading modes, including continuous scanning, induction scanning, command trigger, and manual trigger, meet different application needs
Multi-system compatibility: Supports for Windows, Linux, Android, for Mac, and other mainstream operating systems.
Performance Parameter:
Sensor:CMOS
Scan Mode:640*480

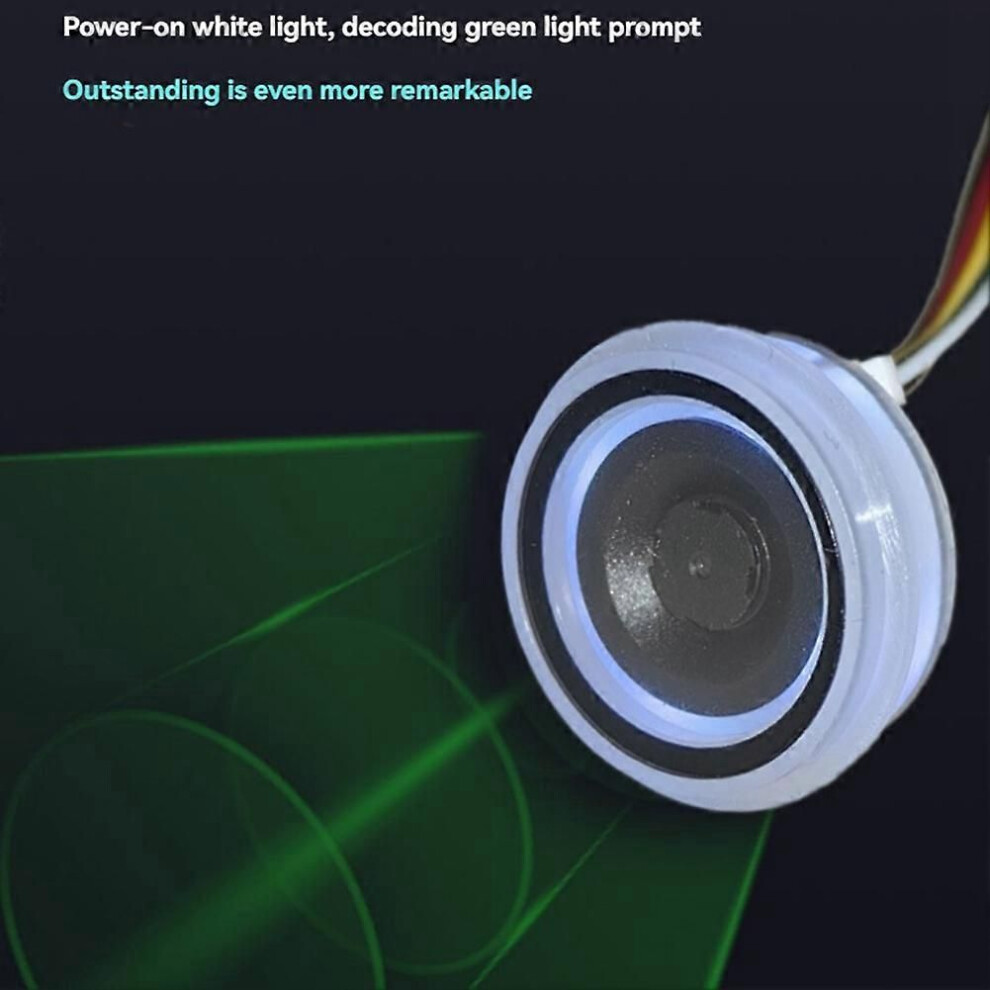

Indicator Light: Green light as read successfully
GM861-LED Fill Light:White light
Read Code Type:
1D: EAN-13, EAN-8, UPC-A, UPC-E ISSN, ISBN, CodaBar, Code 128,Code93,ITF-14,1TF-6, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 39,Code 11, MSl-Plessey,GS1-Databar(RsS)
2D: QR Code, Data Matrix, PDF417, Micro-type PDF417, Micro-type QR, Aztec
Contrast:Greater than 25%
Scan Angle:Roll:360Pitch:65Yaw:65
Viewing Angle:67(Horizontal)53(Vertical)
Accuracy of reading:greater than equal 10mil
Interface:TTL-232/USB
Prompting Mode:LED Indicator
Operating Voltage:3.3V
Operation Current:70mA(Max)
Color:White & Black
Material:plastic
Package Contents:
1 * Barcode Reader Module
