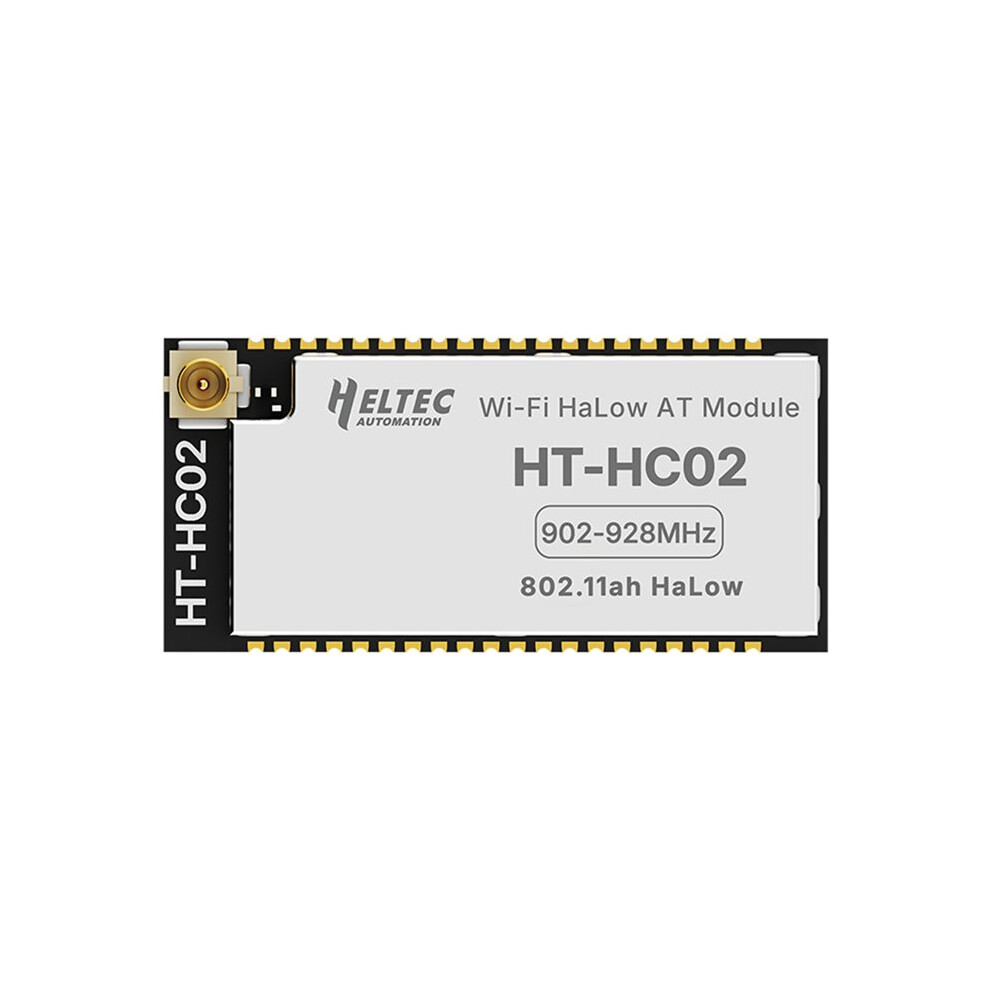

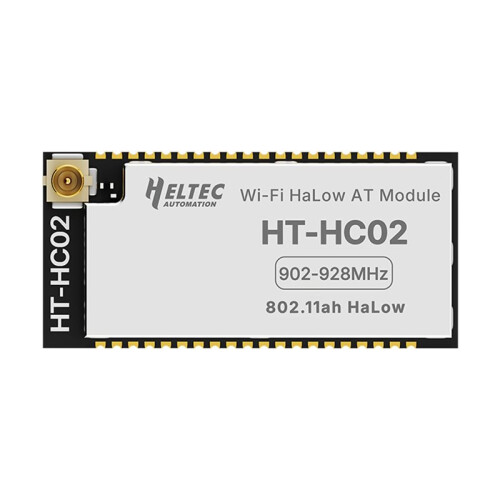

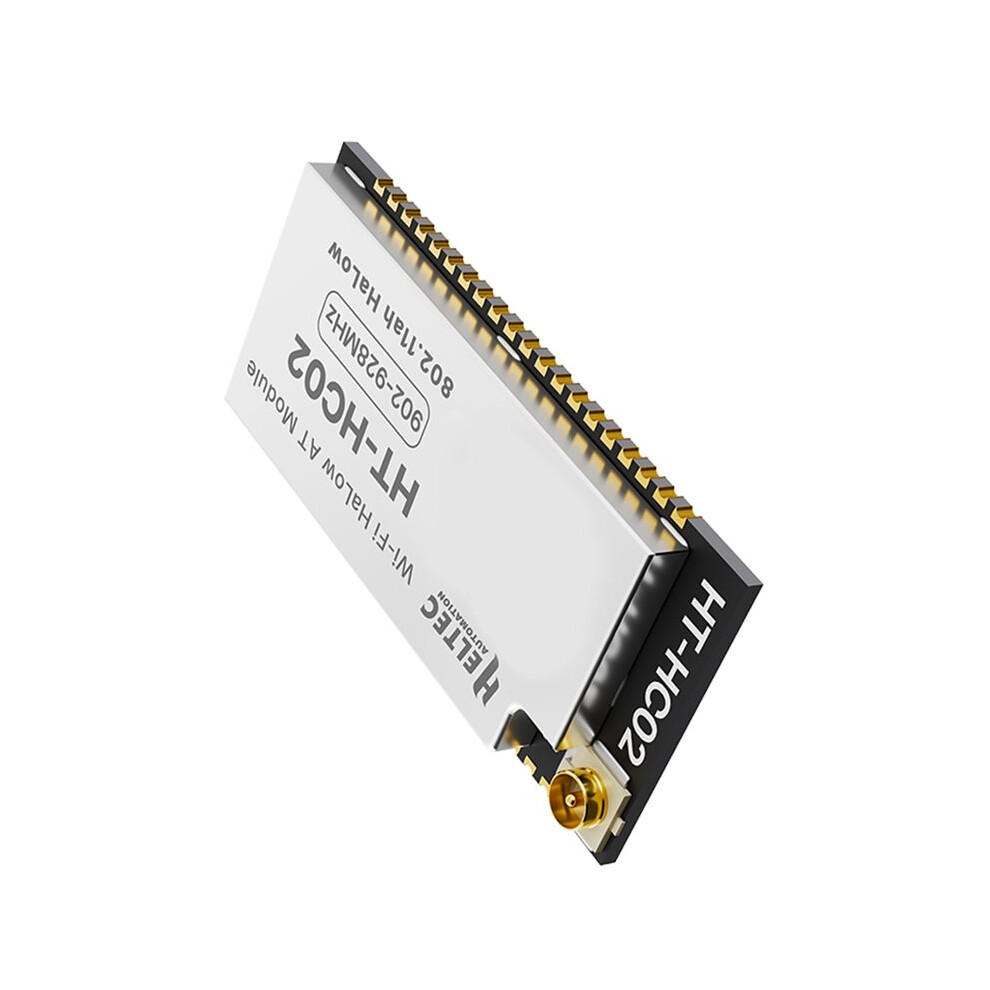

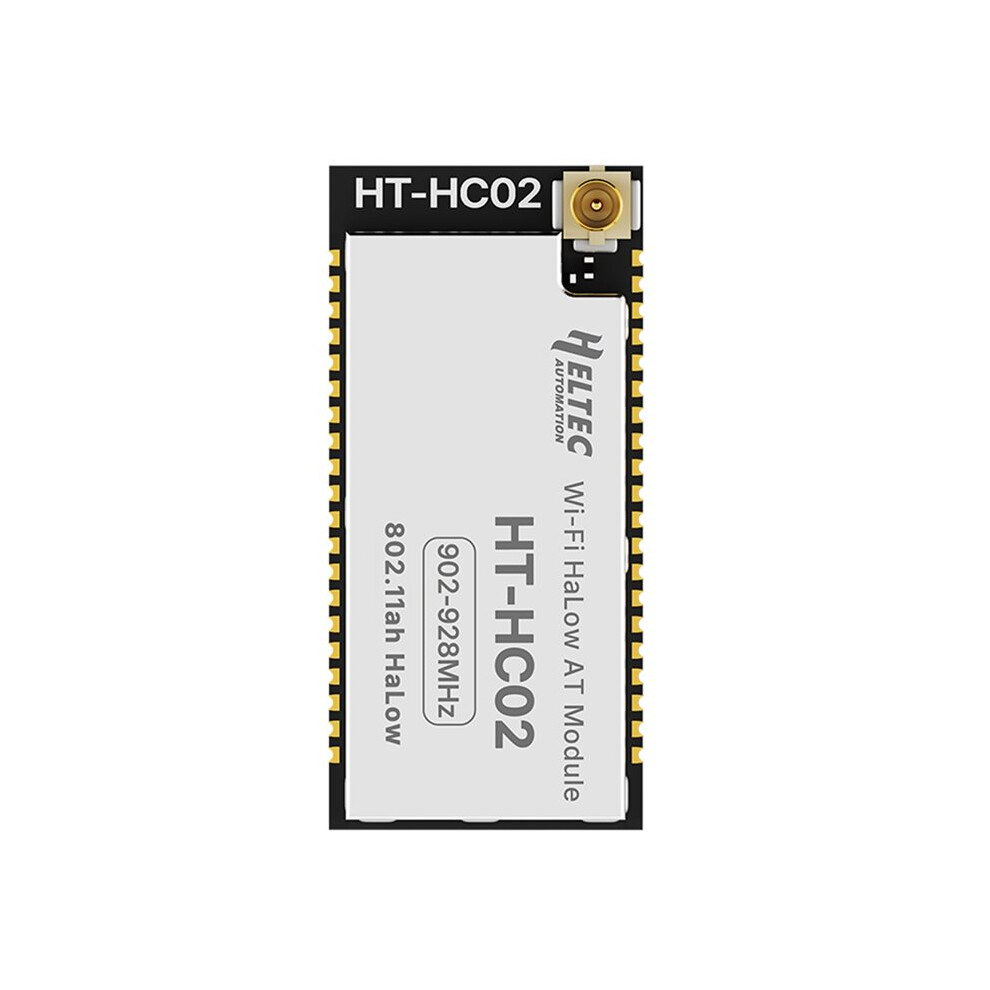

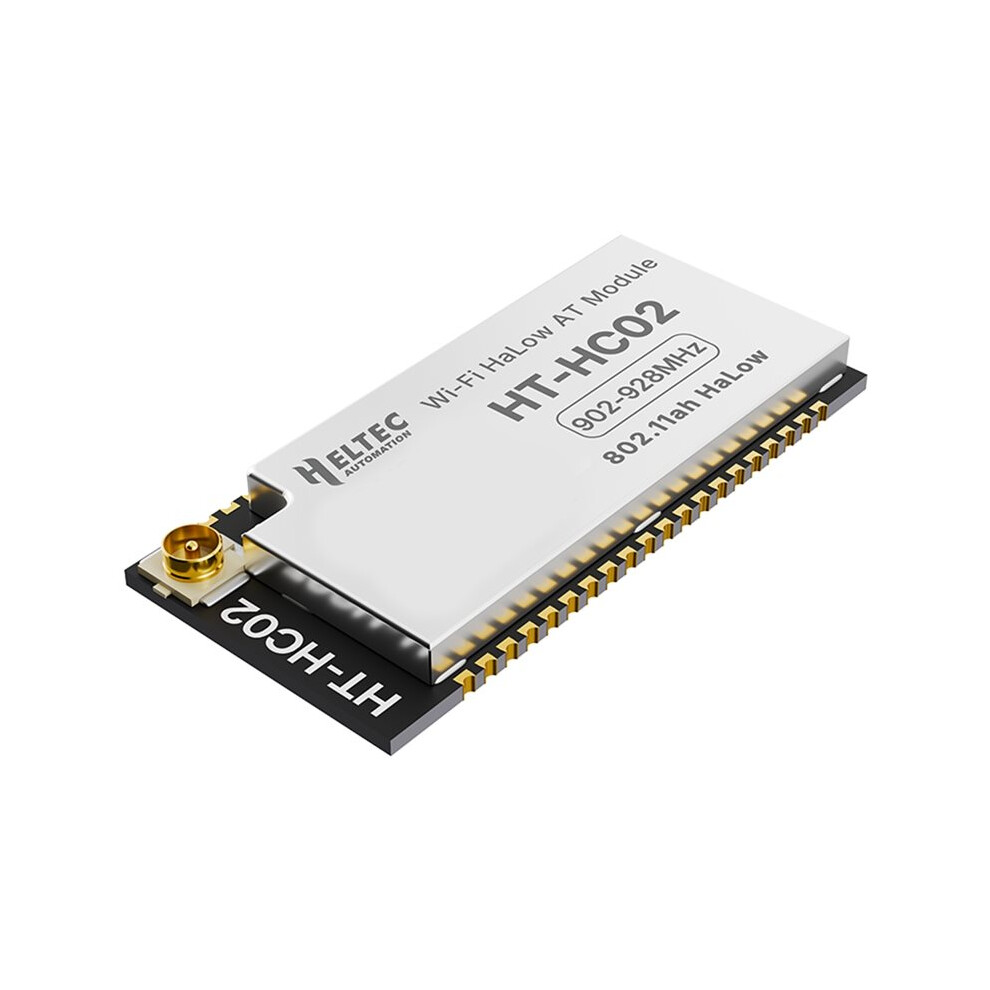

H ELTEC AUTOMATION HT-HC02 Wi-Fi HaLow AT Command Module ESP32-S3 Support AT Command Control 902-928 MHz 21dBm Sub Wi-Fi Module

Description de H ELTEC AUTOMATION HT-HC02 Wi-Fi HaLow AT Command Module ESP32-S3 Support AT Command Control 902-928 MHz 21dBm Sub Wi-Fi Module

HT-HC02 WiFi HaLow station module, built the ESP32-S3 and MM6108Q chips, requires no SDK and can be directly controlled via AT commands with UART transparent transmission.
Its compact size and 1.27mm stamp hole interface enable seamless integration into your PCB design.
Operating in the license-free Sub-1GHz frequency band, it supports a transmission distance of 1-2 and achieves a maximum physical layer over-the-air data rate of 32.5 Mbps.
This effectively addresses the limitations of traditional Wi-Fi's short transmission range and the slow data rates of other IoT technologies, making it an ideal solution for high-data-volume IoT application scenarios.

Main Features:
ESP32-S3FN8 + MM6108IQ.
Support AT command control.
UART pass-through, no SDK required.
Channel bandwidth options of 1/2/4/8 MHz.
Support frequency range: 902~928 MHz.
Max output power: 211dBm.
1.27mm stamp hole design, easy to integrate.
40C to 85C maximum operating temperature range.

Specifications:
Chip: ESP32-S3+MM6108IQ
Frequency: 902~928 MHz
HaLow Standard: IEEE 802.11ah
Band Width: 1/2/4/8MHz
Max. output power: 211 dBm
Operating temperature: -40 ~ 85
Operating humidity: 10%~90%, no-condensing
Data Rate: Max. PhysicalAir Interface Rate 32.5 Mbps

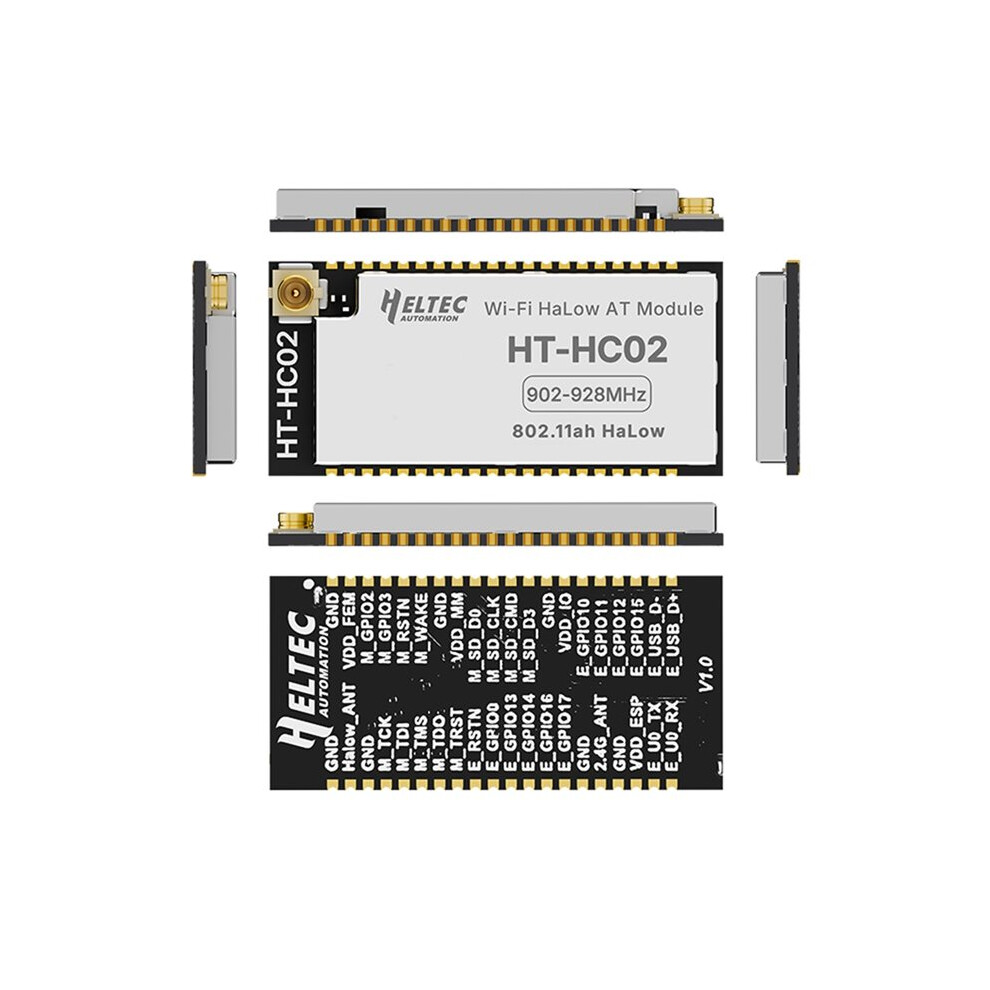

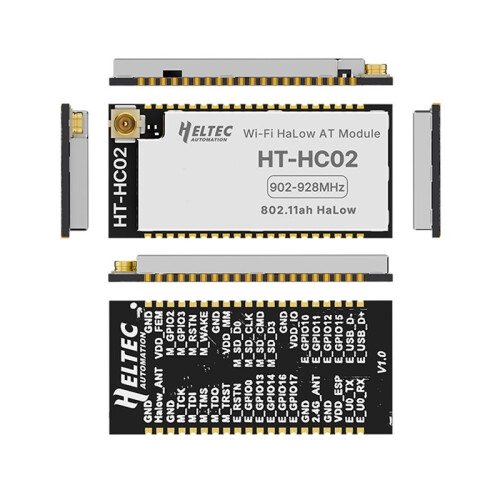

Interface: IPEX4.0(WiFi HaLow ANT); 2*20*1.27 Header Pins
Color: Black
Material: PCB

Package Contents:
1 * HT-HC02 Module
