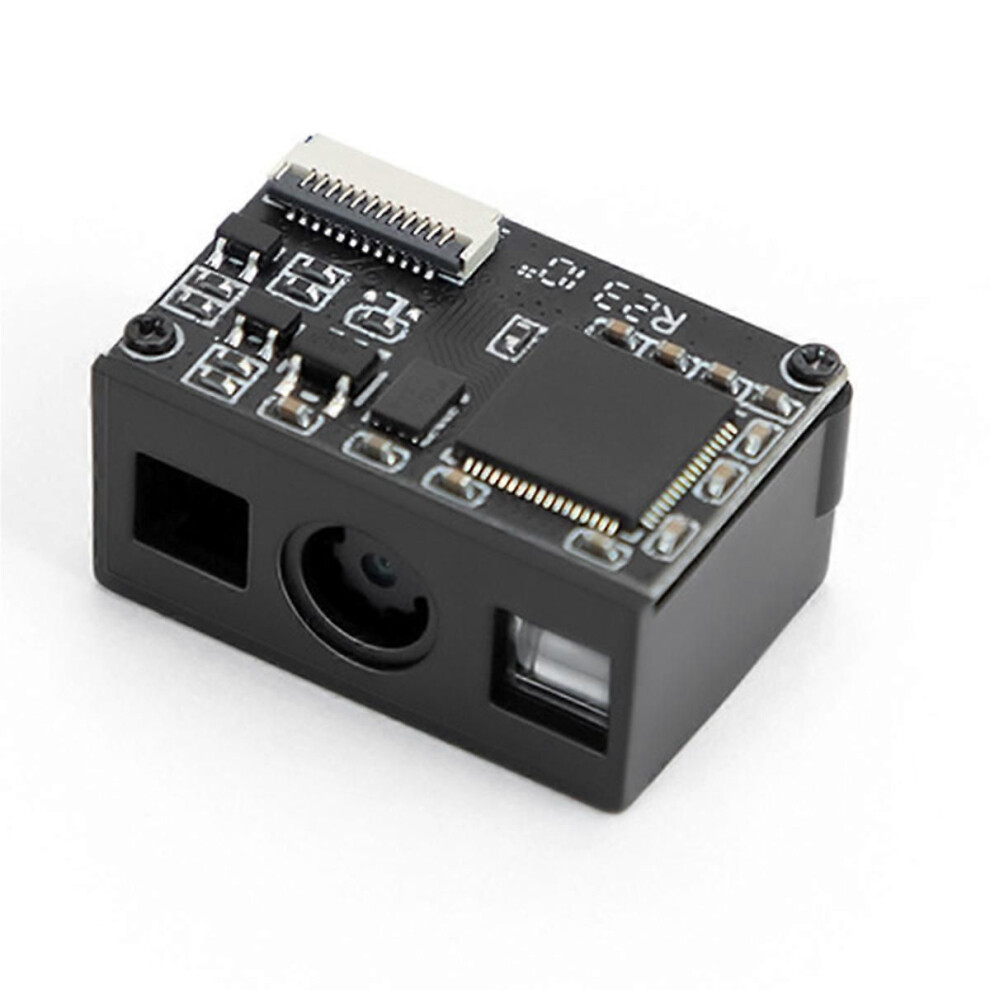

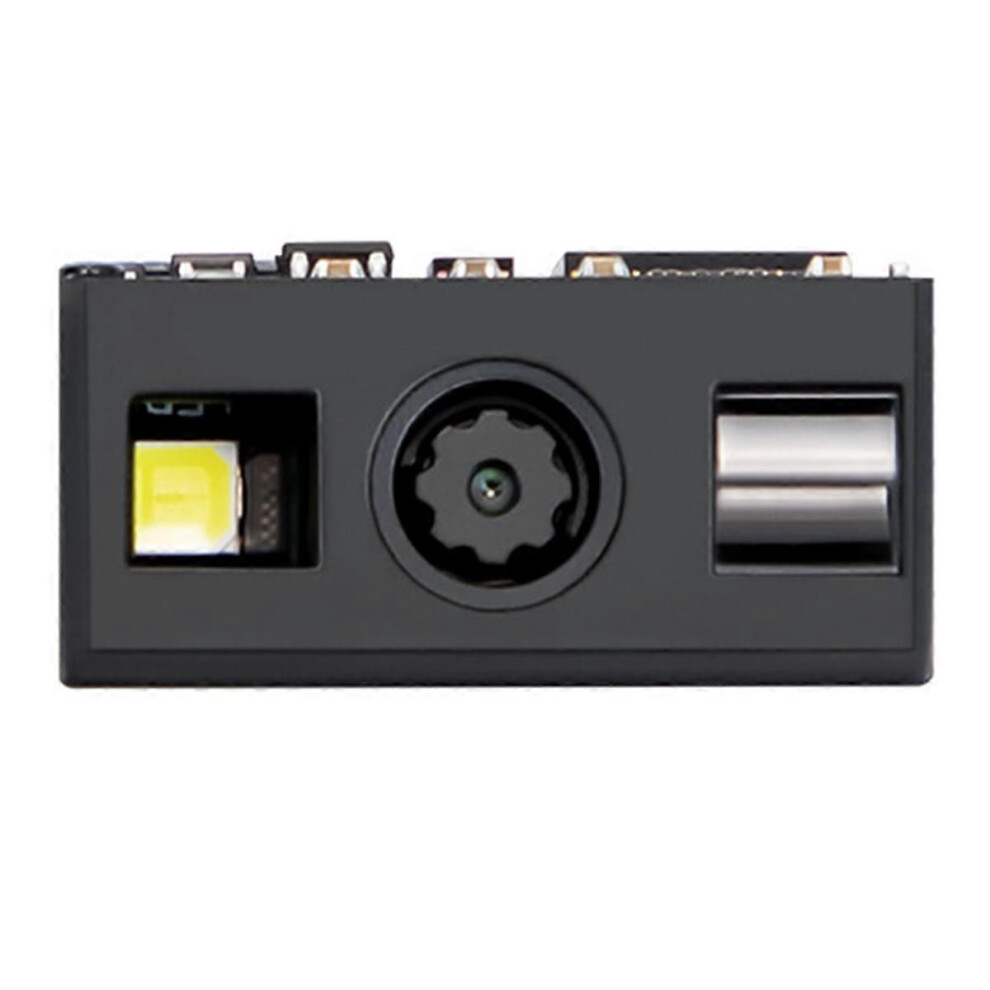

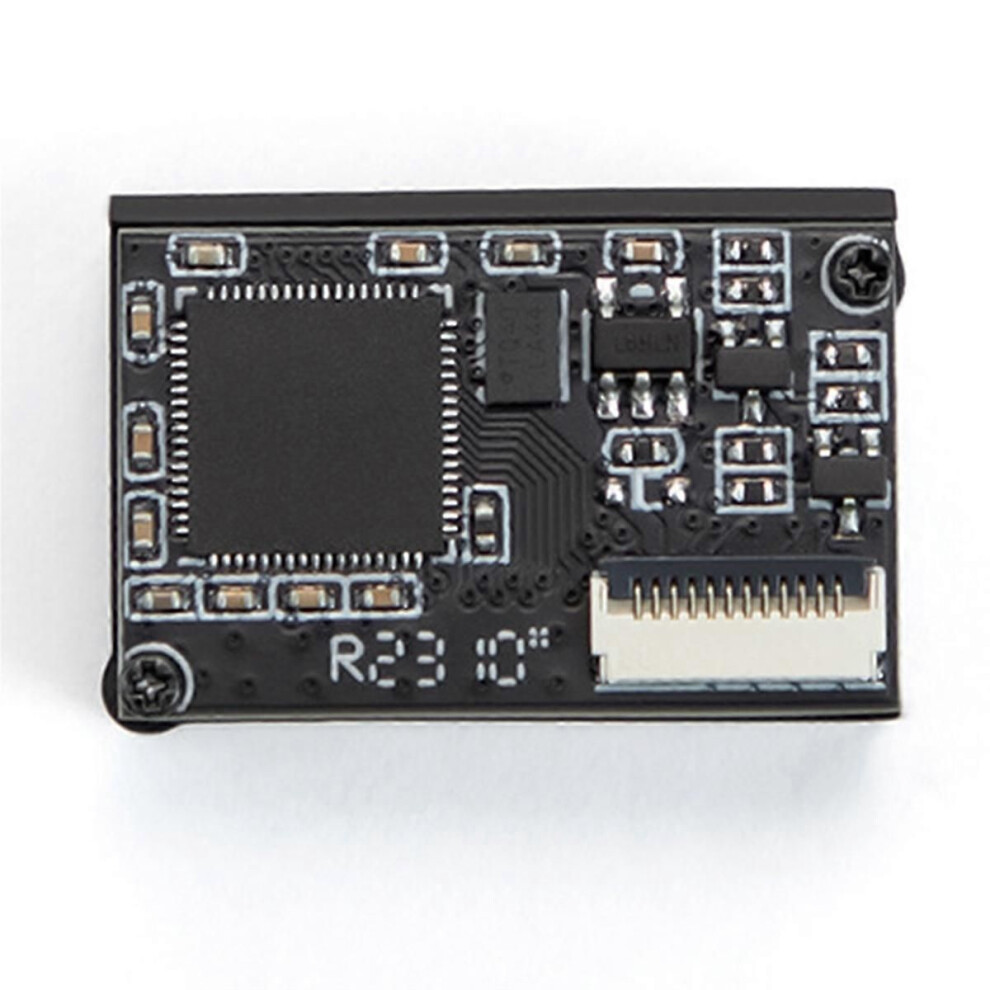

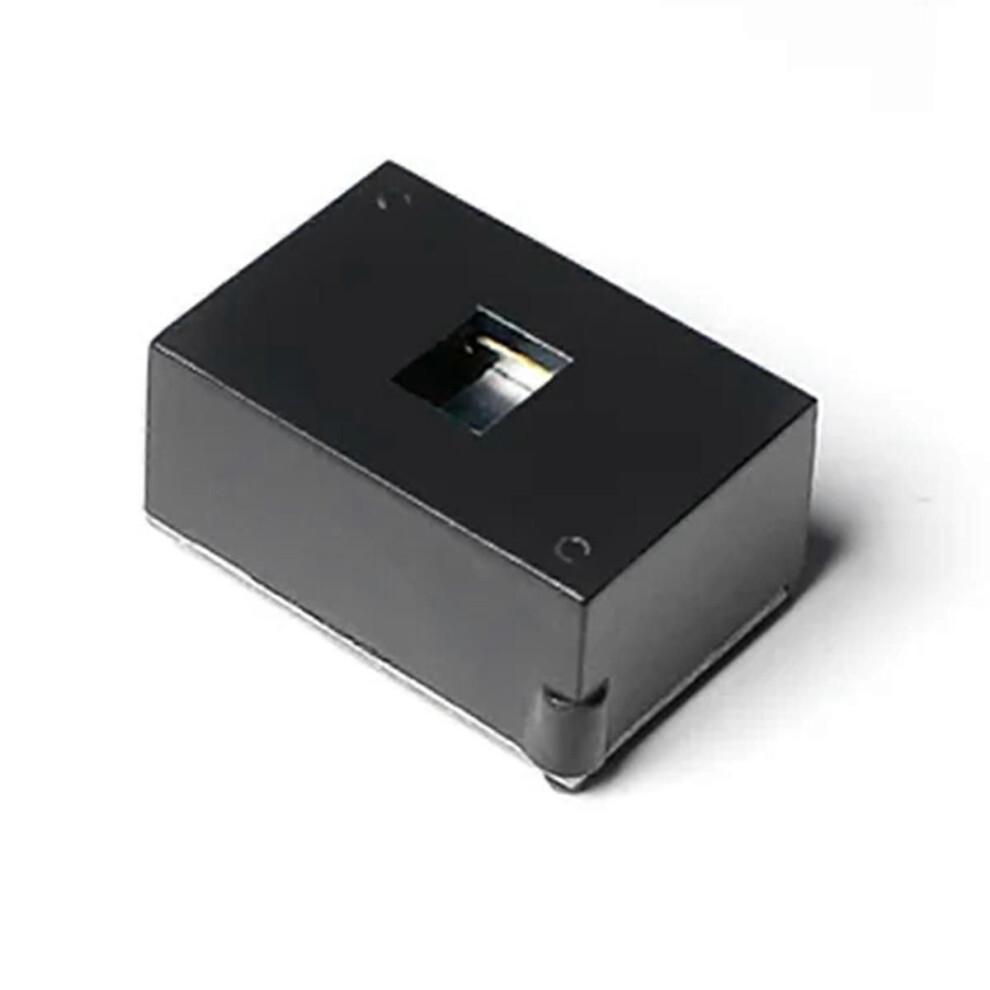

M3Y 2D QR Barcode Scan Engine Module for PDA

Description de M3Y 2D QR Barcode Scan Engine Module for PDA

M3Y 2D QR Barcode Scan Engine Module for PDA
Scanning Light Source: LED
Novelty:
Product Type: Bar Code Scanner
Model Number: m3y
Colour Depth: 32 Bit
Scan Breadth: A4+
Type: Barcode Scanner
Interface Type: USB, RS232
Scan Element Type: CMOS
Scan Speed: 200 scans/second
Optical Resolution: 600 x 600
Image Sensor: 640 x 480 CMOS
Illumination LED: White LED
: Red LED
OS: Linux, Android, XP,7,8, 10, MacOS
Scan Mode: Auto-sensing Mode, Trigger Scan Mode
Countries Keyboards: English, French, Italian, German, Spanish, Turkish Q, Belgium (French), Portuguese-Portugal, Portuguese-Brazil
Minimum Resolution: Code 393.3mil
Minimum Print Contrast: 15%
FOV: Horizontal 35,Vertical 27
Second Development: Serial Protocol
Data Format: Prefix, Suffix, Code ID, AIM ID
Operating Temperature: -20+60
Storage Temperature: -40+80
Humidity: 5-95% Non-Condensing
Ambient Light: 0-100000LUX
Net Weight: 3g
Dimension(mm): 22mm x 14.57mm x 11.7mm
Interface: TTL-232, USB (HID-KBW,USB-CDC)
Operating Voltage: 3.3V
USB InterfaceStandby: 60mA/0.198W
Operating: 110mA/0.363W
(Select USB interface)
Color: Black
Material: plastic
Package Contents:
1 * M3Y barcode scanning module
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
