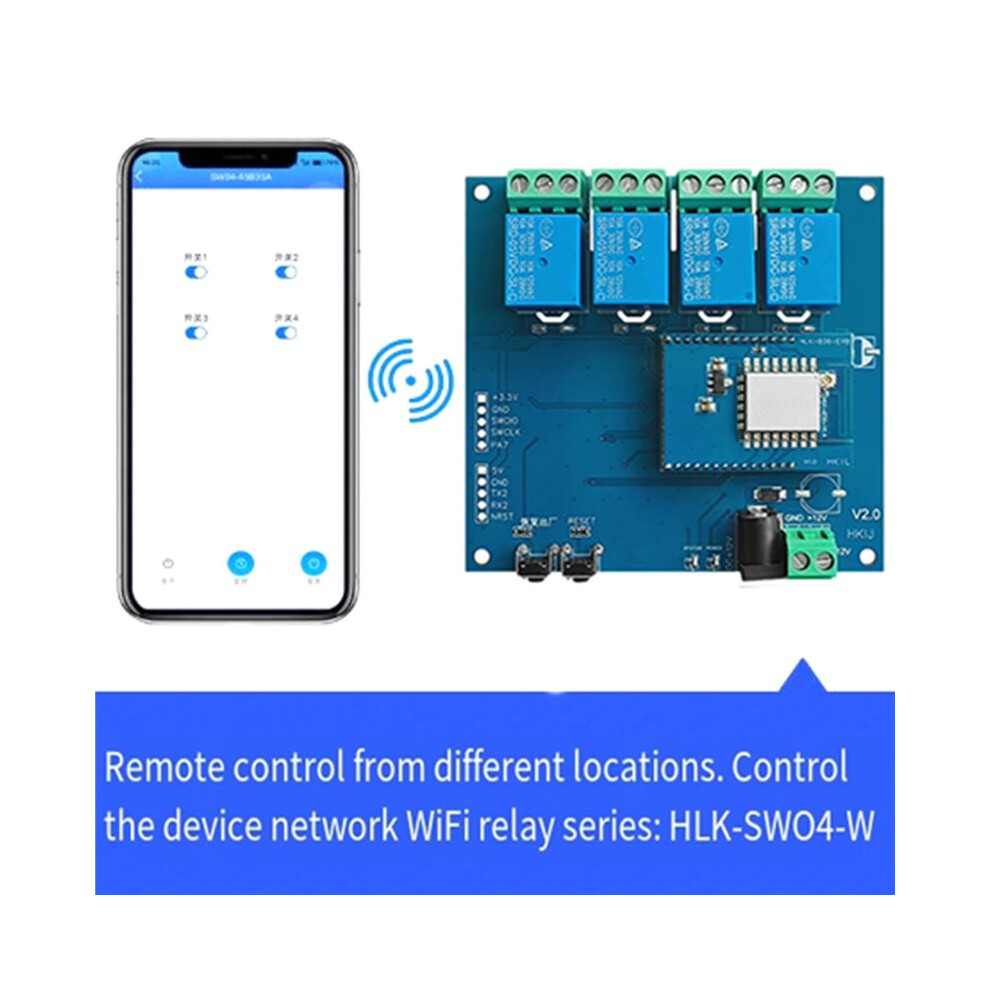

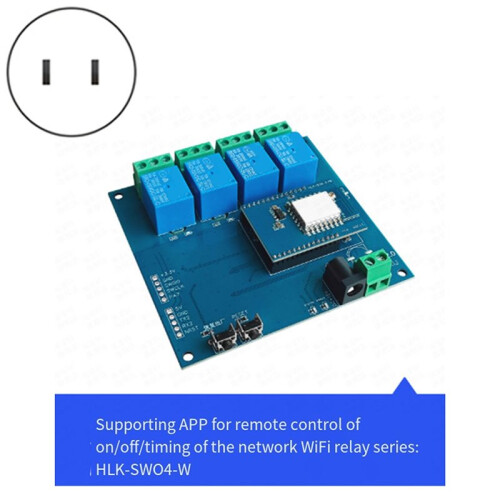

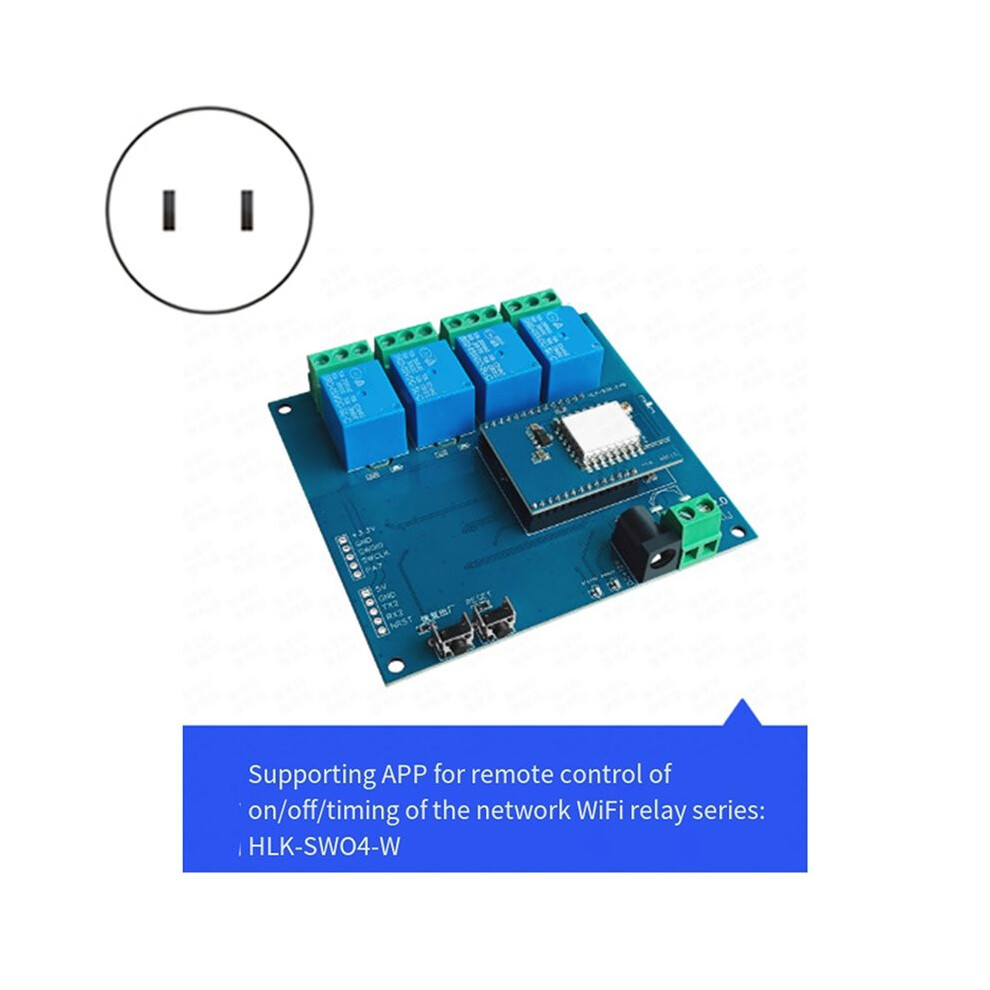

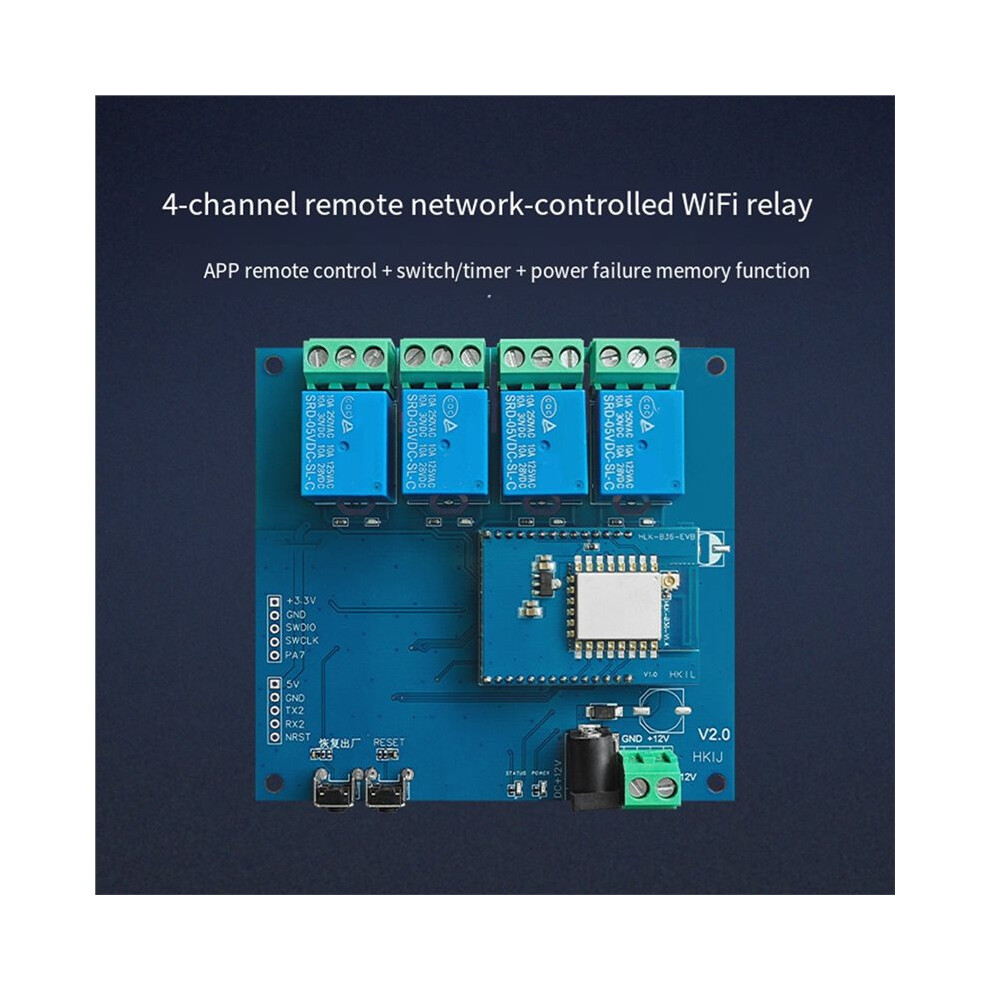

SW04-W Four-Channel Remote Network Control WiFi Relay Mobile Phone Module 250VAC 10A US Plug

Description de SW04-W Four-Channel Remote Network Control WiFi Relay Mobile Phone Module 250VAC 10A US Plug

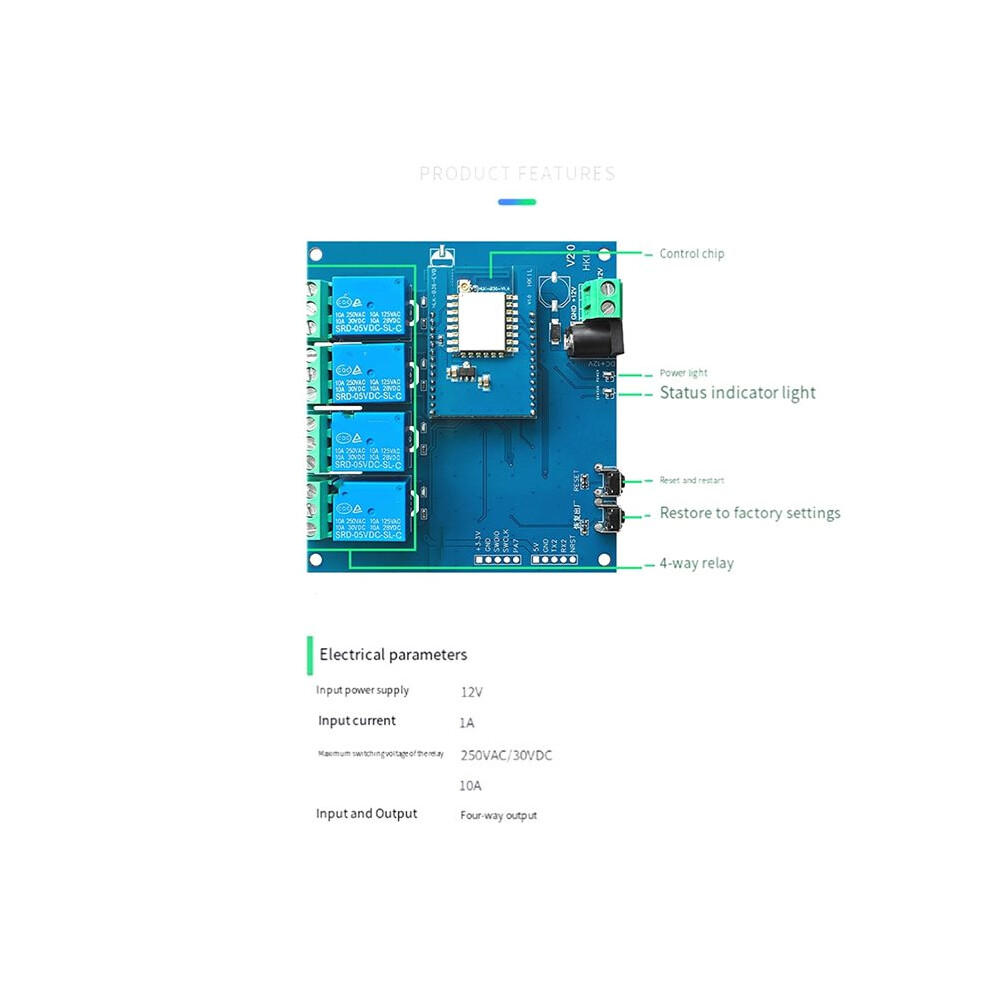

Input Power: 12V
Input Current: 1A
Maximum Relay Switching Voltage: 250VAC/30VDC
Maximum Relay Switching Current: 10A
Input/Output: 4-channel output

Indicator Light Description
1. Periodic rapid flashing 3 times: Invalid module activation code
2. Periodic rapid flashing 2 times: Entering network configuration mode, configuring the module and binding the device via the APP
3. Continuous slow flashing (1 second , 1 second off): The module is attempting to connect to a WiFi hotspot
4. Continuous rapid flashing: The module is attempting to connect to the cloud service normally
5. for 5 seconds, briefly off once: The module has connected to the cloud service

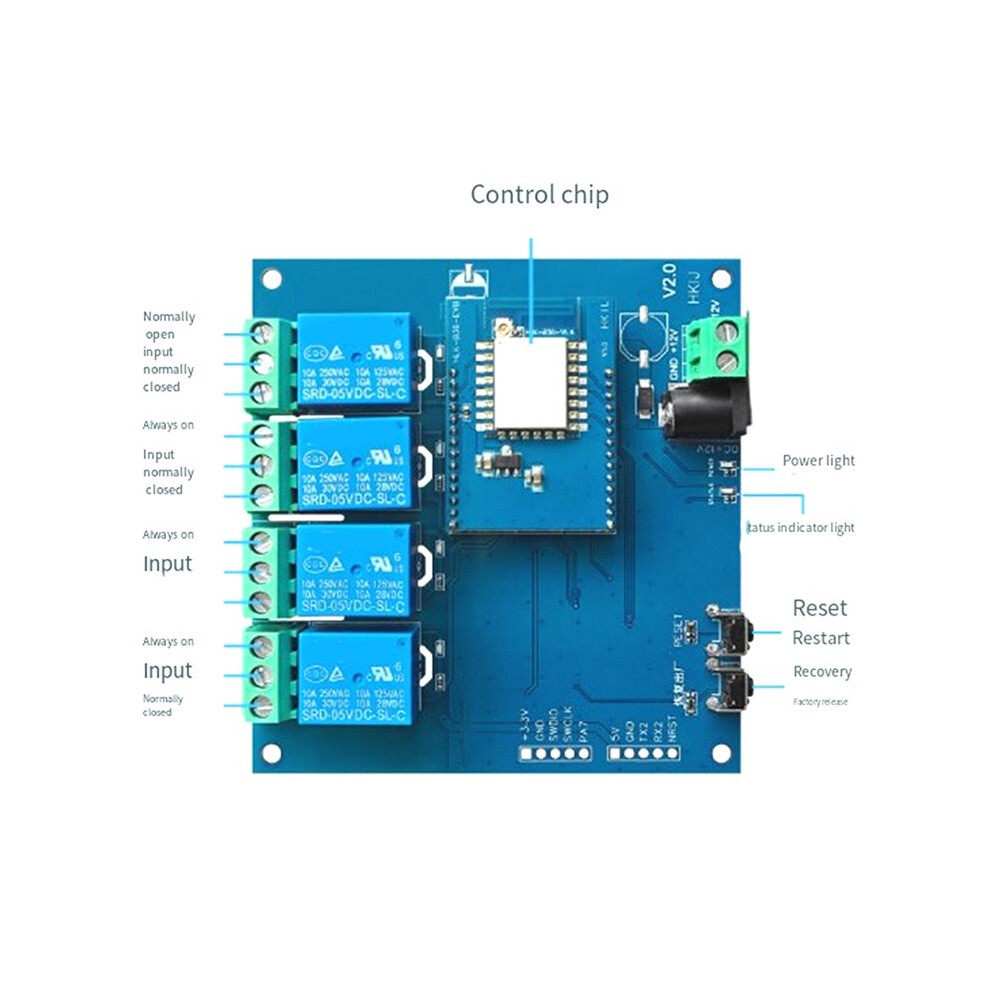

Buttons:
1. RESET: Short press, controller hardware reset
2. Factory Reset: Long press for 6-10 seconds, unbind the device, restore factory settings and restart
Plug Type:US Plug,it applies to Canada, India,Mexico, Thailand, the United States, the Philippines and so .
Voltage: AC100-240V
Color:
Material:plastic

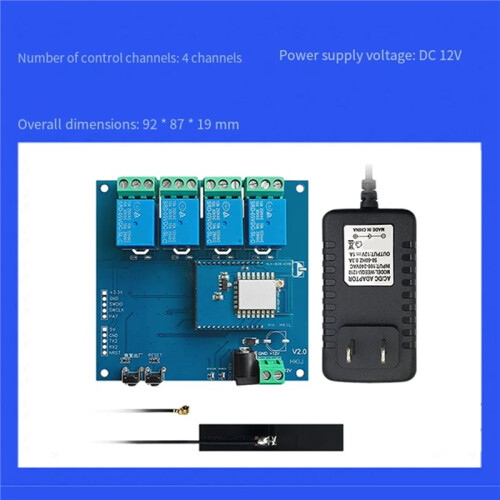

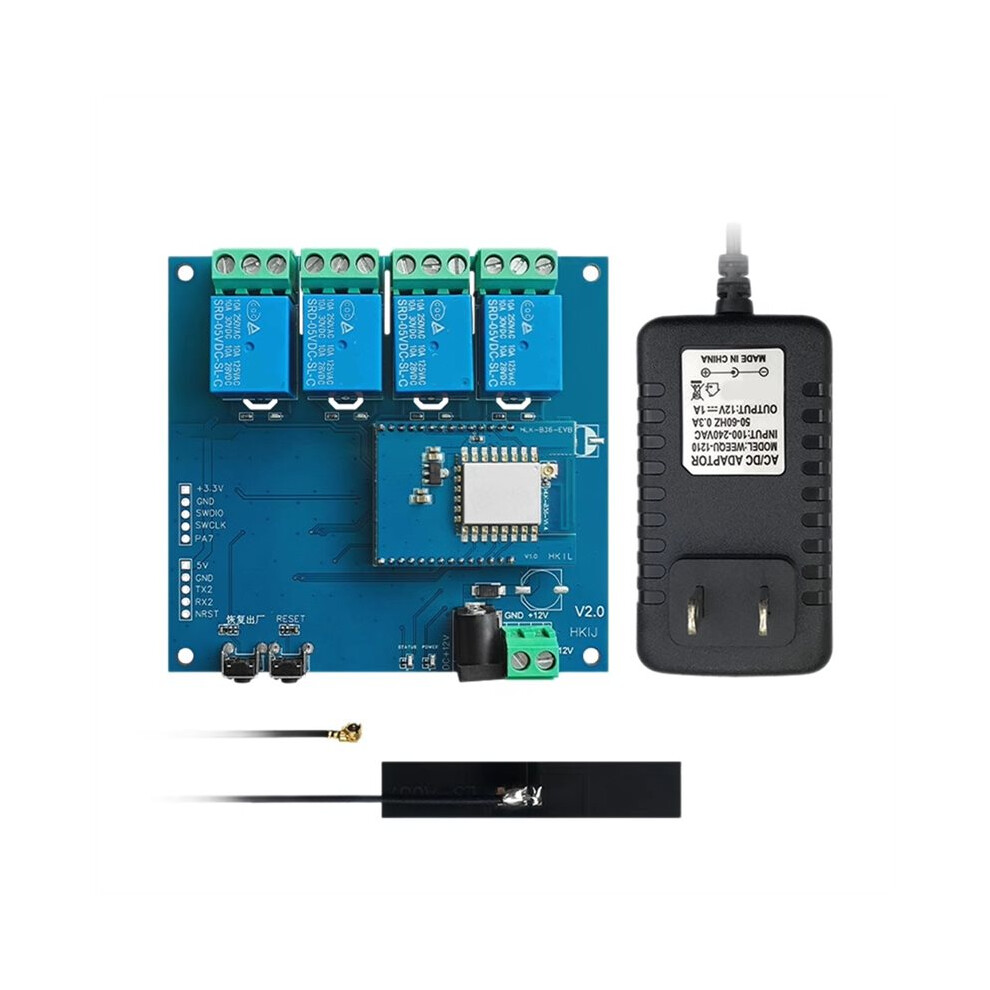

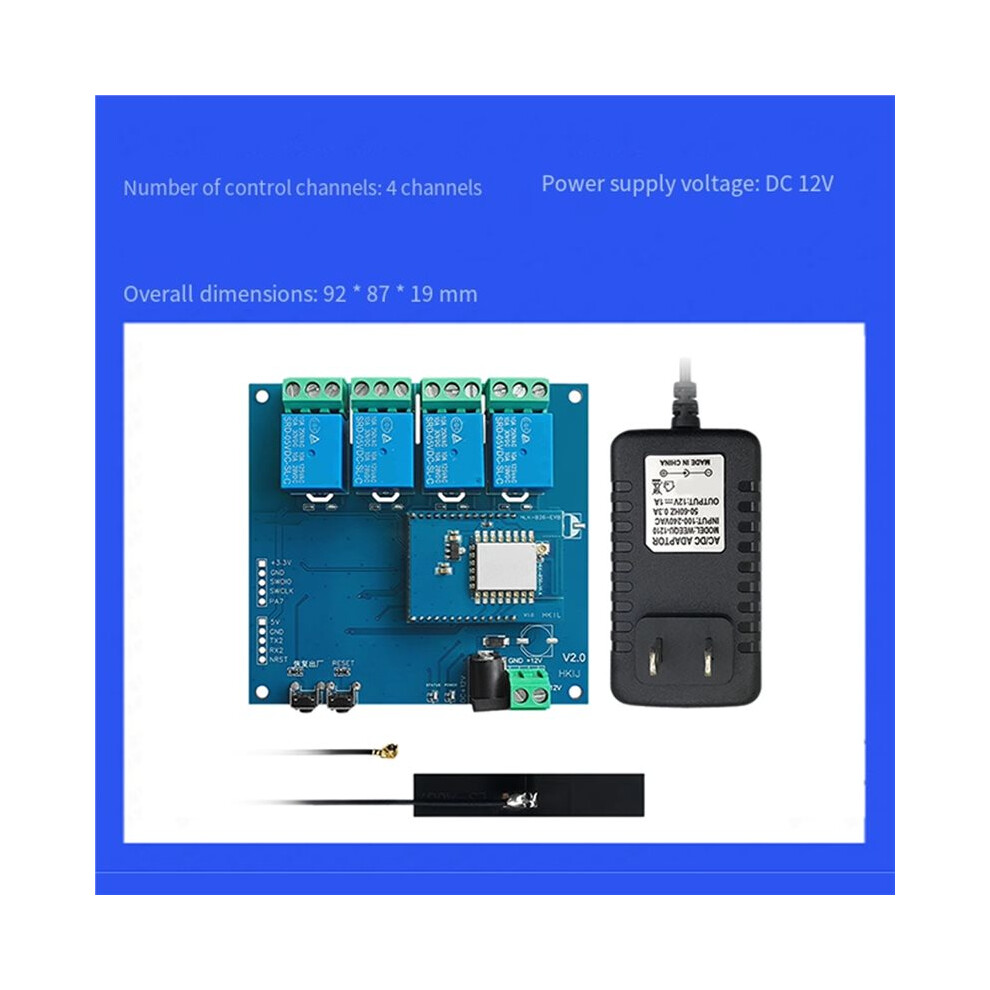

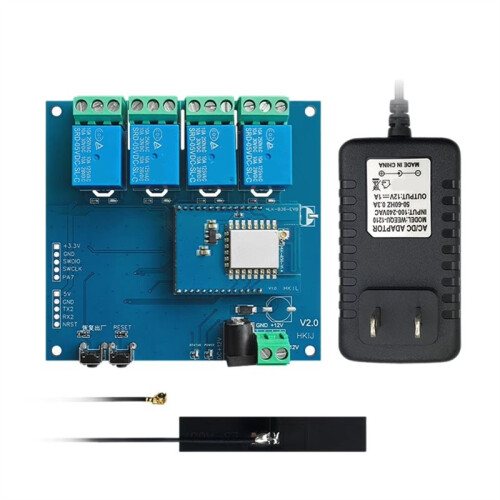

Package Contents:
1 * Controller
1 * Power cable

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
