ZigBee Conversion Serial Port TTL Uart Wireless PA Module CC2530+CC2591 Zigbee Module CC2530 Develo

Description de ZigBee Conversion Serial Port TTL Uart Wireless PA Module CC2530+CC2591 Zigbee Module CC2530 Develo

ZigBee Conversion Serial Port TTL Uart Wireless PA Module CC2530+CC2591 Zigbee Module CC2530 Develo

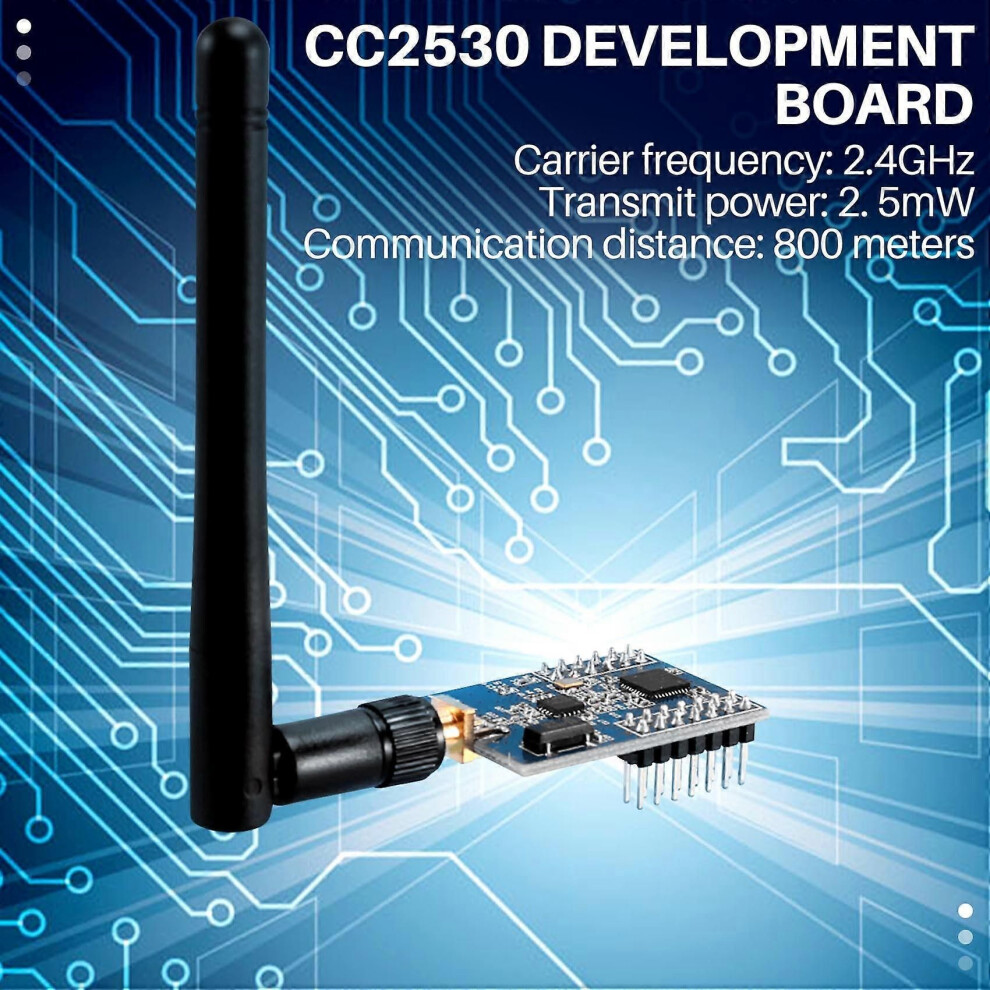

RF chip: CC2530F256+CC2591
Carrier frequency: 2.4GHz
Transmit power: 2. 5mW
Communication distance: 800 meters

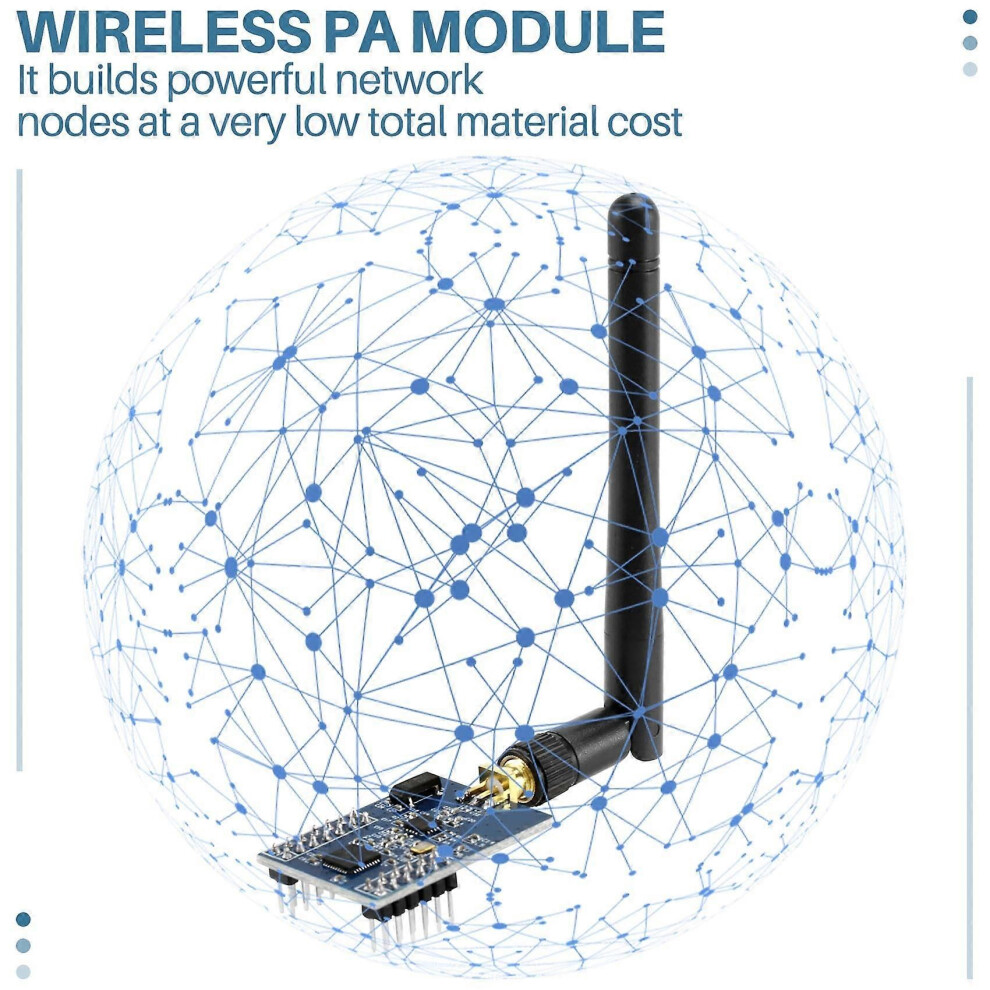

Chip Description: The CC2530F256 is a true system-on-a-chip (SoC) solution for 2.4-GHz 802.15.4, ZigBee and RF4CE applications. It builds powerful network nodes at a very low total material cost; it provides a powerful and complete ZigBee solution.

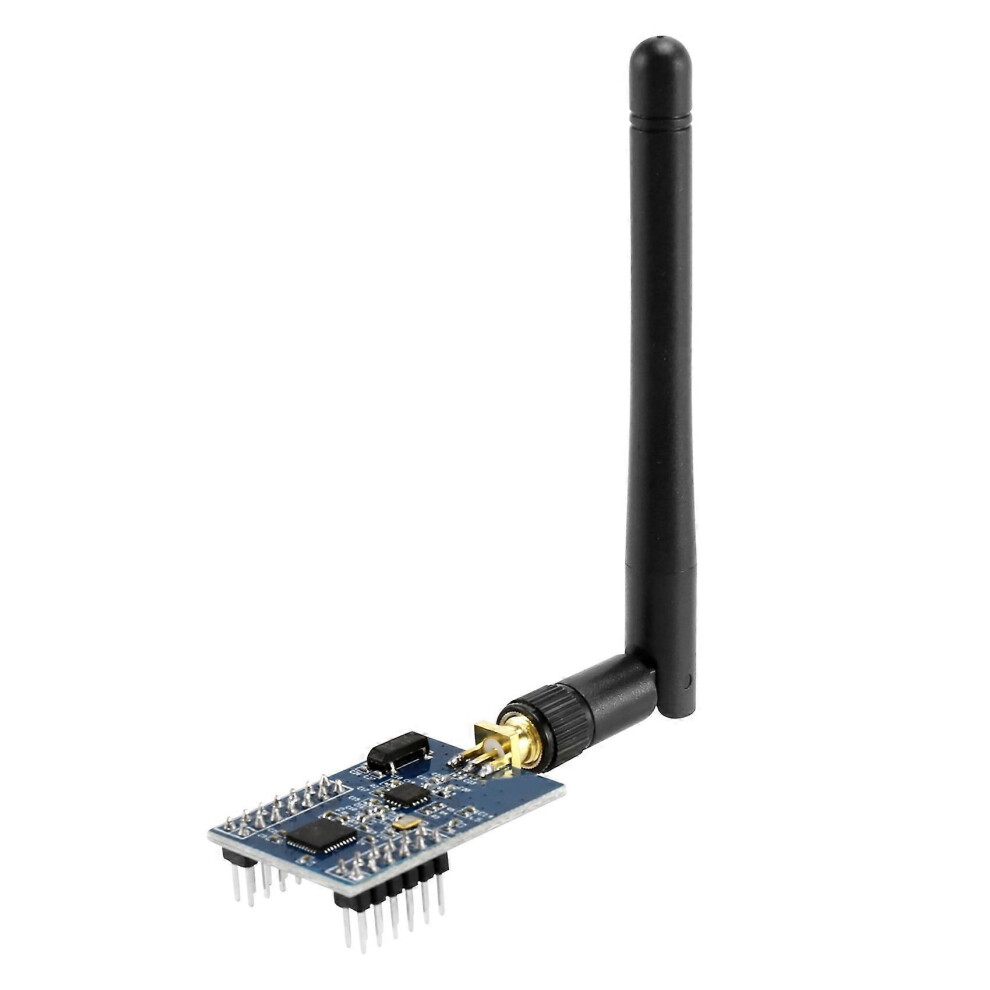

Name: Wireless PA Module
Z- 0002 ZigBee wireless module basic parameters:
ZigBee Wireless:
1. Wireless standard: 802.15.4 protocol
2. Frequency range: 2.405GHz~ 2.480GHz
3. Transmitting power: programmable up to 21dBm.
4. ZigBee protocol: ZigBee protocol stack (Z-Stack)
5. Receive sensitivity: -97dBm@250kbps
6. Antenna: 2.4G antenna with external SMA interface
7. Transmission distance: open visual distance up to 800m (PA maximum transmission power 21dBm)
PCB board:
1. Number of layers: 4 layers
2. Size: 36.0 x 25.6 mm PCB board
3. Interface: Standard 2.54mm pin header
Module hardware parameters:
1. Working voltage: 2.0V- -3.6V
2. Working current: emission current 30mA@21dBm; receiving current 26mA (average current)
3. Working temperature: -40 C - - 85 C (industrial grade)
4. Storage temperature: -40C- -125C
5. Transmission rate: wireless transmission rate up to 250kbps
6. Resources: All I/O resources of CC2530 are drawn out, which is convenient for secondary development.
Colour: blue
Material: PCB
Package Contents:
1 x wireless PA module
1 x antenna
Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
