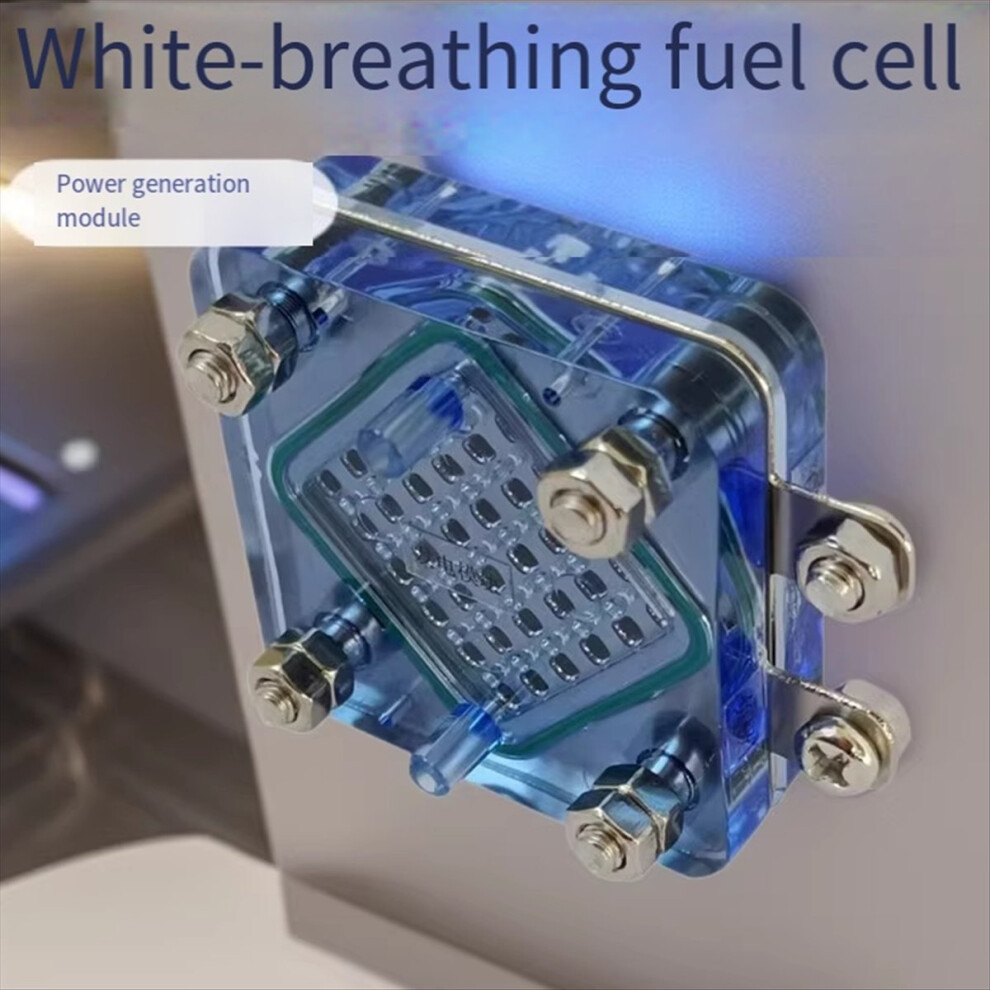

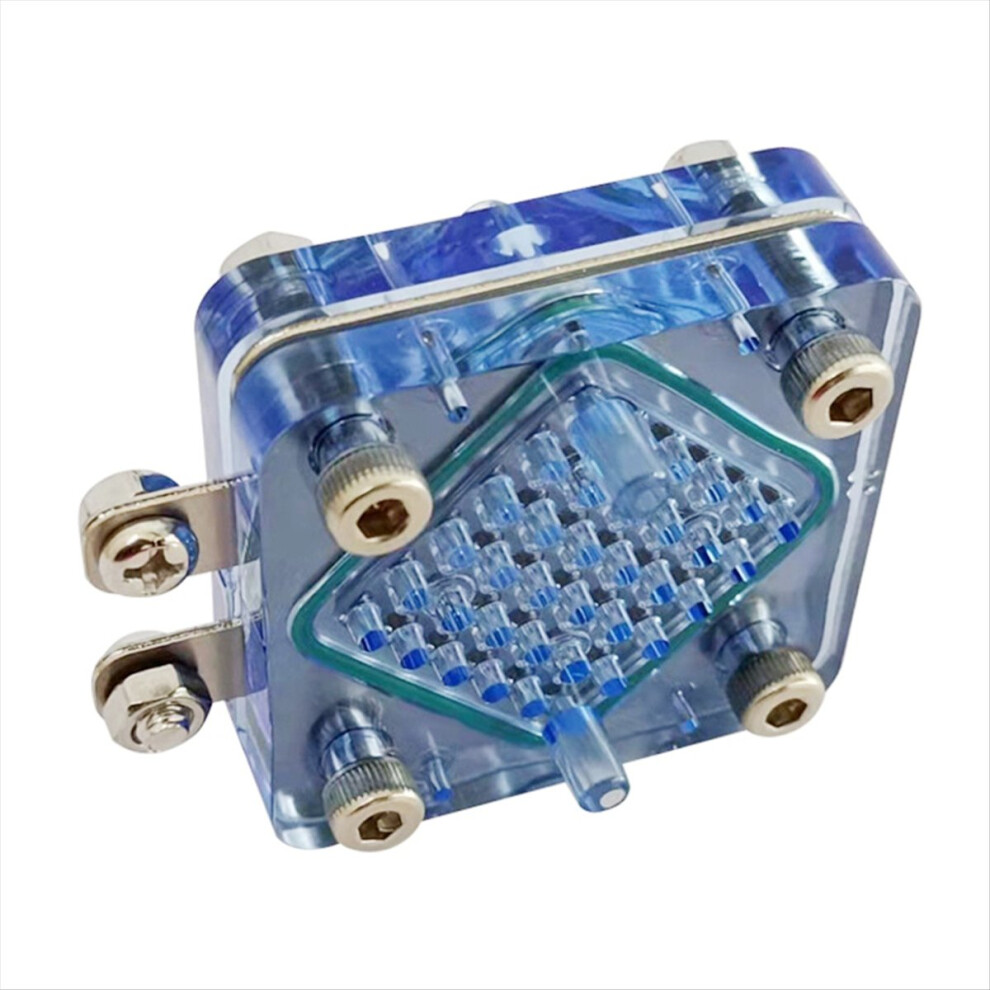

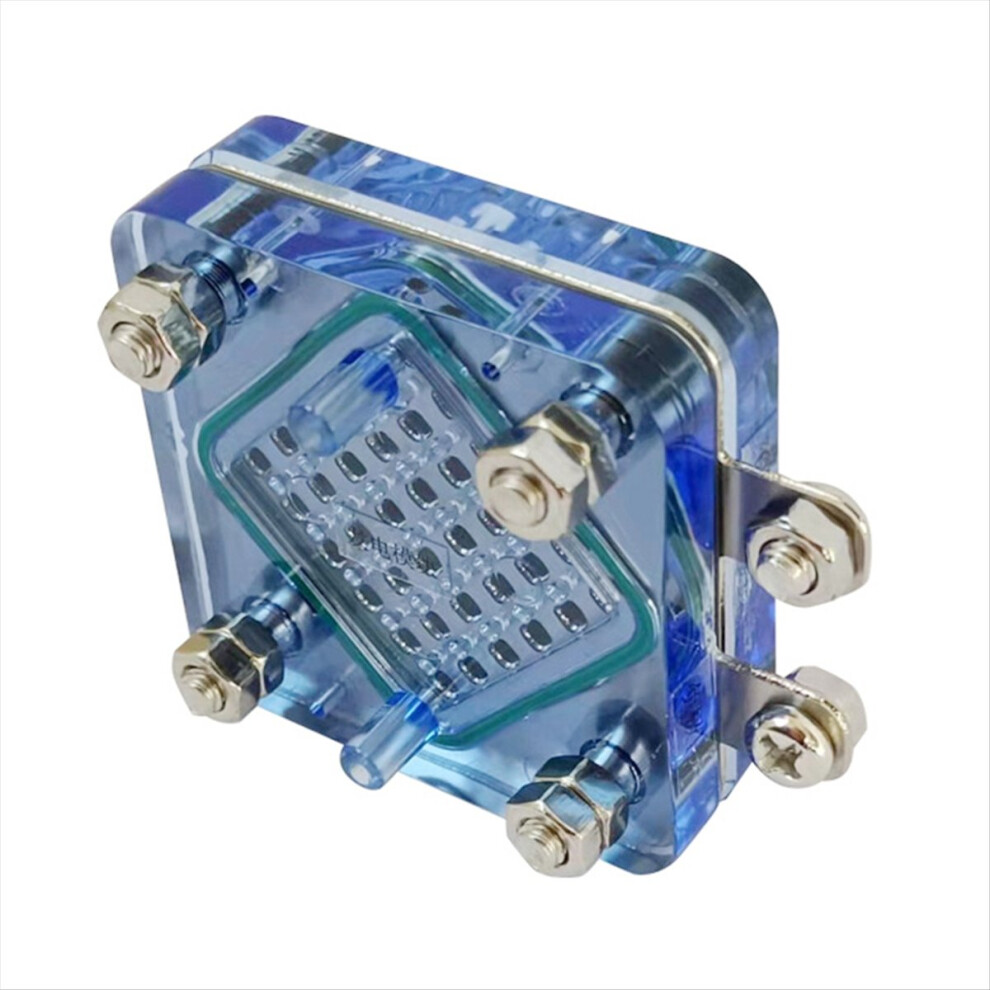

0.6V Cell Hydrogene Power Generation Module Hydrogen Electric Stack Monolithic MEA

0.6V Cell Hydrogene Power Generation Module Hydrogen Electric Stack Monolithic MEA Description

High quality for professional use
A wonderful replacement for broken or old one, ensures long and better work performance
There are 2 air inlets/outlets atthe negative electrode of the cell,the upper is air inlet and the lower is air outlet
The anode is connected to hydrogen, and the cathode is connected to the air in the atmosphere
No short-circuit operation, no external voltage across the cell voltage

Long-time operation, the positive and negative electrodes produce liquid water, you can use an air compressor or syringe to remove it with pressure
Electrode Material: Monolithic MEA
Size: 56.8x30x46.5mm
Weight: about 63 g
Power Generation Area: 25mm x 25mm
Voltage Range: 0V--0.95V
Current: [email protected] (25C)
Anode : 99.99% Hydrogen
Cathode : Air In The Atmosphere
(Light blue version)
Color: As Shown
Material: plastic

Package Contents:
1 * Power Generation Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
