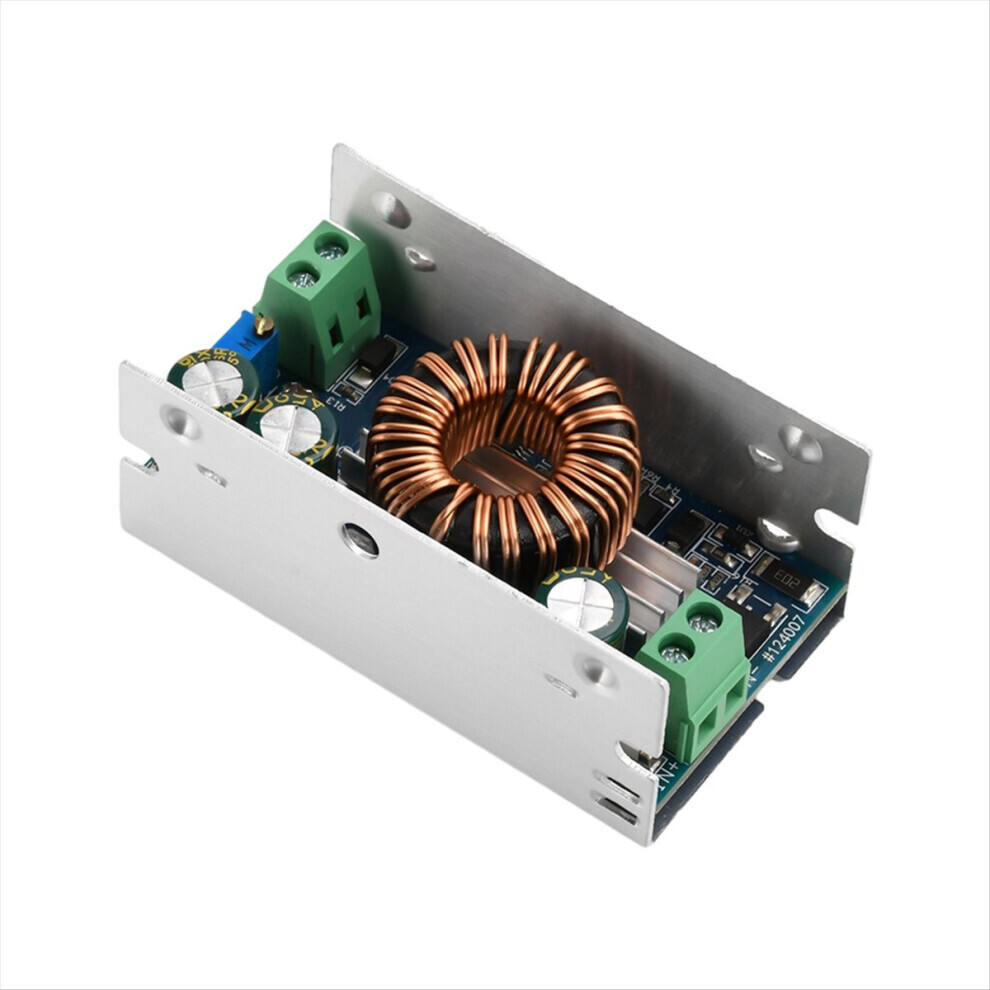

100W 6A DC DC Buck Converter Step-Down Voltage Regulator Module

100W 6A DC DC Buck Converter Step-Down Voltage Regulator Module Description

100W 6A DC DC Buck Converter Step-Down Voltage Regulator Module Description
Input voltage: DC 10-90 V
Output voltage: DC 1.5-60 V (suitable for applications where the input voltage is higher than the output voltage and the voltage cannot be increased).
Output current: MAX. 6 A (please reduce when using high-voltage output. Heat dissipation is required at temperatures above 65C).
Maximum power: 100 W (the maximum current at low-voltage output is 6 A. The maximum power at high-voltage output is 100 W).
Operating frequency: 180 kHz
Conversion efficiency: 97.5% (typical)
Operating temperature: -40C to +85C
Potentiometer adjustment direction: clockwise (increase) and counterclockwise (decrease)
Connection mode: terminal block
Synchronous rectifiers are a new technology. They use special power MOSFETs with extremely low on-resistance instead of rectifier diodes to reduce rectifier losses. This significantly improves the efficiency of DC/DC converters and prevents the dead-time voltage caused by the Schottky barrier voltage. Power MOSFETs are voltage-controlled devices with a linear volt-ampere characteristic when switched on. When using power MOSFETs as rectifiers, the gate voltage must be synchronized with the phase of the rectified voltage to ensure rectification. This is known as synchronous rectification. Synchronous rectification technology significantly reduces rectification loss at the output of the switching power supply, thereby improving conversion efficiency and reducing heat generated by the power supply itself.
(Due to different printing batches, slight differences in the actual words may occur; however, this does not affect use.)
Color: as shown
Material: Metal
Package includes:
1 * Buck module
Only the above package contents are included; other products are not included.
Note: Light reflections and different displays may cause the color of the item in the picture to differ slightly from the actual product. The allowable measurement error is +/- 1-3 cm.
