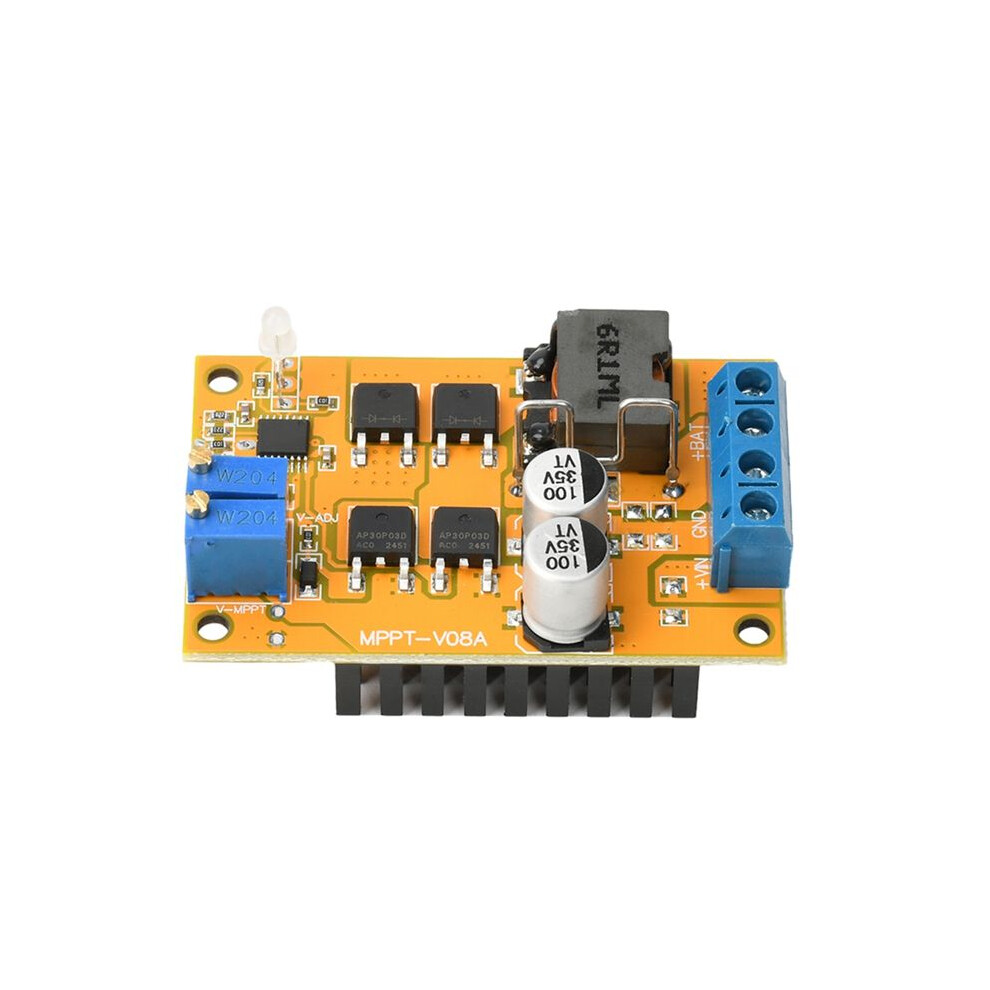

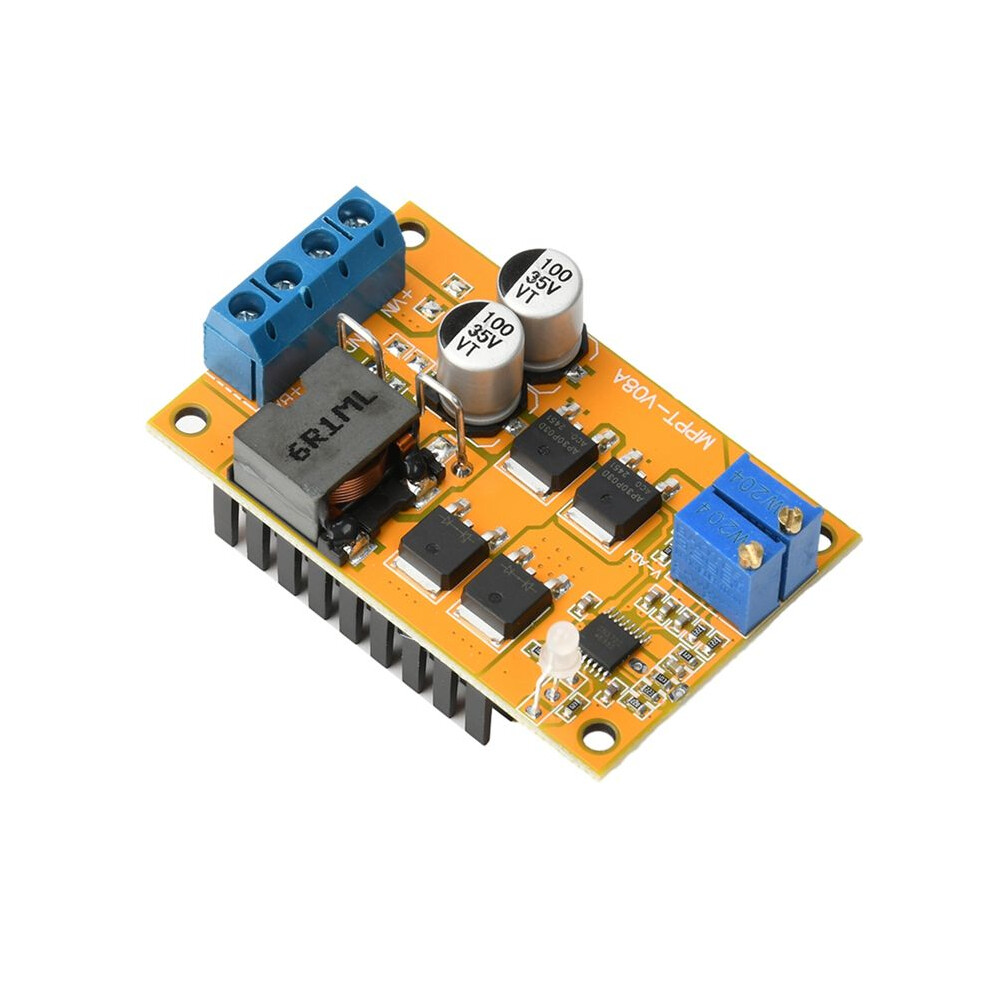

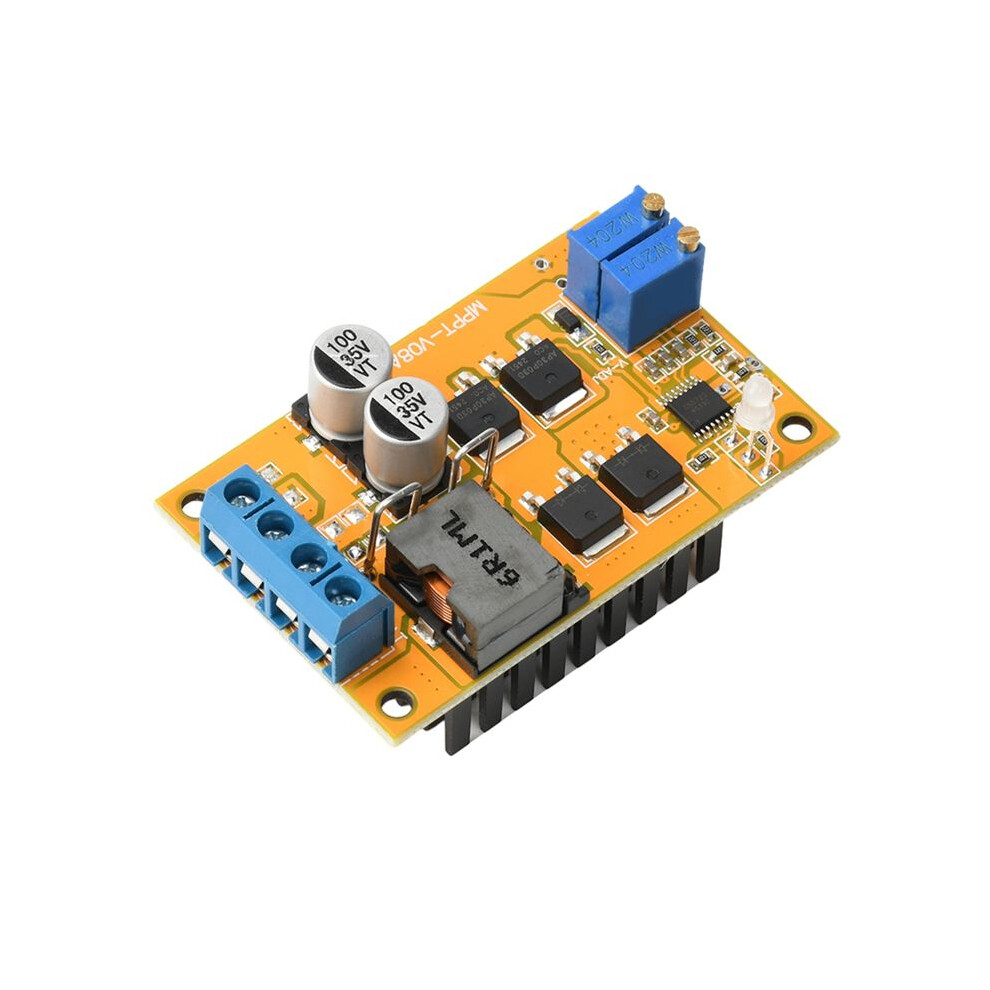

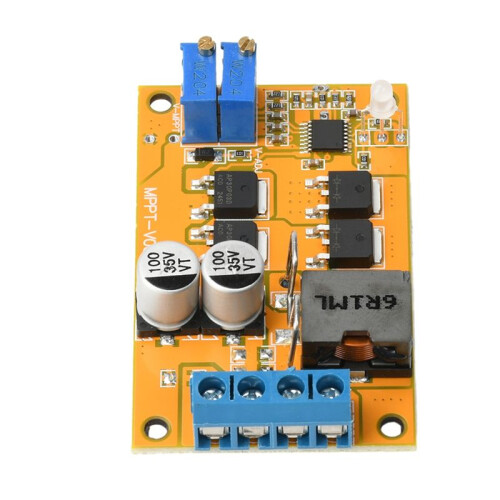

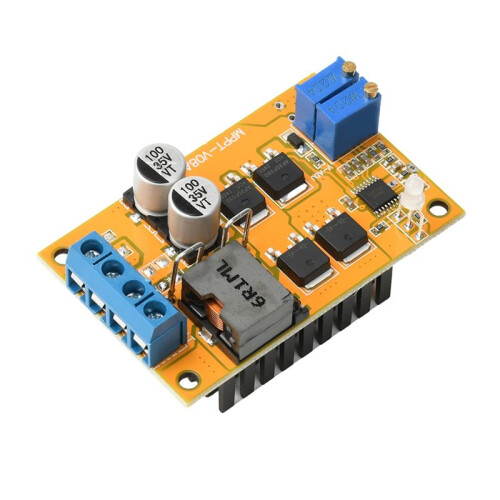

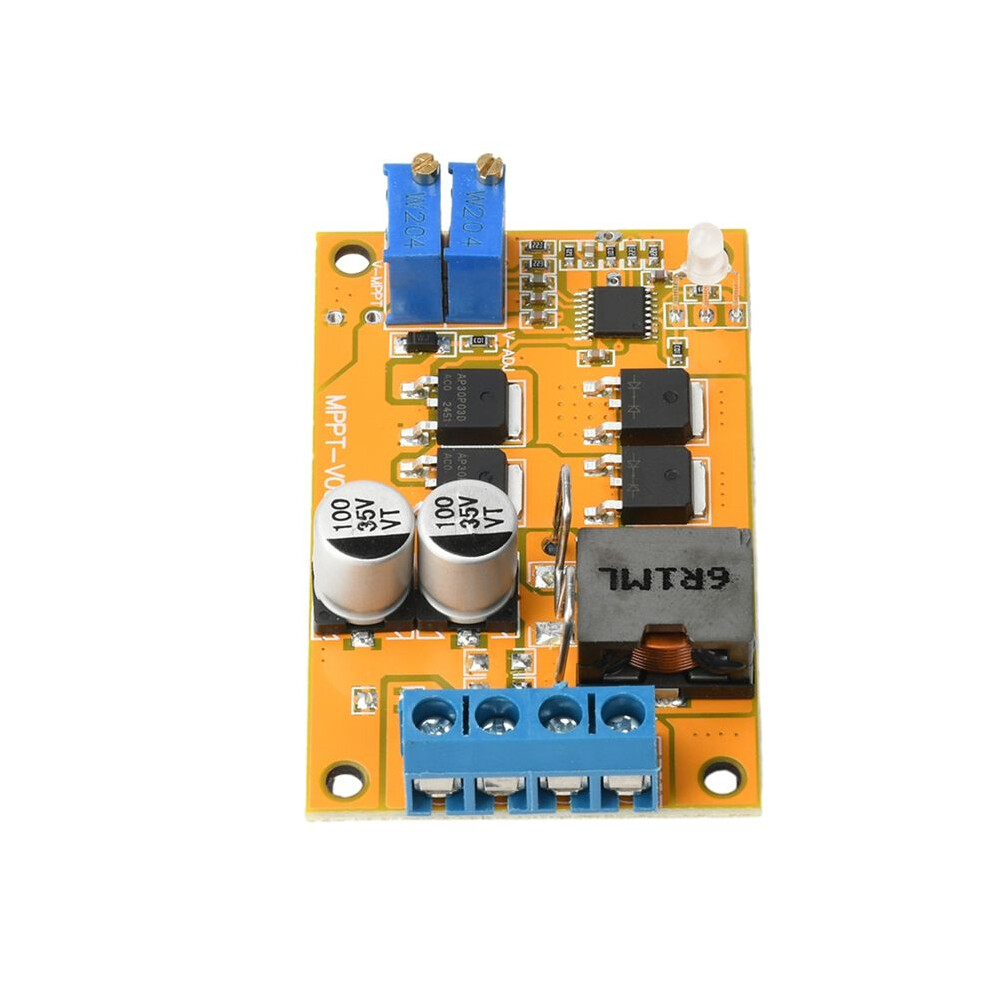

100W Solar Charging Control Panel 5A MPPT Solar Panel Regulator Controller Battery Charging 9V 12V 24V Auto

100W Solar Charging Control Panel 5A MPPT Solar Panel Regulator Controller Battery Charging 9V 12V 24V Auto Description

Module nature: It has real MPPT solar maximum power point tracking function, full-automatic intelligent charging management and low power consumption.
Input voltage: 8-28V input voltage. (AC input is prohibited)

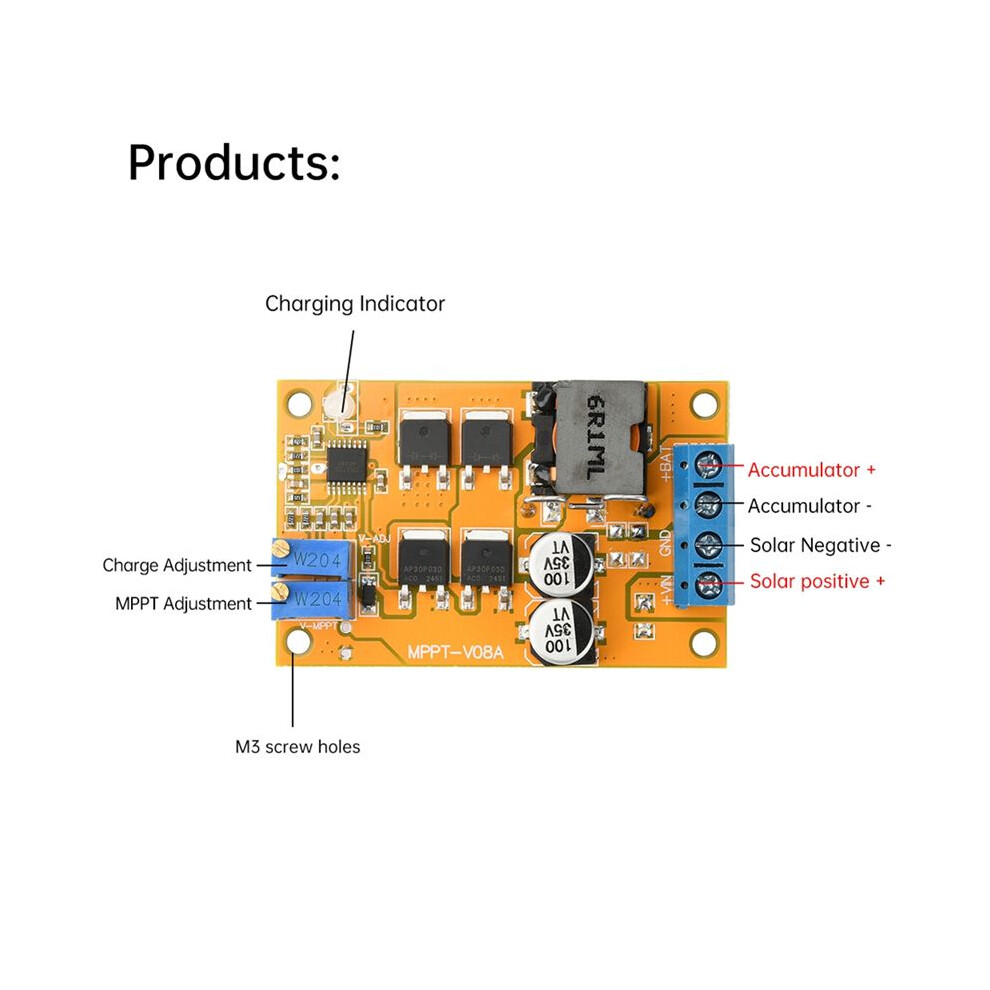

Charging indicator: Yes. The fast charging red light is long, and the fully charged red and light flashes alternately. Full stop automatically.
MPPT function: Yes. MPPT's automatic tracking function of maximum power point can make full use of solar to charge.
Minimum voltage difference: 1V (because it is a step-down and voltage-stabilizing module, the input voltage should be at least 1V higher than the output).

Ultra-low power consumption: Yes! Adopt ultra-low dropout design to achieve low power consumption and higher conversion efficiency, and professionally adapt to solar panels.
Working temperature: industrial grade (-40 to +85)
Load adjustment rate: 1%
Voltage regulation rate: 0.5%
Conversion efficiency: Max:93% :95% Different lighting conditions are different.
Charging mode: fully automatic and intelligent three-stage charging mode. Self-tracking solar power and automatically adjusting charging current.
No-load current: 3MA even weak sunlight in the morning can be easily started automatically, eliminating manual .
Input reverse protection: Yes. Exclusive design of MOS tube ultra-low dropout anti-reverse connection protection, input reverse connection does not work.

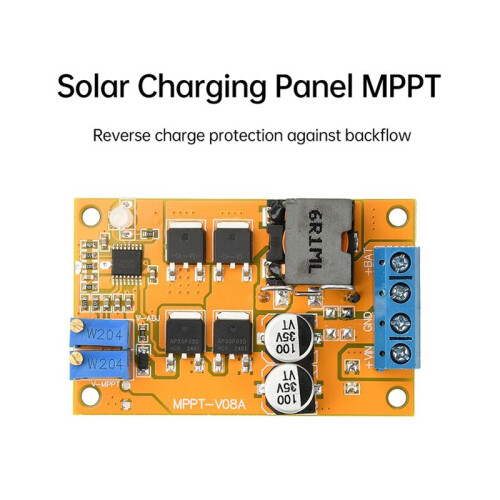

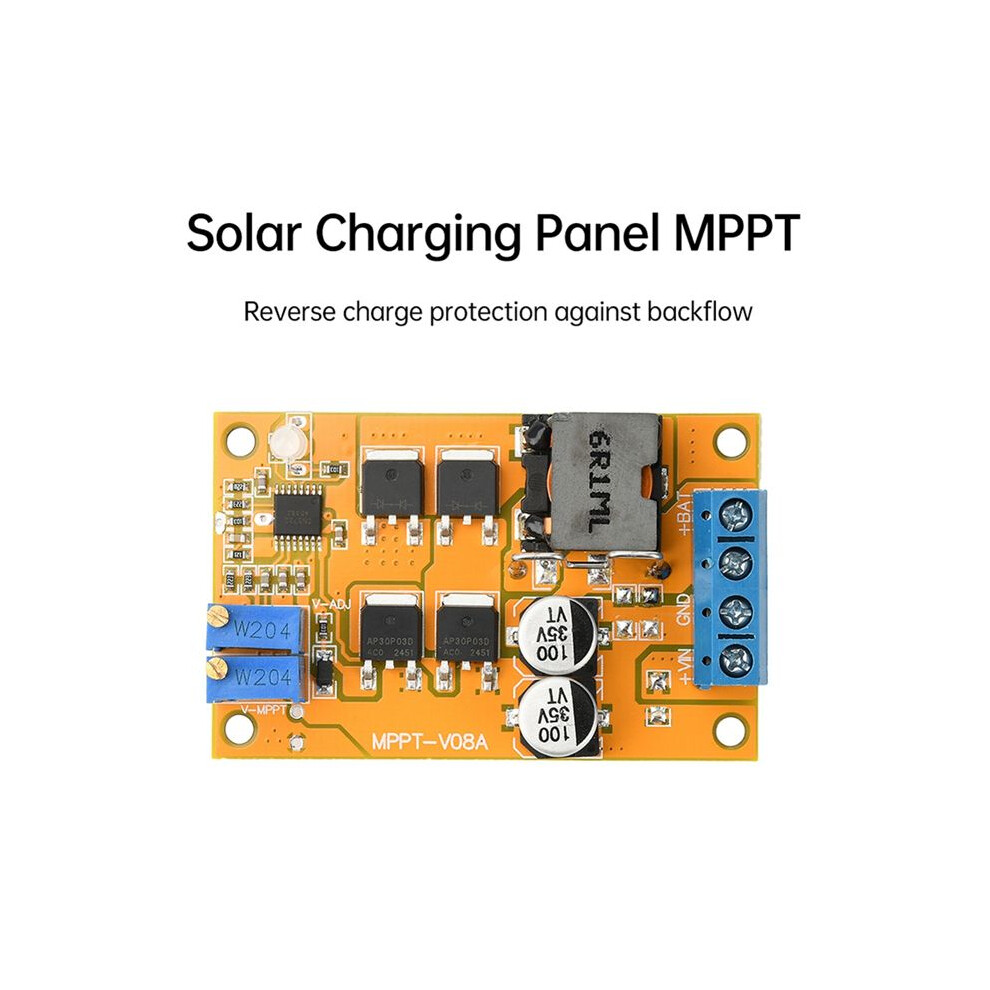

Output reflux protection: Yes. Effectively prevent the electric backflow of the battery at night!
Connection mode: with connection terminals.
(Due to different printing batches, if there are slight differences in the actual words, it will not affect the use)
Color: Yellow
Material: PCB

Package Contents:
1 * Solar Charging Panel
