1.02 inch E-Ink display module option Black/White Dual-Color 128x80

1.02 inch E-Ink display module option Black/White Dual-Color 128x80 Description

1.02 inch E-Ink Display Module Option Black/White Dual-Color 128x80 Description
Features
No backlight, displays the last content for a long time even when the device is switched off
Very low power consumption, power is essentially only needed for updates
SPI control interface, for use with host boards such as... B. for / Nano / / Nucleo
Onboard voltage converter, compatible with 3.3V/5V MCUs

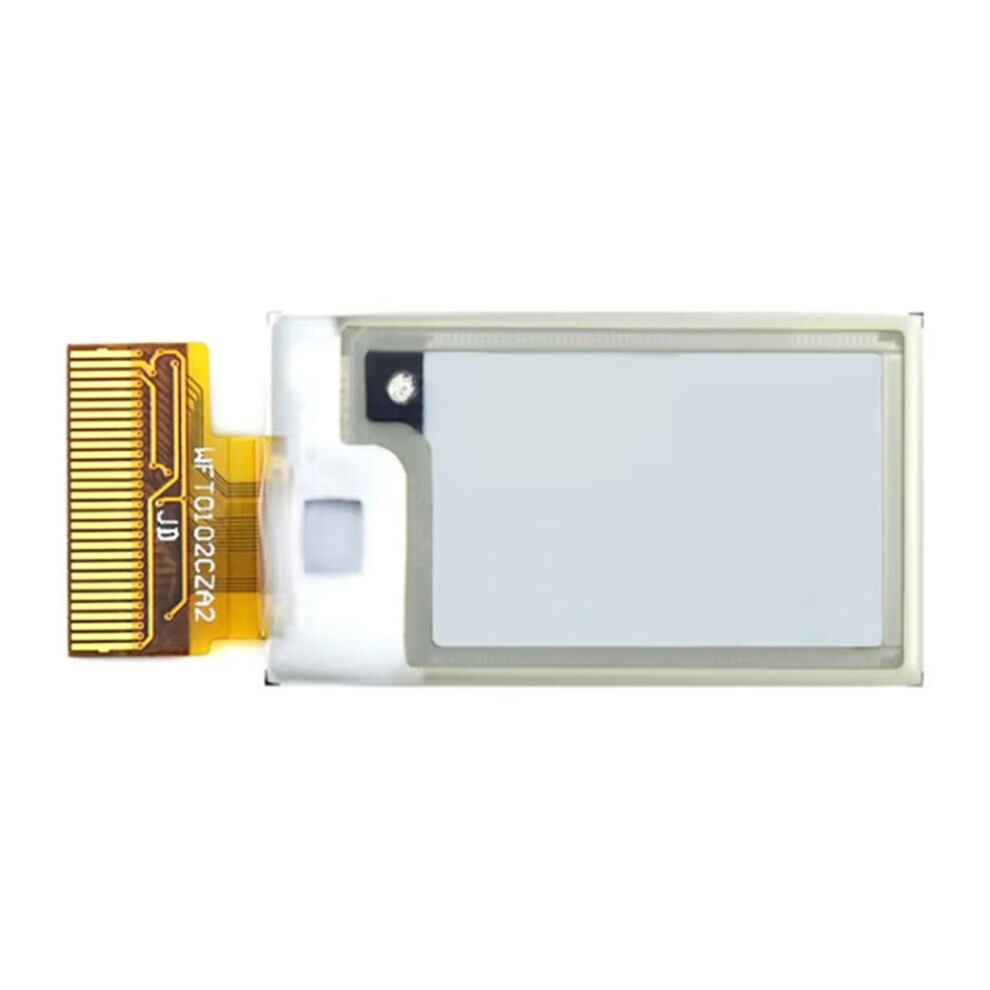

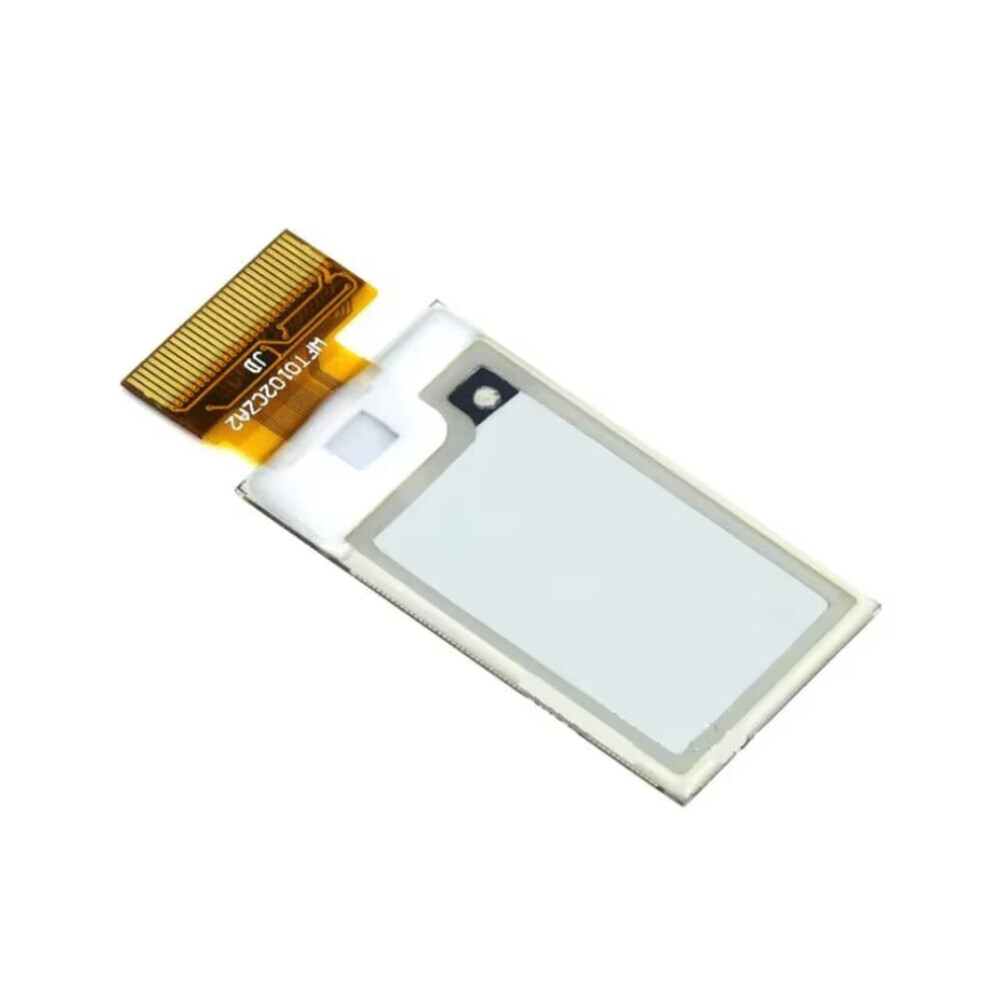

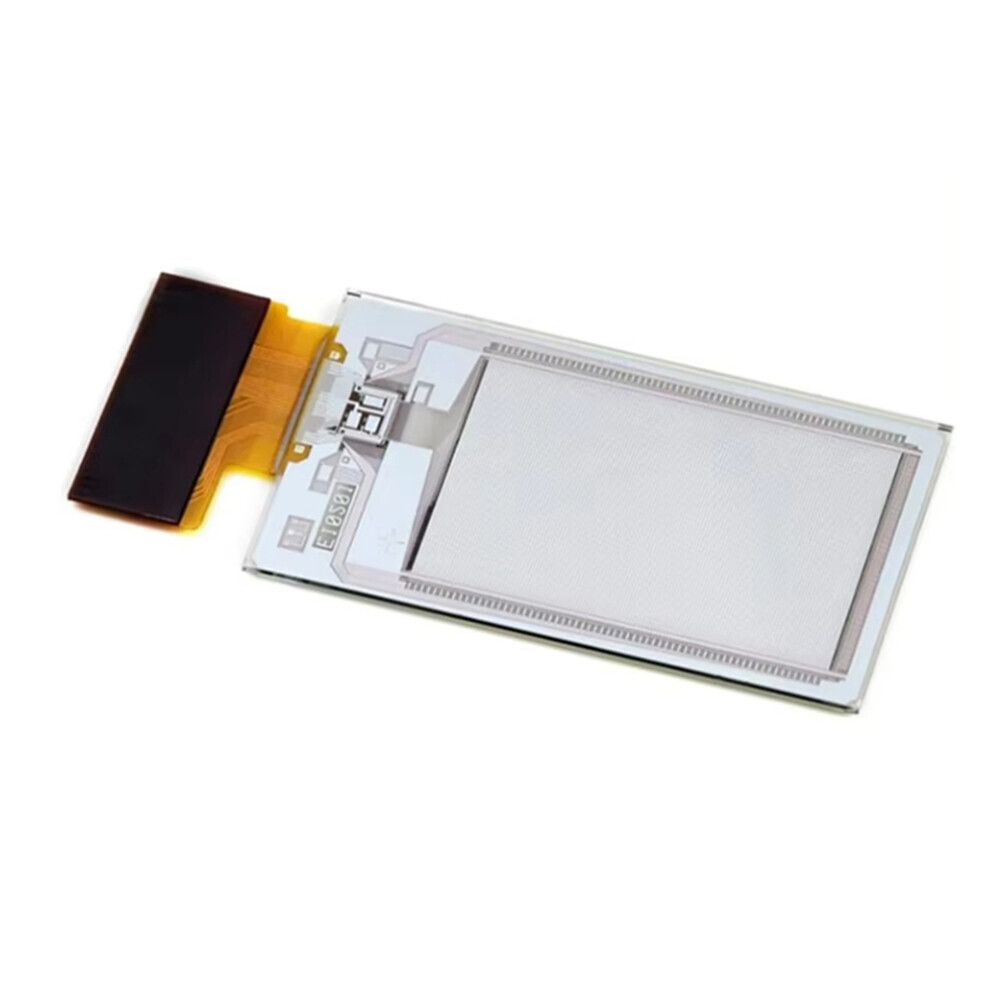

This is an E-Ink display module (1.02 inches, 128 x 80 pixels, with embedded controller, communication via SPI interface, supports partial refresh).
Due to advantages such as extremely low power consumption, wide viewing angle and clear display without power, it is the ideal choice for applications such as shelf labels, industrial instruments, etc.
Specifications
Operating voltage: 3.3V / 5V
Interface: 3-wire SPI, 4-wire SPI
External dimensions: 42 mm x 27 mm
Display size: 21.76 mm x 14 mm
Point spacing: 0.175 x 0.17
Resolution: 128 x 80
Display color: Black, White
Grayscale: 2
Full refresh time: 2 s
Refresh power: 26.4 mW (typ.)
Standby power: Less than 0.017 mW
Viewing angle: 170
Color: As shown
Material: Plastic + Metal
Different batches may have different printed characters, but this does not affect use
Package contents:
1 x Module
Only the above package contents, other products are not included.
