13 Pin Trailer Plug Trailer Adapter 12V 13 Pin Plastic Trailer Plug Socket Wiring Connector Adapter

13 Pin Trailer Plug Trailer Adapter 12V 13 Pin Plastic Trailer Plug Socket Wiring Connector Adapter Description

13 Pin Trailer Plug Trailer Adapter 12V 13 Pin Plastic Trailer Plug Socket Wiring Connector Adapter for Towbar Towing
12V 13 Pin Plastic Trailer Plug Socket Wiring Connector Adapter for Caravan Towbar Towing
Specification:
Description:
Features:

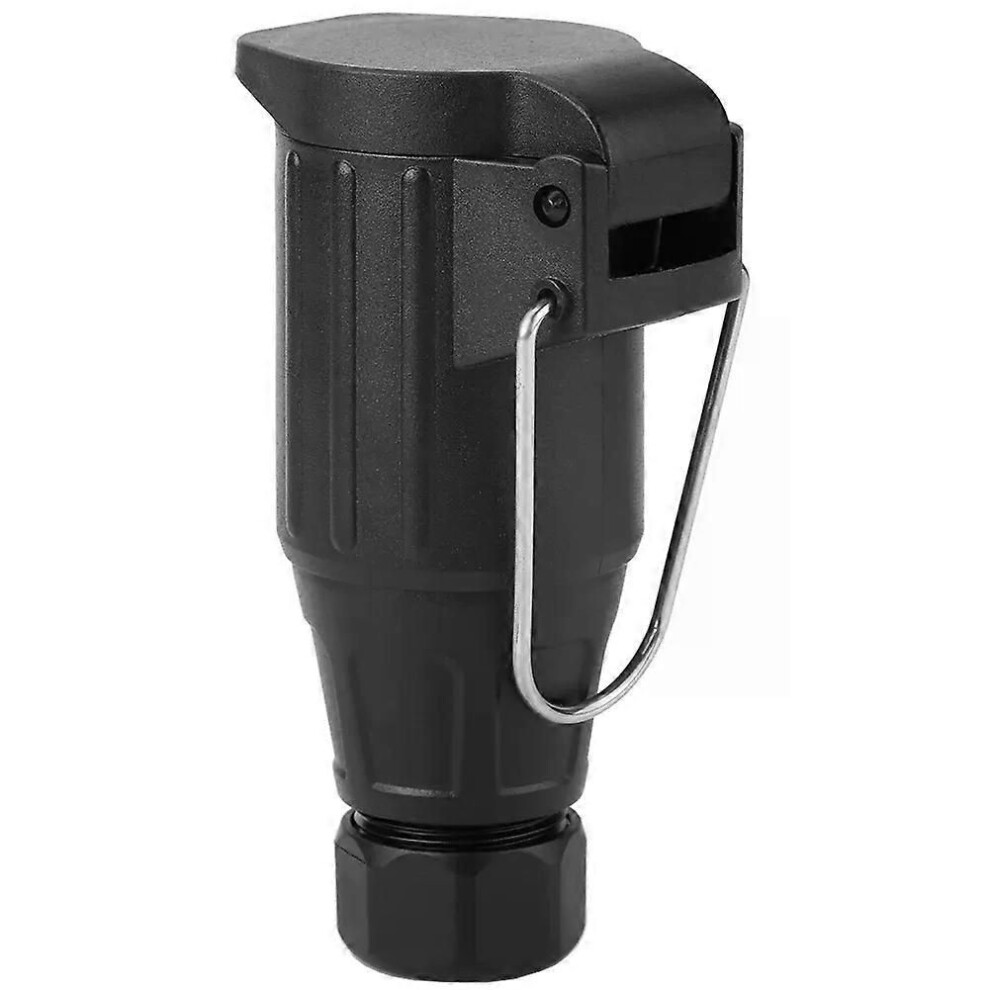

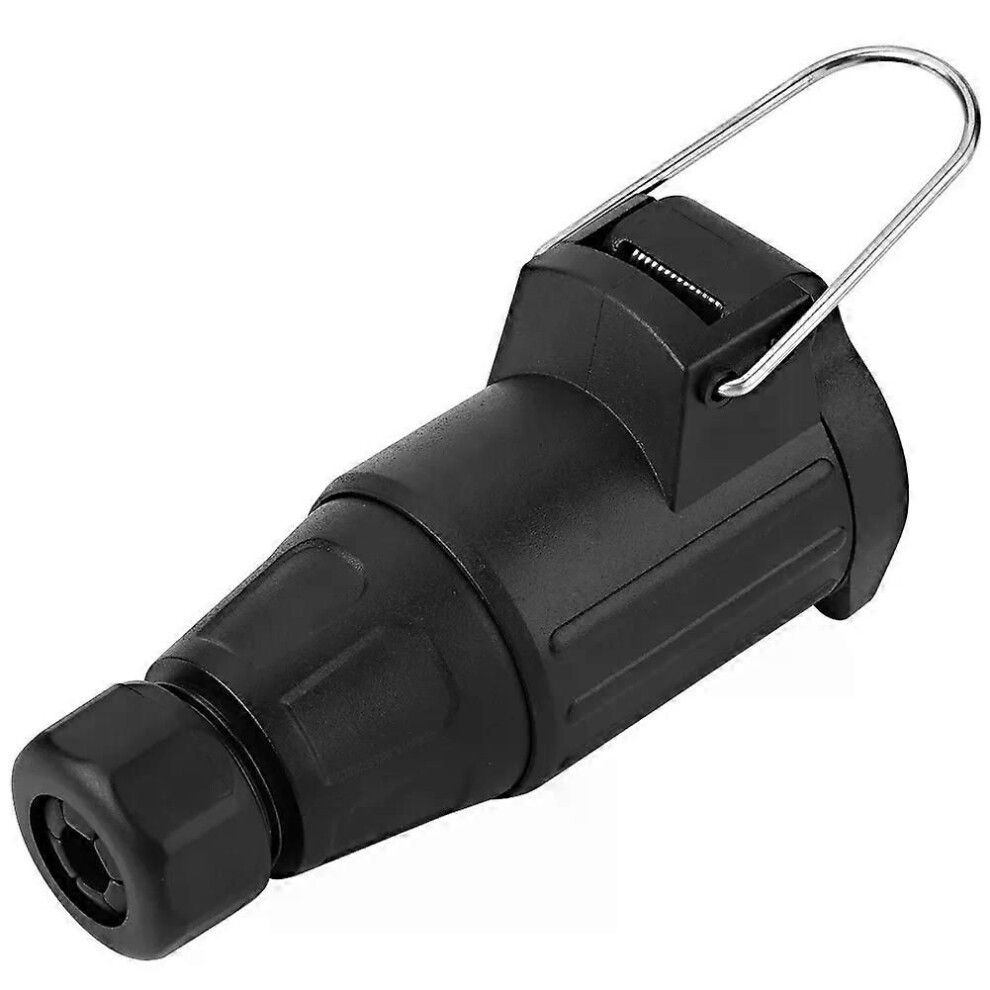

This is a plastic 13 pin socket (N type) to power trailer or caravan lights.
Ideal for new towbars or for replacing damaged sockets on existing cars.
Cross slotted copper neeSafe and dependable performance, reasonable design.
Carefully selected materials, deft appearance and convenient usage.
Specifications:
Material: Plastic + Brass
Color: Black
Input: 12V
Type: 12N (for European Car)
Pin: 13
Copper NeeSize: 47 x 125 x 30mm/1.8" x 5" x 1.2"
Package Weight: approx. 166g
Wiring Configuration:
13 Pin Lighting Connections - Cable Function
Pin1 - Yellow Wire (Left Indicator)
Pin2 - Blue Wire (Fog Light)
Pin3 - White Wire (Earth Return)
Pin4 - Green Wire (Right Indicator)
Pin5 - Brown Wire (Right tail / Side Light)
Pin6 - Red Wire (Brake/Stop Lights)
Pin7 - Black Wire (Left tail/Side Light)
Pin8 - Pink Wire (Reversing Light)
Pin9 - Orange Wire (12V Permanent power from battery)
Pin10 - Grey Wire (12V Ignition on (Battery charging or Fridge)
Pin11 - White/Black Wire (Earth for Terminal 10)
Pin 12 - White/Blue Wire (NOT usually used)
Pin 13 - White/Red Wire (Earth for Terminal 9)
Note: This shows the standard wiring colors, but your car might not be standard. If it is not then you should note which pin number each wire goes to before removing the old socket and simply connect the new one the same.
