(152)Printer Stepper Motor 17 3d Printer Two Phase 4 Wire Stepper Motor For 1.8deg 17hd34008-22b Medium

(152)Printer Stepper Motor 17 3d Printer Two Phase 4 Wire Stepper Motor For 1.8deg 17hd34008-22b Medium Description

HIGH TORQUE: Adopting high quality motor steel material, electric motor kit is provided with high torque 42N.cm (60oz.in) low self-inductance reactance, responsive and can avoid system error.

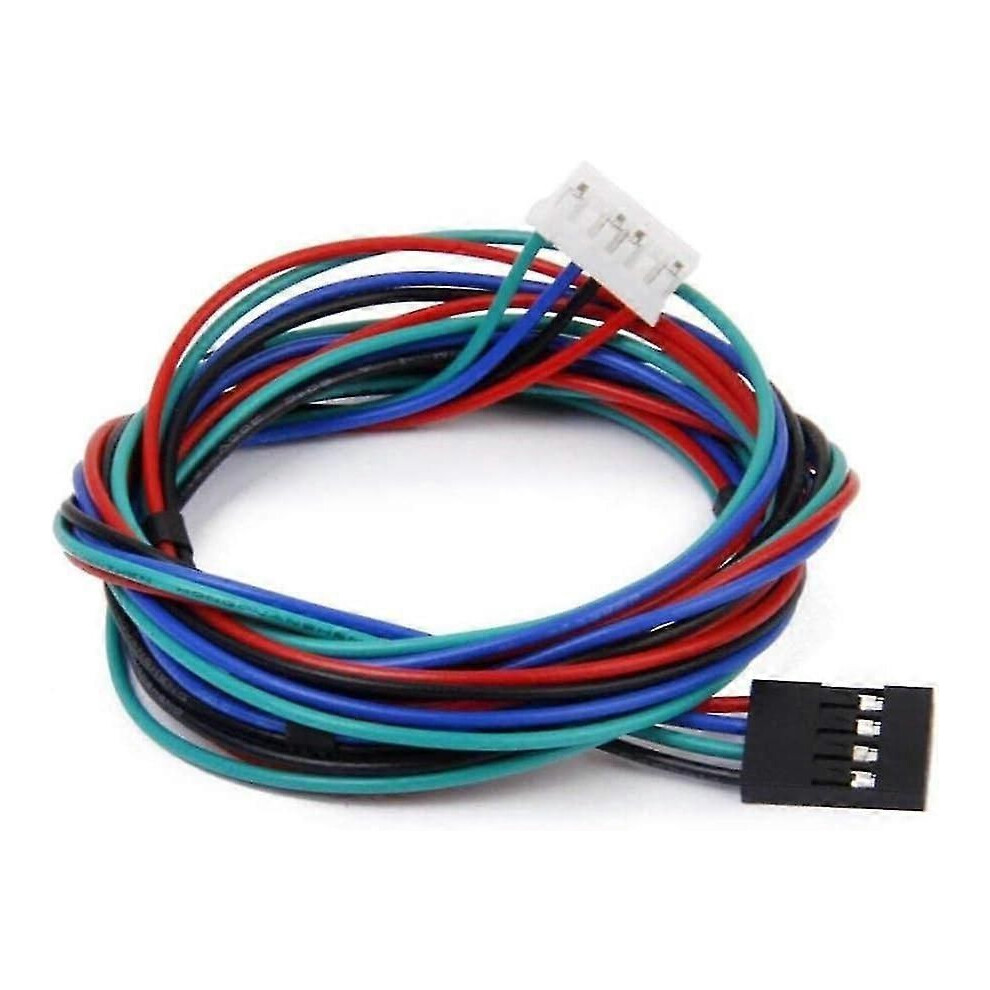

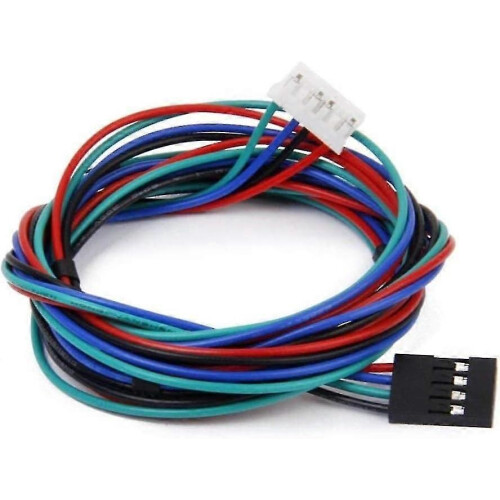

DESIGN:1m wire, one connect electrical machine, on the other end has variety optional ports; heat shrink tubing effect to prevent the wire tangled.
LOW RESISTANCE: Stepper motor can get a lower resistance value compared to motors of the same thickness and torque. This considerably increases the thermal conductivity of the motor.
APPLICATION:Suitable for 17HD34008-22B mixing type stepping motor.Drive mode: Chopping wave constant current drive.Exciting mode: Two-phase 4-wire, it is available for rotation of forward and reverse
17 3D Printer Two-phase 4-wire Stepper Motor for 1.8Deg 17HD34008-22B
Brand new and high quality

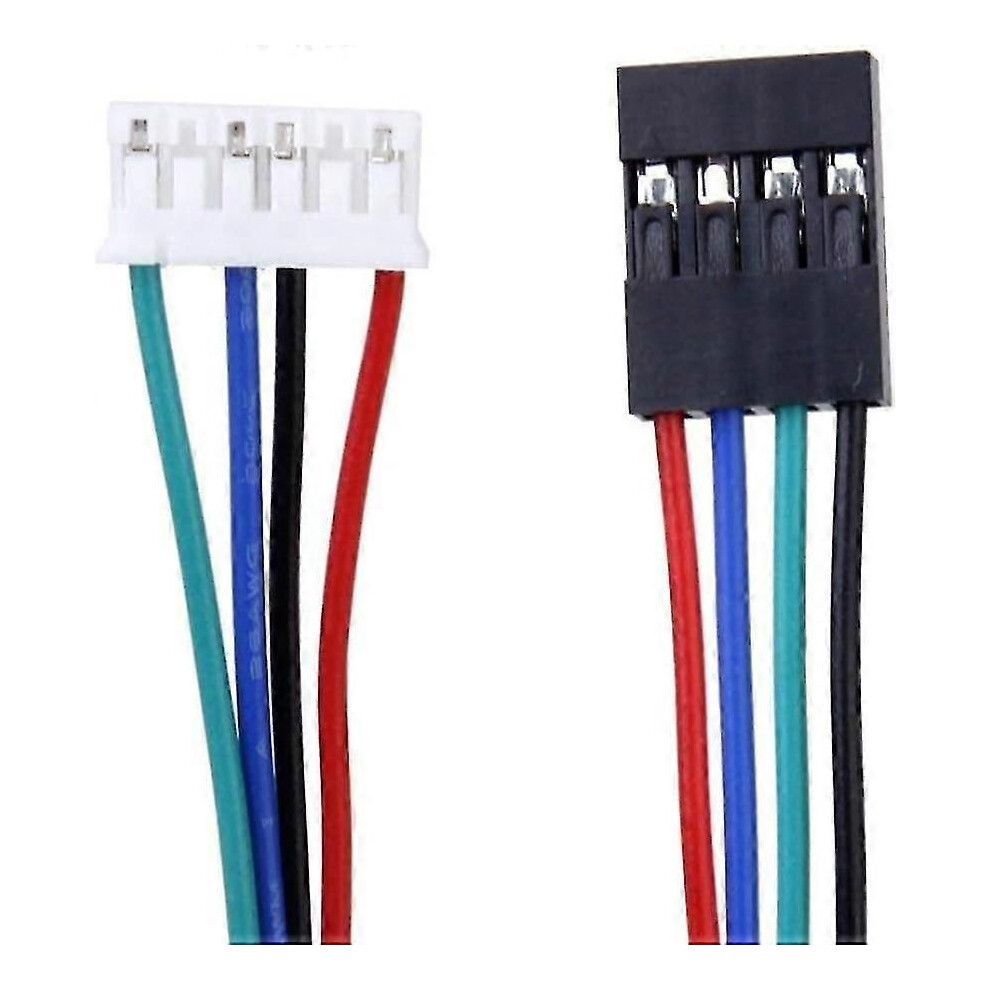

1M wire, one connect electrical machine, on the other end has variety optional ports; heat shrink tubing effect to prevent the wire tangled?up
Suitable for 17HD34008-22B mixing type stepping motor

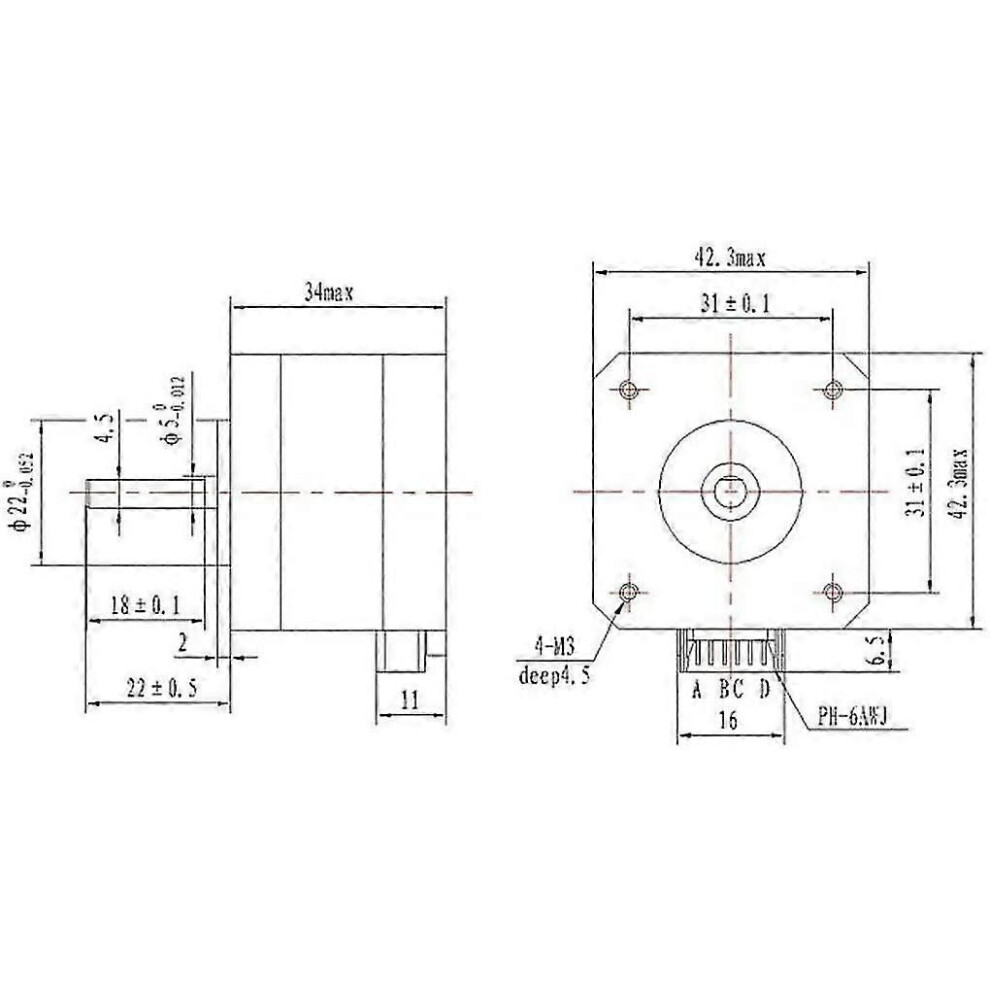

Outside view: Show as the picture
Drive mode: Chopping wave constant current drive
Brand new and high quality
1M wire, one connect electrical machine, on the other end has variety optional ports; heat shrink tubing effect to prevent the wire tangled?up
Suitable for 17HD34008-22B mixing type stepping motor
Outside view: Show as the picture
Drive mode: Chopping wave constant current drive
Exciting mode: Two-phase 4-wire, it is available for rotation of forward and reverse
Turn to: The order of power is AB-BC-CD-DA, from shaft end see C.W
Rated current (one-phase): 1.5A DC
Rated voltage: 3.45V
Stepping angle: 1.8
color: as show
Specifics:
Operating Conditions: Environment Temperature: -20~50; RH: 90%MAX; Mounting Position: Axis horizontal or vertical installation
Direct-current winding resistance (25): 2.310%
Wnding inductance: 3mH20%
Cogging torque: 12mN.m REF.
Holding torque: 300mN.m(I=1.5A)
Max. no-load starting frequency: 1500pps
Max. no-load running Frequency: 8000pps
product includes:1*Two Phase 4 Wire Stepper Motor
