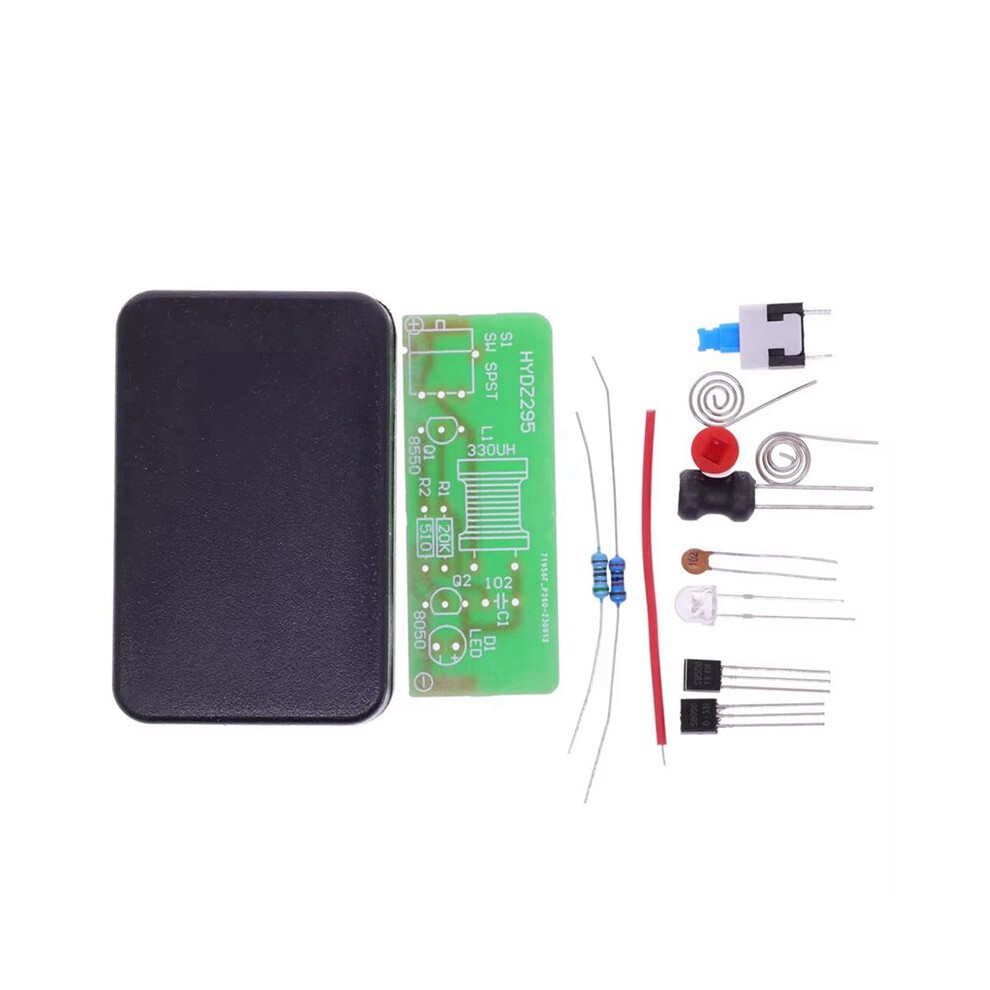

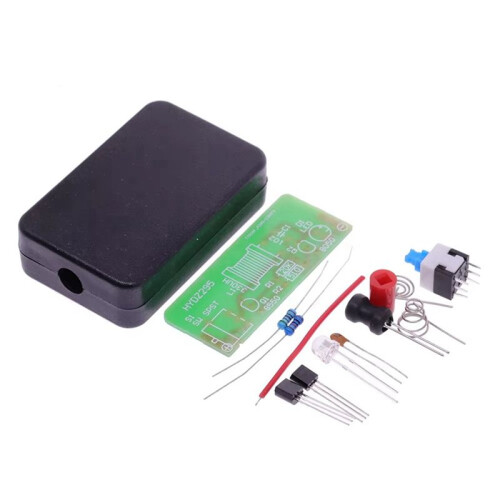

1.5V Flashlight DIY Kit Simple Integrated Circuit Board Soldering Practice Suite Electronic Components Welding Training
Brand Tlily
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 127,000 Trustpilot reviews and an 'Excellent' rating
€7.53
€11.35
34% off!
+€3.00 Delivery
1%
What is instant Cashback?
Learn More
All prices include VAT.
Interest-free payment options available
See full product description & details
Delivery: Priority (€3.00) | Sat 11th - Fri 17th Jul
Sold by: CNNOTEPAD
Returns: 30 days
180-day payment protection
Most Popular in Circuit Board Connectors
Description & Details
Summary
- The portable flashlight kit realizes the function of flashlight with a small number of components, and has the advantages of simple circuit and easy production.
- The circuit is simple, the production is easy, and one board is multi-purpose.

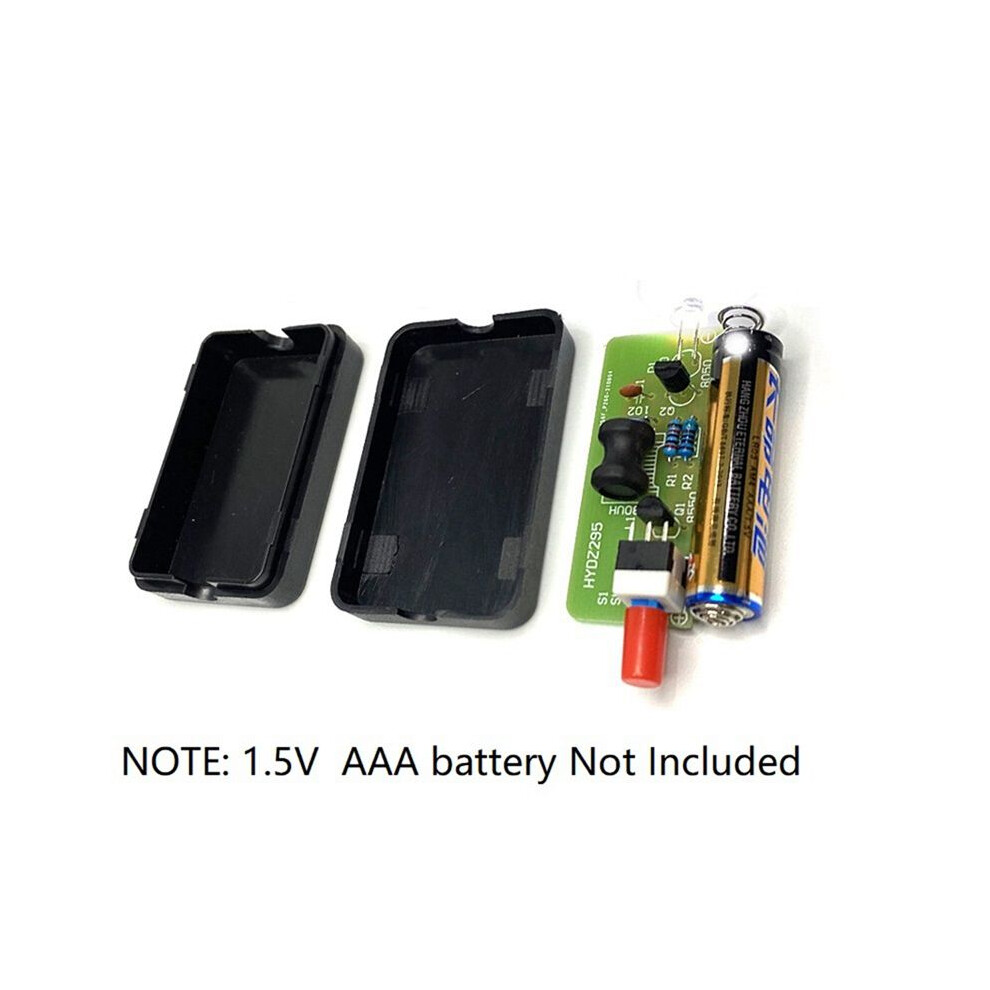

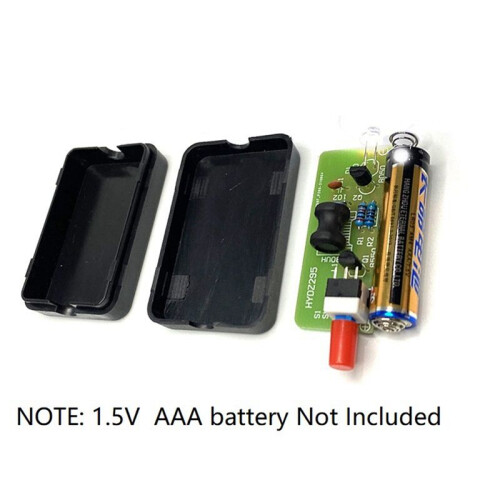

- Working voltage: 1.5V (1 * AAA battery; battery not included)
- We used No. 7 Nanfu battery for multiple tests. Generally, the brightness is relatively bright within 5 hours, and the brightness will be slightly behind.

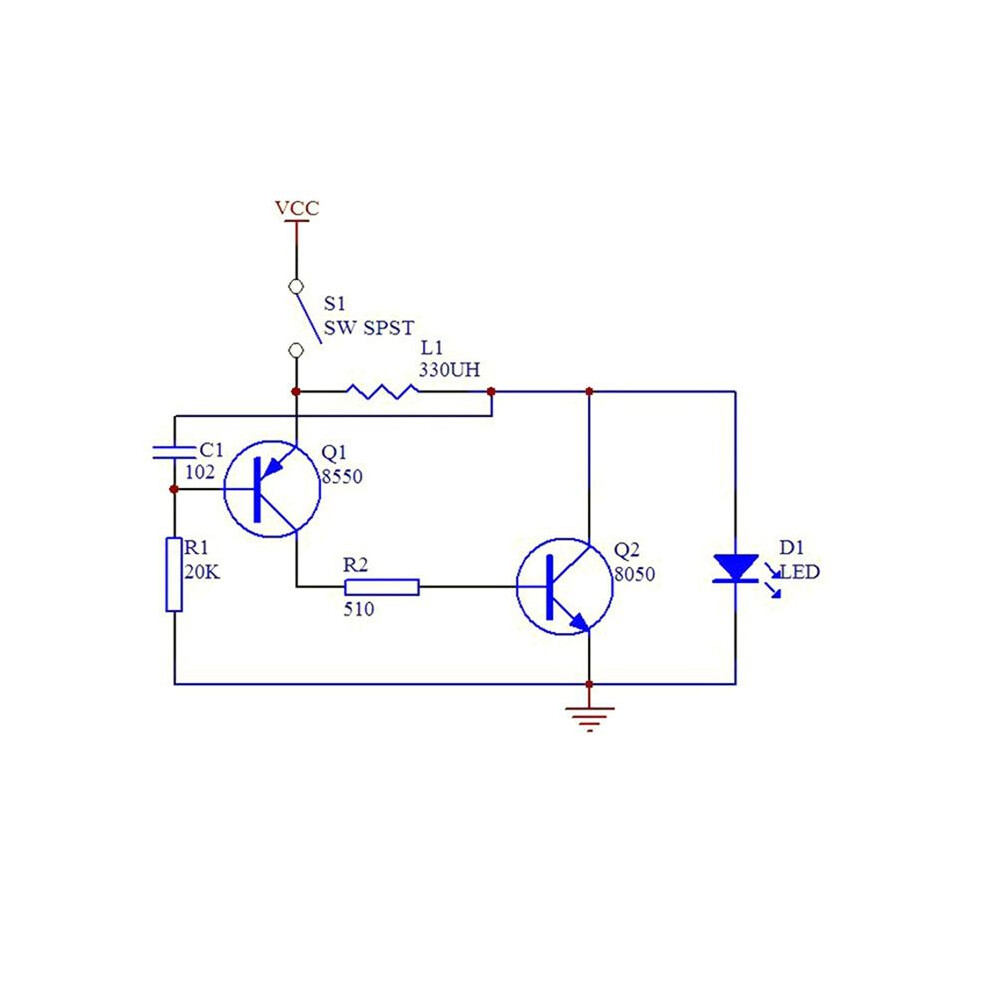

- Principle of operation:After switching on the power supply, triodes Q1 because the base is grounded through R1, and the voltage at both ends of c1 cannot be suddenly changed. The base potential of Q1 is lower than that of emitter E, Q1 conducts, and the base B of 02 has a current flowing into Q2, and Q2 also conducts.
1.5V Flashlight DIY Kit Simple Integrated Circuit Board Soldering Practice Suite Electronic Components Welding Training Description
The portable flashlight kit realizes the function of flashlight with a small number of components, and has the advantages of simple circuit and easy production.
The circuit is simple, the production is easy, and one board is multi-purpose.
Working voltage: 1.5V (1 * AAA battery; battery not included)
We used No. 7 Nanfu battery for multiple tests. Generally, the brightness is relatively bright within 5 hours, and the brightness will be slightly behind.
Principle of operation:After switching the power supply, triodes Q1 because the base is grounded through R1, and the voltage at both ends of c1 cannot be suddenly changed. The base potential of Q1 is lower than that of emitter E, Q1 conducts, and the base B of 02 has a current flowing into Q2, and Q2 also conducts.
The current flows from the positive electrode of the power supply through the collector C of the inductor L1 and Q2 to the emitter E and returns to the negative electrode of the power supply. The self-induced EMF L1 is positive the left and negative the right. As the power supply charges C1, the voltage at both ends of C1 increases gradually, the base B potential of Q1 increases gradually, the base current of Q1 B1 decreases gradually, the base current of 02 also decreases gradually, and the charge of L1 decreases gradually. At this , the induced electromotive force above L1 changes to the left negative electrode and the right positive electrode, until Q1 exits the saturation conduction. Q2 also exits saturation conduction (triode cutoff), the stored L1 is released, and the voltage generated by L1 and the power supply voltage are superimposed and added to the LED, so that the voltage at both ends of the LED increases and flashes.
Colour:black
Material:Plastics + components
note:It's DIY kits, needs to finish by yourself.

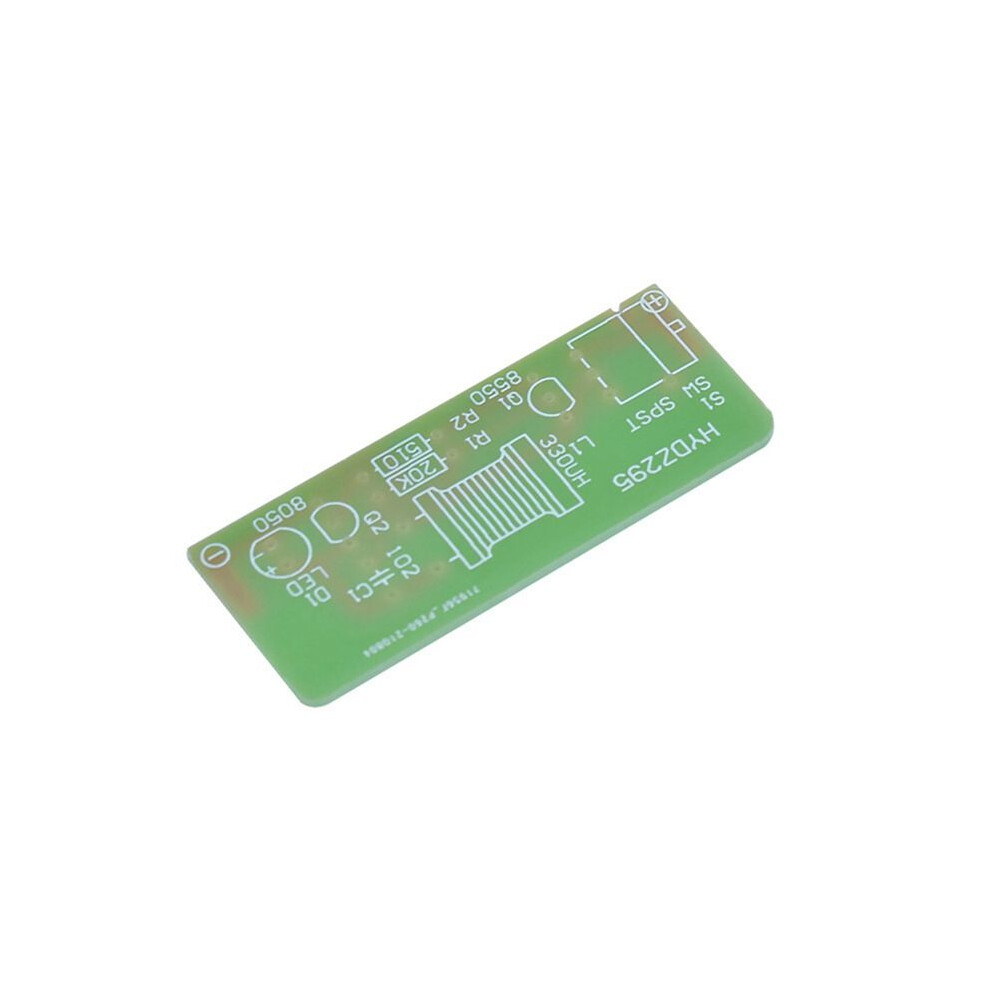

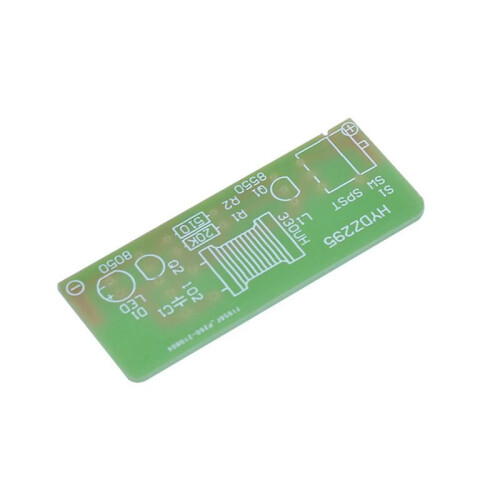

note:PCB boa
