2 5-wire Quick Connect adapters suitable for Gibson control board pcb pickup wire connector plug

2 5-wire Quick Connect adapters suitable for Gibson control board pcb pickup wire connector plug Description

These are suitable for Gibson Boards only and will not fit Epiphone pots.
Gibson also used 2 and 3 pin Quick Connects on pickups, which are black and look completely different.
If you are not sure what you have, Please Look inside your guitar besuitable fore ordering and compare it to the photos.

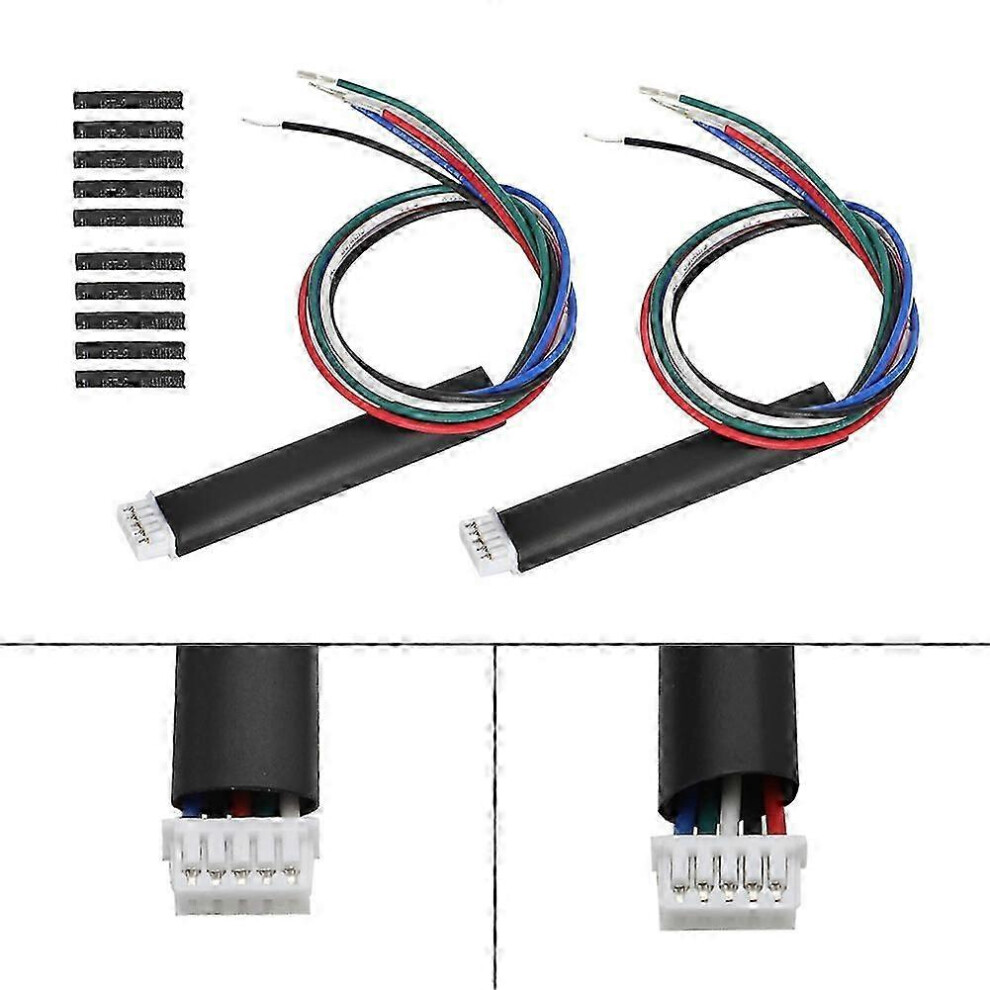

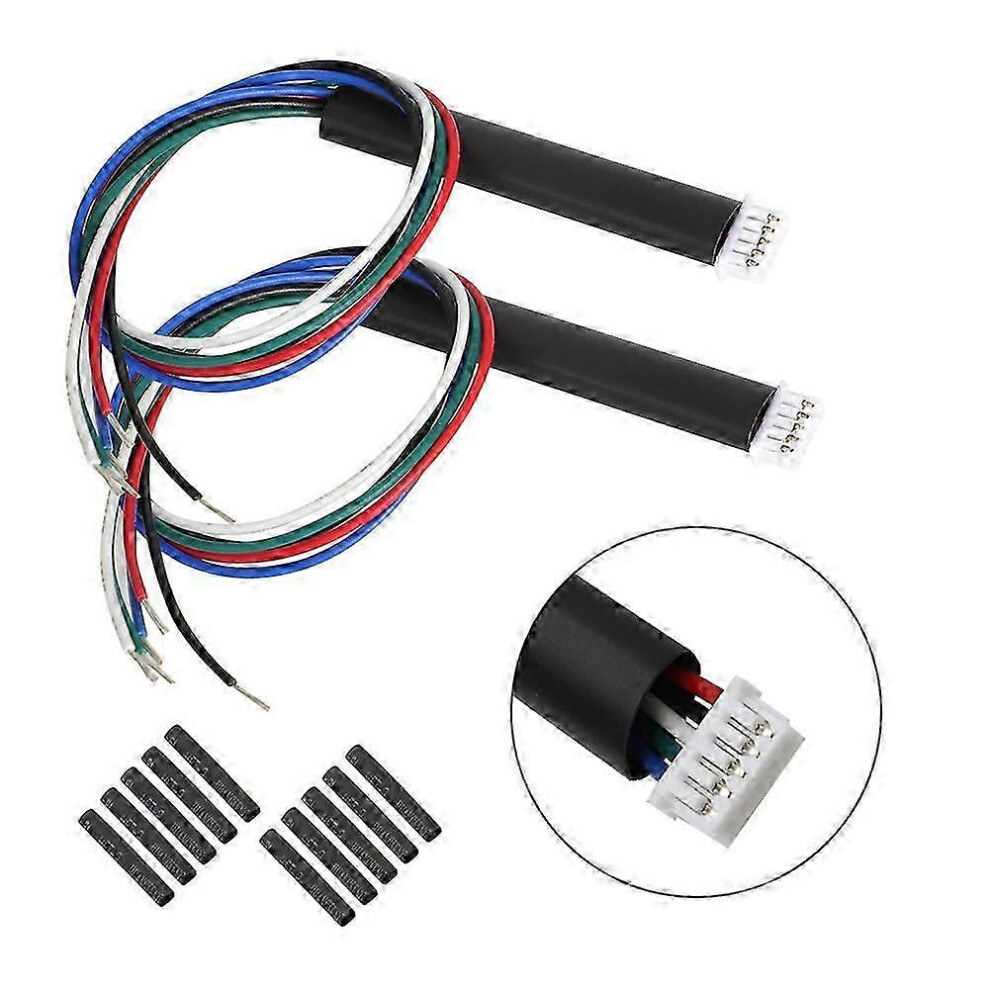

Photo #2 shows everything that is included.
2 Quick Connect adapters suitable for Gibson (4 conductor+shield) '5 wire' pcb control board
The wire colors are arranged suitable for the Seymour Duncan Pickup Color Code.
This makes installing Seymour Duncans to Quick Connects much easier. Just match the wires up Color to Color.
The Bare(shield) wire on the pickup goes to the dark blue wire on the Quick Connect.
Check out the diagram in the photos above.
This is the (4 conductor+shield) '5 wire' style Quick Connect that Gibson started using in (around) 2012.
Made from 28 AWG 7 strand tinned copper wire and is about 4 inches long.
Heat shrink tubing suitable for all of the wires is included, as well as 2 larger heat shrink tubes.
