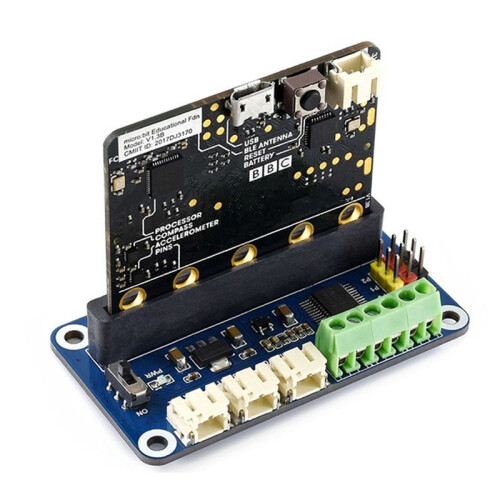

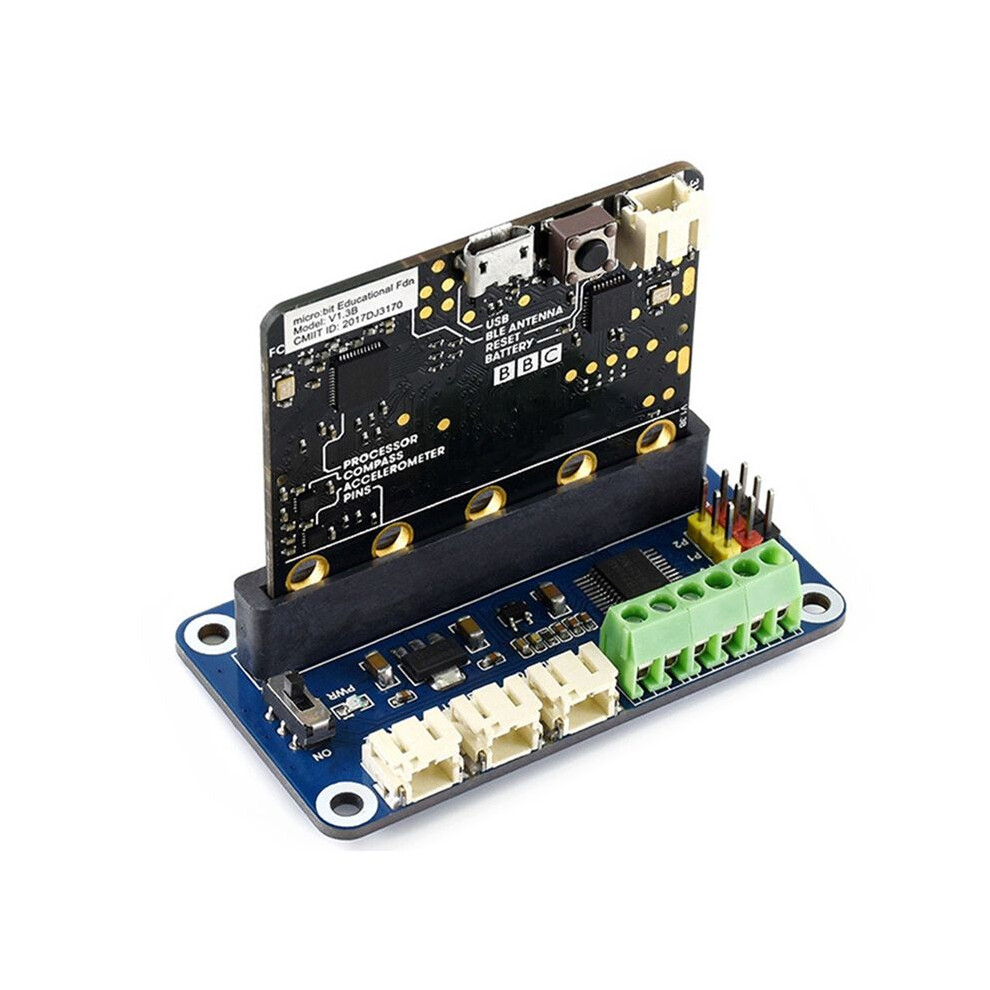

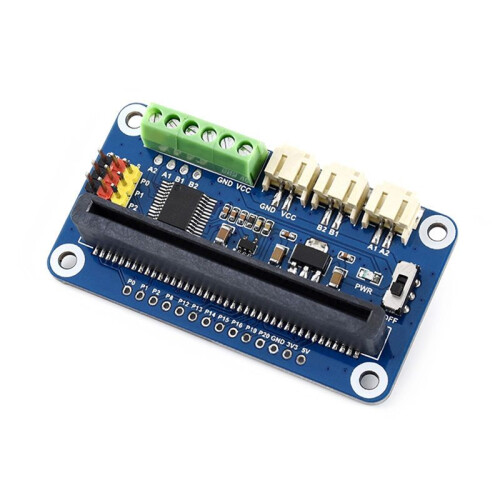

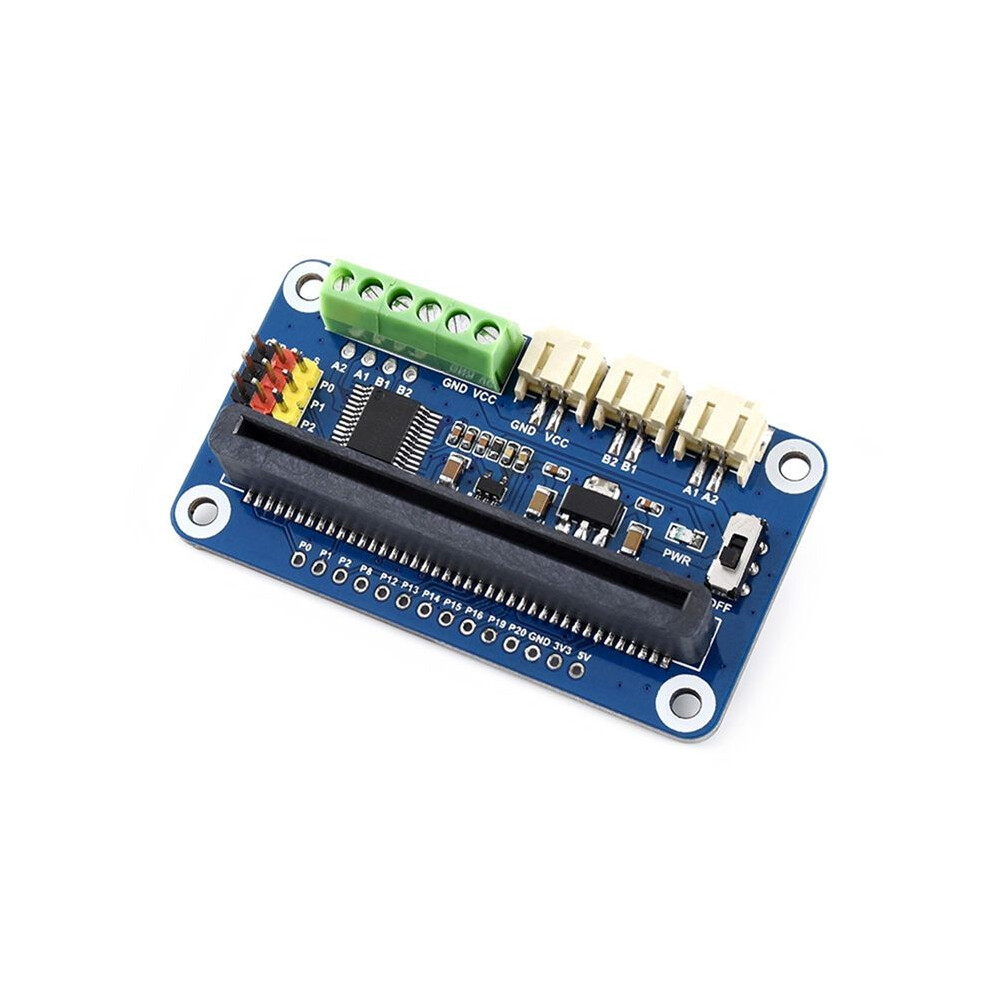

2 Channel Motor Driver Expansion Breakout Board for BBC Microbit Micro-Bit V1.5 V2 Board Breakout Shield Module
New
€16.13
Would you like us to let you know when it's back?
Description & Details
Summary
- This driver board gives your micro-bit the ability to drive two channel DC motors and three channel servos. It's an ideal choice for you to DIY mobile robots.
- micro-bit edge connector, directly pluggable.
- 2 x DC motor interfaces, 3 x servo interfaces.
- Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal.
- Onboard multi connector options for DC motors in different specifications, onboard standard servo headers.
2 Channel Motor Driver Expansion Breakout Board for BBC Microbit Micro-Bit V1.5 V2 Board Breakout Shield Module Description
This driver board gives your micro-bit the ability to drive two channel motors and three channel servos. It's an ideal choice for you to DIY mobile robots.
micro-bit connector, directly pluggable.
2 x motor interfaces, 3 x servo interfaces.
Integrates 5V regulator, to 3A output current, can be powered from battery through VIN terminal.
Onboard multi connector options for motors in different specifications, onboard standard servo headers.
Power supply: 6V-12V (VIN terminal)
Servo voltage: 5V
Logic voltage: 3.3V
Driver: TB6612FNG
Dimension: 65mm x 36mm
Mounting hole size: 3.0mm
Colour:As Shown
Material:Plastic
Package Contents:
1 * Driver Breakout Board(NOT include for Raspberry Pi )
Details
| OPC | PRMMHMF |
|---|---|
| Codes | 4713927573187 (EAN) |
| Product and Safety Information |
Product Data
| Height | 2cm |
|---|---|
| Width | 5cm |
| Length | 7cm |
| Weight | 0.0245kg |
| Colour | As Shown |
| Material | Plastic |
