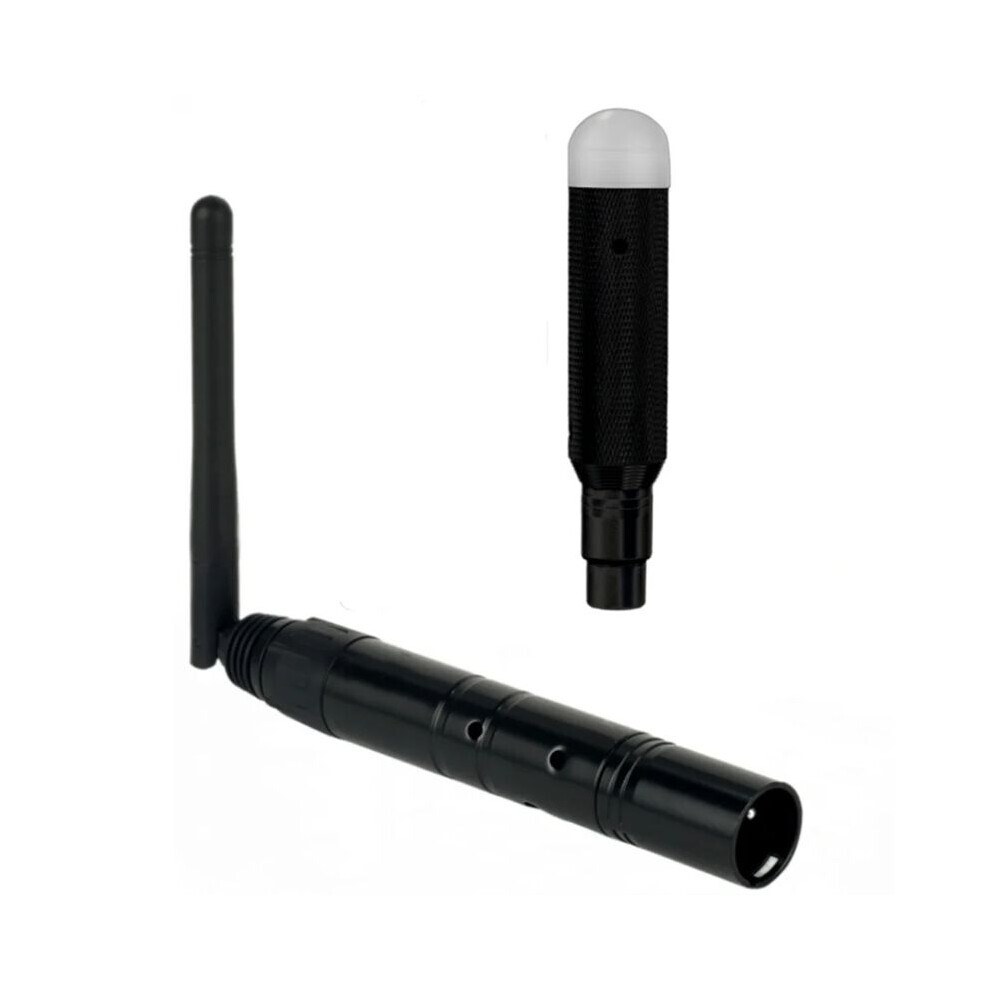

2 DMX wireless, 1 receiver socket and 1 transmitter plug, 2.4G control for DFI DJ, short version for LED stage PAR, EU plug

2 DMX wireless, 1 receiver socket and 1 transmitter plug, 2.4G control for DFI DJ, short version for LED stage PAR, EU plug Description

2 DMX Wireless, 1 Receiver Socket and 1 Transmitter Plug, 2.4G Control for DFI DJ, Short Version for LED Stage PAR, EU Plug Description
2.4G Wireless DMX512 3R/1T; 7 Group ID Codes Adjustable, the user can utilize 7 groups of individual wireless networks without interference.
Input Voltage: 5 VDC, 500 mA min.; Communication Distance: 500 m (line of sight)
Maximum Transmit Power: 20 dBm; Receiver Sensitivity: -94 dBm; CPU: 32-bit ARM Core; Modulation: GFSK
DMX Signal Interface: RS485; Operating temperature: -40 ~ 85C, Storage temperature: -65 ~ 150C
Relative humidity: 5 to 95% (non-condensing); Automatic restart trigger: Built-in WDT (Watchdog Timer)
Operating Instructions

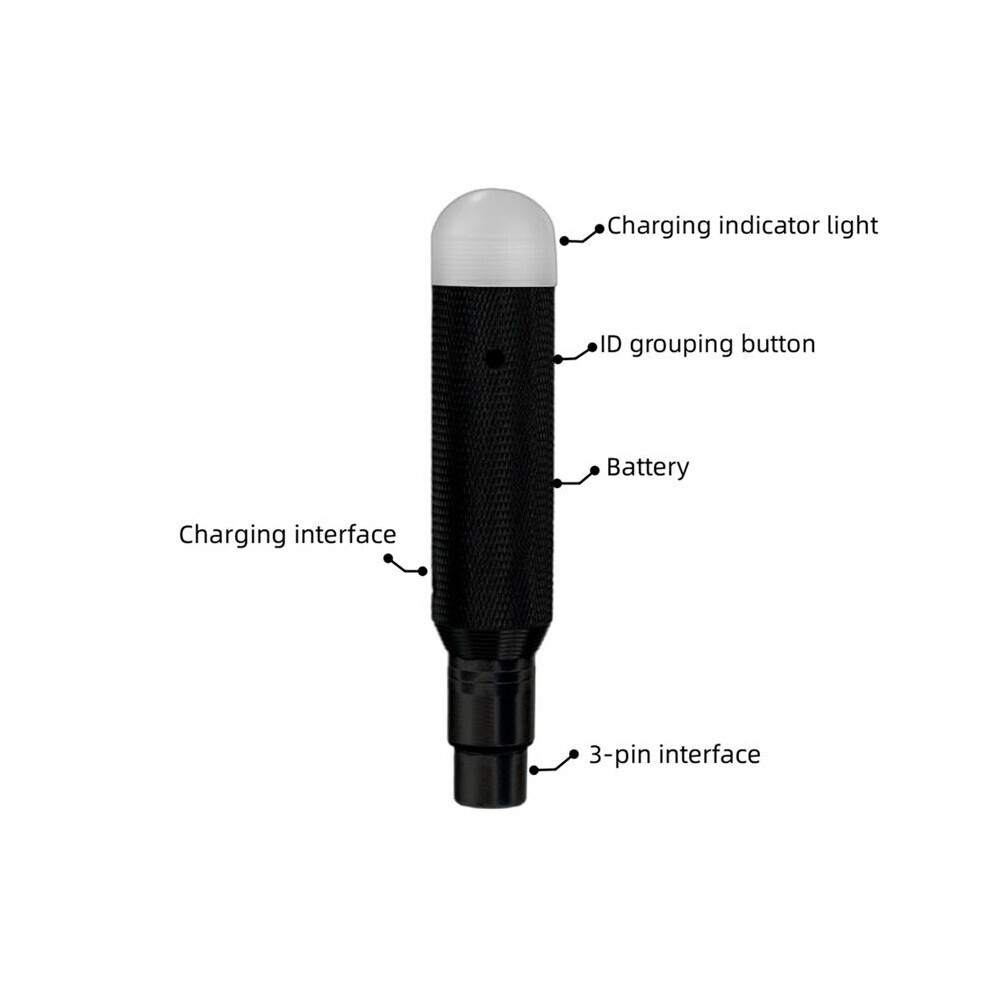

1. Press the shortcut switch above the side LED indicator to display the ID setting.
2. Press again to set the IC to the desired color ID. Adding 1 with each press of the switch increments the color ID code.
3. Operating status: LED on continuously: No DMX or radio signal. Red LED flashing: Transmitting. Green LED flashing: Receiving.
Establishing communication:
1. 1. First, turn on the wirelessly received DMX512 card, and then turn on the transmitted cards.
2. Press the "Key" button to set the same ID value for the sent and received cards. Please use different ID values if you need to use more than one group of wireless universal devices simultaneously in the same location.
3. The red LED will flash when the transmitter is transmitting DMX data over an interference-free frequency range; then the receiver will change the transmitted frequency range. The green LED flashes until the same corrected ID value is received; the LED flashes faster as the DMX data becomes faster.
Color: Black
Material: Stainless steel
Plug type: EU plug, suitable for Indonesia, Germany, France, Spain, Italy, etc.
