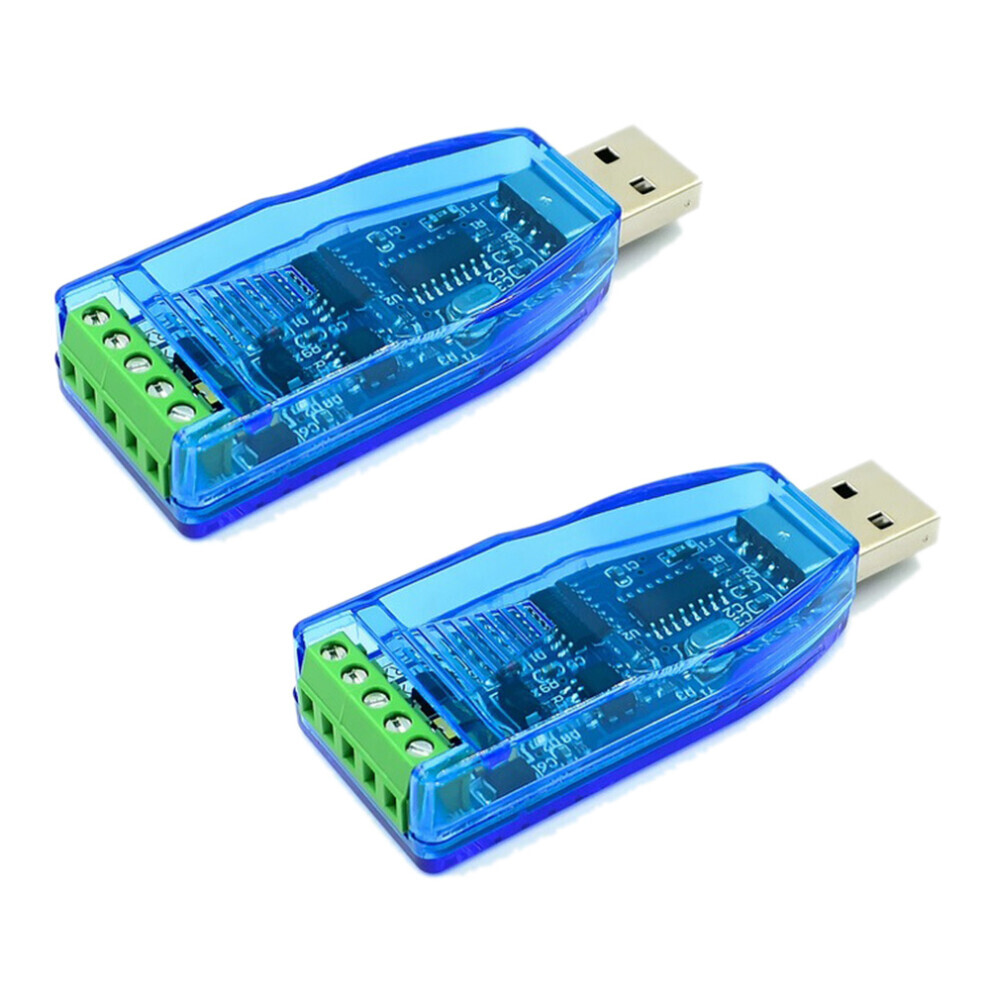

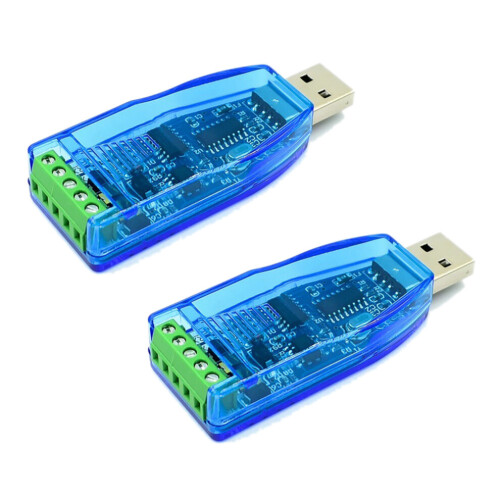

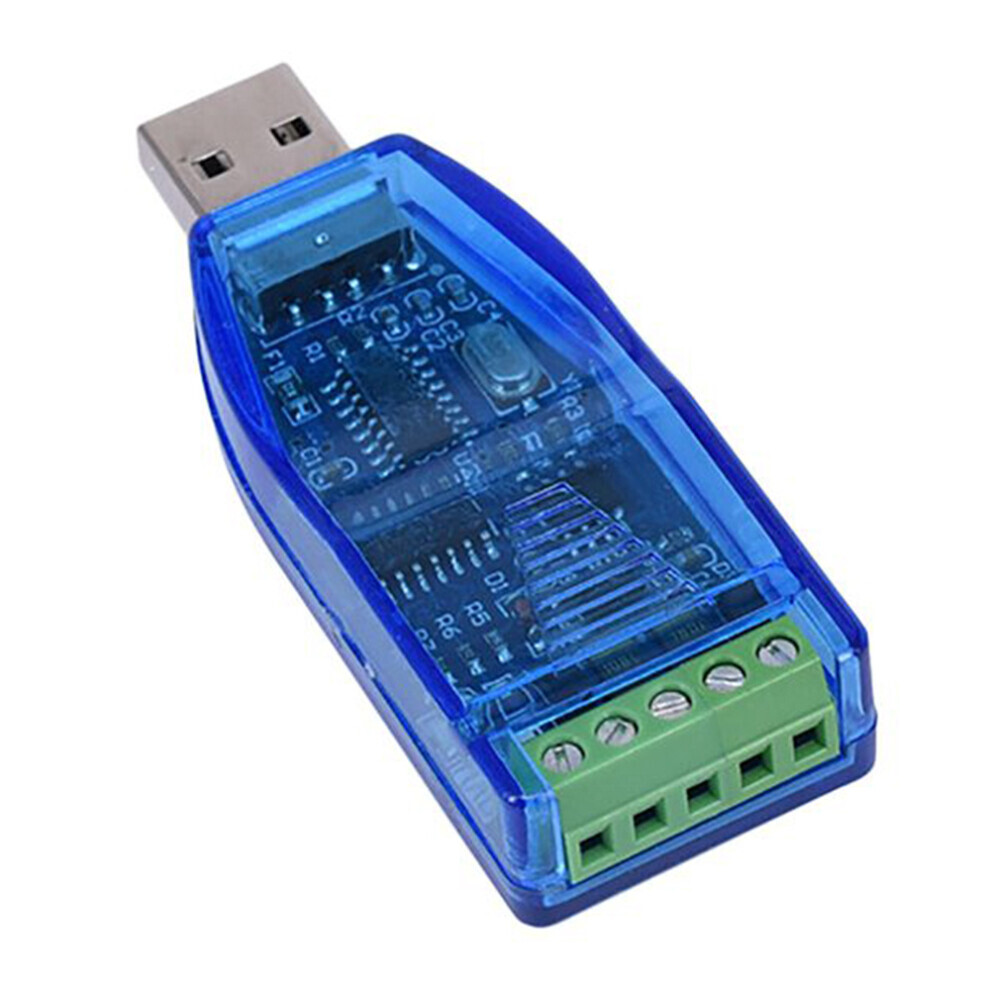

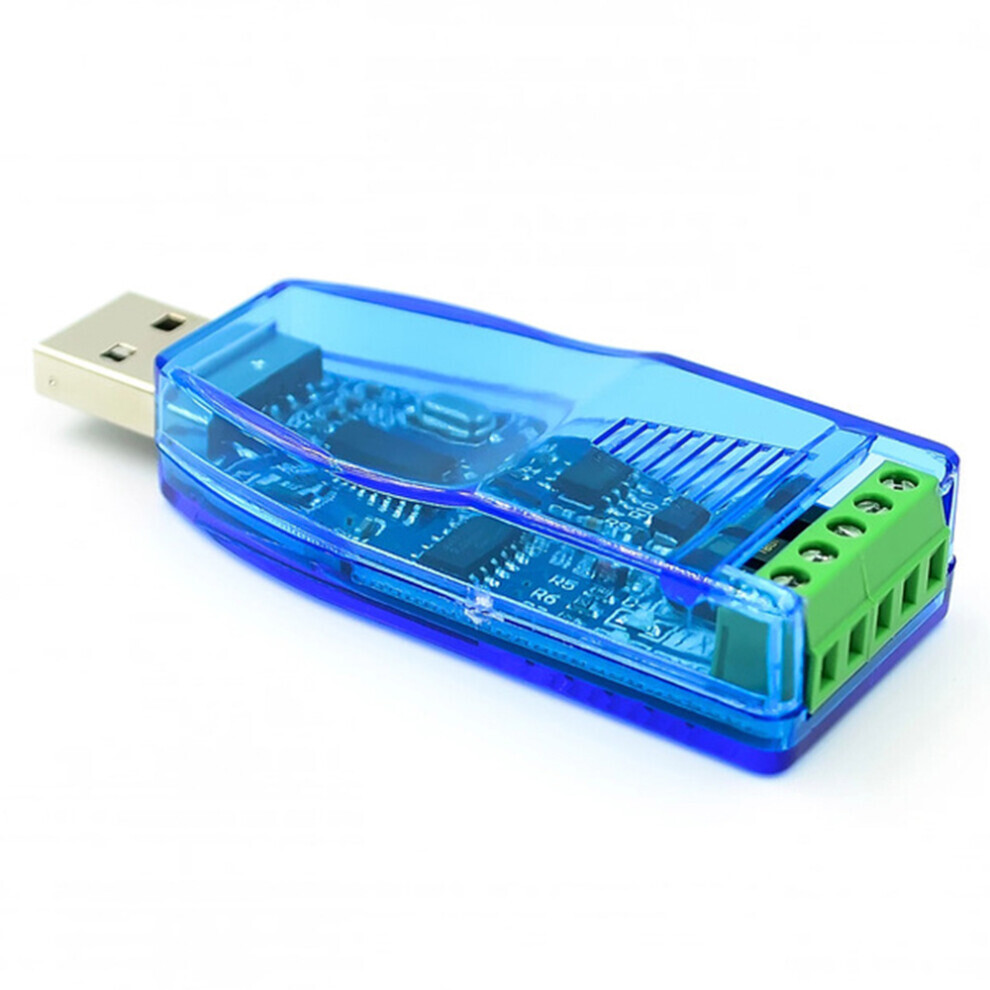

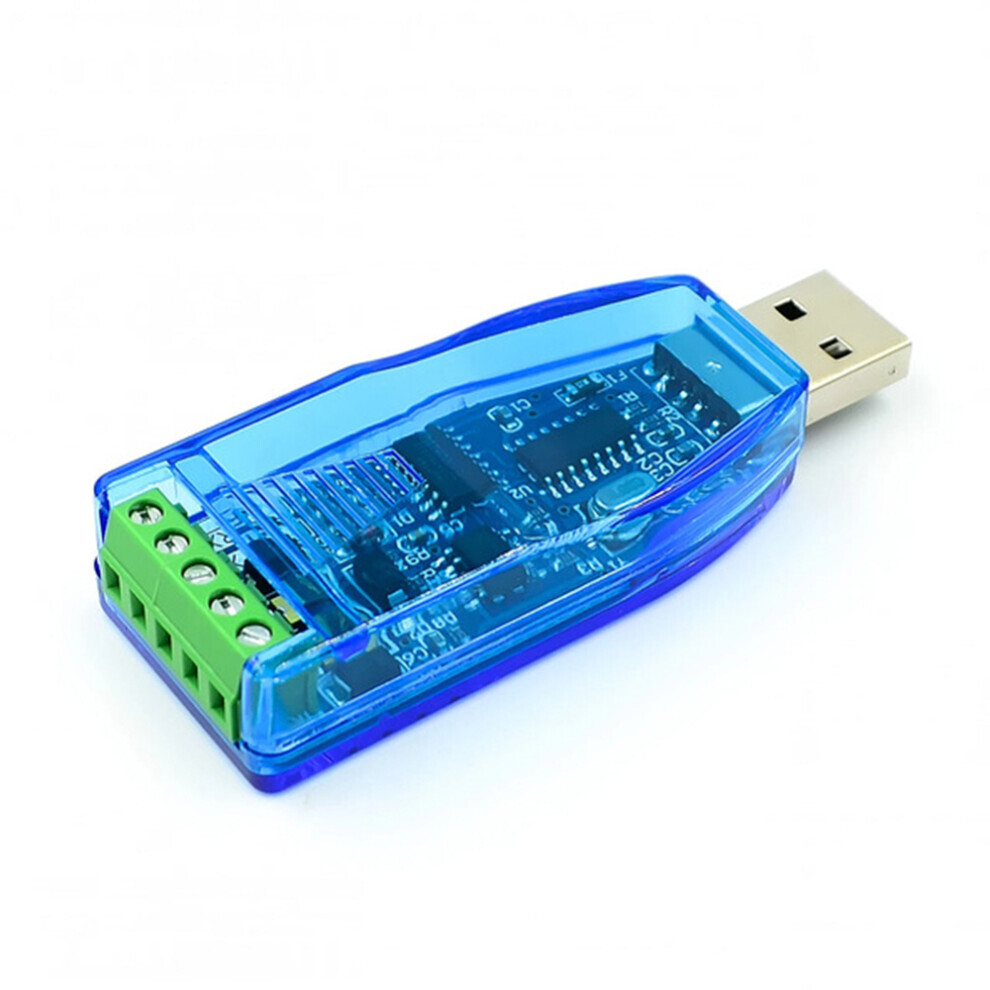

2 Pieces USB to RS485 Converter Isolation Module -485 Connector Board

2 Pieces USB to RS485 Converter Isolation Module -485 Connector Board Description

2 Pieces USB to RS485 Converter Isolation Module -485 Connector Board Description
Power supply and signal are completely isolated, providing stronger interference suppression and usability!
The USB to RS485 converter allows PC users to connect their RS485 devices to systems that use a USB interface.
By connecting the converter to a PC, it is no longer necessary to open the case or turn off the PC to install the hub.
With the converter, the user immediately gains an additional high-speed RS485 port.
Since power is supplied via the USB connection, there are also No cumbersome power adapters are required. This makes the converter particularly suitable for PLCs, printers, POS systems and industrial control devices. Power supply: USB 5V; Transmission range: up to 1200 meters (9600 bps); Chip solution: CH340E; Communication protocol: pure hardware device, non-binding; Baud rate: up to 256000 bps, supports mutual transmission to support higher baud rates; Power supply and signal are fully isolated, and interference suppression is enhanced; Protection: transient suppression protection, electrostatic ESD protection, overvoltage protection, short AB signal line protection, and short circuit protection with power supply (short circuit without burnout); Temperature range: -40C to 80C; Support system: supports hot-swapping; Support For Win98, for CE, for 2000, for 2003, for 2008, for XP, for WIN7, for WIN8, for WIN10, for VISTA, for LINUX. USB interface can be hot-swapped. Automatic detection and control of data transmission direction, without handshake signals (such as DTR, etc.), without jumper settings for mode conversion, to comply with existing communication software and interface hardware. Different batches; the color of the circuit board in the converter is random, do not accept the specified color. Computer displays may vary, so the color of the converter may differ.
Color: Blue
Material: Circuit board + plastic + metal
Size: 70 x 27 x 13 mm
Package Contents:
2 * USB to RS485 communication module
Only the above package contents, other products are not included.
Note: Light and different displays may cause the color of the item in the picture to be slightly different from the real thing. The allowable measurement error is +/- 1-3 cm.
