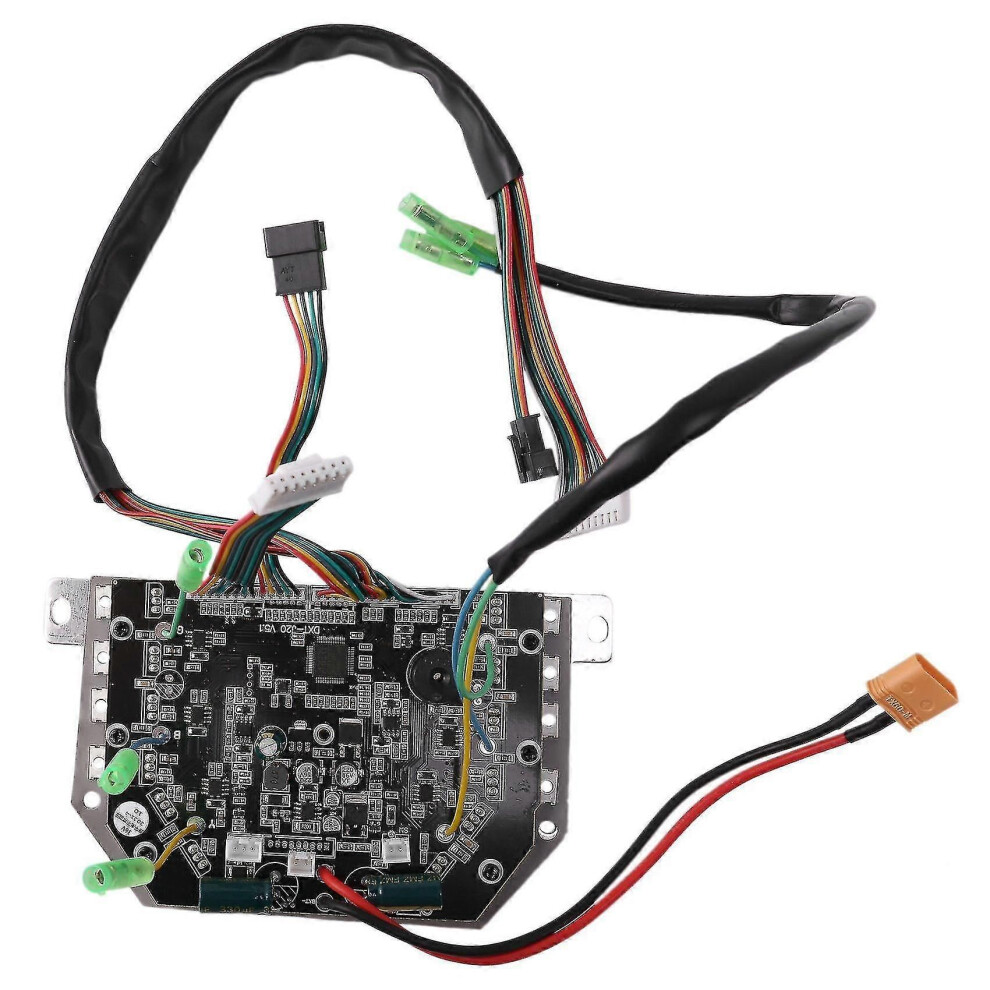

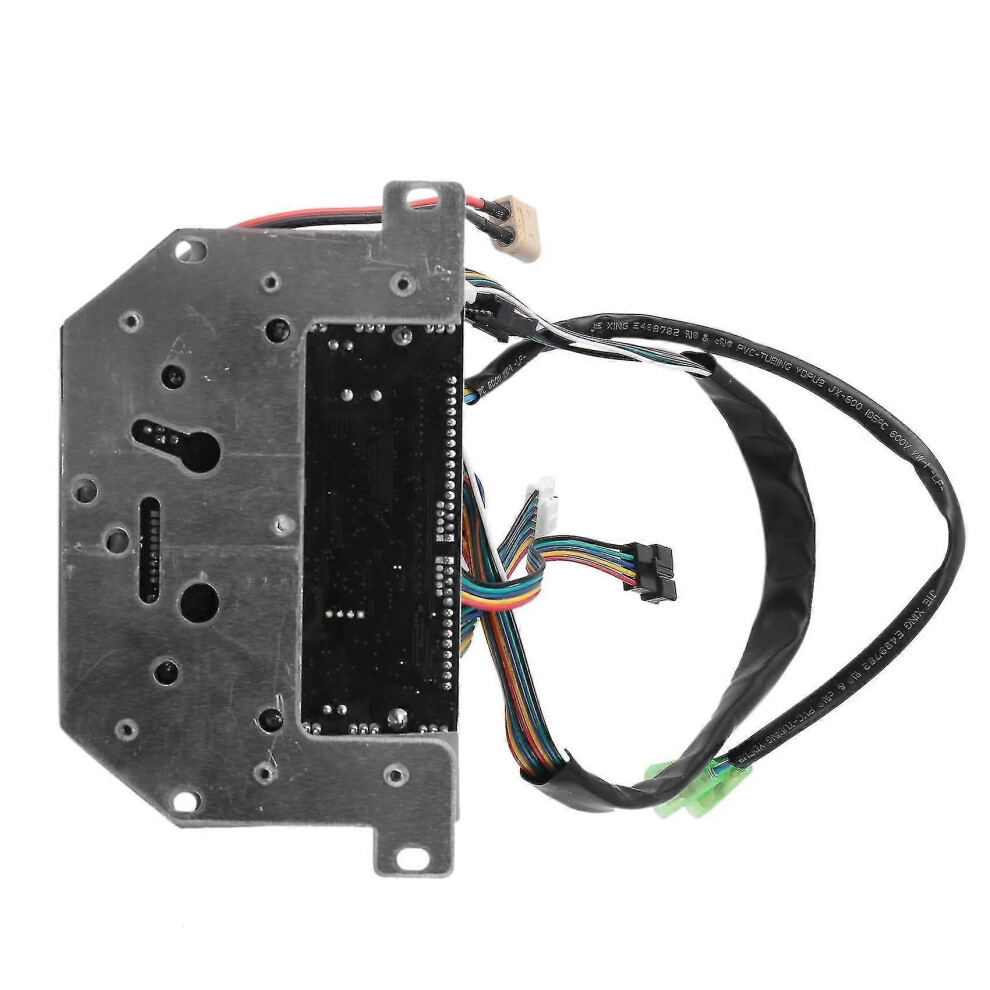

(2089)Scooter Motherboard Mainboard Hoverboard Control Board For 6.5 Inch 2 Self Balancing Scooter Electr

(2089)Scooter Motherboard Mainboard Hoverboard Control Board For 6.5 Inch 2 Self Balancing Scooter Electr Description

Description
Suitable for 6.5~10inch balance scooters.
Low battery protection, and tilt protection.
indicator for turn signal and pedal indicator light.
Safety tips: low tips, overspeed tips (the speed reaches 8km/h and the pedal gradually picks up).
Maximum speed: 12km/h(when the speed reaches 8km/h, the front starts to rise; when the speed reaches 10km/h, the alarm starts).
Type: third debugging motherboard
Maximum range: 20km (depends on terrain, temperature, driving mode and load)
Maximum load bearing: 120kg
Maximum climbing Angle: 15 degree
Minimum turning radius: turn in place /zero
Maximum current: 15A on each side
Charger voltage: 42V 2.0A
Charging requirements: 100-240V 50 or 60Hz
Light indicator: indicator for turn signal and pedal indicator light
Safety tips: low tips, overspeed tips
Tilt protection: before and after are 80degree, more than 80degree electric machine stop operation
Low protection: turn on with the remaining 10% of
Colour: black
Material: plastic, metal

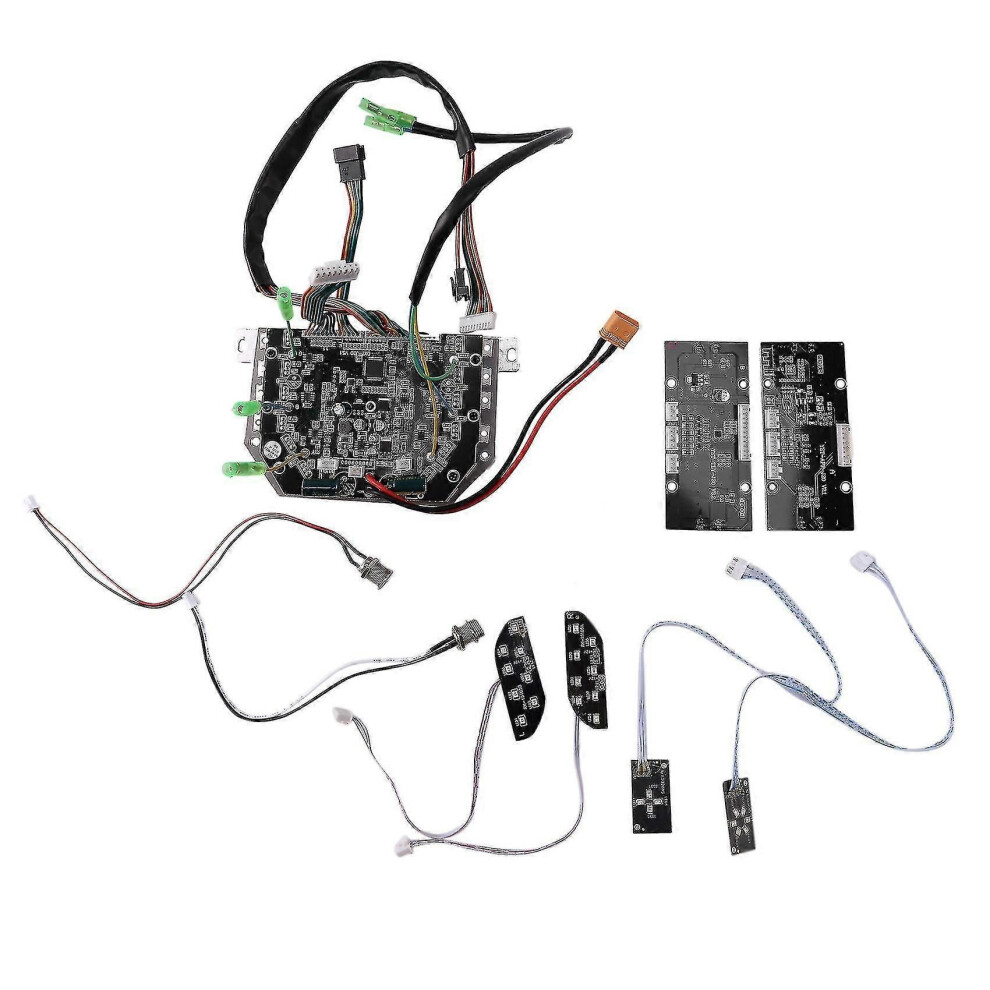

Package Contents:
1 * Motherboard

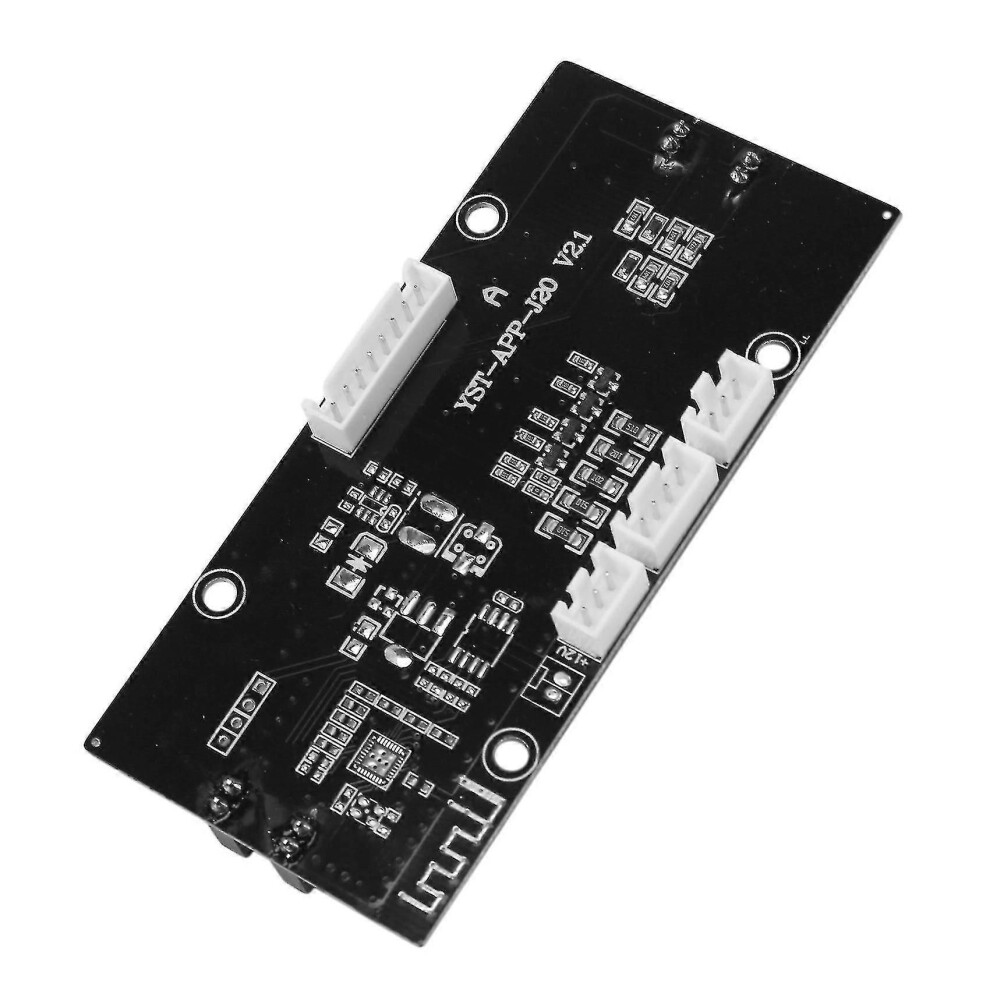

2 * Gyro board
1 * L LED Light Indicators
1 * R LED Light Indicators
2 * LED Light Circle(4 LED and 6 LED)
1 * LED Supply Switch
1 * Charging Socket Cable
Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
