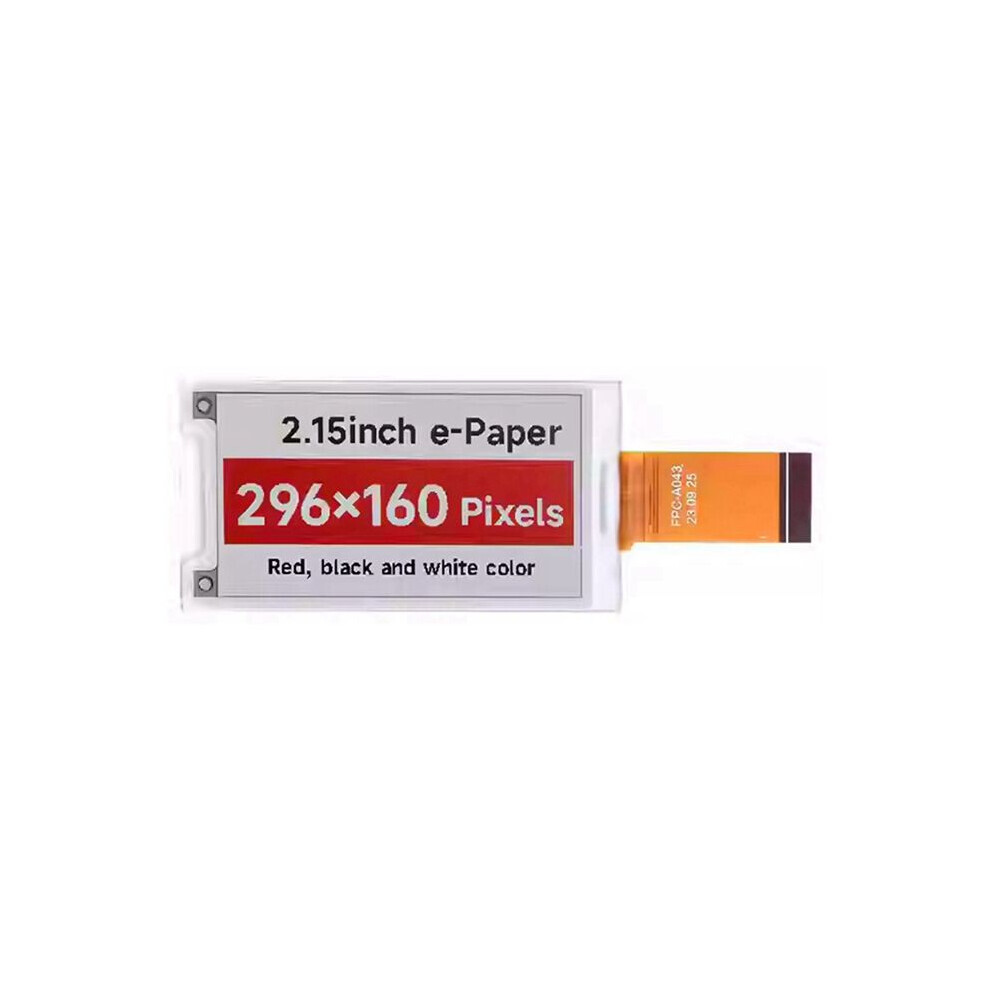

2.15-inch e-paper electronic module, 296 x 160 pixels, SPI communication, HAT+ standard for Raspberry Pi, B

2.15-inch e-paper electronic module, 296 x 160 pixels, SPI communication, HAT+ standard for Raspberry Pi, B Description

2.15 inch E-Paper Electronic Module 296 x 160 Pixels SPI Communication HAT+ Standard for Raspberry Pi, B Description
1. No backlight is required, and the last screen content is retained for a long time after power-off.
2. Power consumption is very low and generally only draws power during updates.
3. The following applies only to the module version. Based on the design of the 40-pin GPIO interface for Raspberry Pi, it is suitable for Raspberry Pi, Jetson Nano, and RDK series motherboards.
4. The Raspberry Pi HAT+ standard is adopted to improve the interoperability of the expansion board, helping developers to design and develop faster and to more easily use various external devices, thereby extending the functionality and performance of the Raspberry Pi. The SPI communication interface is reserved for easy access to the main control board, for example, Raspberry Pi / for / for STM32. The integrated level conversion chip is compatible with 3.3V and 5V interfaces.
Communication interface: 3-wire SPI, 4-wire SPI
Grayscale level: 2
Global refresh rate: 23 s
Refresh power consumption: Less than 15 mW
Pixel pitch: 0.1625 x 0.1625 mm
Idle current: Less than 0.01 µA (near 0)
Resolution: 296 x 160 pixels
Viewing angle: Greater than 170
Due to different batches, there may be variations in the product's appearance and printed text, but these do not affect its use.

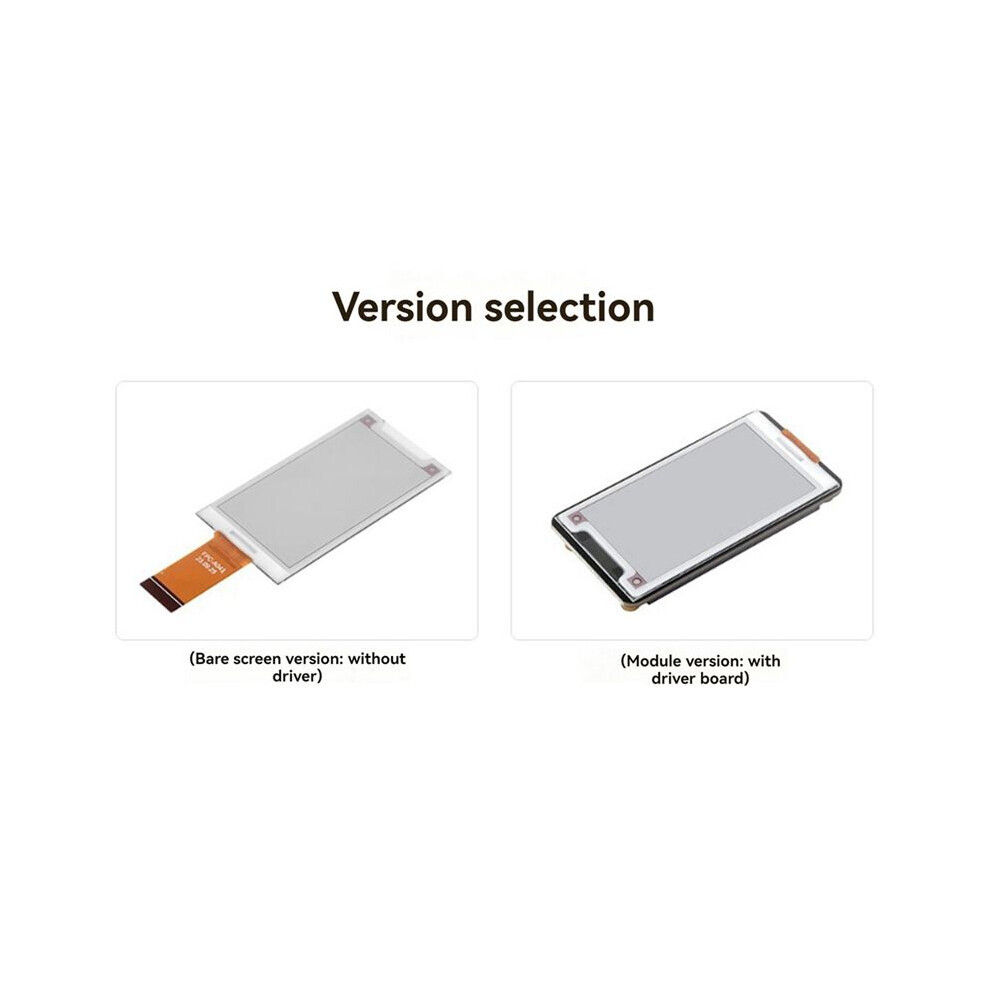

Type: B: E-Ink screen, bare screen
Color: Black
Material: Metal + LCD
Package Contents:
1 * E-Ink Screen without Display
