24/36 V dual belt hub motor drive ESC longboard controller (for hub)

24/36 V dual belt hub motor drive ESC longboard controller (for hub) Description

24/36V Dual Belt Hub Motor Drive ESC Longboard Controller (for HUB) Description
High torque at low speed

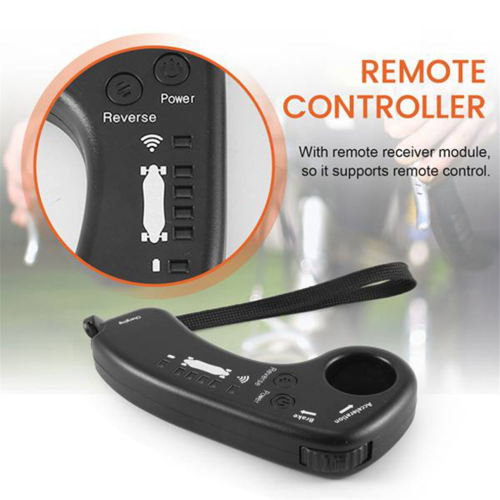

Two-way communication, you can check the skateboard battery via the remote control
Low voltage alarm function, undervoltage cutoff function
Note: Different voltages, alarm voltages, and protection voltages vary.
Load weight: less than 120 kg. Applications: Scooter, unicycle, twist car, balance car
How to choose the right controller:
1. Check your battery voltage.
The 6-string battery is 25.2V, the 7-string battery is 29.4V, and the 10-string battery is 36V.
2. Check the motor type. Wheel hub motor, motor-integrated wheel. Please select the controller with the word "hub". 3. Confirm whether it is single, dual, or four-wheel drive.
One controller drives one motor, i.e., single drive.
One controller drives two motors, i.e., dual drive.
One controller drives four motors to achieve four-wheel drive.
Do not connect motor leads in parallel so that one controller can drive two motors.
Electric four-wheel drive skateboard control system: With the Zhengxuanbo solution, performance is more stable than with an ESC and it is less prone to burning out.
Description of the matching signals from the remote control and main controller:
1: Connect the main controller to the power supply.
2: Turn on the power supply, wait two seconds, and then hold the switch button for approximately 6 seconds. Release it immediately after the switch indicator flashes.
3: Turn on the remote control switch and use a small screwdriver to press the button in the small hole in the lower left corner of the remote control.
Type: For HUB Motor
Color: As shown
Material: ABS

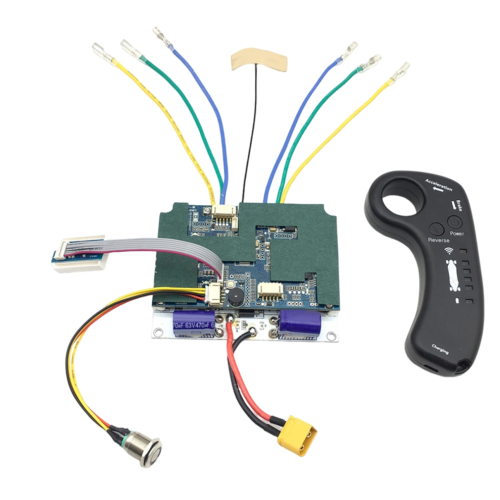

Package Contents:
1 x Motherboard

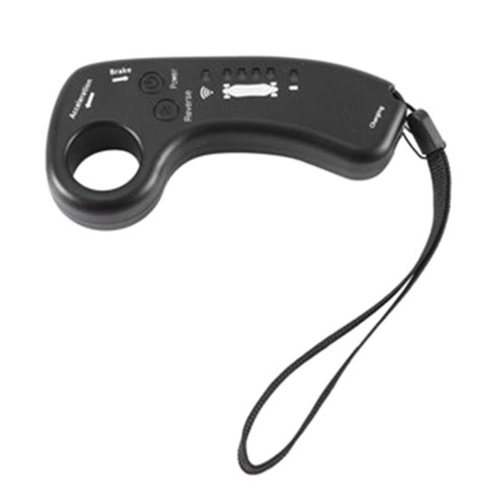

1 x Remote Control
Only the above package contents, other products are not included.
Note: Light reflections and different displays may cause the color of the item in the picture to be slightly different from the original. The allowable measurement error is +/- 1-3 cm.
