2.4G voltage-controlled oscillator RF microwave module VCO

2.4G voltage-controlled oscillator RF microwave module VCO Description

2.4G Voltage-Controlled Oscillator RF Microwave Module VCO Description
1. Powerful VCO Module: This voltage-controlled 2.4G RF microwave oscillator generates excellent signals and provides a stable and reliable signal source for your RF applications.
2. Advanced Scan Function: Thanks to the scan signal function, this module can perform numerous frequency adjustments and is therefore very suitable for testing and development in electronics and communication systems.

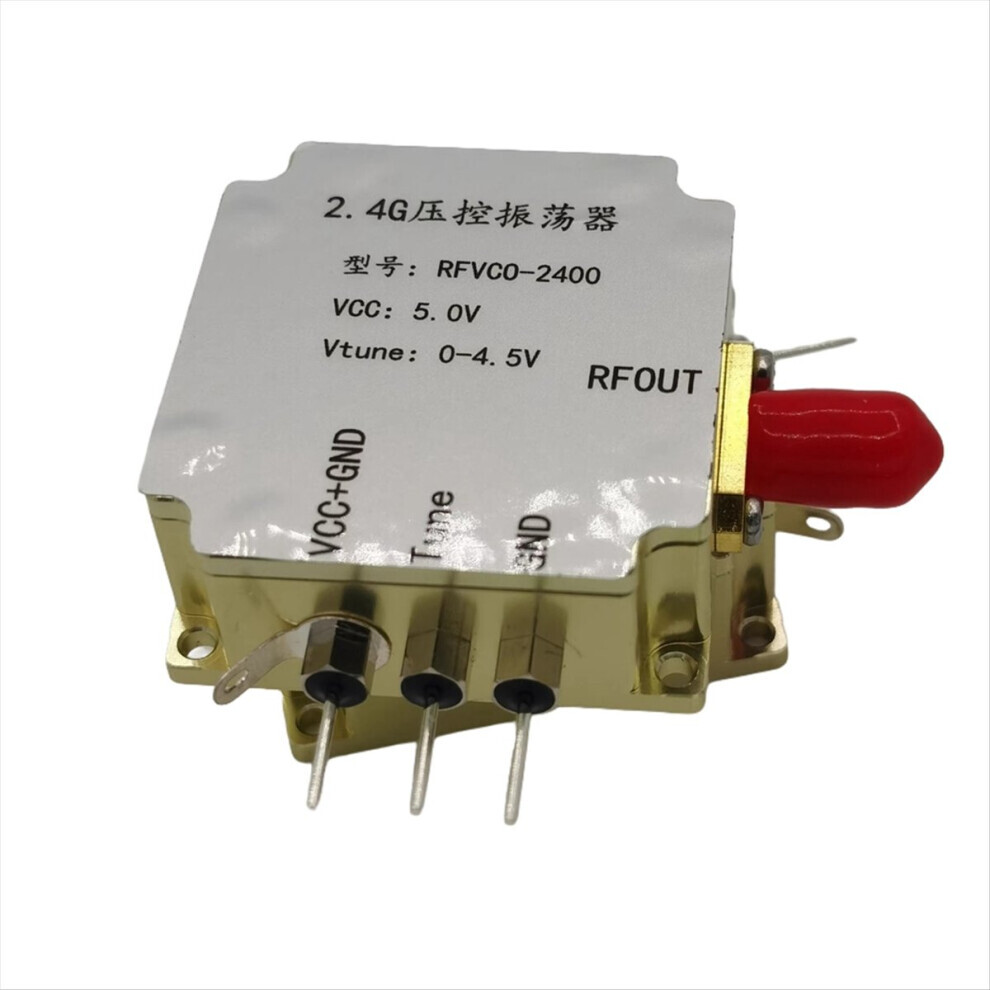

3. Voltage-Controlled Oscillator RFVCO-2400: By applying different control voltages, the RF connector outputs RF signals from 2.3G to 2.65G, signal quality
4. Versatile application: Very well suited for RF solutions, telecommunications, and electronic testing, as high precision and efficiency in signal control and generation are guaranteed. The CNC-machined aluminum alloy housing is not only aesthetically pleasing but also well-shielded, making it ideal for university laboratories and personal DIY projects. Model: KVCO-2400 Frequency Range: 2300-2650 MHz Tuning Voltage Range: 0-4.5 V Signal Power: 7.0 dBm Supply Voltage: +5.0 V Operating Current: Less than 30 mA RF Output: SMA (external thread and internal hole) Power Supply Interface: Through-hole capacitor + ground plate Tuning Voltage Interface: Through-hole capacitor Color: As shown Material: CNC aluminum alloy Package Contents: 1 x Voltage-controlled oscillator Only the above package contents, other products are not included. Note: Light reflections and different displays may cause the color of the item in the picture to be slightly different from the actual color. The allowable measurement error is +/- 1-3 cm. [OnBuy.com]
