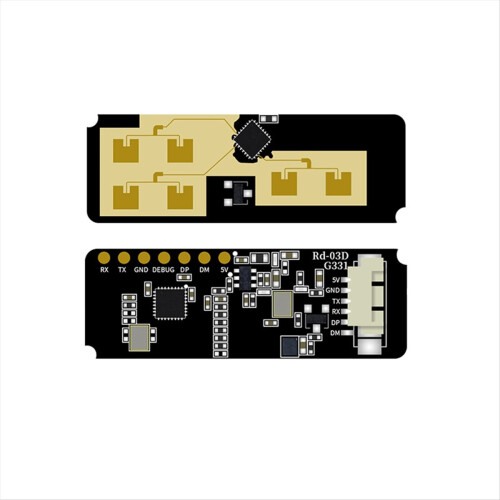

2PCS Rd-03D Rd-03 24GHZ Radar Module Multi-Target Human Motion

2PCS Rd-03D Rd-03 24GHZ Radar Module Multi-Target Human Motion Description

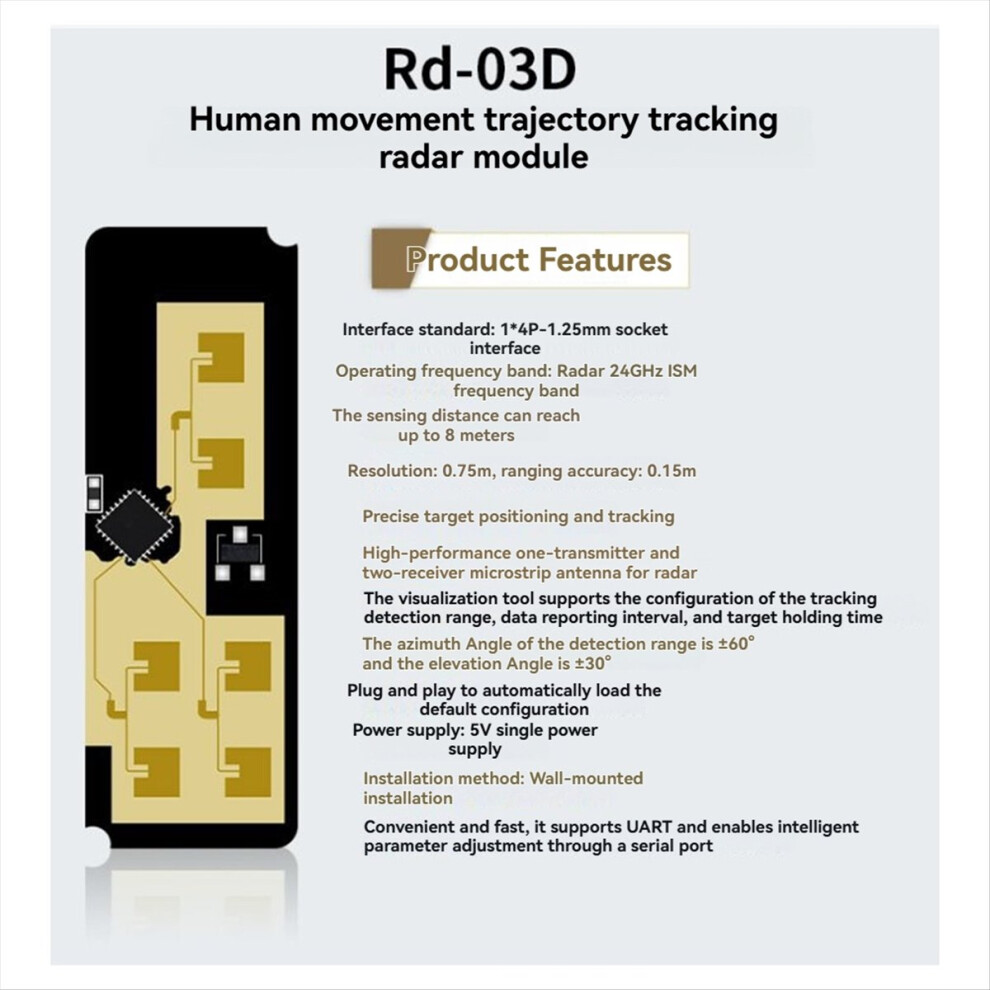

1. Adopts standard 1 x 4P-1.25mm socket connector
2. Radar supports 24 GHz ISM frequency band
3. High performance 1T2R antenna
4. Accurate target positioning and tracking
5. MAX sensing distance is 8m

The range resolution is 0.75m, the ranging accuracy is 0.15m
Detection range azimuth Angle 60, pitch Angle 30 Wall mounting
Provides a visual tool to configure the tracking detection range, data reporting interval, and target retention time
Ultra-small module size: 15 x 44mm
Automatically loads default configuration, plug and play
Support UART, you can use the serial port to realize radar intelligent parameter adjustment, convenient and fast
5V single power supply
Model:Rd-03D
Antenna:on-board PCB antenna
Frequency:24G ~24.25GHz
Working temperature:-40 ~ 85
Storage temperature:-40 ~ 125, Less than 90%RH
Power supply:Support voltage 5V, supply current 200mA
Notice:
1. The recommended radar installation orientation is (a) or (b), the positive and negative directions are azimuth angles, the upand down directions are pitch angles, and the normal direction of the radar antenna plane is 0
2. The detection range has an azimuth angle of 60, a pitch angle of 30, and a detection distance in the normal direction of up to 8m.
Color: As shown
Material: PCB

Package Contents:
2 * Radar Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
