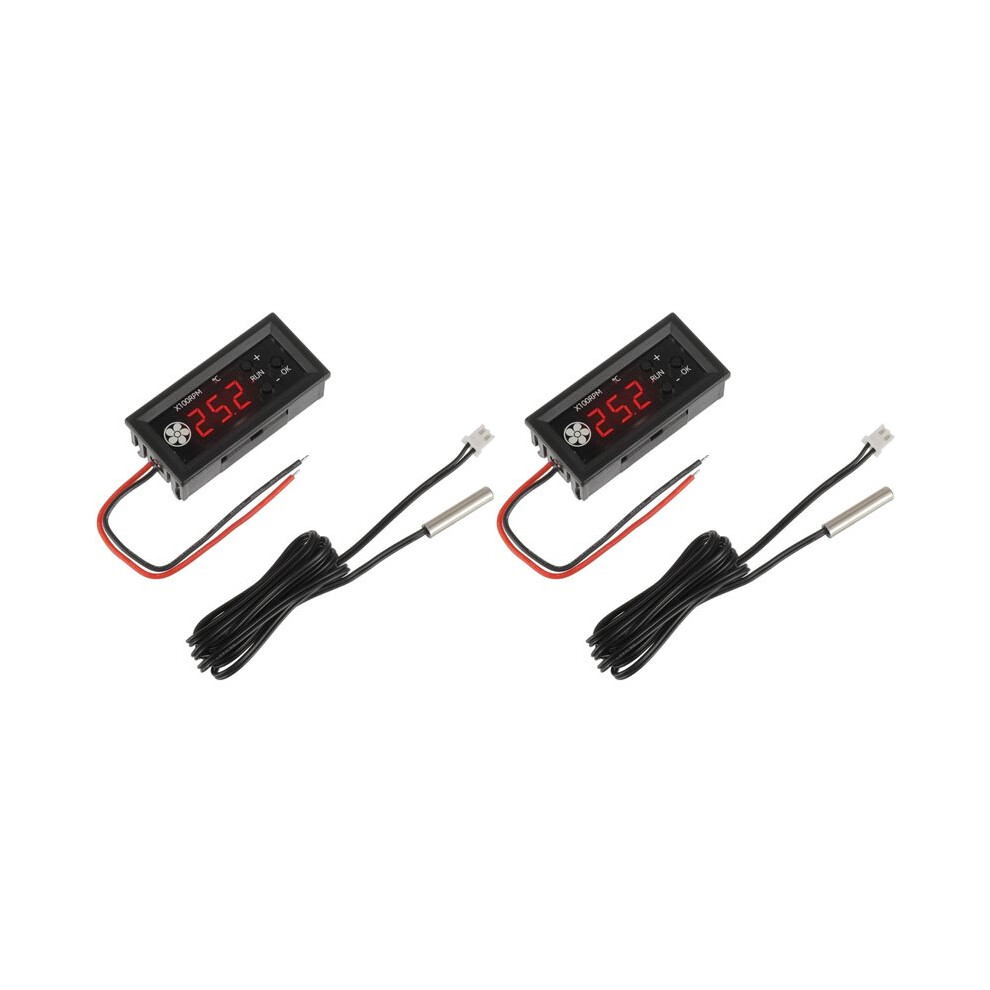

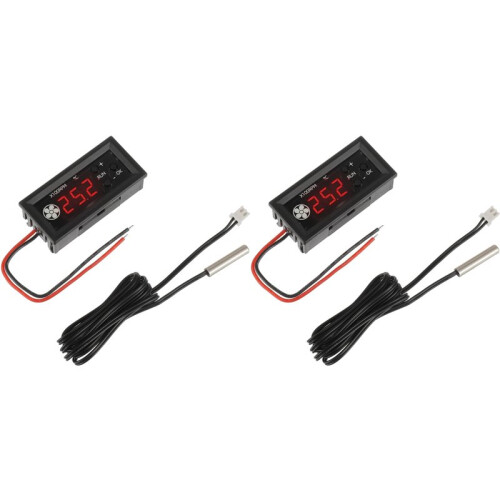

2X 4-Wire PWM Fan Temperature Controller 12V 3A Fan Speed Controller with Temperature Probe Digital Display Module
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 136,000 Trustpilot reviews and an 'Excellent' rating
All prices include VAT.
Interest-free payment options available
See full product description & details
Delivery: Standard (€5.50) | Tue 3rd - Mon 9th Nov
Returns: 30 days
180-day payment protection
You might also like
Summary
- Temperature controlled fan speed freely adjustable: you can adjust the fan speed with the "OK" button and the "+" and "-" buttons. You can also turn the fan on and off by setting a certain temperature and increase or decrease the fan speed depending on the temperature. Make your fan smarter.
- LCD display temperature and speed: This temperature-controlled fan speed controller has a digital display that provides real-time information about the speed and temperature of the fan, so you can adjust the fan speed and temperature settings at any time.
- Wide range of applications: this controller controls the fan speed via the 4-wire standard PWM signal. The signal specification is 25 kHz, 5 V. It supports conventional PC cases, CPU and many server 4-wire fans (note that the 2 and 3 wire fan speed control is not possible).
- Important parameters: Supply voltage: DC 12V; voltage range: DC 8~12V (operating voltage of the circuit, please note the fan voltage range); Fan current: ≤3.5A; PWM range:1~100±0.5% (signal percentage does not correspond to actual speed);PWM frequency: 25kHz (±1kHz); temperature. measuring range: -9.9~99.9°C; Temperature measurement error:1.2~1.9°C
- fan controller pc
2X 4-Wire PWM Fan Temperature Controller 12V 3A Fan Speed Controller with Temperature Probe Digital Display Module Description
Temperature controlled fan speed freely adjustable: you can adjust the fan speed with the "OK" button and the "+" and "-" buttons. You can also turn the fan and off by setting a certain temperature and increase or decrease the fan speed depending the temperature. Make your fan smarter.
LCD display temperature and speed: This temperature-controlled fan speed controller has a digital display that provides real- information about the speed and temperature of the fan, so you can adjust the fan speed and temperature settings at any .
Wide range of applications: this controller controls the fan speed via the 4-wire standard PWM signal. The signal specification is 25 kHz, 5 V. It supports conventional PC cases, CPU and many server 4-wire fans (note that the 2 and 3 wire fan speed control is not possible).
Important parameters: Supply voltage: 12V; voltage range: 8~12V (operating voltage of the circuit, please note the fan voltage range); Fan current: 3.5A; PWM range:1~1000.5% (signal percentage does not correspond to actual speed);PWM frequency: 25kHz (1kHz); temperature. measuring range: -9.9~99.9C; Temperature measurement error:1.2~1.9C
Color: As Shown
Material: plastic
Package Contents:
2 x Controller
2 x Probe
Details
| OPC | PYJKW5H |
|---|---|
| Codes | 4714124648975 (EAN) |
| Product and Safety Information |
Product Data
| Height | 6cm |
|---|---|
| Width | 3cm |
| Length | 7cm |
| Weight | 0.074kg |
| Colour | As Shown |
| Material | Plastic |
