2X 74HC4051 8 Channel Analog Multiplexer Selector Module Multiplexers Distributor Resolver
Brand Torribaly
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 129,000 Trustpilot reviews and an 'Excellent' rating
€15.55
€18.65
17% off!
+€4.04 Delivery
1%
What is instant Cashback?
Learn More
All prices include VAT.
Interest-free payment options available
See full product description & details
Delivery: Standard (€4.04) | Fri 31st Jul - Thu 6th Aug
Sold by: JJBRDZ
Returns: 30 days
180-day payment protection
Most Popular in CD Players
Description & Details
Summary

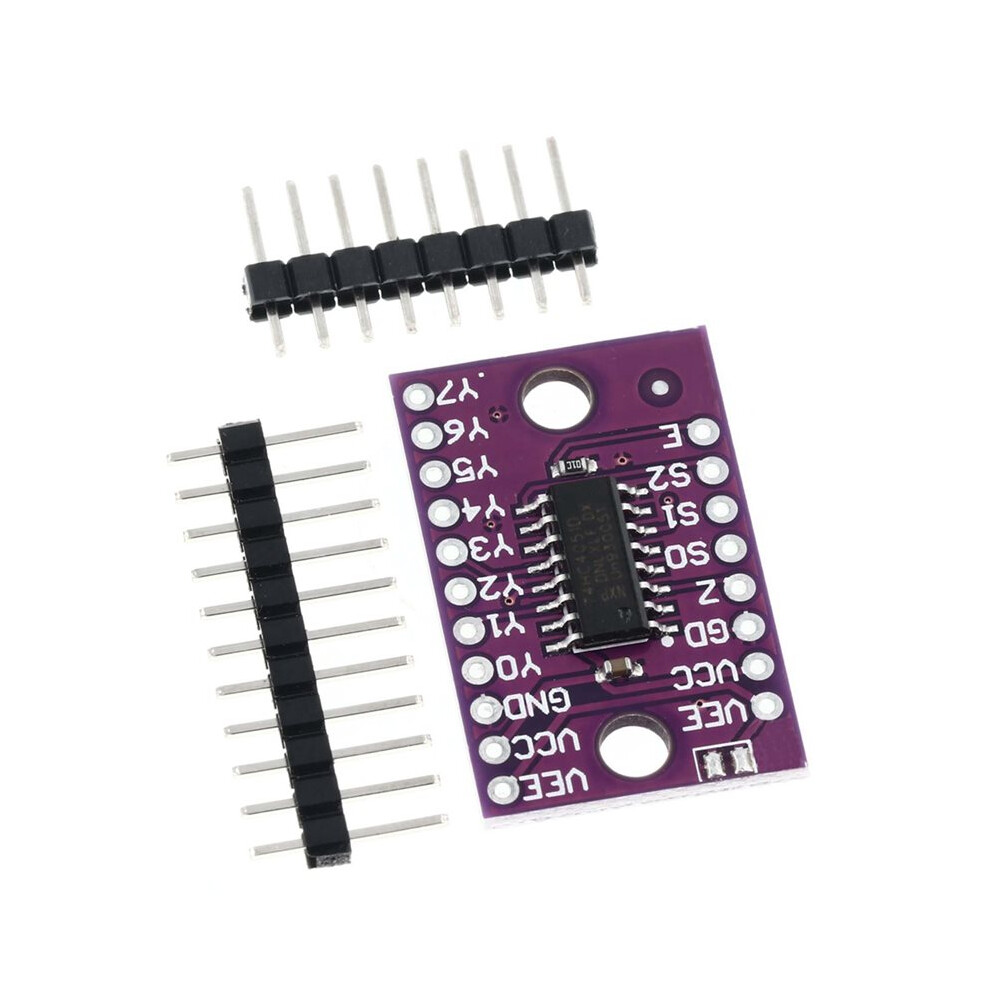

- 74HC4051 8-Channel-Mux is a single-pole octal-throw analog switch (SP8T) suitable for use in analog or digital 8:1 multiplexer/demultiplexer applications.
- The switch features three digital select inputs (S0, S1 and S2), eight independent inputs/outputs (Yn), a common input/output (Z) and a digital enable input (E). When E is HIGH, the switches are turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
- Wide analog input voltage range from -5 V to +5 V
- Analog multiplexer module
- 74HC4051 Analog multiplexer module
2X 74HC4051 8 Channel Analog Multiplexer Selector Module Multiplexers Distributor Resolver Description
74HC4051 8-Channel-Mux is a single-pole octal-throw analog (SP8T) suitable for use in analog or digital 8:1 multiplexer/demultiplexer applications.
The features three digital select inputs (S0, S1 and S2), eight independent inputs/outputs (Yn), a common input/output (Z) and a digital enable input (E). When E is HIGH, the switches are turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Wide analog input voltage range from -5 V to +5 V
7A Low resistance:
80 Ω (typical) at VCC-VEE = 4.5 V
70 Ω (typical) at VCC-VEE = 6.0 V
60 Ω (typical) at VCC-VEE = 9.0 V
Logic level translation: to enable 5 V logic to communicate with ?5 V analog signals
Typical 'break before make' built-in
ESD protection:
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
CDM JESD22-C101E exceeds 1000 V
Color:
Material: PCB
Package Contents:
2 x 8 channel Analog Multiplexer Selector Module
Details
| OPC | PWMJYWX |
|---|---|
| Brand | Torribaly |
| Codes | 6031754708472 (EAN) |
| Product and Safety Information |
Product Data
| Height | 2cm |
|---|---|
| Width | 4cm |
| Length | 4cm |
| Weight | 0.007kg |
| Colour | Purple |
| Material | PCB |
