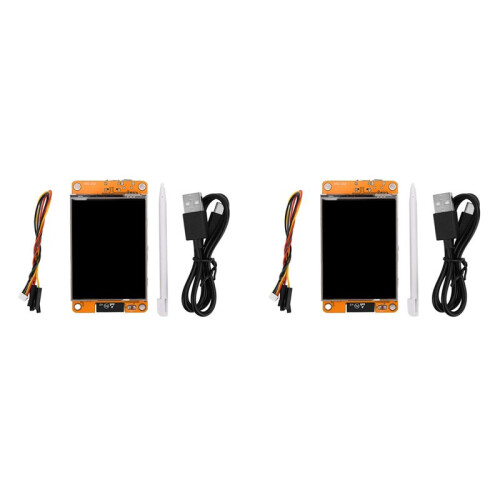

2X ESP32 Development Board 2.8 Inch Touch Screen WIFI+BT Development Board 240x320 TFT LCD Module with Touch Pen

2X ESP32 Development Board 2.8 Inch Touch Screen WIFI+BT Development Board 240x320 TFT LCD Module with Touch Pen Description

Low-power dual-core 32-bit CPU, can be used as application processor
Main frequency to 240MHz, computing power to 600DMIPS
Built-in 520KB , supports UART/SPI/PWM/DAC/ADC and other interfaces
With TF card slot for easy storage expansion
2.8-inch color screen, supports 16-bit RGB 65K color display, supports Config/Airkiss one-click network configuration

Product name: ESP32 WIFI+BT dual-mode development board display
Display color: RGB 65K color
Size: 2.8 inches
Type: TFT
Driver chip: ILI9341
Resolution: 320x240
Viewable area: 43.2x57.6mm
Viewing angle: Greater than 60
Operating temperature: -20~70
Operating voltage: 5V
Power consumption: 115mA
: 4.2BR/EDR and BLE standards
WIFI: 802.11b/g/n/
Supported interfaces: UART, SPI, SDIO, I2C, IR, ADC, DAC, PWM
IO : 22
Serial port rate: default 115200bps
Spectrum range: 2412~2484MHZ
Antenna type: onboard PCB antenna, gain 2dBi
Security: WPA/WPA2/WPA2-Enterprise/WPS
Transmit power: 802.11b:172dBm(@11Mbps)/802.11b:142dBm(@54Mbps) /802.11b:132dBm(@MC57)
Interface sensitivity:
CCK,1Mbps:-90dBm
CCK,11Mbps:-85dBm
6Mbps(1/2BPSK):-88dBm
54Mbps(3/464-QAM):-70dBm
MCS7(65Mbps,72.2Mbps)-67dBm
Colour:As Shown
Material:ABS+PCB

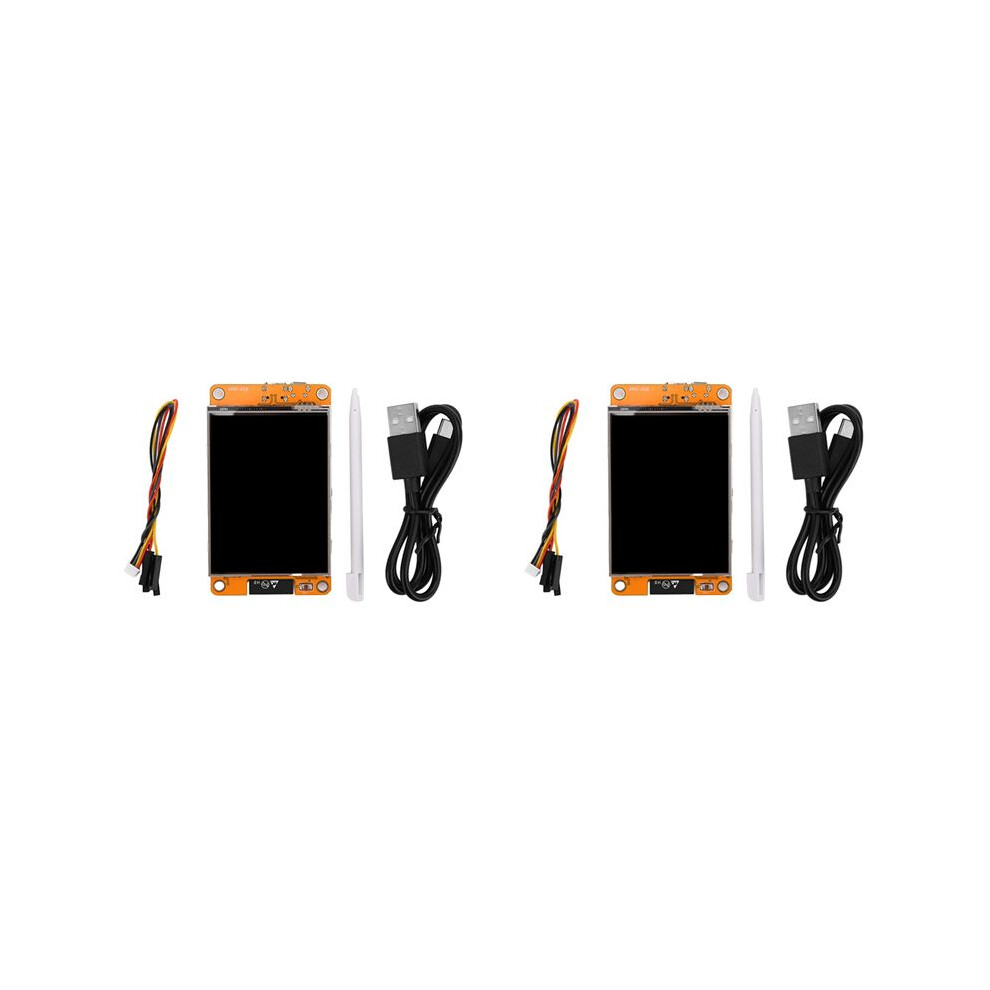

Package Contents:
2 x Display
2 x Touch Pen
2 x Type-C Data Cable
2 x 4p Terminal To Dupont Cable
