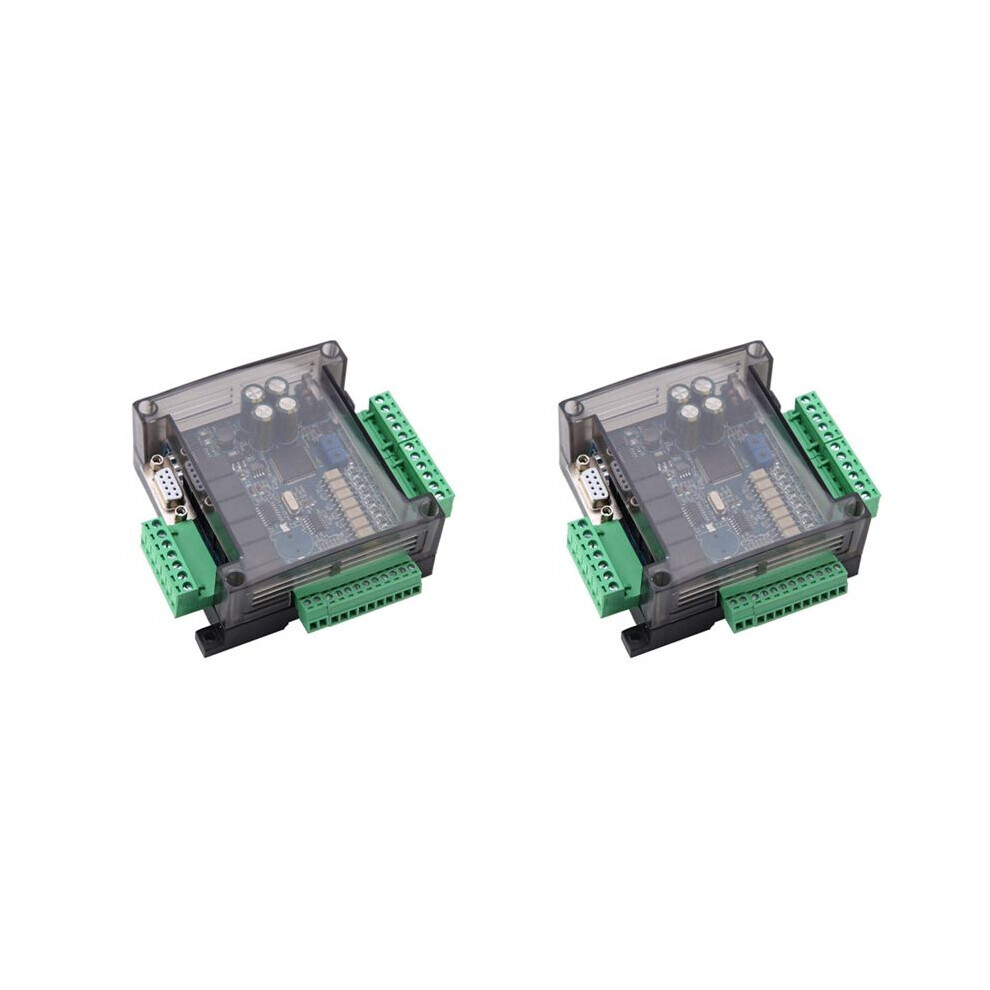

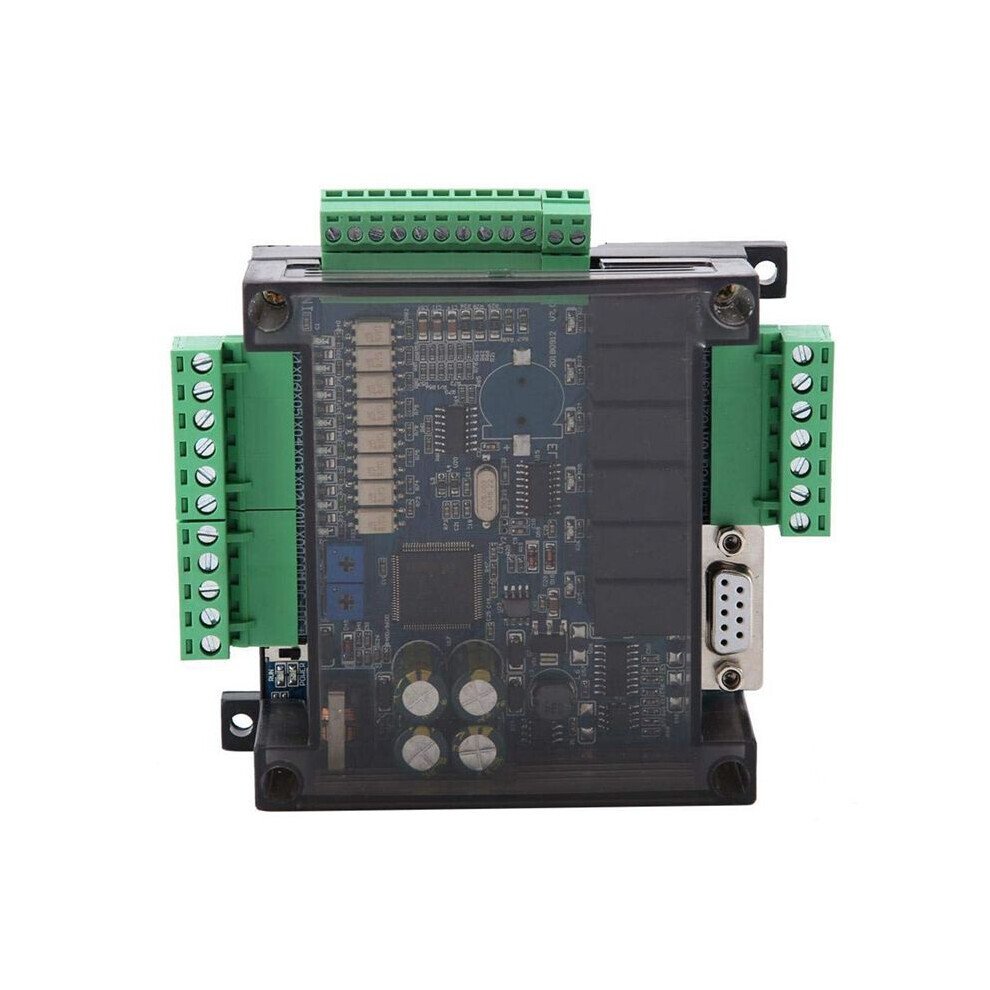

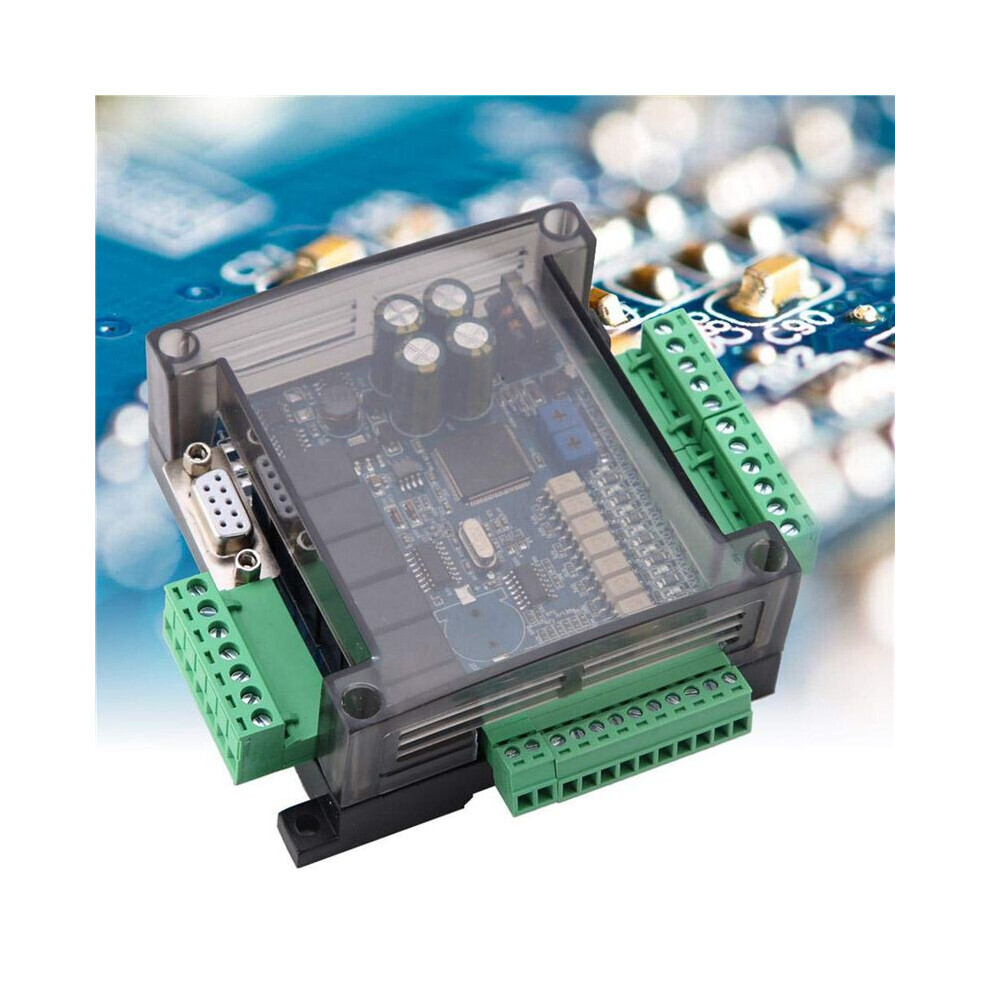

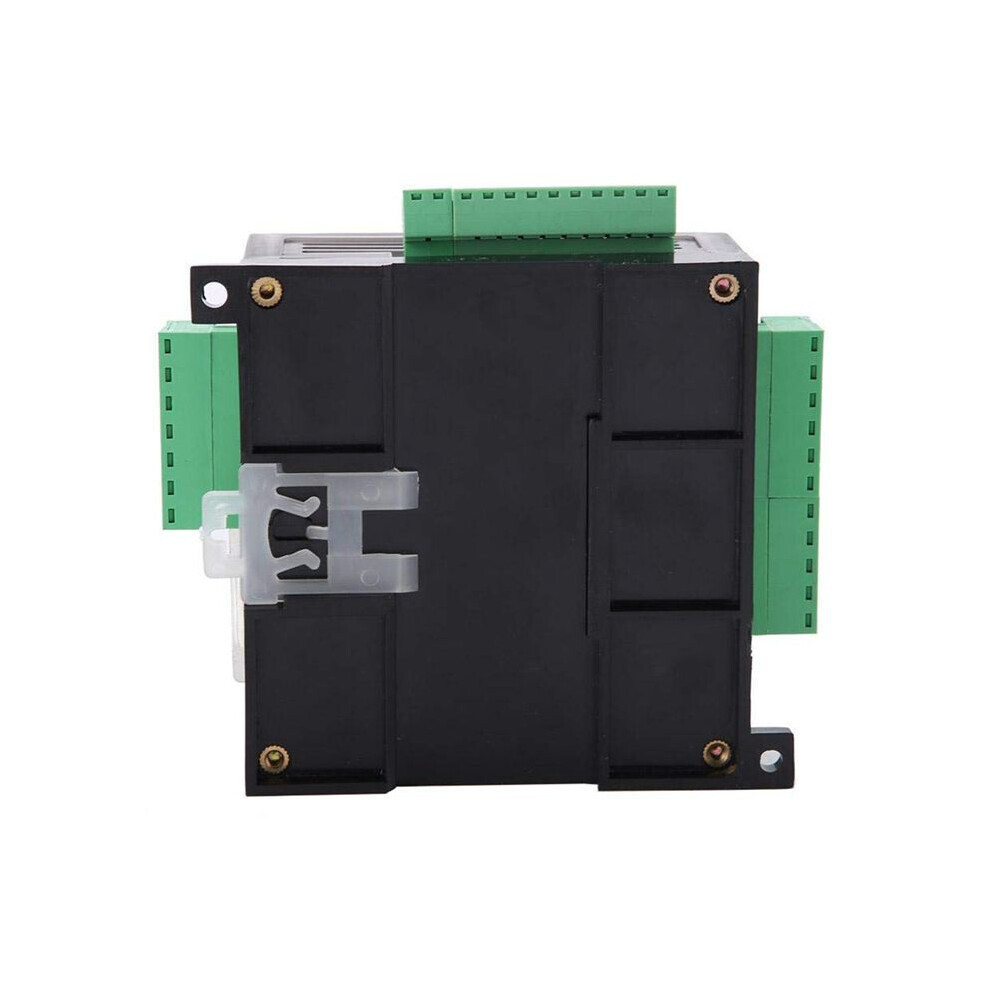

2X FX3U-14MR PLC Industrial Control Board 8 Inputs 6 Outputs Programmable Controller Relay Output, 24 V PLC Control

2X FX3U-14MR PLC Industrial Control Board 8 Inputs 6 Outputs Programmable Controller Relay Output, 24 V PLC Control Description

2X FX3U-14MR PLC Industrial Control Board 8 Inputs 6 Outputs Programmable Controller Relay Output, 24V PLC Control Description
Input Point X-Element x0-x7, DC24 input, low level valid. X0-5 is the high-speed count input (default: 12K, 100KHz).
Analog Input: Six-way analog input, 12-bit accuracy, input voltage: 0-10V, 0-20mA; Read the analog quantity using the RD3A guideline. The corresponding values are 0-4095. Analog input of the two-way potentiometer, D8030, D8031. Analog voltage WR3A command corresponding to the value 0-4095. Analog output: 2-channel analog output, 12-bit accuracy, output voltage: 0-10 V. Analog voltage output WR3A command corresponding to 0-4095. Relay or transistor output, relay output current 5 A. The transistor output DC24 V has a maximum current of 1 A. Y0-1 is a high-speed output (maximum 100 K). The PWM period is 0-32767 µs. The maximum speed current is 1 A. Common termination of the external load + 24, the other end received the PLC output terminal Y.
Intermediate relays M: M0-M3071, the maintenance range of the power dissipation can be adjusted.
Material: Plastic
Color: Green + Black
Package contents:
2 x PLC Industrial Control Board
