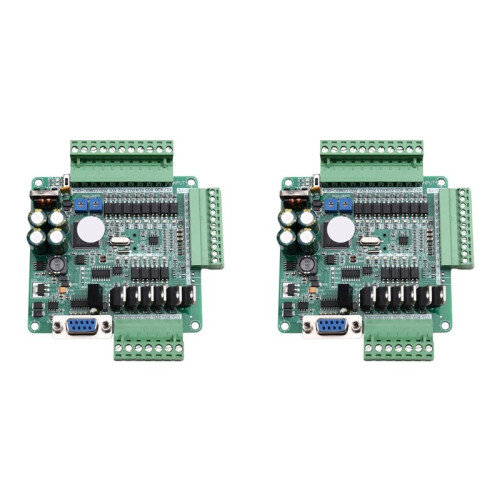

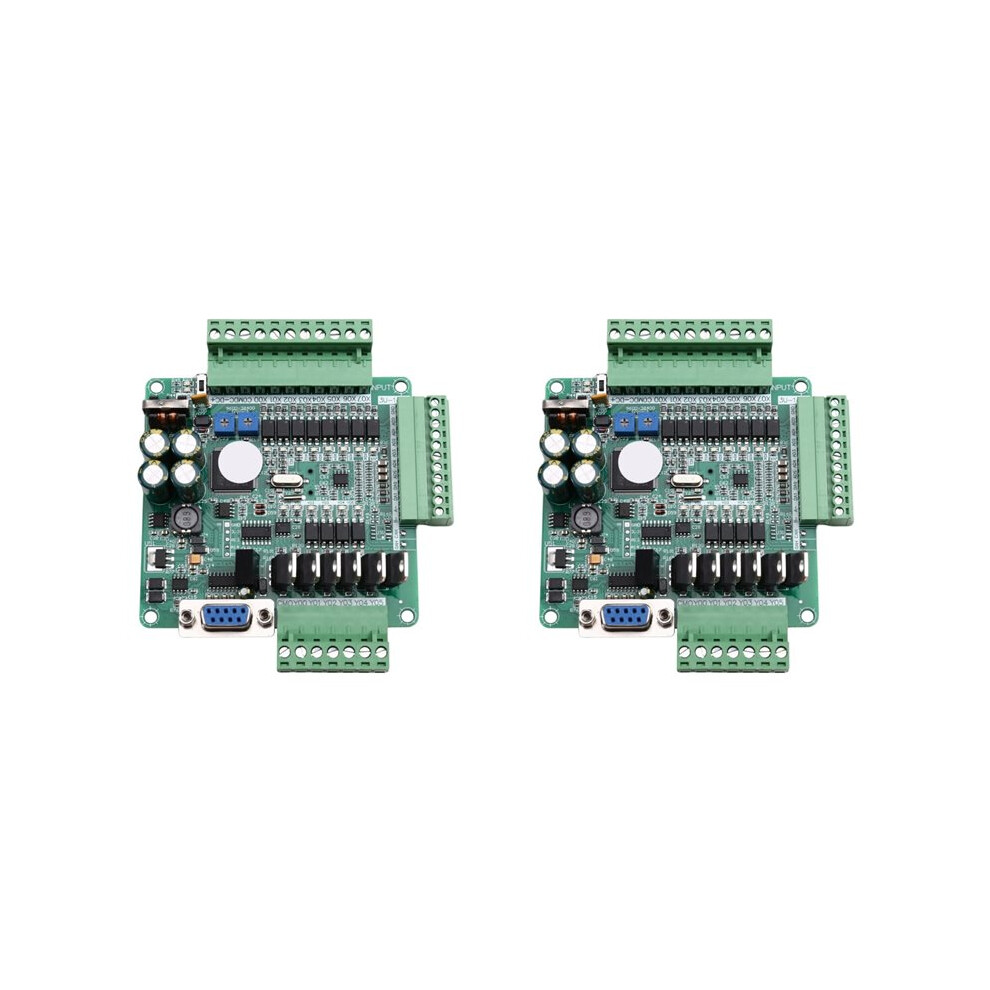

2X FX3U-14MT High Speed with Analog Programmable Controller PLC Industrial Board FX3U-14MT

2X FX3U-14MT High Speed with Analog Programmable Controller PLC Industrial Board FX3U-14MT Description

name:Plc industrial control board
Output Type:FX3U
Output:Transistor
Installation:Guide Rail
Power supply: DC24V (1A)

Baud rate:38.4kbps
Memory capacity: 8,000 steps.
Program software:GX Works2 or GX Developer
Input points X: X0-X07, DC0V input, low level available. X0-X5 high-speed counter input terminal (12kHz)
Analog input: 6AD, 12BIT, AD0-AD2 voltage input (0-10V), AD3-AD5 current input (0-20mA), use RD3A to read analog quantity.
Intermedia relay M:M0-M3071, power down storage range M0-M1023
Step point S: S0-1023, power down storage range S0-1023
100Ms timer: T0-T199, Accumulated power-down storage T184-T199
10Ms timer: T200-T249, Accumulated power-down storage T246-T249
1Ms timer: T250-T383, Accumulated T250-T255
FX3U-14MT output points: Y0-Y5 transistor output. Y0-Y1 100K pulse output. Should add reverse diode when connecting Y0-Y1 to high load. Y2-Y5 could be connected to high load directly. For long working, current not higher than 3A.
Colour:Green
Material:plastic+metal

Package Contents:
2 x Plc industrial control board
