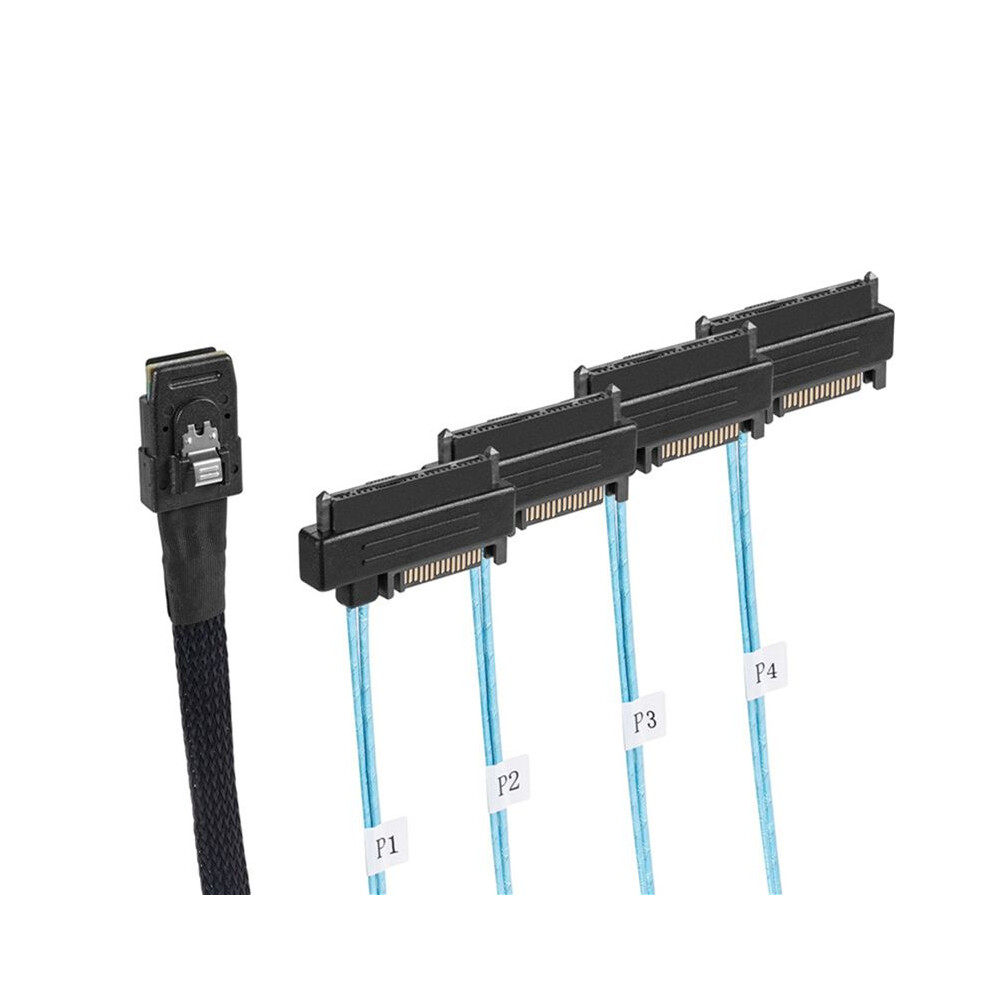

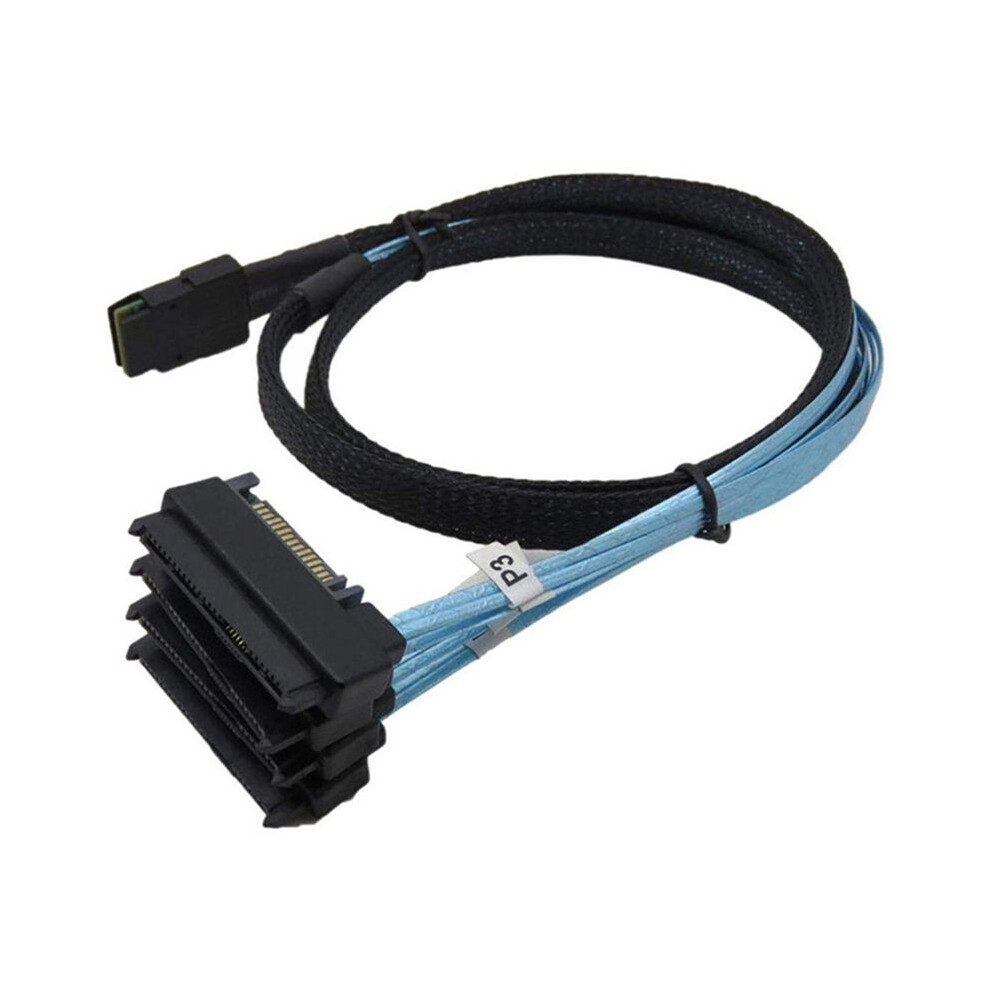

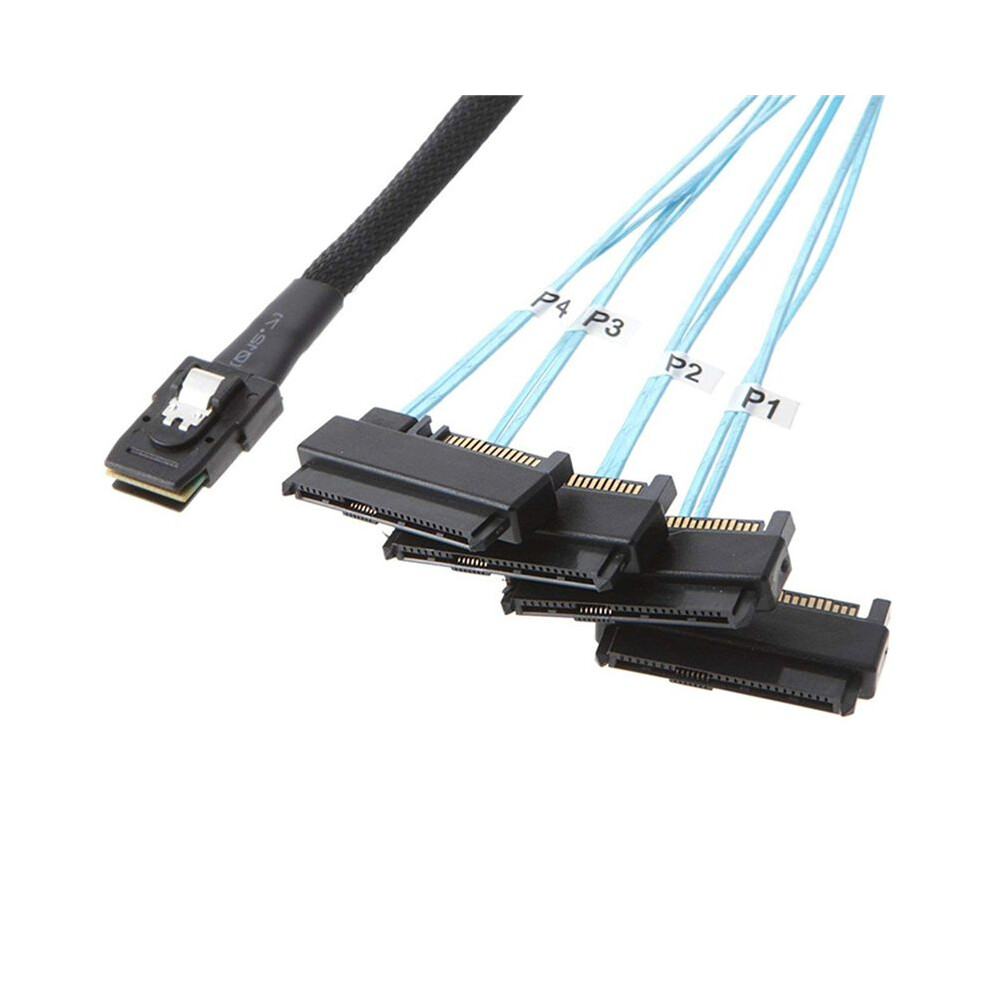

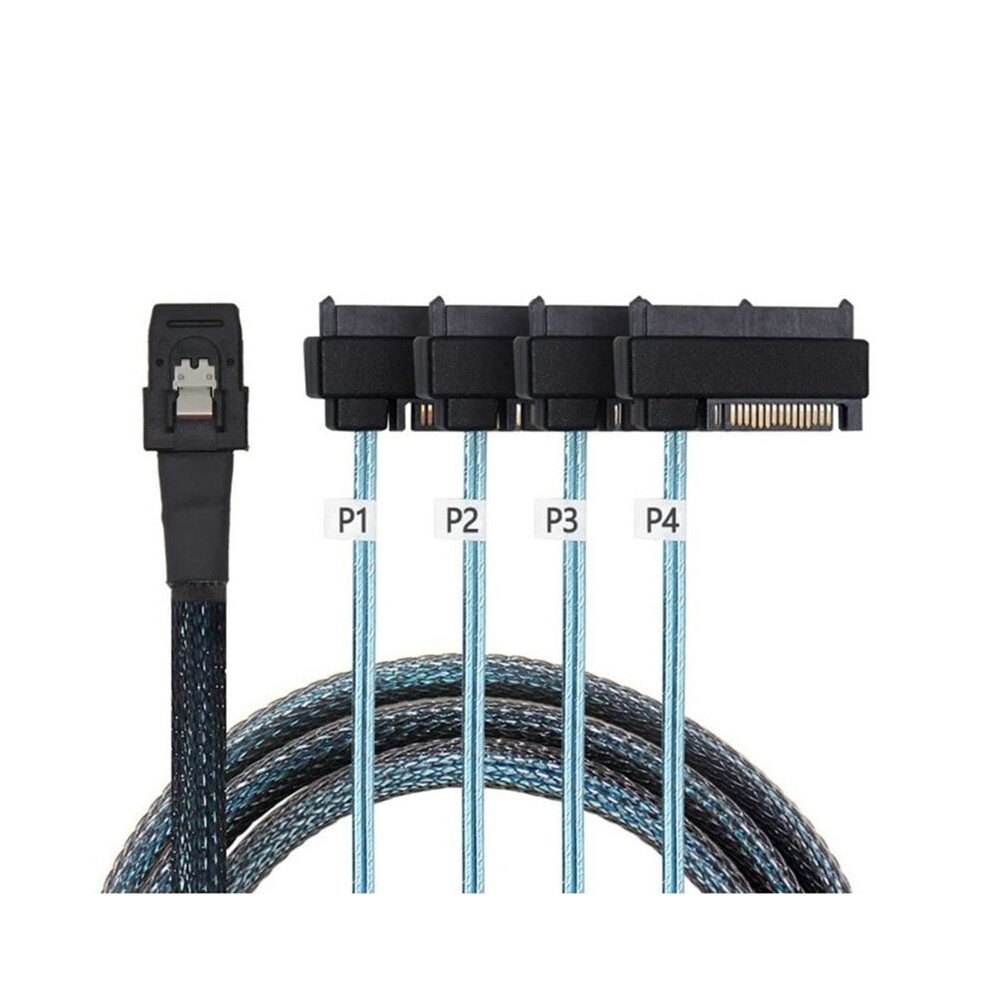

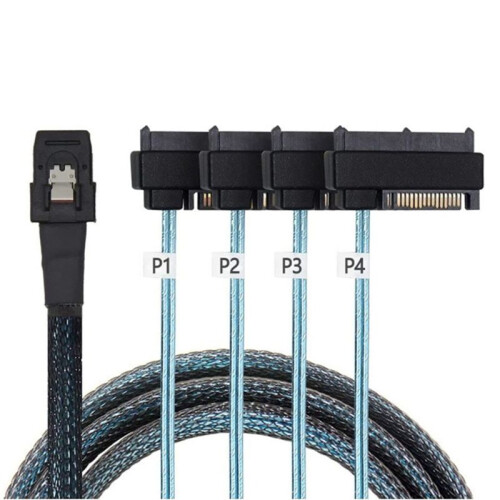

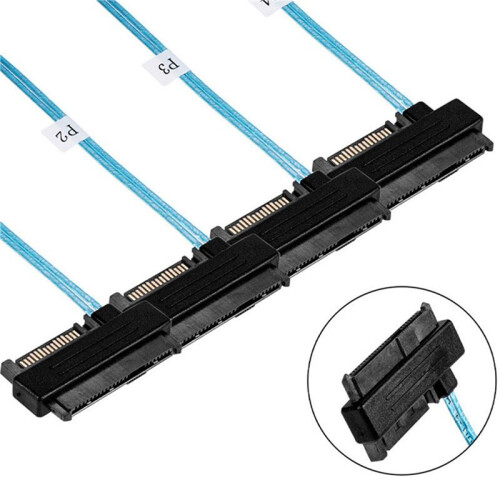

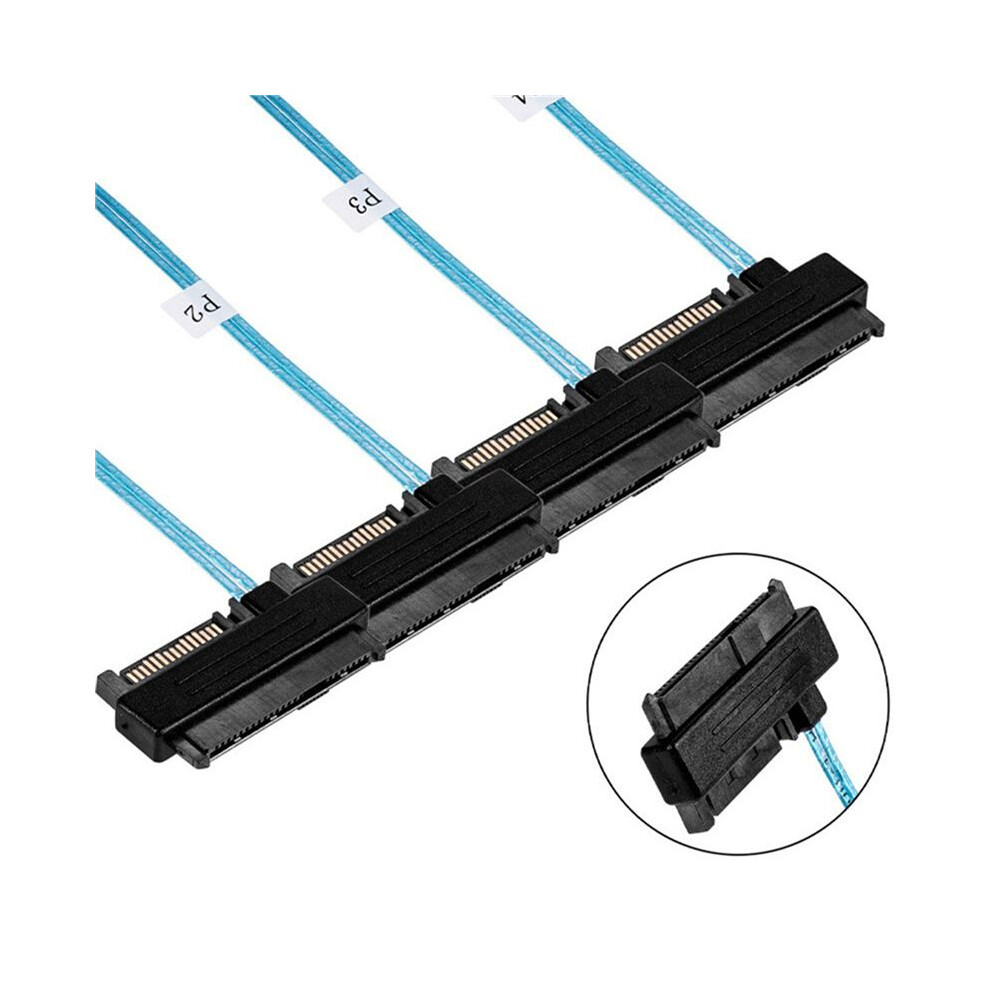

2X Sas Sff-8087 to 4 Sff-8482 Server Array Card Hard Drive Data Cable Power Cable 1m

2X Sas Sff-8087 to 4 Sff-8482 Server Array Card Hard Drive Data Cable Power Cable 1m Description

Series: SAS
Wire Size: 30AWG, Tinned Copper, OD: 0. 9x2.3,MM
Lock to Mating Part: With
Plating: Au 30u' min over Ni 100u' min
Flammability: Cable Horizontal flame, PCB 94V-0, PBT 94V-0

Applications:
Data/Communications
(Redundant Array of Independent Disks)
Workstations
Rack Mount Server
Servers
Storage Rack
Transmission rate 12gbps.
Specification meet SAS 4.0.
Mechanical Performance
Mating Force and Unmating Force
Condition:EIA 364-13. Insert and extract at a speed of 25mm/minute.
Mating Force: 55 N maximum for SAS.
Unmating Force: 49 N maximum for SAS.
Mating Force: 45 N maximum for connector.
Unmating Force: 10 N maximum for connector.
Electrical Performance:
Contact Current rating - 0.5 amps maximum per pin when mated.
Voltage rating - 30vac for contact when mated or not.
Contact residence - 30mohm Max. Initial, 15mohm maximum after stress test.
The Dielectric withstanding Voltage - 500 vac for 1 minute without pause.
Insulation Resistance - 1000 mohm minimum.
Signal Integrity:
Mated Connector Impedance: 100 ohm 15%
Absolute Cable Impermeability: 100 ohm 10%
Pair Cable Matching: 5 ohm
Common Mode Impedance: 25 to 40 ohms
Insertion Loss: -6 DB maximum to 4.5 GHz
Crosstalk: -26 DB to 6 GHz
Colour:As Shown
Material:Plastic+ Braided Wire
Cable Length:1m

Package Contents:
2 x Sas Sff-8087 To 4 Sff-8482 Cable
