3 Phase 4 Wire Energy Meter 220/380V 5-80A Consumption KWh

3 Phase 4 Wire Energy Meter 220/380V 5-80A Consumption KWh Description

3-phase 4-wire energy meter with high accuracy is designed for the measurement of rated frequency 50 or 60Hz single-phase AC active electricity.
High-quality flame retardant ABS case, with good impact resistance, heat/ cold resistance, insulativity and durability.

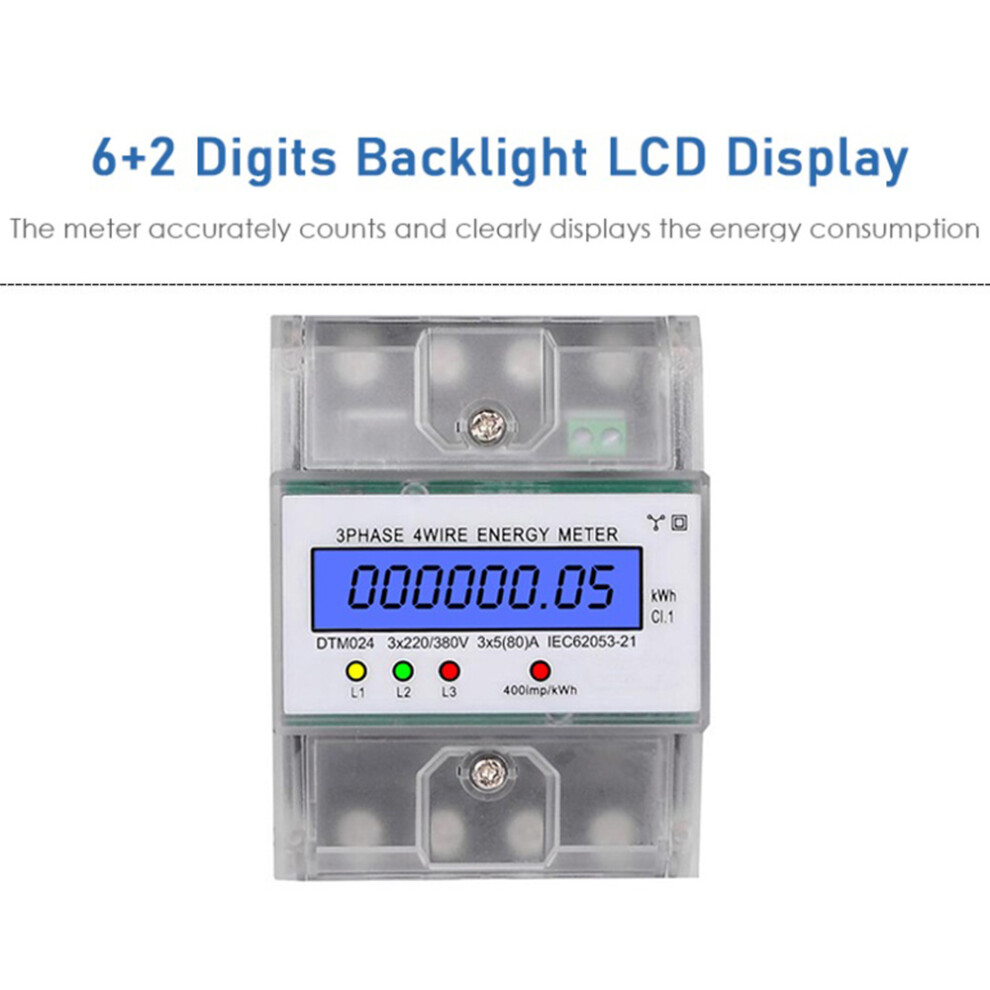

With 6+2 digits backlight LCD display, the meter accurately counts and clearly displays the energy consumption.
Adopts 35mm DIN standard guide rail installation, compact size and light weight make installation easier.
Pure copper wiring terminal with excellent conductivity and corrosion resistance can large current during long-time performance.

It's a simple three phase four module DIN rail meter with flame retardant ABS case, which is widely used in sub-metering system. It's of concise appearance, compact size and good quality, to use.
Specifications:
Display: LCD Display with Backlight
Current: 3x5(80)A
Voltage: 3x220/380V
Accuracy Class: 1.0
Standard: IEC62053-21
Frequency: 50/ 60Hz
Impulse Constant: 400imp/kWh
Power Consumption: ?2W
Starting Current: 0.004lb
Working Temperature: -20~55 Celsius
Storage Temperature: -25~70 Celsius
Colour:Transparent
Material:Flame-retardant ABS+metal
Size:100 x 76 x 65mm

Package Contents:
1 * 3 Phase 4 Wire Energy Meter
For different batches, the symbol on the product may be different from the picture, which does not affect the use

Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
