300W 20A Buck Module Constant Current Adjustable Step-Down Converter Voltage

300W 20A Buck Module Constant Current Adjustable Step-Down Converter Voltage Description

Color: Silver
Material: Metal

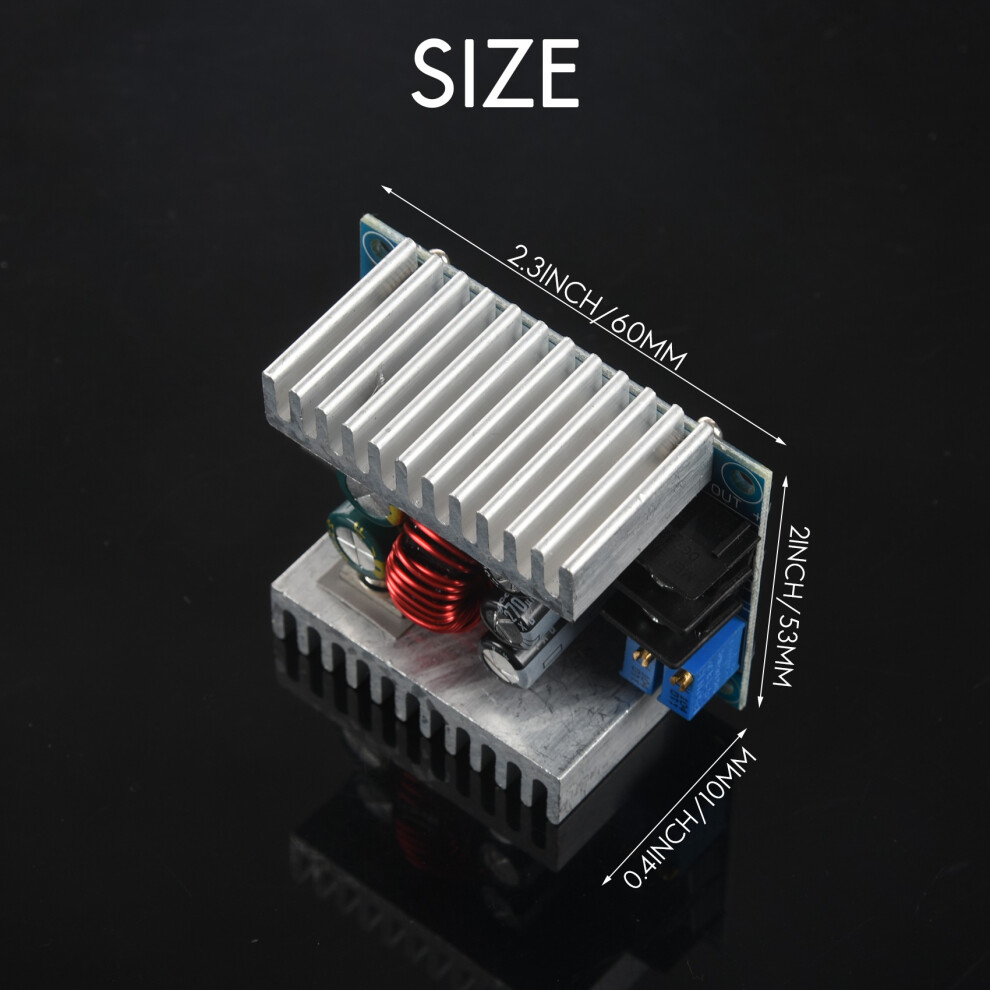

Size: Approx. 60 x 53 x 30 mm
Input Voltage: 6V to 40V (10V to 40V is suggested)
Output Voltage: 1.2V to 36V

Output Current: 20A(max.), 15A (suggested)
Efficiency: 97% (24V to 12V, 20A)
Output Ripple: Less than equal 50mV
Wiring Method: Terminal
Short Circuit Protection: Self-recovery (cannot short circuit for long )
VO+: Output positive
VO-: Output negative
+IN: Input positive
-IN: Input negative
CV: Output voltage adjustment
CC: Output current adjustment
EN: Enable, low voltage level shut off output; suspension, high voltage level is effective
When input and output is common grounded, no-load CV output constant voltage, CC output constant current
Working Tempreture: -10Celsius -75 Celsius
With a wide input voltage range from 6V to 40V, the step-down converter can accurately adjust output voltage and current
The efficiency can be to 96%, measured at 20A, converting 24V to 12V
Designed with 75V/80A large current dual MOS tube
The buck module has 2 heat sink that could enhance heat dissipation
Wiring is convenient with these large current 30A screw terminals
Input and output use high frequency low resistance electrolytic capacitor, low ripple, stable output
Stable and reliable
Fine workmanship and durable
CAUTION: Do not change hardware connections while the PICkit3 or target is powered

Package Contents:
1 x 300W 20A Adjustable Step-Down Converter Module

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
