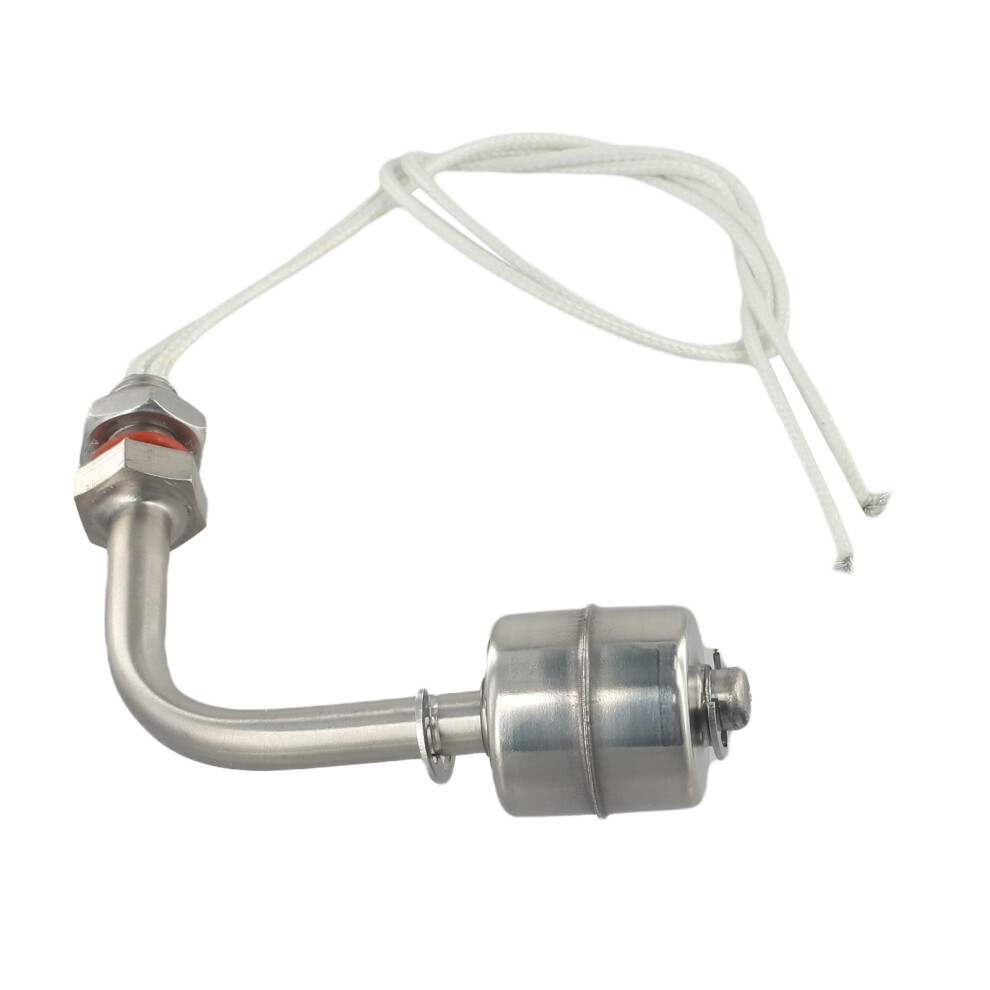

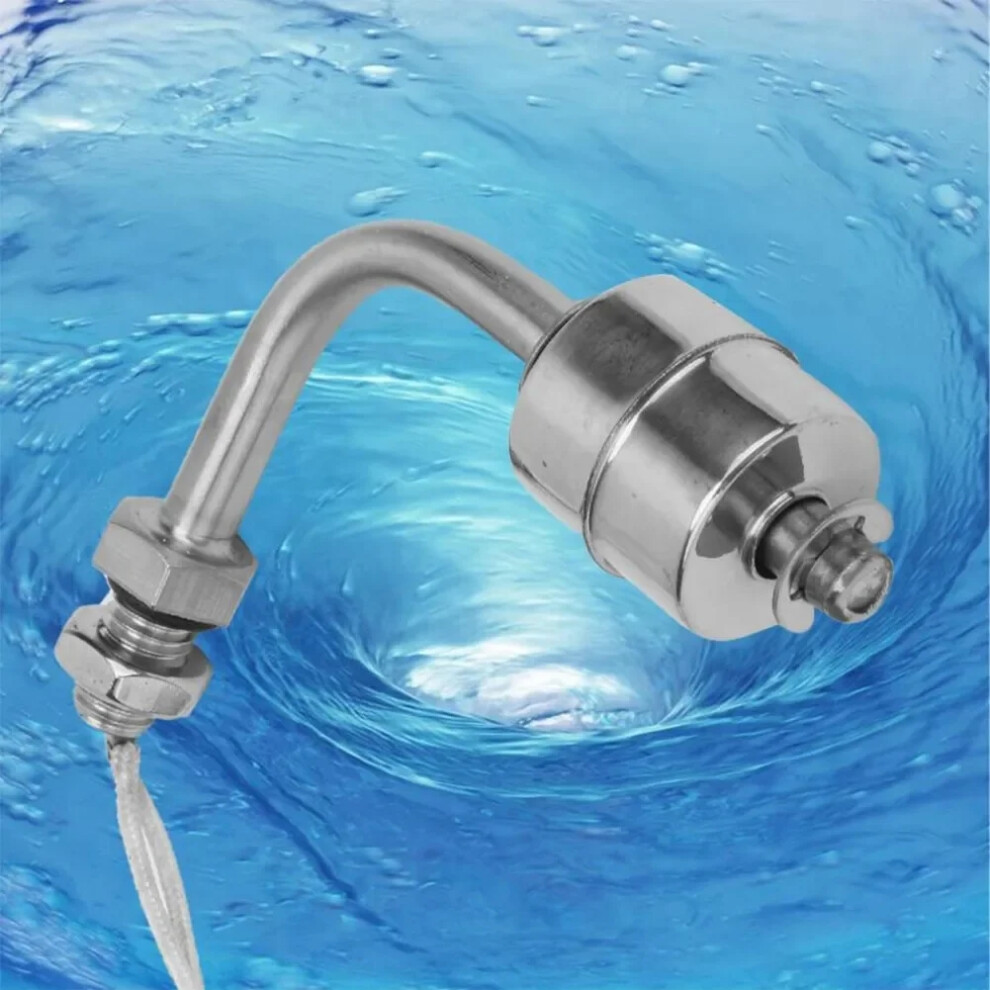

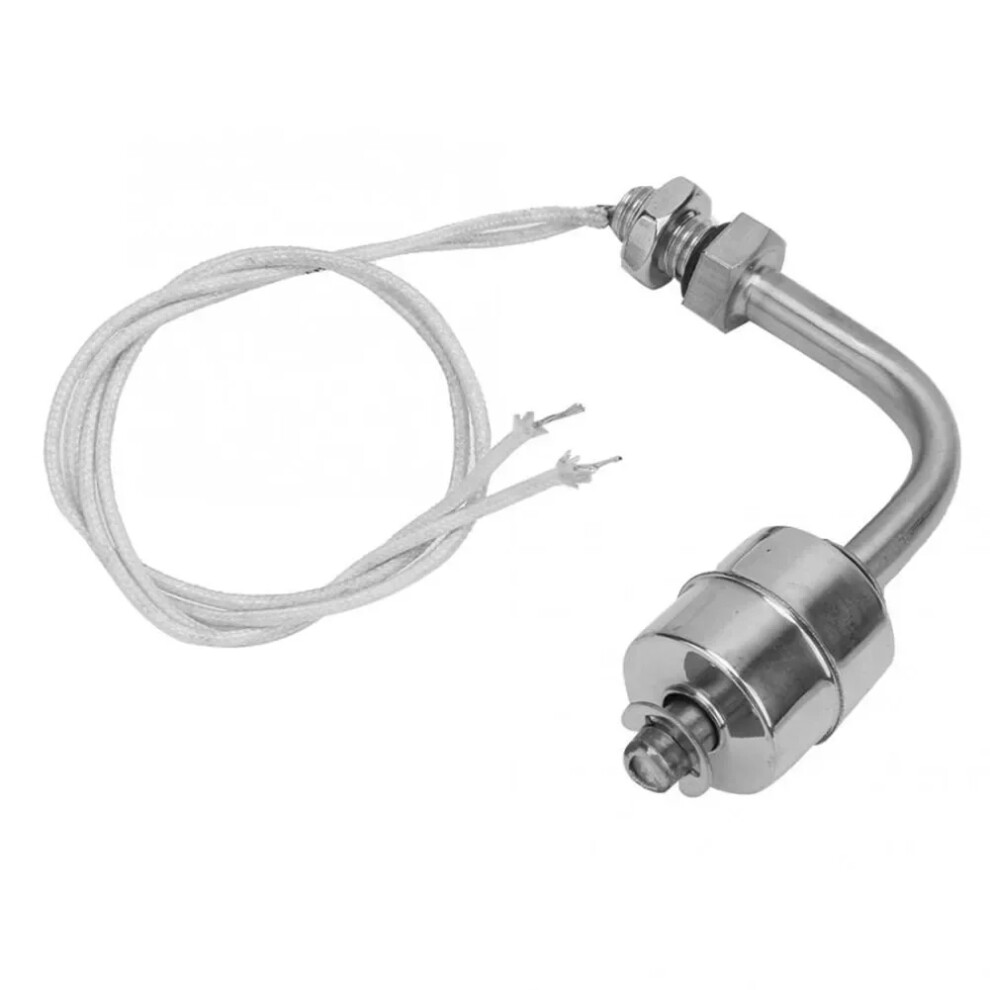

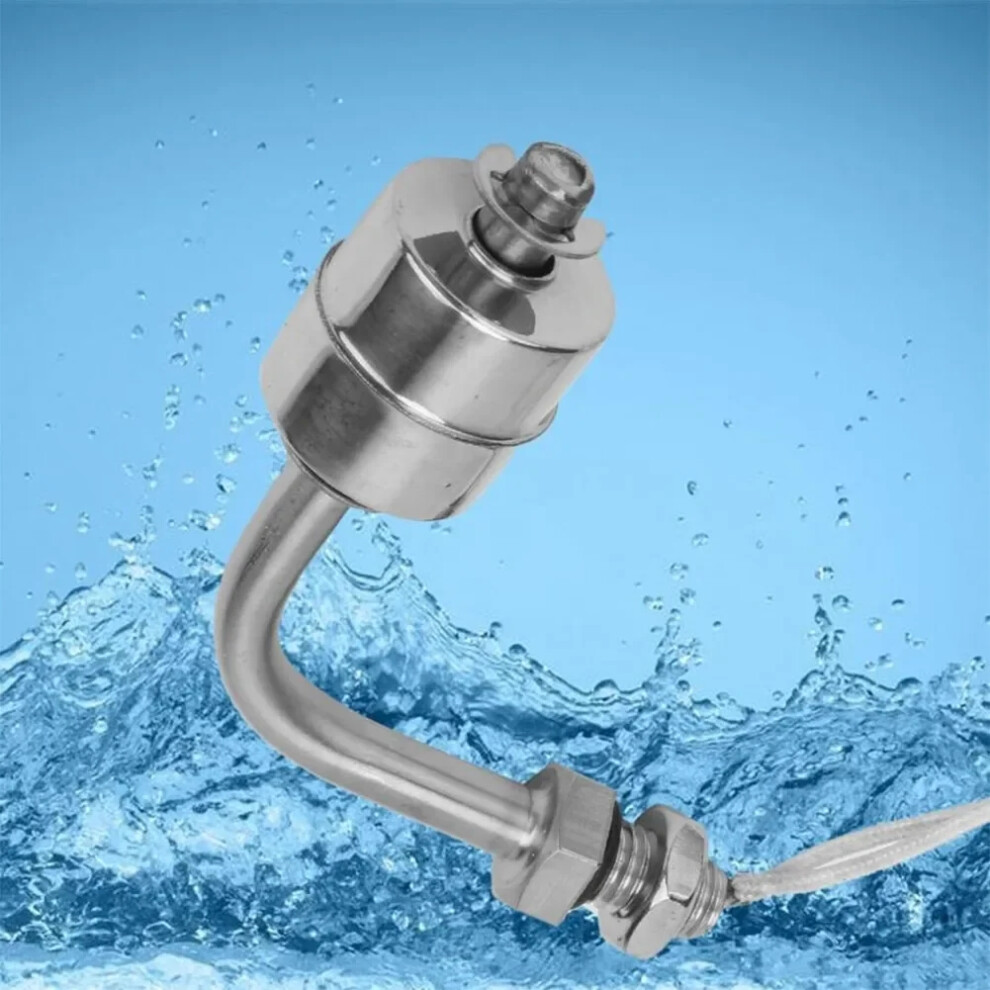

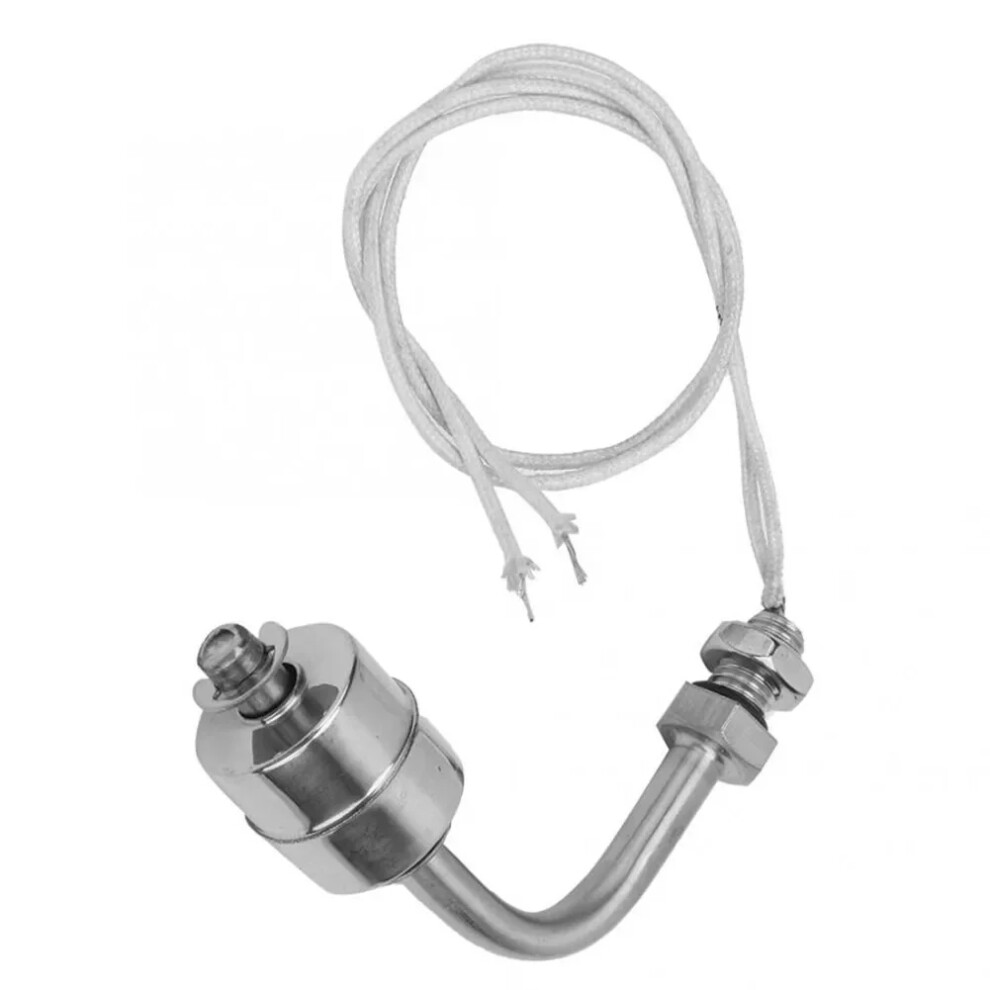

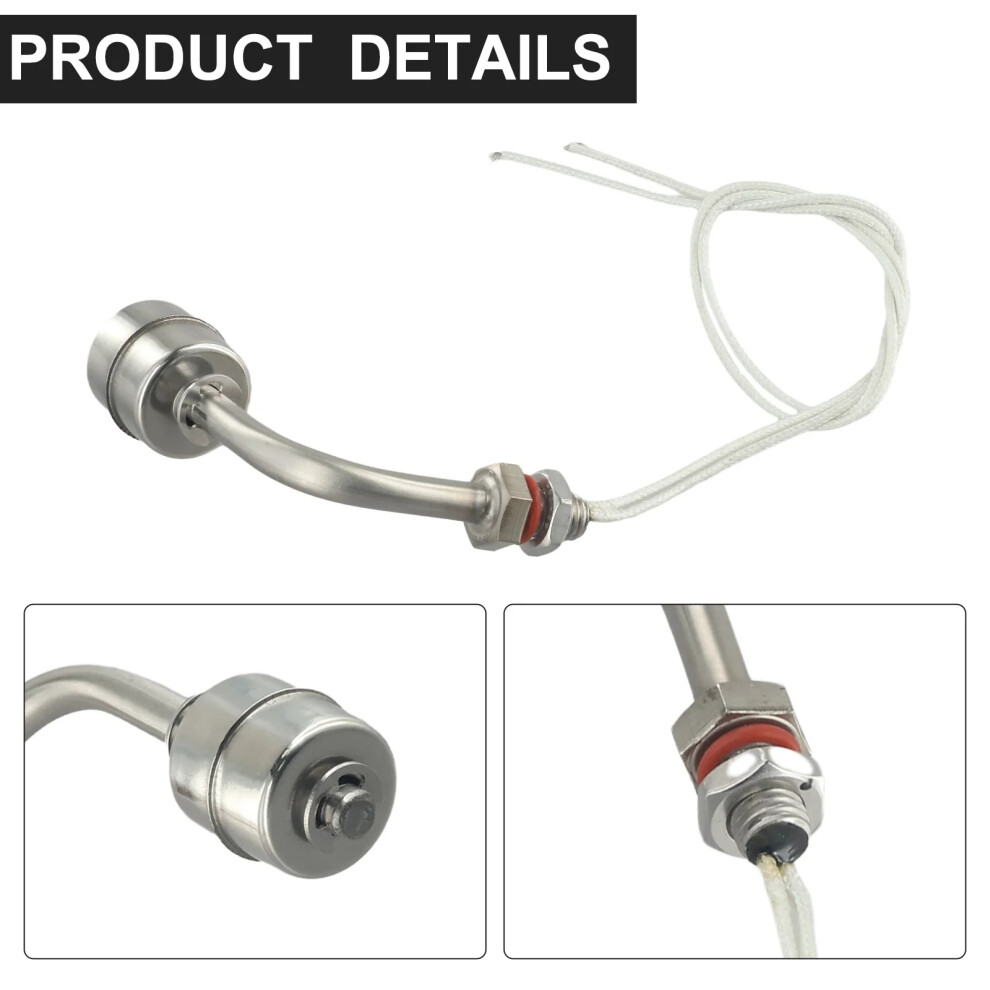

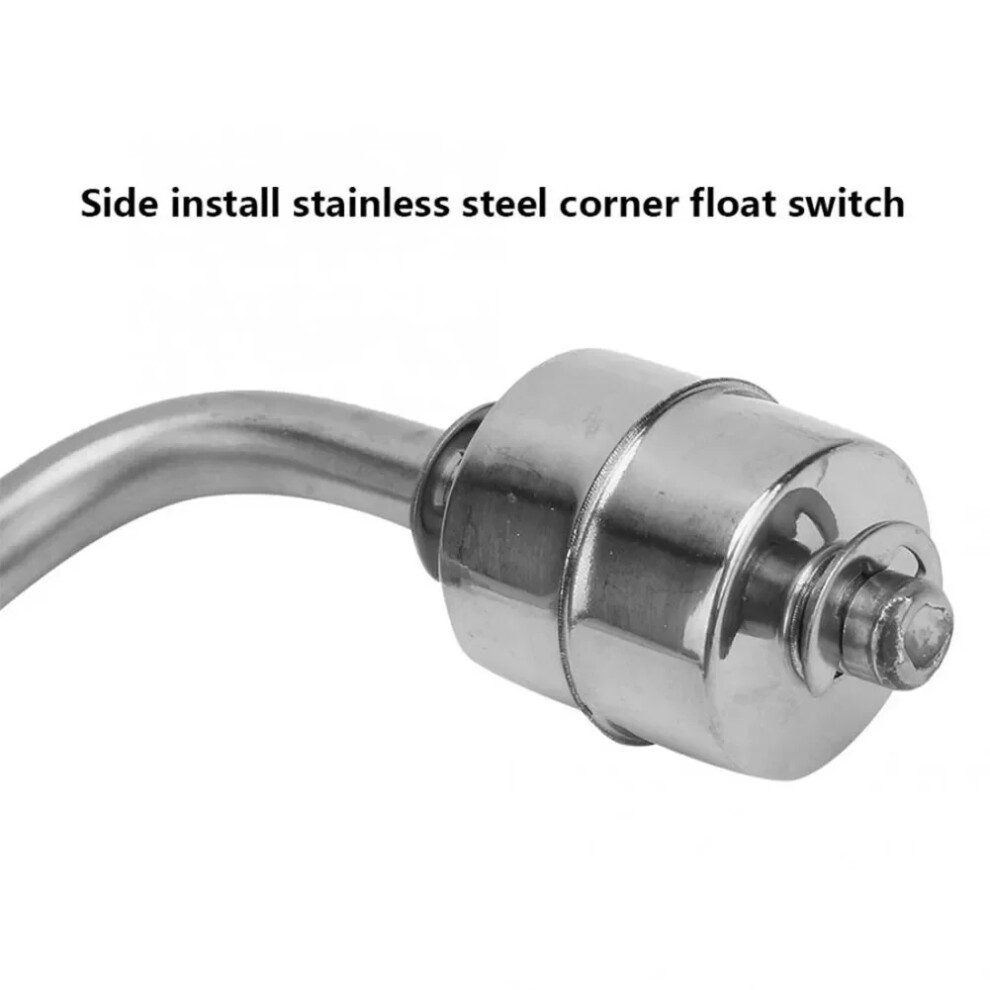

304 Stainless Steel Float Switch Tank Liquid Right Angle Water Level Sensor Heat-resistant L Type Automatic Level Sensor

304 Stainless Steel Float Switch Tank Liquid Right Angle Water Level Sensor Heat-resistant L Type Automatic Level Sensor Description

High-concerned chemical : None

Type : Other

Brand Name : DAZZLEEX

Origin : Mainland China

Stainless Steel Float Switch Tank Liquid Water Level Sensor L type for Pool Can 75mm Float Switch Tank Pool Sensors

Features:

brand new and high-quality.

It adopts 304 stainless steel and 316L material,very.

It can work at the temperature as high as 120.

It can withstand 5Mpa at most which makes it can work at most environments.

It can work in AC 0-220V,and DC 0-200V which makes is suitable for most for power source.

Attention:

Floating ball is all stainless steel 304 material, clip spring is 316L material.

Low voltage refers to the floating ball switch can be used in 0-110V DC voltage circuit.

High voltage means floating ball switch can be used in AC 0 220V, DC 0 200V line.

High temperature is to point to float ball switch can long-term withstand temperature 120 degrees.

High temperature and high pressure is white silica gel high temperature line, low pressure is common black line

Floating ball switch can not directly control solenoid valve or high-power relay, AC contactor and so on.Add a small relay to make the transition.

Floating ball travel 10mm, that is, the control range 10mm, if the control range can be large 2 combinations,1 long and 1 short installation.

Specification:

Working voltage:0 220 V

Working current: 0.5-1 A

Material:SUS304& SUS316

Operating temperature:0 120

Maximum temperature tolerance 120

Working Pressure:1 Mpa

Maximum withstand pressure:5 Mpa

Maximum power: low voltage: 10W

High voltage: 50W

Maximum switching current: low voltage: 0.5A

High voltage: 1.5A

Package Includes:

1*Liquid Level Sensor

Note:

1. As different computers display colors differently, the color of the actual item may vary slightly from the above images.

2. Please allow 1-3mm differs due to manual measurement.
