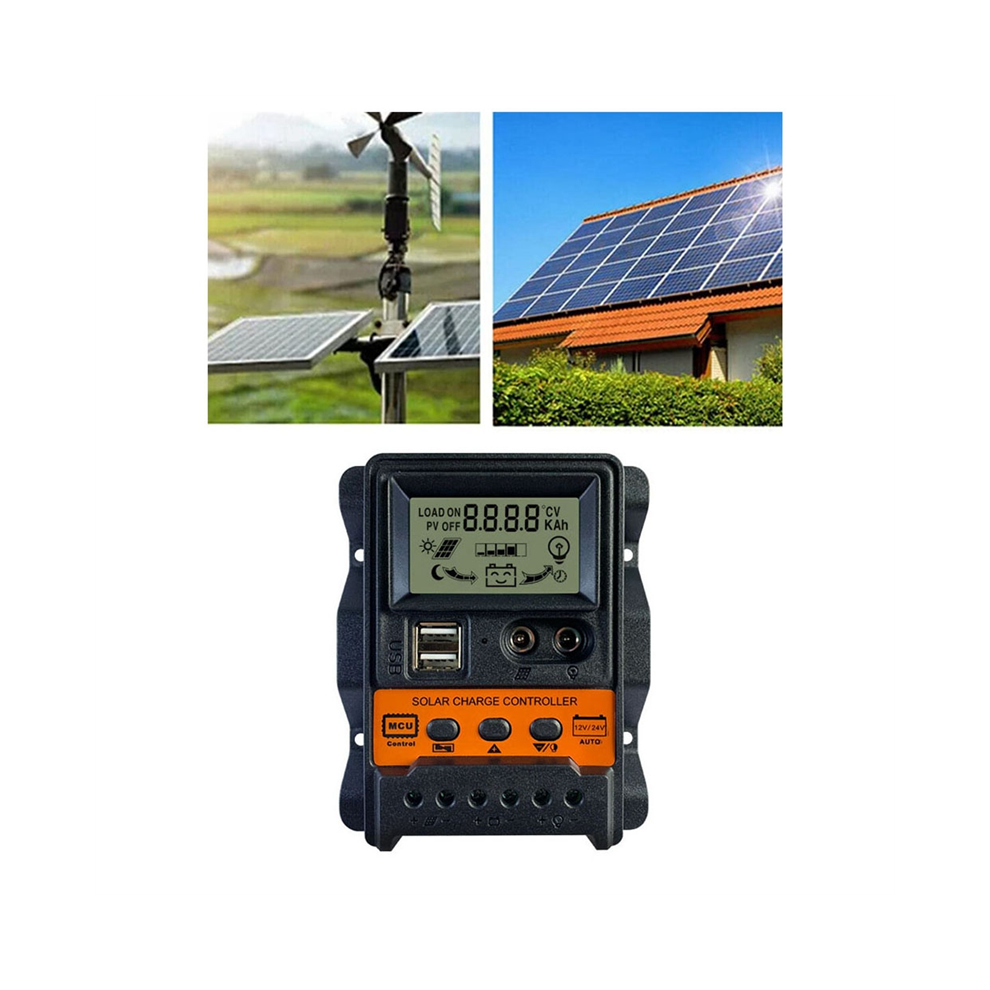

30A Solar Charge Controller Solar Panel Battery Controller 2 USB LCD

30A Solar Charge Controller Solar Panel Battery Controller 2 USB LCD Description

30A Solar Charge Controller Solar Panel Battery Controller 2 USB LCD Description
Features: 1. Industrial-grade master chip, accurate scanning, temperature, charging current, accurate real-time display of discharge current, power generation at a glance.
2. Automatic focusing, tracking charging, high charging efficiency, non-stop detection.
3. Bidirectional focus tracking during charging.
4. Large-screen LCD display, adjustable charging and discharging parameters. When the output is off, the time can be set for convenience.
5. Complete three-phase charging management effectively protects the battery and delivers higher performance. Built-in overheat, overcurrent, short-circuit, open-circuit, and reverse polarity protection. Once the fault is rectified, the controller will automatically reset and cause no damage.
Specification:
USB output: 5 V/2.5 A
Standby current: Less than 10 mA
Nominal voltage: 12 V/24 V
Max. PV voltage: 50 V
Max. PV Input Power: 260 W (12 V), 520 W (24 V)
Nominal Charging Current: 30 A
Nominal Discharging Current: 30 A
Operating Temperature: -35 to 60 degrees
Boosted Charging Voltage: 14.4 V (Sealed Type)
Floor Charging Voltage: 13.7 V (Standard, Adjustable)
Discharge Cut-off Voltage: 10.7 V (Standard, Adjustable)
Discharge Recovery Voltage: 12.6 V (Standard, Adjustable)
Material: Plastic
Color: Black
Package Contents:
1 x Solar Panel Battery Controller Charge Controller
Only the above package contents, other products are not included.
Note: Light reflections and different displays may cause the color of the item in the picture to be slightly different from the actual product. The actual product shown is shown. The permissible measurement error is +/- 1-3 cm. [OnBuy.com]
