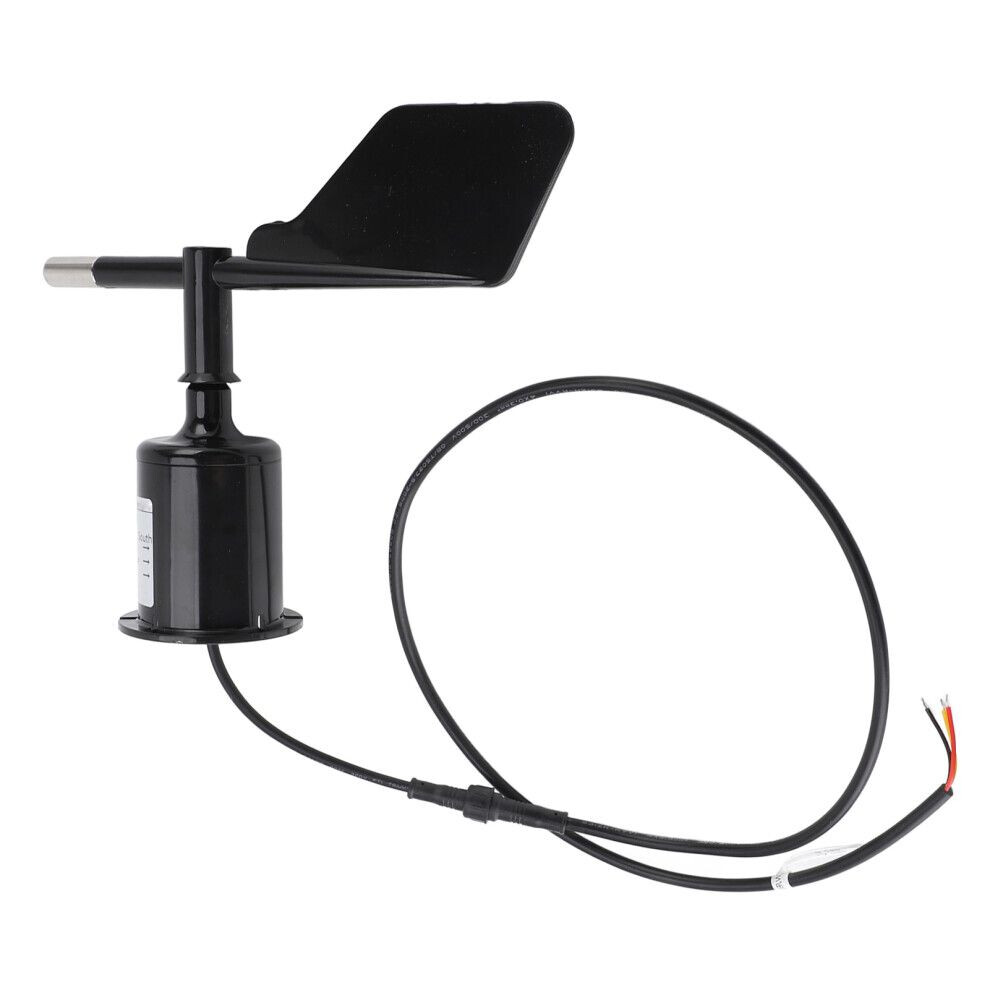

360 Degree Wind Direction Sensor DC 5V Precise Anemometer Sensor Wind Indicator Protector for Garden Greenhouse
Item Type: Wind Direction Sensor
Material: ABS
Weight: Approx. 385.00g/13.58oz
Product Size: Approx. 223x190x70mm/8.78x7.48x2.76in
Power Supply Voltage: DC 5V
Output: 0 to 2.5V
Extension Cable Length: 0.8m
Accuracy: Omni directional: 3
Resolution: Omni directional: 1
Startup Wind Speed: 0.8m/s
Maximum Power Consumption: 0.48W
Load Capacity: DC 12V power supply, current output impedance 350Ω
DC24V power supply, current output impedance 900Ω
Voltage output impedance 1KΩ
Operating Environment: Temperature -35 to 60
Humidity 100%RH non condensing
Protecting Level: IP64
Cable Level: Rated voltage: 300V 80
Application: for garden, greenhouse, environmental protecting, meteorological station, ship, dock, aquaculture, advertising barrier, weather, marine, environment, airport, port, laboratory, agriculture and traffic environment wind direction measurement
Installation Aperture: 3.2mm/0.13in
Mating Plug Diameter: 15mm/0.59in (recommend reserving 25mm for wiring, wire up first, then install and fix the sensor)
Calculation Formula: 0 to 2.5V: F=V/2.5x359
Note: F represents wind direction angle value, unit: ; V represents sensor output voltage value, V
Wiring Method:
Red wire output signal (voltage): power positive
Black wire output signal (voltage): power negative
Yellow wire output signal (voltage): signal
Troubleshooting:
1. The impeller does not rotate smoothly and is severely delayed. Due to foreign objects or jamming inside the bearing caused by long term use. Please return the sensor to the company for processing
2. Analog signal, the displayed value is incorrect when RS485 output. It may be due to wiring problems or communicating port failures leading to the inability to obtain correct data. Please check if the wiring is correct and secure, whether the communicating port is in use, and whether the communicating port settings are correct
