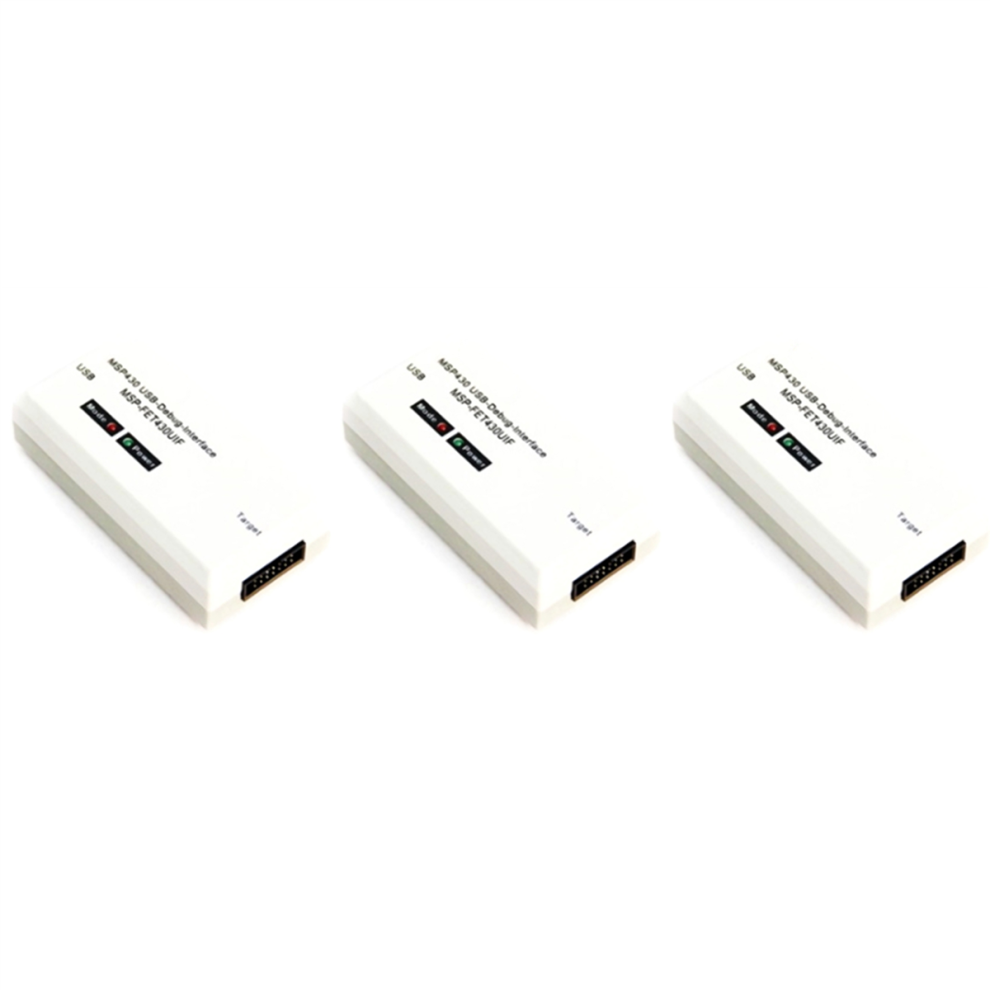

3X MSP430 Emulator MSP-FET430UIF USB Debug Interface Programmer JTAG//SBW Software F149 Development Board IAR Version

3X MSP430 Emulator MSP-FET430UIF USB Debug Interface Programmer JTAG//SBW Software F149 Development Board IAR Version Description

This MSP -FET430UIF is a powerful flash emulation tool to get started with application development quickly on the MSP430 MCU. It includes USB debugging interface used to program & debug the MSP430 in-system via the JTAG interface or the pin saving Bi-Wire (2-wire JTAG) protocol. The flash memory can be easily erased and reprogrammed in seconds with only a few keystrokes. The MSP430 flash is ultra-low power, so no external power supply is required.
This debugging tool interfaces the MSP430 to the included integrated software environment and includes code to start immediately. The MSP -FET430UIF development tools supports development with all MSP430 flash devices.
The USB Debugging Interface is compatible with IAR Version 3.21 or higher.
Via USB debugging interface (MSP-FET430UIF), a flash-based MSP430 MCU can be connected to a PC for real-time, in-system programming and debugging
: it can support XP, Vista, 7 (32 & 64-bit)

Technical Specifications:
Software configurable supply voltage: between 1.8 and 3.6 volts at 100mA
Supports JTAG Security Fuse blow to protect code
Supports all MSP430 boards with JTAG header

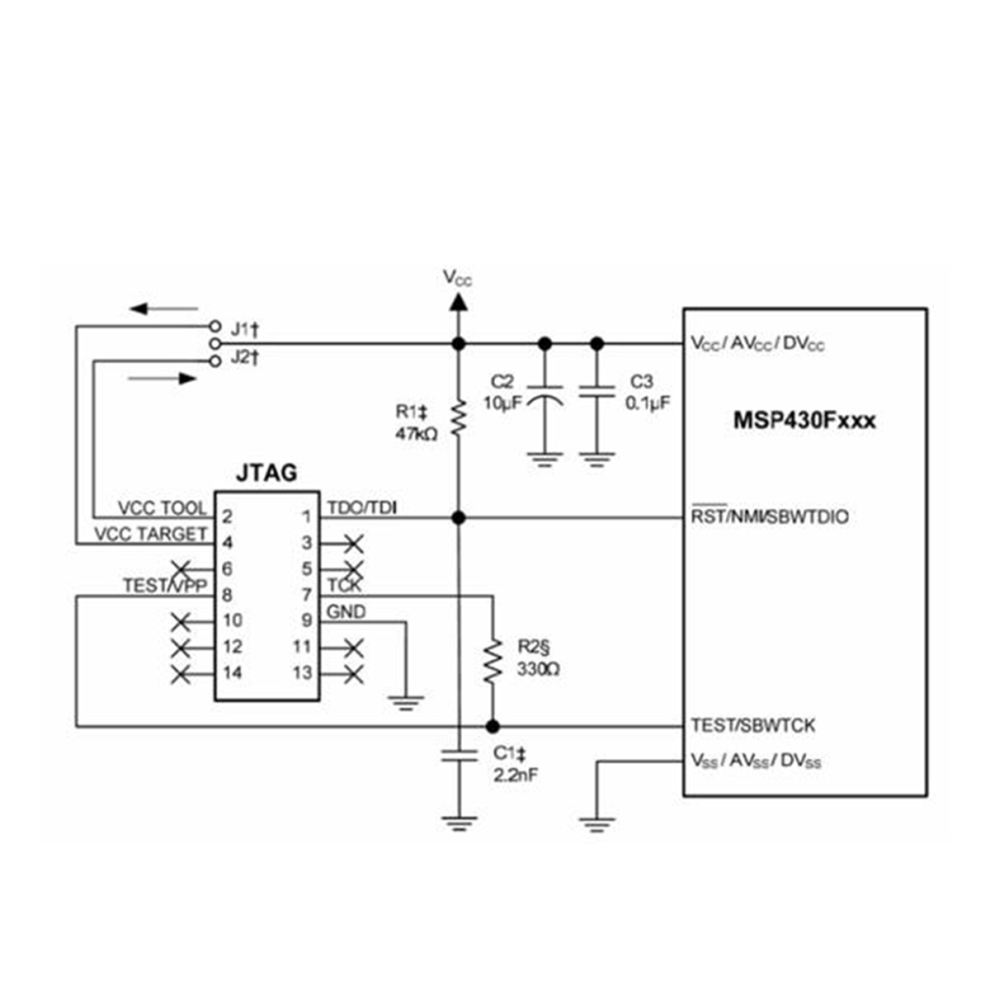

Supports both JTAG and -Bi-Wire (2-wire JTAG) debug protocols
Material: plastic
colour: As shown

Package Contents:
3 x MSP 430 debugger
3 x USB cable
3 x 14-pin Flat cable
3 x CD

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
